Slow power windows
01-26-13, 09:55 AM
#1
Junior Member
Thread Starter
Join Date: Sep 2002
Location: Saint John NB Canada
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Slow power windows
My windows are operating slowly. If I connect a battery directly to the PW motor they work fine. I found a mod on this site that by adding relays you apply battery voltage directly to the motor without going thru the factory window switches, which should fix the priblem,
However I also see where Autoloc sell a one touch system that you can add part # wc2000. Here's the link
2 Window One Touch Up And Down Window Unit- (Up AND Down) « autoloc.com)
My question is, does the power to operate the motors go thru the factory swiches, same as stock, or do the switches simply operate a relay or some solid state device, & the power for the motors is applied directly.
Thanks for any input.
Stew
However I also see where Autoloc sell a one touch system that you can add part # wc2000. Here's the link
2 Window One Touch Up And Down Window Unit- (Up AND Down) « autoloc.com)
My question is, does the power to operate the motors go thru the factory swiches, same as stock, or do the switches simply operate a relay or some solid state device, & the power for the motors is applied directly.
Thanks for any input.
Stew
01-26-13, 12:33 PM
#2
Without seeing a wiring diagram, it's hard to say. I wired in relays in my windows and was instantly satisfied! However, do not neglect to mount them in a position to where water can get in them. Make sure you get the relays with the little tab so you can screw them to the inside of the door. Otherwise, water can get in the relays and rust the internals out. I got stuck in the rain with a window down because of it.
01-26-13, 01:17 PM
#3
Use instead of the Relay Mod, NOT with the Relay Mod
I downloaded the instructions. It looks as if the unit would essentially replace the relays in the 'relay mod'.
One caution for those of us with existing relay mod systems: this unit has a load sensor that detects overloading the motor . It keeps you from cutting off your hand, your dog's head, your G/F *****
or anything else that can get rolled up in the window! It must be connected directly to the window motors, or it cannot sense the load. You MUST remove the relays you added to keep everything playing nice and safe.
-jack
On another note: I used 4 heavy duty relays on my relay mod. They cost +/-$5 each. $20 for the relay mod. I would rather have this unit for the slight extra money.
One caution for those of us with existing relay mod systems: this unit has a load sensor that detects overloading the motor . It keeps you from cutting off your hand, your dog's head, your G/F *****
or anything else that can get rolled up in the window! It must be connected directly to the window motors, or it cannot sense the load. You MUST remove the relays you added to keep everything playing nice and safe.-jack
On another note: I used 4 heavy duty relays on my relay mod. They cost +/-$5 each. $20 for the relay mod. I would rather have this unit for the slight extra money.
01-26-13, 03:17 PM
#4
Junior Member
Thread Starter
Join Date: Sep 2002
Location: Saint John NB Canada
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
I downloaded the instructions. It looks as if the unit would essentially replace the relays in the 'relay mod'.
One caution for those of us with existing relay mod systems: this unit has a load sensor that detects overloading the motor . It keeps you from cutting off your hand, your dog's head, your G/F ***** or anything else that can get rolled up in the window! It must be connected directly to the window motors, or it cannot sense the load. You MUST remove the relays you added to keep everything playing nice and safe.
-jack
On another note: I used 4 heavy duty relays on my relay mod. They cost +/-$5 each. $20 for the relay mod. I would rather have this unit for the slight extra money.
One caution for those of us with existing relay mod systems: this unit has a load sensor that detects overloading the motor . It keeps you from cutting off your hand, your dog's head, your G/F *****
or anything else that can get rolled up in the window! It must be connected directly to the window motors, or it cannot sense the load. You MUST remove the relays you added to keep everything playing nice and safe.-jack
On another note: I used 4 heavy duty relays on my relay mod. They cost +/-$5 each. $20 for the relay mod. I would rather have this unit for the slight extra money.
Thanks a lot!
Stew
02-18-13, 09:53 AM
#7
Junior Member
Thread Starter
Join Date: Sep 2002
Location: Saint John NB Canada
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
How to add one touch Power Windows
I just finished puttung in the Autoloc system in both doors & am pleased with the way they work; they are faster & smoother. The current for the motor doesnt pass thru the PW switch contacts so they should last much longer.

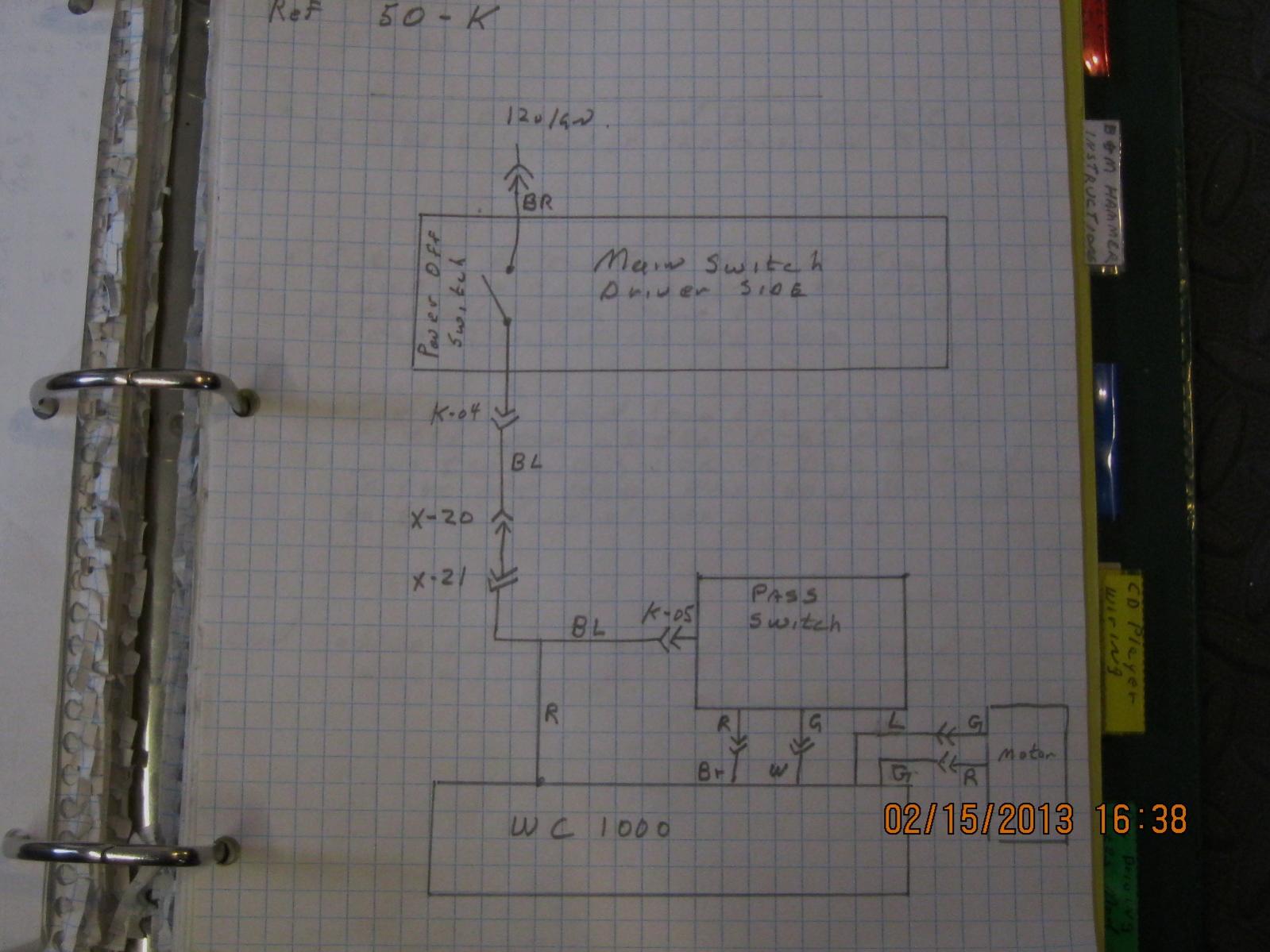

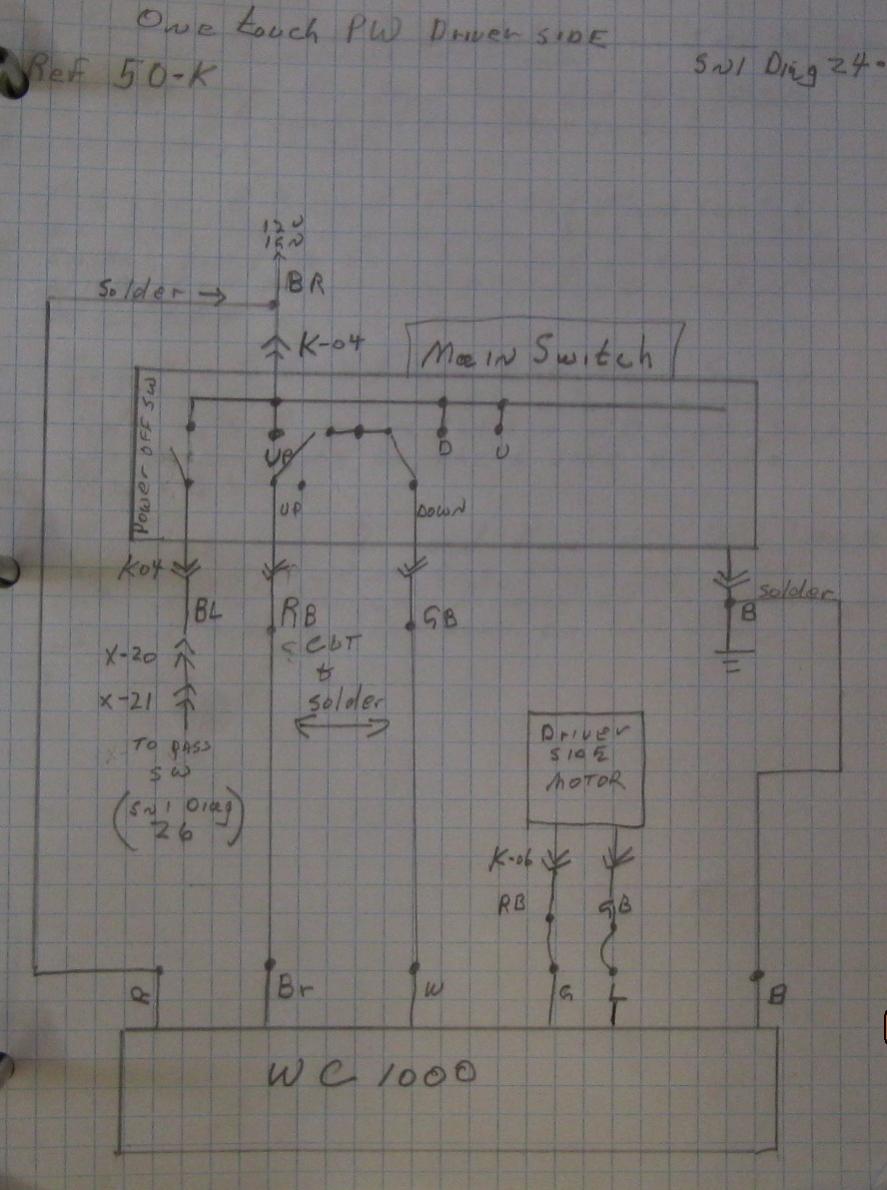

Attached is a word document that explains how to do it. Also some pics & diagrams
Attached is a word document that explains how to do it. Also some pics & diagrams
Trending Topics
02-18-13, 05:44 PM
#8
Full Member

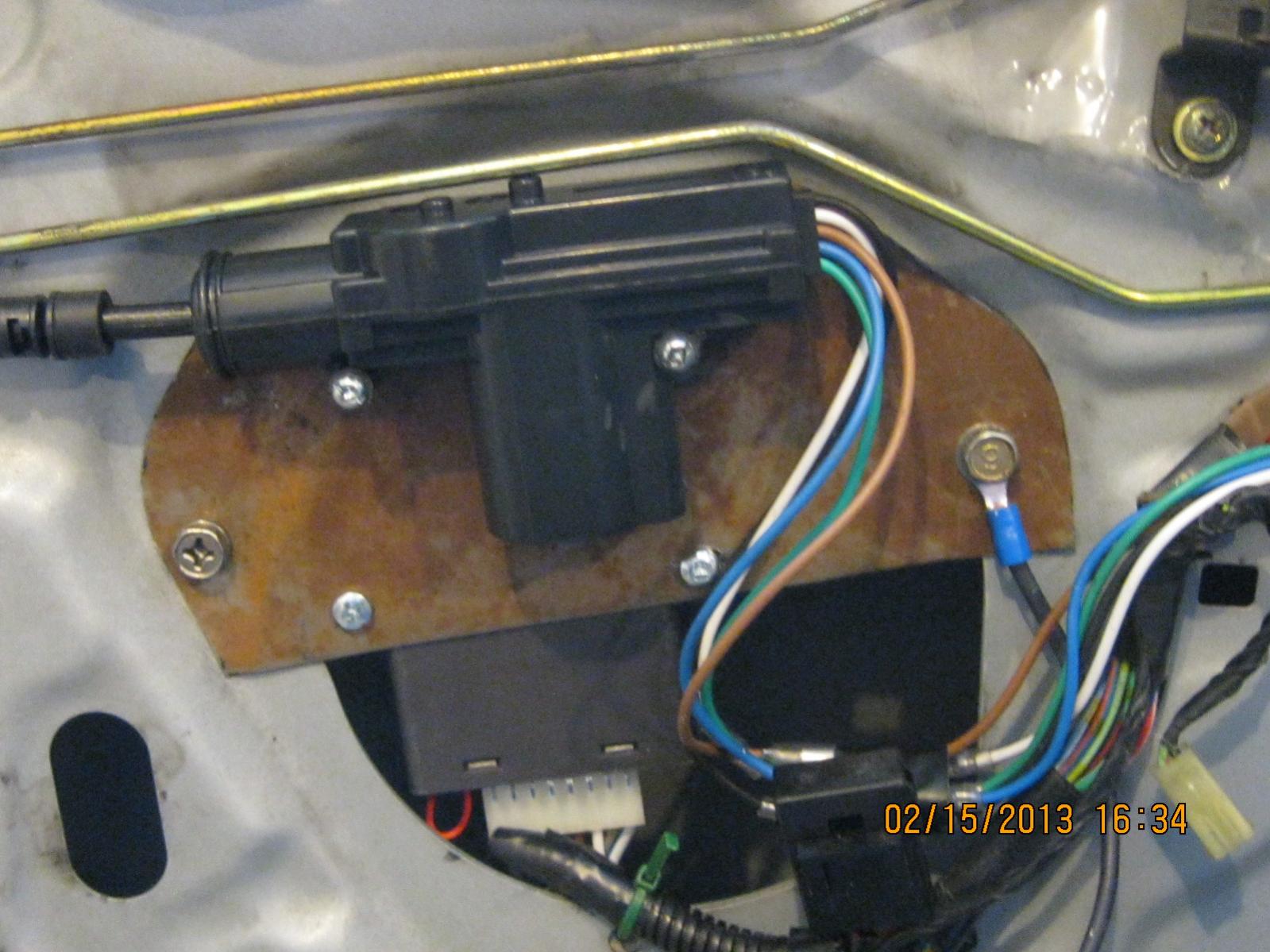

can you post more info about your power door locks? I have been trying to figure out how they work so I can see if they can still mechanically trigger the factory alarm in my vert. Nice write up by they way. I just put the power window stuff on order.
02-18-13, 11:03 PM
#9
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
My windows are operating slowly. If I connect a battery directly to the PW motor they work fine. I found a mod on this site that by adding relays you apply battery voltage directly to the motor without going thru the factory window switches, which should fix the priblem,
However I also see where Autoloc sell a one touch system that you can add part # wc2000. Here's the link
2 Window One Touch Up And Down Window Unit- (Up AND Down) « autoloc.com)
My question is, does the power to operate the motors go thru the factory swiches, same as stock, or do the switches simply operate a relay or some solid state device, & the power for the motors is applied directly.
Thanks for any input.
Stew
However I also see where Autoloc sell a one touch system that you can add part # wc2000. Here's the link
2 Window One Touch Up And Down Window Unit- (Up AND Down) « autoloc.com)
My question is, does the power to operate the motors go thru the factory swiches, same as stock, or do the switches simply operate a relay or some solid state device, & the power for the motors is applied directly.
Thanks for any input.
Stew
If you search a bit more with my screen name you'll find conversation about it.
02-19-13, 11:55 AM
#10
Junior Member
Thread Starter
Join Date: Sep 2002
Location: Saint John NB Canada
Posts: 36
Likes: 0
Received 0 Likes
on
0 Posts
Here is a link to the ones I bought. As I said they work fine, the wiring does seem to be a light gauge though.
4 Door Power Central Lock Kit w 2 Keyless Entry Car Remote Control Conversion | eBay
