setting TDC to the CAS

Thread Tools

Search this Thread

Old 09-30-05, 07:11 PM
  #1
my fc broke

Thread Starter

1SxyRXy's Avatar

Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes on 0 Posts
setting TDC to the CAS

i pulled the CAS out because i had to switch front covers, i know there is a mark on the CAS with a arrow on it, my guess is put the pully's on and lighn up the marks with the timming needle and then set the CAS and then drop it in. am i correct, and the front pully's only go on one way right?
Old 09-30-05, 08:04 PM
  #2
I R SAD PANDA W/O BAW


ilike2eatricers's Avatar

Join Date: Nov 2002
Location: bay area
Posts: 6,061
Likes: 0
Received 1 Like on 1 Post
Line up the pulley with the yellow mark (on the right) with the needle. Take the top cover off the CAS. Hold the CAS in your hand and look on the bottom of it. There is a dimple there. Line up the dimple on the bottom of the CAS shaft and then look at the top of the CAS with the cover off and note where one of the 2 teeth on the top CAS gear are in relation to the CAS body. When you stab the CAS the shaft will rotate so you need to adjust it so that when the CAS is fully stabbed you have the tooth in the same place as where it was in relation to the body. Let me know if you need me to explain it more clearly.
Old 09-30-05, 08:16 PM
  #3
Hopeless Rotorhead

iTrader: (2)

RandomHero's Avatar

Join Date: Feb 2005
Location: N. Houston, TX
Posts: 590
Likes: 0
Received 0 Likes on 0 Posts
I have been wondering about this myself and havent had time to look at it. I understand lining up the timing marks on the pulley. But is there a mark on the gear that drives the cas as well?
Old 09-30-05, 08:19 PM
  #4
Never give up!

iTrader: (8)

The Spyder's Avatar

Join Date: Jan 2004
Location: Oregon
Posts: 3,726
Received 45 Likes on 34 Posts
Line up the mark on the front cover and then insert the cas so it looks like this with the cover off.

Old 10-03-05, 05:09 PM
  #5
my fc broke

Thread Starter

1SxyRXy's Avatar

Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes on 0 Posts

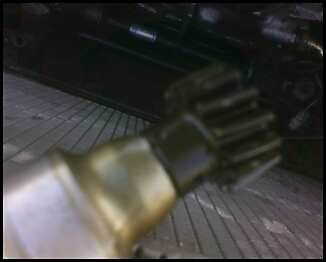

can i just lighn up the first mark with the needle and the the second one is the pic of the marks on the CAS
Attached Thumbnails setting TDC to the CAS-45964605_142765232_0.jpg   setting TDC to the CAS-45964731_142765568_0.jpg

Last edited by 1SxyRXy; 10-03-05 at 05:12 PM.
Old 10-03-05, 11:44 PM
  #6
Full Member


rhythmfunk's Avatar

Join Date: Jul 2004
Location: Sacramento
Posts: 164
Likes: 0
Received 0 Likes on 0 Posts
I need to know the same thing...I dont have marks on my front pulley and need to get my CAS in correctly on my rebuild, if you find out..please share.
Old 10-04-05, 12:37 AM
  #7
Junior Member


rotan20b's Avatar

Join Date: Sep 2005
Location: new zealand
Posts: 38
Likes: 0
Received 0 Likes on 0 Posts
TDC--IS when the keyway on the E. Shaft (behind the front pulley bolt) is facing 9 o'clock--
eg--facing the exhaust ports, and two of the front pulley bolts are in line with the timing marker point, this is TDC--(Don't remove or loosing the front pulley bolt without seeing what has to be done to hold the torrington bearings--(go to www.mazdatrix.com/faq/pulley.htm to see what I mean)
To work out how many MM's are Deg' (so you can mark the pulleys timing marks from TDC) take your pullys outside DIA and times by pie---eg--3.1415926, this will give the circumference, once you have this--divided by 360 (this is degrees) and this will give the MM's pre Degree.
mark off from TDC.
Hope this is not to confussion for you
(I had pics and diagrams that showed how this was done)
Old 10-04-05, 11:21 AM
  #8
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
[QUOTE=1SxyRXy]can i just lighn up the first mark with or

Your not paying attention. Listen to the Spyder who supplied you with a picture of the cas when the timing is correct.

Why did you make a picture of the pulley hub?????? The marks are on the pulley, not the hub. They are scratches on the rear of the pulley. Align the first mark on the pulley with the fixed pointer on the front cover. Install the cas with the top cover of the cas off and the bottom marks on the cas aligned. Then rotate the cas body until the top of your cas looks like the Spyders. Note how Spyders top *gears* on the cas just cut across the edge of the black coil assy's.

Then start the engine and use a timing light to set the timing.
Old 10-04-05, 12:03 PM
  #9
my fc broke

Thread Starter

1SxyRXy's Avatar

Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes on 0 Posts
i was just wondering why they have that mark on the hub then, it seems like a TDC mark or something, well to late for that bearing thingy, i already pulled the bolt out but i used a impact gun lets hope im not screwed. the only thing i revoved were the pully's and the oil pellet i basicly just pulled the front cover off to swap it out for an S4

Last edited by 1SxyRXy; 10-04-05 at 12:17 PM.
Old 10-04-05, 12:15 PM
  #10
i am legendary


ddub's Avatar

Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by 1SxyRXy
can i just lighn up the first mark with the needle and the the second one is the pic of the marks on the CAS
Yes, lining it up via the line and dimple on the bottom of the CAS gear is the correct way to do it. Trying to do it via the 2 screws under the cover for the CAS is pointless, you have to remove the CAS anyways, so just do it the right way.
Old 10-04-05, 12:19 PM
  #11
my fc broke

Thread Starter

1SxyRXy's Avatar

Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes on 0 Posts
i already removed the CAS and lighned up the dimple and the arrow thing, just wondering what had to be lighned up on the pully's
Old 10-04-05, 12:23 PM
  #12
i am legendary


ddub's Avatar

Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes on 0 Posts
There should be 2 marks, one red and one yellow (but sometimes the paint has flaked off over time). Looking down at the pulling from the top, they should be on the back edge of the pulley, yellow is leading (on the right), red is trailing (on the left). Align front cover pin to the yellow (right) mark, then remove CAS, line up, insert back in. You must do the CAS after you align the marks.
Old 10-04-05, 01:55 PM
  #13
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts
Originally Posted by dDuB
Yes, lining it up via the line and dimple on the bottom of the CAS gear is the correct way to do it. Trying to do it via the 2 screws under the cover for the CAS is pointless, you have to remove the CAS anyways, so just do it the right way.

Two screws under the cover??? What are you talking about?

If you align the bottom of the cas gear with the fixed mark on the cas body then take a look at the internal teeth of the cas in relation to a fixed point inside the cas, then you'll be able to tell if the cas is still aligned after you install the cas. The shaft on the cas will move as you install the cas. IF you observed the internal gears in the cas prior to installing the cas, you can now rotate the cas body til those points again align. If they're aligned you can be assured that the bottom gear of the cas is still aligned.

If you align just the gear at the bottom on the cas with the cas body, and then stab the cas, you havn't a clue how far off the shaft has rotated from the mark on the cas body.
Old 10-04-05, 02:48 PM
  #14
i am legendary


ddub's Avatar

Join Date: Sep 2003
Location: Kirkland, WA
Posts: 8,478
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by HAILERS
Two screws under the cover??? What are you talking about?

If you align the bottom of the cas gear with the fixed mark on the cas body then take a look at the internal teeth of the cas in relation to a fixed point inside the cas, then you'll be able to tell if the cas is still aligned after you install the cas. The shaft on the cas will move as you install the cas. IF you observed the internal gears in the cas prior to installing the cas, you can now rotate the cas body til those points again align. If they're aligned you can be assured that the bottom gear of the cas is still aligned.

If you align just the gear at the bottom on the cas with the cas body, and then stab the cas, you havn't a clue how far off the shaft has rotated from the mark on the cas body.
Lots of people on this forum, from what I've read, seem to tell people when stabbing the CAS to align to to these milky screws (circled in red).



Obviously if this is all you do and don't pay attention to the mark/dimple on the bottom gear, this can be in 2 different positions, one of which is 180º off. Since spyder didn't mention this I figured he was another person that was just saying to do it this way.

Obviously after you align the mark with the dimple on the bottom gear, you want to have the cover off to hold the gear in place as you stab it.
Old 10-04-05, 02:55 PM
  #15
Lives on the Forum

iTrader: (7)

Sideways7's Avatar

Join Date: Dec 2003
Location: Temple, Texas (Central)
Posts: 6,594
Received 3 Likes on 3 Posts
This might be a stupid question, but what do you mean by stabbing it? Inserting the gear?
Old 10-04-05, 03:20 PM
  #16
I R SAD PANDA W/O BAW


ilike2eatricers's Avatar

Join Date: Nov 2002
Location: bay area
Posts: 6,061
Likes: 0
Received 1 Like on 1 Post
Yes.
Old 10-04-05, 05:09 PM
  #17
my fc broke

Thread Starter

1SxyRXy's Avatar

Join Date: Feb 2003
Location: rohnert park,CA/ bay area
Posts: 2,231
Likes: 0
Received 0 Likes on 0 Posts

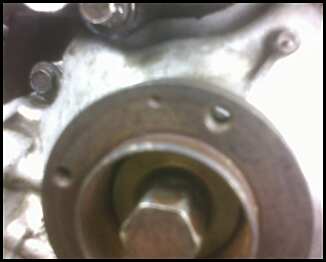

well i figured that the gear would move a little once i put the CAS in , im just wondering what that dimple is on the hub where the pullys go on to, the first picture i posted
Old 07-15-06, 10:43 PM
  #18
Full Member


keith_from_GPTX's Avatar

Join Date: Feb 2006
Location: DFW - TEXAS
Posts: 59
Likes: 0
Received 0 Likes on 0 Posts
im having the same problem. i did what this post said and still no fire. L! and L2 r the front rotor right?
Old 12-07-06, 03:52 PM
  #19
SAE Junkie

iTrader: (2)

Jobro's Avatar

Join Date: Mar 2005
Location: OZ/AU
Posts: 1,282
Likes: 0
Received 8 Likes on 5 Posts
L1 is front rotors leading plug (the one at the bottom.. closest to the sump)
L2 is the rear rotors leading plug (closest to sump...)
Old 12-08-06, 02:41 PM
  #20
I wish I was driving!


Join Date: Dec 2001
Location: BC, Canada
Posts: 5,241
Received 84 Likes on 68 Posts
Originally Posted by dDuB
Obviously if this is all you do and don't pay attention to the mark/dimple on the bottom gear, this can be in 2 different positions, one of which is 180º off.
What difference does this make? The CAS spins at 1/2 the eccentirc shaft speed. If you stab the CAS rotated 180 degrees, the engine still runs exactly the same, and timing is exactly the same. If you stab the CAS this way, and rotate the engine one full turn, the dimple will now be lined up.
The dimple is simply an idiots way of aligning the CAS to TDC. It can be completely ignored if you know how to align the toothed wheels to the VR sensor.
