S5 Seatbelt recall ---- what exactly do they replace ?

Thread Tools

Search this Thread

Old 01-30-10, 05:53 PM
  #1
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
S5 Seatbelt recall ---- what exactly do they replace ?

well, my S5 have some problem with the belts,

Driver side - sometimes the buckle does not move (I have to give it a little push)
Passenger side - same thing, but it works 80% of the time
The Mouse belt/Retractor - sometimes it does not "roll" the seat belt back, no way to tell if it actually locks up when accident happen.

So now the question is,

what exactly do they replace for the recall ?

Do they even replace the Mouse belt/Retractor ???

You know, the big piece sit between the 2 seats. I even tried to find the part myself, it seems that Mazda no longer carries it (at least for the one with Black belts)

Errrr ....


(yes, I did search!)
Old 01-30-10, 06:52 PM
  #2
rotors excite me

iTrader: (16)

SpeedOfLife's Avatar

Join Date: Jun 2006
Location: Central Iowa
Posts: 4,083
Likes: 0
Received 9 Likes on 6 Posts
All I've heard is that Mazda dealers are required to fix them for free. I'd say ask the dealer what they replace, and then have them do it. For free.
Old 01-30-10, 07:34 PM
  #3
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
well I did a search and browse thru like 5 pages of results. but no one seems to have a direct answer.

I just want to be sure ... the recall letter saids its the rail that might worn out and the chains gonna get stuck. no word about the belt retractor (the mouse belt) module.
Old 01-30-10, 09:30 PM
  #4
Rotary Enthusiast

iTrader: (1)

solareon's Avatar

Join Date: Mar 2008
Location: VA Beach
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts
I am having mine replaced on tuesday. They specified driver's side so I guess it is the belt assembly above the door and the motor.

The retractor in the middle is prolly broke on everyone's car mostly because the seatbelts are so far extended all the time.
Old 01-30-10, 09:37 PM
  #5
Now With 10th AE Fun!

iTrader: (1)

1SWEET7's Avatar

Join Date: Jun 2005
Location: CA
Posts: 1,869
Likes: 0
Received 0 Likes on 0 Posts
I have had 2 replaced on my S5 GTU. They replace the whole moving assembly.
Old 01-30-10, 10:31 PM
  #6
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
so basically they will "just" replace the Rail/chain/track and the buckle. NOT the mouse belt/retractor correct ?
Old 01-30-10, 10:46 PM
  #7
Now With 10th AE Fun!

iTrader: (1)

1SWEET7's Avatar

Join Date: Jun 2005
Location: CA
Posts: 1,869
Likes: 0
Received 0 Likes on 0 Posts
They replace the mousebelt/retractor too. It is all one assembly.

Edit. Wait do you mean the lap belt? If you do they don't replace that, well maybe but I have never seen one fail. They replace everything under the A pillar trim.
Old 01-31-10, 12:15 AM
  #8
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
Originally Posted by 1SWEET7
They replace the mousebelt/retractor too. It is all one assembly.

Edit. Wait do you mean the lap belt? If you do they don't replace that, well maybe but I have never seen one fail. They replace everything under the A pillar trim.
nah, I dont mean the lap belt.

Let me post a picture up
Old 01-31-10, 12:16 AM
  #9
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post

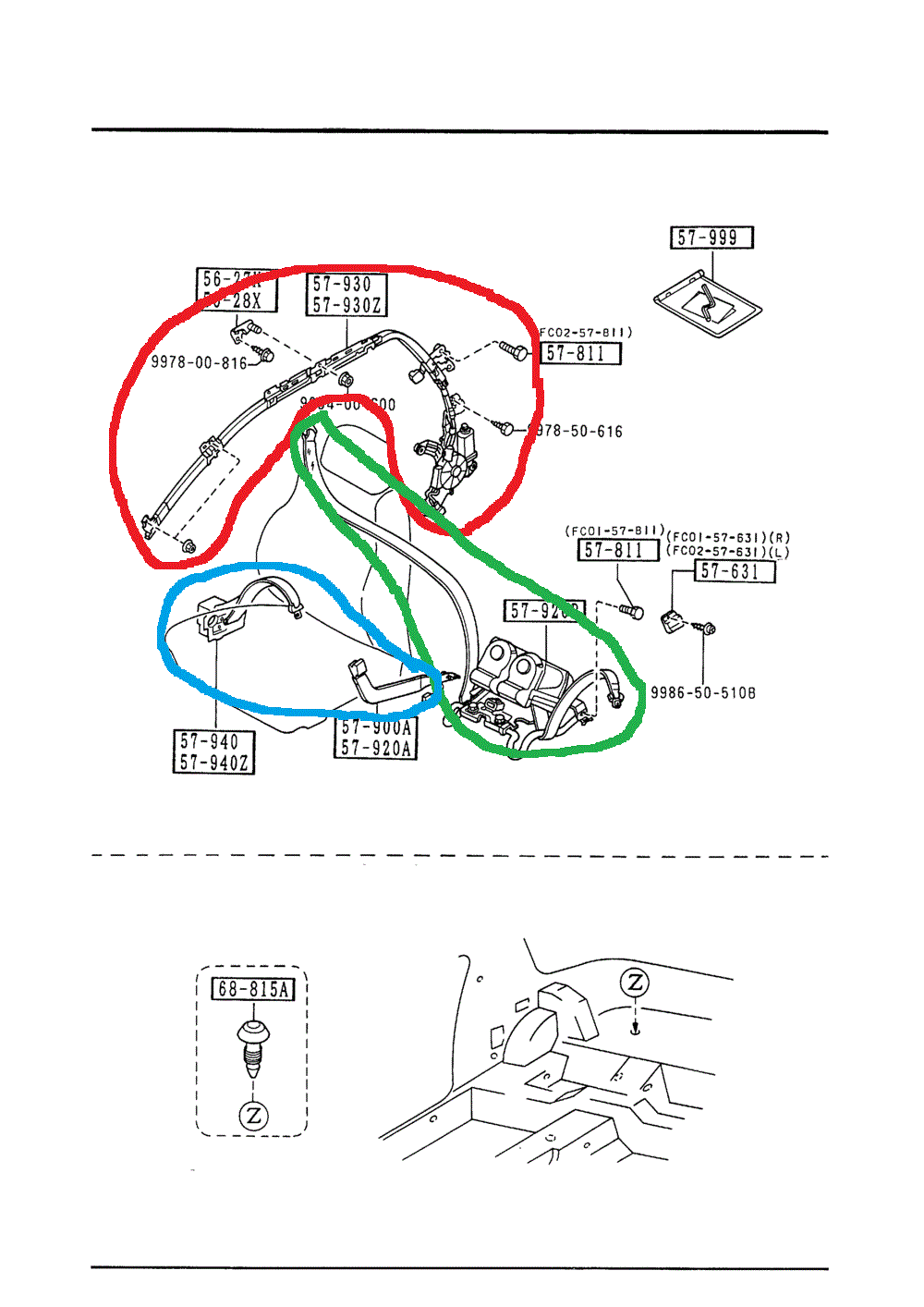

Cuz As far as I know, the Recall will ONLY replace the part colored in "RED"

Not "Green" , nor "Blue"

Is that correct ?

or is it Both "Red" and "Green" ? Or just everything in the picture ?

Thx
Attached Thumbnails S5 Seatbelt recall ---- what exactly do they replace ?-bf03891_1000.gif
Old 01-31-10, 11:27 AM
  #10
Now With 10th AE Fun!

iTrader: (1)

1SWEET7's Avatar

Join Date: Jun 2005
Location: CA
Posts: 1,869
Likes: 0
Received 0 Likes on 0 Posts
They replace the stuff circled in red.
Old 01-31-10, 02:01 PM
  #11
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
Originally Posted by 1SWEET7
They replace the stuff circled in red.
Thats what Im thinking.

Hmm, I guess I have to try to source a working mouse belt module then ... Cuz Mazda no longer sells them new in black ... only blue
Old 01-31-10, 02:32 PM
  #12
Rotary $ > AMG $

iTrader: (7)

jackhild59's Avatar

Join Date: Apr 2005
Location: And the horse he rode in on...
Posts: 3,783
Received 24 Likes on 23 Posts
Originally Posted by nycgps
Thats what Im thinking.

Hmm, I guess I have to try to source a working mouse belt module then ... Cuz Mazda no longer sells them new in black ... only blue
Seriously, just *paint* the a working module of any color. Duplicolor vinyl and fabric coating works fantastically well.

http://www.duplicolor.com/products/vinyl.html

Once you coat one part and make it look new, you will realize how bad everything else is in the interior.
Old 02-01-10, 12:47 AM
  #13
PedoBear

Thread Starter
iTrader: (4)

nycgps's Avatar

Join Date: Jun 2006
Location: Bye NYC. you SUCKED!
Posts: 1,429
Received 1 Like on 1 Post
hmm .... I never thought about that ...

Hmmmmmmmm ....


that might work ~!!!!

Thx for the idea ! I love u man :P
Old 02-01-10, 01:08 AM
  #14
INNOVATOR NOT IMITATOR

iTrader: (11)

DC 91 fc3s's Avatar

Join Date: Jul 2009
Location: LA 626
Posts: 1,254
Likes: 0
Received 0 Likes on 0 Posts
CA

Originally Posted by jackhild59
Seriously, just *paint* the a working module of any color. Duplicolor vinyl and fabric coating works fantastically well.

http://www.duplicolor.com/products/vinyl.html

Once you coat one part and make it look new, you will realize how bad everything else is in the interior.
lol thy even show a rx7 in the picture above on the site
