s5 actuators .... confused
so correct me if i'm wrong but the s5 actuators are controlled by the air pump right? and if they are pushed down that means that they are open?
bboyclo is offline
Reply Like
Old 05-15-10, 08:08 PM
  #2
Junior Member

confab's Avatar

Join Date: Mar 2010
Location: Sac
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Which actuators?
confab is offline
Reply Like
Old 05-15-10, 08:32 PM
  #3
Are you experienced?

iTrader: (18)

jjcobm's Avatar

Join Date: Oct 2008
Location: Illinois
Posts: 2,099
Likes: 0
Received 1 Like on 1 Post

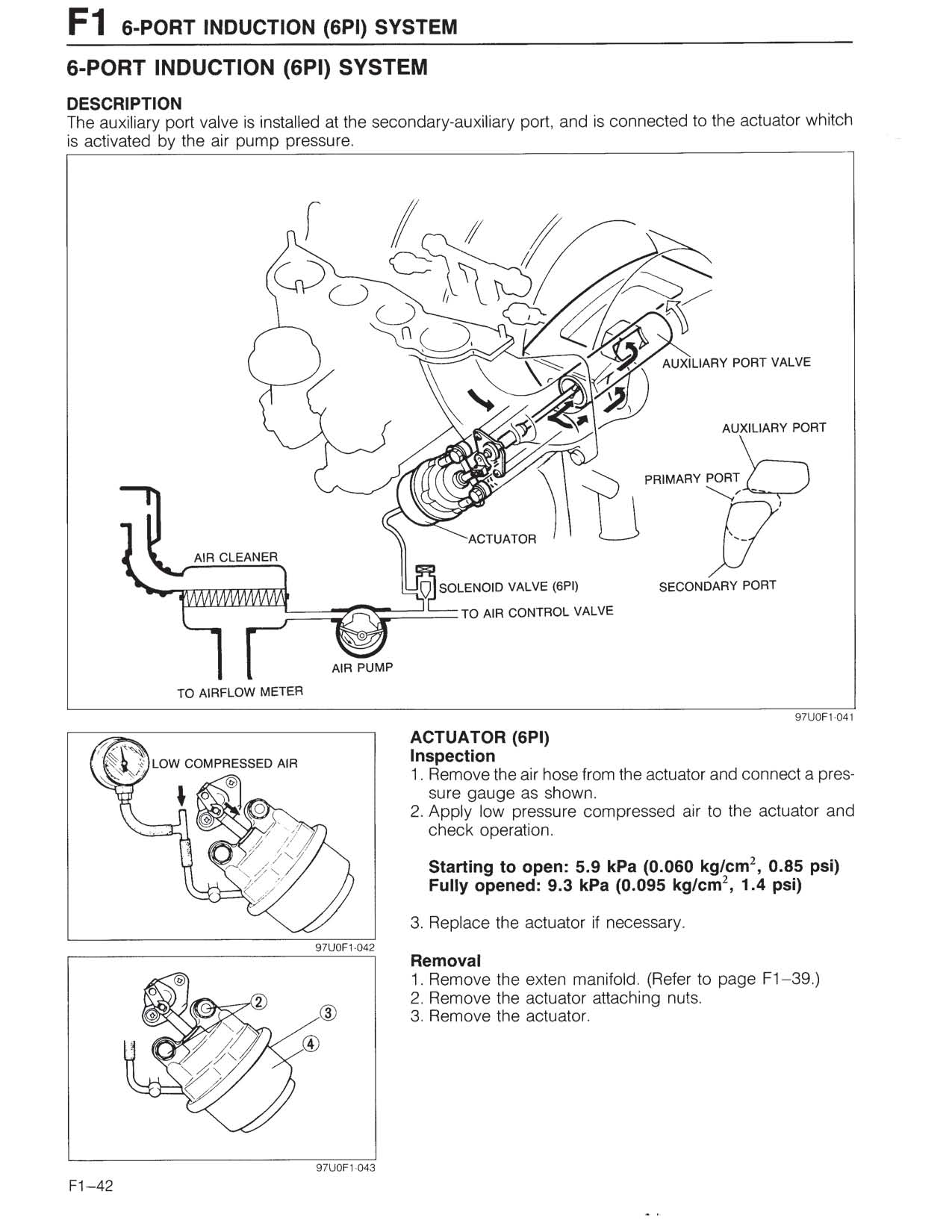

Yes, they are controlled by the air pump pressure. The rod going into the actuator should be pushed OUT when the ports open (if I remember right). Just disconnect the vacuum line to the actuator and blow into it or use compressed air. You will see it move. See attachment.
Attached Thumbnails s5 actuators .... confused-auxilary-actuators.jpg
jjcobm is offline
Reply Like
Old 05-15-10, 08:34 PM
  #4
Junior Member

confab's Avatar

Join Date: Mar 2010
Location: Sac
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
Oh, those actuators.
confab is offline
Reply Like
Old 05-15-10, 09:40 PM
  #5
Senior Member

Thread Starter

bboyclo's Avatar

Join Date: Mar 2007
Location: Redmond, WA
Posts: 409
Likes: 0
Received 2 Likes on 1 Post
so from what I see in the picture...it is pushed down when it opens right? because it seems like i have no lowend power
bboyclo is offline
Reply Like
Old 05-15-10, 11:41 PM
  #6
GNARKILL

datz's Avatar

Join Date: Nov 2009
Location: phoenix, az
Posts: 551
Likes: 0
Received 0 Likes on 0 Posts
the actuator rod pulls in on s4's, and out on s5's.
datz is offline
Reply Like
Old 05-16-10, 01:33 AM
  #7
Top Down, Boost Up

iTrader: (7)

RotaryRocket88's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Posts: 8,718
Likes: 0
Received 6 Likes on 4 Posts
^ Yep.

S5 actuators: In = closed, Out = open.
RotaryRocket88 is offline
Reply Like
