S5 1650 secondary install loose in manifold
#1
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Aug 2001
Location: MI 48111
Posts: 982
Likes: 0
Received 0 Likes
on
0 Posts
S5 1650 secondary install loose in manifold
Ok, I give. How do you get the 1650 secondaries to seal in the LIM on an S5? My car is an 88 and on my S4 manifold it seems like the o-ring sits tight on the housing. On the S5 manifold there is no way the KG rail can bolt down as the injector is standing up off the diffusers. Pull the diffusers out and the injector flops around like a wet noodle.
#2
not a drifter
iTrader: (133)
kg parts makes spacers for the 1600cc injectors but it says they are for FD's. maybe you need them or need different o-rings.
http://kgparts.com/index.php?page=diy
http://kgparts.com/index.php?page=diy
#3
rotorhead
iTrader: (3)
I have the KG secondary rail on an s4. I'm trying to understand your problem... Are you trying to keep the Bosch lower o-ring and pintle cap? Hopefully this also works on an s5, but your best bet is to remove the o-ring, pintle cap, and orange thingie on the Bosch injector. Install an S5 pintle cap (available from Mazdatrix for like $2 each) over that, and then the Mazda OEM injector grommet so it can seal into the LIM. If the rail won't bolt down tightly, try to stack two M10 wasters between the holes on the rail and the LIM. With two washers stacked, use allen head bolts, M10 x 1.25 x 25mm long I believe. No spacers were needed for this setup and I had no fuel or vacuum leaks. This is the setup I ended up using to make it all fit on my 882 T2, no thanks to rx7store which sold me a fuel system kit with no mounting hardware...
So it should go allen head --> mounting holes --> 2 washers --> LIM .
and the injector itself should just have the upper o-ring which seals into the rail, then the OEM injector grommet from your stock injectors, then an s5 pintle cap.
So it should go allen head --> mounting holes --> 2 washers --> LIM .
and the injector itself should just have the upper o-ring which seals into the rail, then the OEM injector grommet from your stock injectors, then an s5 pintle cap.
#4
Lives on the Forum
Are you trying to swap different series fuel rails?
Is that what you're asking?
You need to keep the fuel rails and intake manifolds the same series.
You cannot mix-n-match them.
The spacing for the secondary fuel rails is different between the series.
-Ted
Is that what you're asking?
You need to keep the fuel rails and intake manifolds the same series.
You cannot mix-n-match them.
The spacing for the secondary fuel rails is different between the series.
-Ted
#5
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Aug 2001
Location: MI 48111
Posts: 982
Likes: 0
Received 0 Likes
on
0 Posts
Aspec sold me the correct rail for an S5 manifold.
I was trying to figure out what the deal was with the manifold side of the injector to get it to fit. As argx was saying the bosch injector obviously will not fit into the stock base. I have S4 injectors, can I swap the pintle caps from them? How does it come apart?
I was trying to figure out what the deal was with the manifold side of the injector to get it to fit. As argx was saying the bosch injector obviously will not fit into the stock base. I have S4 injectors, can I swap the pintle caps from them? How does it come apart?
#6
Lives on the Forum
Do you still have the air bleed valves inside the LIM?
These help seat the stock fuel injectors.
The lower grommet seals the bottom of the stock fuel injector to the LIM.
The Bosch 160 lb./hour fuel injectors are not the same dimensions as the stock NipponDenso fuel injectors.
Changing pintle caps should not change anything.
-Ted
These help seat the stock fuel injectors.
The lower grommet seals the bottom of the stock fuel injector to the LIM.
The Bosch 160 lb./hour fuel injectors are not the same dimensions as the stock NipponDenso fuel injectors.
Changing pintle caps should not change anything.
-Ted
Trending Topics
#9
Another load of bad info from the Tech Advisor, the injector spacing is the same bewtween the S4 and S5 both are 5.64" between holes on the LIM. Rail seating height is different which can easily be overcome with spacers when using the S4 rail on the S5 engine.
The lower grommet & pintle cap are responsible for all the sealing of the injector, this is accomplished by a tight seal around the pintle cap. You can do it the correct way and change out the pintles to S5, and use the factory S5 gromments or you can half *** it with a piece of fuel hose that has the potential of blowing out of the manifold or worse yet being sucked in.
The lower grommet & pintle cap are responsible for all the sealing of the injector, this is accomplished by a tight seal around the pintle cap. You can do it the correct way and change out the pintles to S5, and use the factory S5 gromments or you can half *** it with a piece of fuel hose that has the potential of blowing out of the manifold or worse yet being sucked in.
#10

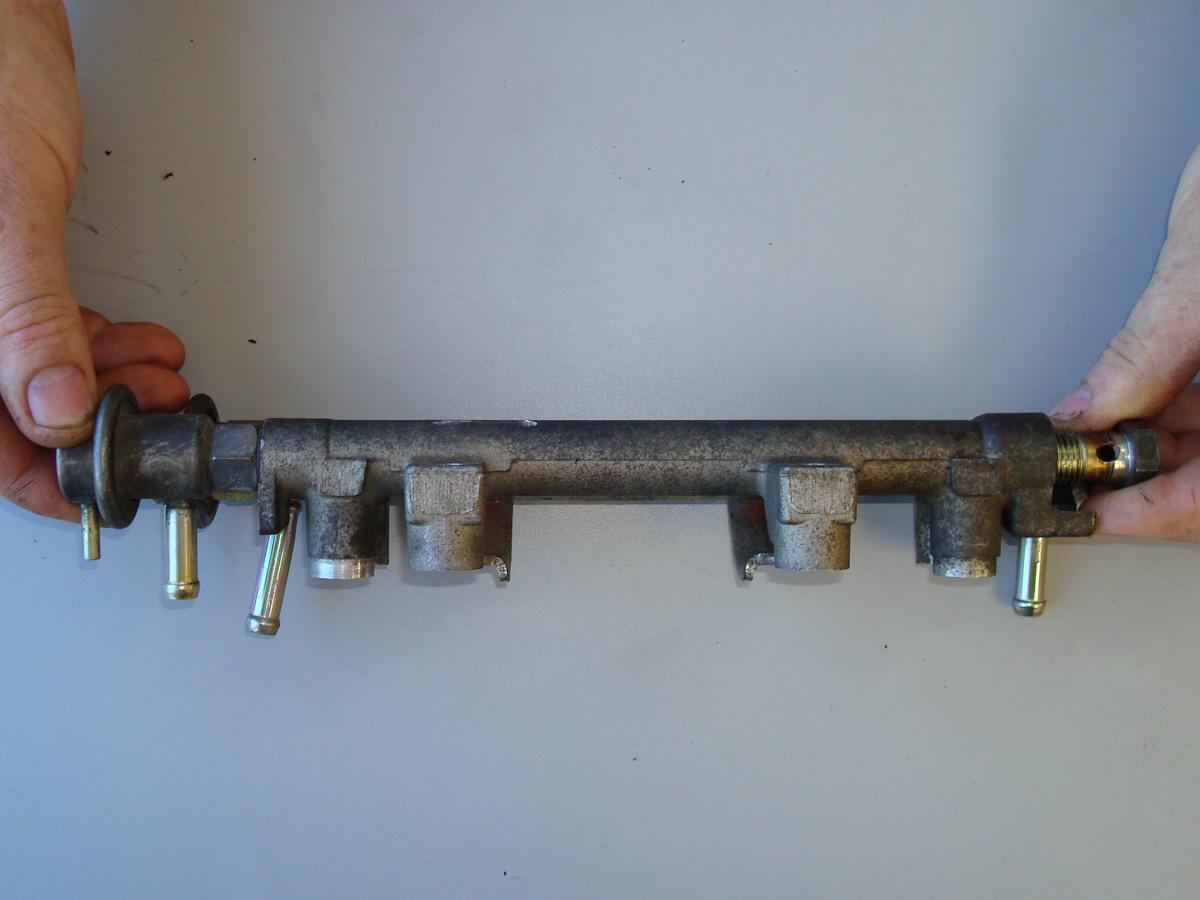

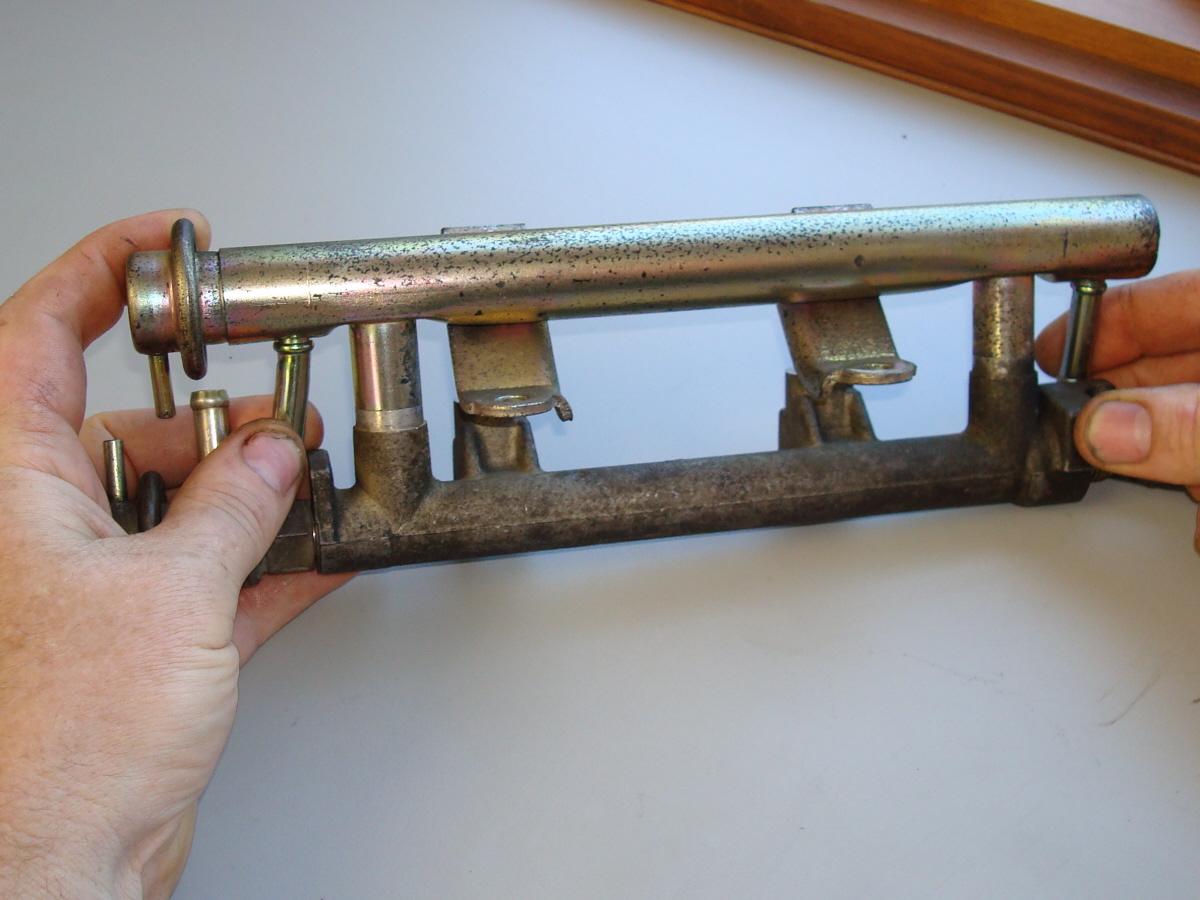

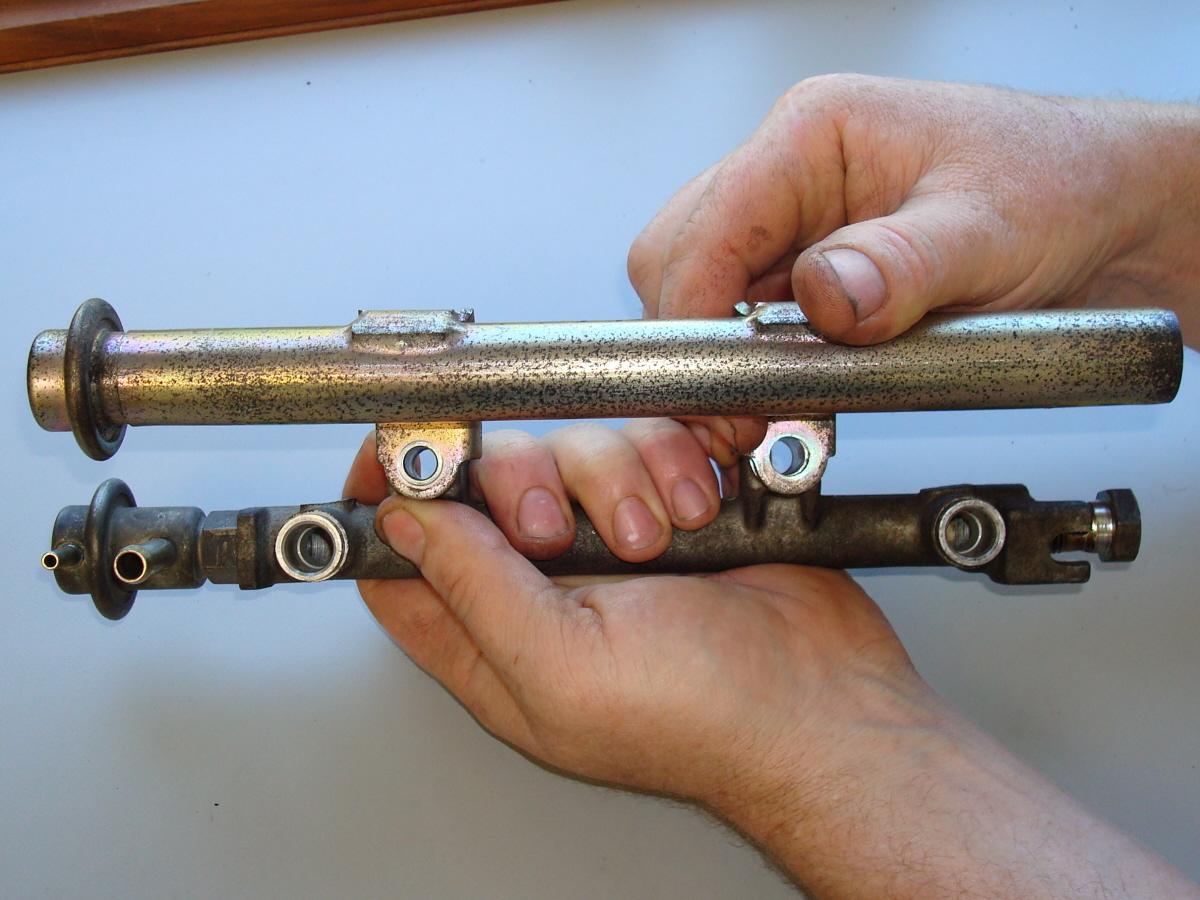

Pics comparing the S4 to S5 rails, notice the injector spacing is exactly the same. The mounting holes are also exactly the same.

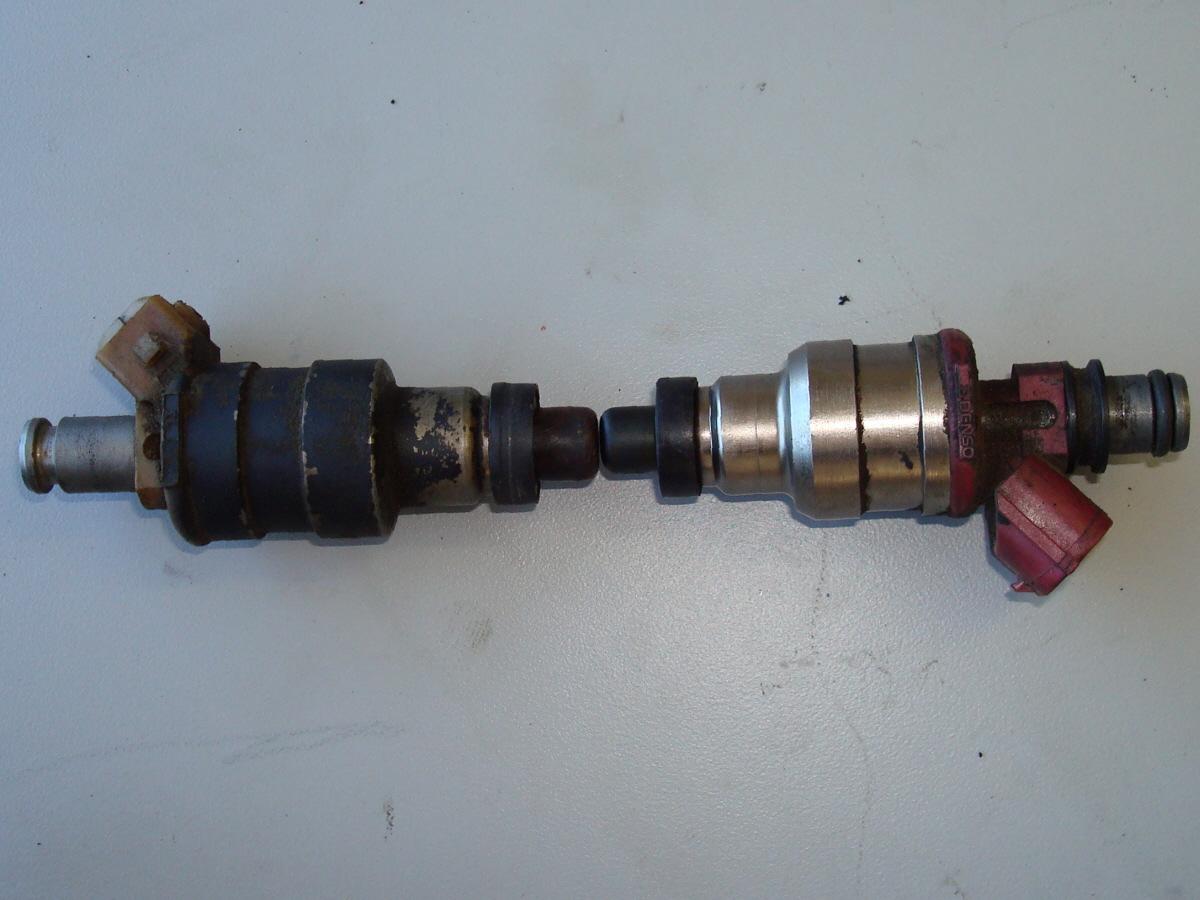

Next are pictures of the S4 vs S5 injectors, the S5 pintle cap is much smaller than the S4. The S5 is a perfect replacement for the Bosch 1600 injector and allows for easy installation into the LIM.

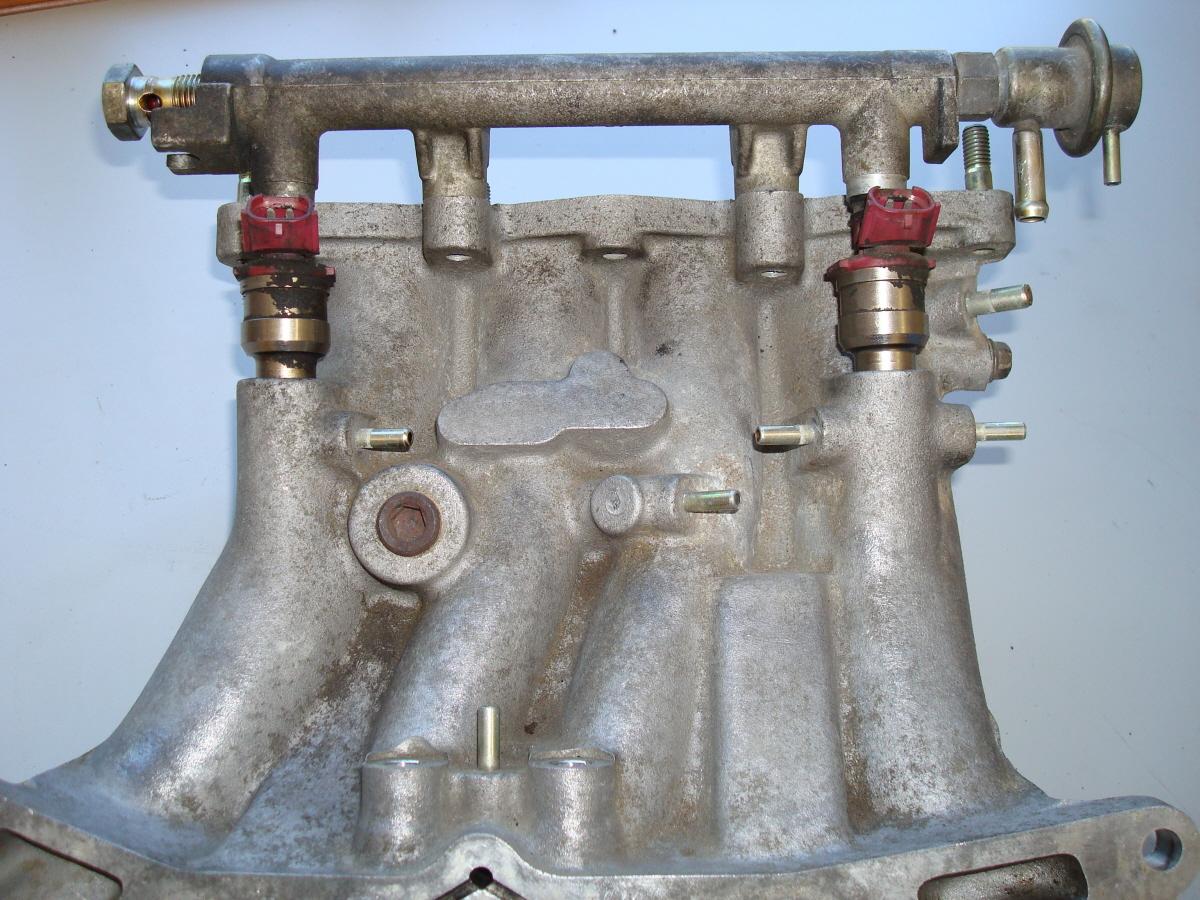

Next pic is the S4 rail with S5 injector on the S5 LIM just to give an idea of the fitment and alignment.
Ted- Do the research before posting your bad useless info.
I have a feeling I will be typing that alot now that I am paying attention to what Ted is "advising" people
Next are pictures of the S4 vs S5 injectors, the S5 pintle cap is much smaller than the S4. The S5 is a perfect replacement for the Bosch 1600 injector and allows for easy installation into the LIM.
Next pic is the S4 rail with S5 injector on the S5 LIM just to give an idea of the fitment and alignment.
Ted- Do the research before posting your bad useless info.
I have a feeling I will be typing that alot now that I am paying attention to what Ted is "advising" people
#11
Crash Auto?Fix Auto.
iTrader: (3)
Thats it, fit fine, no leaks.
EDIT: noticed banzai already covered this oops...
#12
Rotary Enthusiast
Thread Starter
iTrader: (1)
Join Date: Aug 2001
Location: MI 48111
Posts: 982
Likes: 0
Received 0 Likes
on
0 Posts
Ok so carefully cut the cap off with a dremel at the spacer ring just above the O-ring.
Order a pair of S5 pintle caps and lower gromet
Keep the S5 air bleeds in the manifold
Order a pair of S5 pintle caps and lower gromet
Keep the S5 air bleeds in the manifold
