Half Jap Boost Junky

Hi guys,

I have a question for those of you who are using an e-fan from an 88-95 3.8L Ford Taurus. What gauge wire are you using? What size fuse (I read that the fan pulls 80A on start up!)? What type of fuse and holder?

I already have an e-fan installed, but it is not doing the job and I need to get one with a shroud. Also, when I was removing the old one I noticed that the fuse holder I was using looked like it had started to melt although the fuse itself was still good. It is a glass cylendar fuse and it is in a clear plastic tubualr holder.

Oh, the fan is being switched by my haltech.

Thanks for the help guys!

-Kenji

K-Tune

iTrader: (26)

10 gauge for the power/ground, 40 amp fuse.

thejallenator

iTrader: (14)

yea use some heavy ****. dont mess around, those fans suck some power.

Chris Boots

The fan is a 2 speed fan, hence the 3 wires. I usually just ran it on its low speed to a solenoid and 10 gauge wire and a 40 amp fuse like he ^ said.

Half Jap Boost Junky

I guess thats raises another good question...can I get away with using the low speed only or should I wire it up for hi speed. I'm sure I won't be able to wire it for both as I don't think the Haltech can do that.

-Kenji

misterstyx69

iTrader: (142)

Dump that crappy fan and get a 1998 (or so) Mercury Villager Fan,,it FITS Perfect on a KOYO rad.
and I would use a relay to Operate the fan.By the way they take less power to operate and the Shroud is already ON the damn thing,so you WIN/WIN!
Look up a Efan install on wwww.aaroncake.net you can use his schematics to either hook up to a Switch,.a Thermo switch or Ahem!..a haltech!

clokker

iTrader: (2)

I'm using 10 ga wire and the fuseholder that was on the Ford I pulled the fan off.
30A fuse.

siguy2k

iTrader: (3)

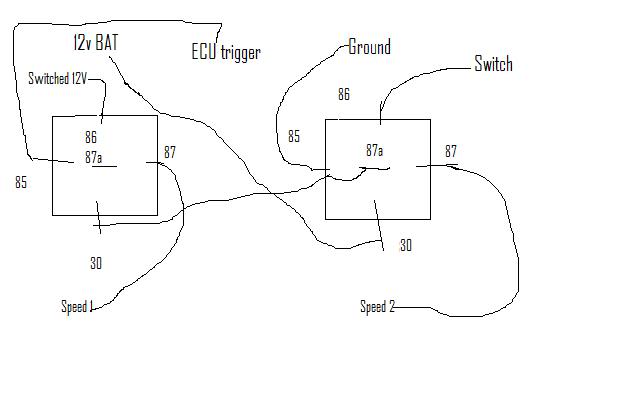

Im also using 10GA wire on my taurus fan. I have the ecu turn on the low speed and then if I need high I have it wired to a toggle switch. Im using a 30/40A relay for low speed and a 40/50A for high. Here is a wiring diagram for reference if you wanted to do something similar.

Half Jap Boost Junky

Misterstyx69,

I'm running a Fluidyne rad. Do you know if the dimensions are the same as the Koyo? Is the Mercury Villager fan a single speed or two speed like the Ford? Are you using 10 gauge wire? How big is your fuse?

I already have everything wired from my...ahem...Haltech to a relay and then to the fan. I just wanted to make sure I used the proper gauge wire and proper sized relay.

Keep the info coming guys!

-Kenji

jackhild59

iTrader: (7)

Finally! Someone who knows how much current the Merc Villiager fan pulls. I have asked in the original thread and no one responded.

How many amps does it pull?

Thanks!

-Jack

Akagis_white_comet

iTrader: (4)

I used 8 gauge for all connections on the taurus fan for my car. According to http://www.powerstream.com/Wire_Size.htm it's good for 73 amps, which is rated a tad higher than the relay for hi-speed activation.

How I wired mine was to come on using the s4 OE thermoswitch on low speed, but switch to high speed when the A/C is turned on or I hit the manual override switch. Currently, neither the A/C nor the override switch are in the car, so the high speed circuit has an alligator clip and goes straight to the battery to turn the fan on high. Here's the schematic:



For S5 cars, you can eliminate the ground relay and wire the thermoswitch straight to the fan and ECU (for idle-up functionality) as it provides a ground at the trigger temperature instead of removing the ground like the s4 ones do. Personally, I'd still use a relay on it though, to put the wear on the relay's contacts instead of the thermoswitch's ones. 40+ amps can really corrode a switch after all. Just ask any s4 guy about their power window switches lol.

Do note that the relay colored in red is a high power one and the power terminals on it are 3/8" wide, instead of the normal 1/4" wide. Pretty sure I pulled it from a Taurus or Contour, but you can definitely buy them new on ebay.

You can purchase the female spade terminals for these at autozone and they're good for 10 gauge wire. Trim a few strands from the 8-gauge stuff and you're good to go

jon0886

iTrader: (1)

https://www.rx7club.com/2nd-generation-specific-1986-1992-17/wiring-taurus-2-speed-fan-839089/

dennis blackstone

the ford taurus fan is the worlds best fan....when i go to atco raceway most rotarys are using them ...$60 on ebay brand knew in box .....they mooooove some air....easy to install ...

Napsterfreak15

FYI my torus fan fried my 30 amp relay. watch what relay you get. I'm using a 60 amp now.

clokker

iTrader: (2)

8 ga. wire?
3/8" wide terminals?
Jeebus, you powering your fan with the Grand Coulee generators, or what?

Was that a Chinese 30A relay, perchance?

I've now installed four Taurus/Volvo and Volvo/Volvo fan/control setups and none have ever popped the 30A fuse that comes standard.

Half Jap Boost Junky

Clokker,

Nice write up on the install!

Does the high speed come on if you are idle for awhile or is the low speed good enough to keep the engine cool? I only ask because I'd like to continue using my Hlatech as the trigger instead of adding another water temp. sensor. So if I can get away with only wiring up the low speed setting that would be nice!

Thanks!

-Kenji

K-Tune

iTrader: (26)

my taurus fan on low speed has been able to keep my car cool just fine.

LunchboxCritter

iTrader: (9)

Can you use the thermo sensor for low speed, and then use your haltech for high speed?

I have never used a haltech and am unsure how it interfaces, but I'm guessing that output is adjustable (ie what temp it triggers it). If that is the case, with a few relays and some wire and you should be able to run low & high speed on your fan.

Wire Size is as much determined by run (length) as amp draw. If your run is under 3' I would guess 10 awg would be okay, if you're going farther run 8 awg.

www.the12volt.com is a great resource for learning about various relay configurations among other useful information & calculators.

clokker

iTrader: (2)

High speed rarely- if ever- kicks on.

Half Jap Boost Junky

I'll probably just go with the low speed. The Haltech only has 1 set point for on and another for off. So if I wanted to use the high speed as well I'd need an additional thermo sensor which is what I'm trying to avoid. It going to be a little while before I have the car back together anyway, but I'll give it a try and see what happens.

Thanks for all the help guys!

-Kenji

Napsterfreak15

Dont know I thought it was a radio shack one. it would get real hot and stay on. worked fine for about 5 months though.. maybe the relay was just old then idk. not an epert when it come to electronics.

13B Etc

iTrader: (2)

Here's a simple way to rig up a single-speed fan on an S4 with one relay:

https://www.rx7club.com/showpost.php...4&postcount=22

Check out the rest of the thread for more good info.

TrboSpdAnt

iTrader: (5)

If these are dual-speed fans (and the 'low' speed doesn't pull much current, why not just wire it in one of two fashions:

A.) Low is always on and High is thermostatically triggered;

B.) Fan is off, low is termo-trigger and High is manually switched?

Half Jap Boost Junky

Hey guys, forgot to ask if you had to upgrade you alternator to an FD of if the FC is good enough. I don't have AC, but if its a rainy night I want to make sure it can handle the headlights, wipers and defog all at the same time.

As for putting in a switch for the high speed, I might do that, but if its not necessary, I prob won't bother...although if I find that the low speed doesn't cut it in the humidity I may just wire up the high speed instead.

-Kenji

N1XRR

There's part of your problem. Radio Shack relays are basically trash, as are any of the "generic" relays you purchase (from auto parts stores, Wal-mart, etc).

http://www.allelectronics.com/make-a...E-RELAY/1.html

Now, has anyone actually measured how many amps these things draw?

EDIT: Just looked up a fuse box from a 97 Taures. 40A fuse.
