2713ddddavid

iTrader: (1)

will any power steering pump from S4 S5 fit any other S4 S5?

Turbo23

iTrader: (4)

you can make a pump from a 240 KA motor work. ALOT smaller, and you can mount it super low

Tyblat

Proof of this? sounds interesting.

Icemark

There are two different pumps.

Engine speed Variable power steering pump

and Vehicle speed variable power steering pump.

All S4 with power steering had the better Vehicle speed variable power steering.

All S5 Turbos with power steering had the better Vehicle speed variable power steering.

But some of the non turbo S5 models had the cost cutting Engine speed Variable power steering, so their pumps would not be compatible with the Vehicle speed variable power steering systems.

2713ddddavid

iTrader: (1)

How cay you tell the two types apart?

Icemark

Three lines on the VSSS pump assembly, two lines on the ESSS

V8slayer

i am very intrsted in geting my PS pump relocated......i deleted all emissions and the only thing in the way now is that damn pump! how do i do that ( sorry not trying to thread jack just thread shareing)

Black91n/a

Relocate the pump outside the engine bay, it's much better that way, or at least I think so. Have a look in the 2nd gen archives, there's a thread of mine in there on how to do that.

ViperDude152

I love no PS. Keeps your fore arms and byseps toned

Don't yell at me for my spelling...

Turbo23

iTrader: (4)

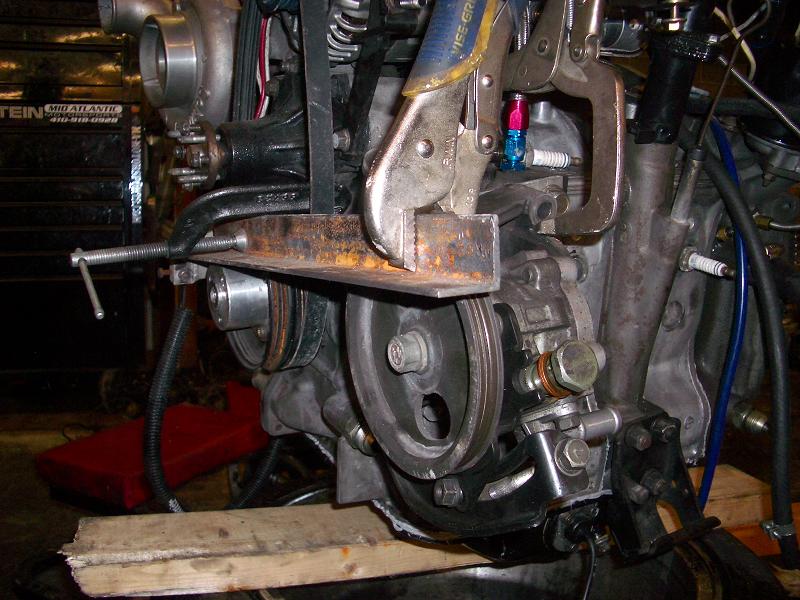

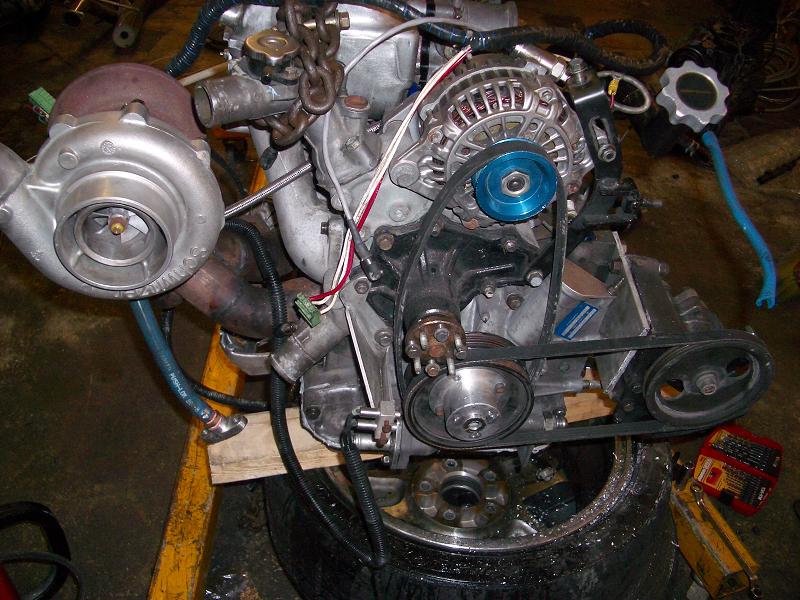

Here are the pics, not my motor, but a somewhat local guy. He car is running now.

drft_180sx

now i wonder if the KA pS is a VSSS or ESSS???

Turbo23

iTrader: (4)

that sir I do not know off hand, but I can find out

2713ddddavid

iTrader: (1)

Icemark,
The unit with three lines (VSSS) does it have the same electrical connections as the other, will the plugs swap?
The three lines you speak of, are two threaded and the third a clamp type?
I have the stock pump on my 88 T2 and I have another one that came attached to a rack and pinion I picked up. The seller says its from an "87", he didn`t say what model 87. Both my stock pump and the second one have the same two threaded line connections and the third clamp type connection. They also both have the same electrical connections. The differance is the reservoirs (spelling?) They are for sure differant. Are these pumps interchangable? Oh......sorry for rambling!!!

2713ddddavid

iTrader: (1)

IceMark, did you ever get to read my post above this one?
