Pressure switch and 5th and 6th ports opening?
#1
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Pressure switch and 5th and 6th ports opening?
Ok, maybe someone can let me know if this is even possible.
I've been having trouble with my check engine light coming on because of my pressure sensor. I took a look at the wiring coming out of the pressure sensor and it looks kind of rigged, there are two wires going into each of the terminals on the plug. Now when I turn the ignition on and jiggle the cables I can hear a click every now and then around the intake manifold. I looked under the car and saw that there's a replacement pipe between the Y pipe and the exhaust manifold.
So, has anyone heard of someone rigging up the aux ports this way?
I've been having trouble with my check engine light coming on because of my pressure sensor. I took a look at the wiring coming out of the pressure sensor and it looks kind of rigged, there are two wires going into each of the terminals on the plug. Now when I turn the ignition on and jiggle the cables I can hear a click every now and then around the intake manifold. I looked under the car and saw that there's a replacement pipe between the Y pipe and the exhaust manifold.
So, has anyone heard of someone rigging up the aux ports this way?
#2
Top Down, Boost Up
iTrader: (7)
Track down where the "extra" wires go to and you'll find whatever aftermarket part is tapping into the pressure sensor.
I seriously doubt this is at all related to activating the aux ports of the VDI, since a S5 already has that controlled by the ECU/2 solenoids/air pump. Adding some extra system would only be necessary if someone removed the air pump.
As for exhaust...it's not related to the aux ports on a S5.
I seriously doubt this is at all related to activating the aux ports of the VDI, since a S5 already has that controlled by the ECU/2 solenoids/air pump. Adding some extra system would only be necessary if someone removed the air pump.
As for exhaust...it's not related to the aux ports on a S5.
#3
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
It would help if we knew what year car you have.
IF it's a series four car, then the pressure sensor might very well have two wires coming out of the sensors elect plug where there is a brown/black wire. This additional ground wire was added by Mazda to correct a *problem* with the Afm (really and truly).
The other wires in that sensor should have but one wire. Like one black/white, one brown/white, one brown/red.
It has zip to do with the fifth and sixth port operation on a series four car, for sure.
This post only addresses the pressure/boost sensor wires, not the operation of the aux ports.
IF it's a series four car, then the pressure sensor might very well have two wires coming out of the sensors elect plug where there is a brown/black wire. This additional ground wire was added by Mazda to correct a *problem* with the Afm (really and truly).
The other wires in that sensor should have but one wire. Like one black/white, one brown/white, one brown/red.
It has zip to do with the fifth and sixth port operation on a series four car, for sure.
This post only addresses the pressure/boost sensor wires, not the operation of the aux ports.
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Two wires out of each terminal of the boost/pressure sensor means.........it's screwed up totally.
Aux ports on a series five are driven by the Air Pump when their solenoid opens at? what? 3800rpm? It's written in the Fuel and Emissions Section of the series five FSM. They're not driven by the exhaust backpressure on a series five.
Aux ports on a series five are driven by the Air Pump when their solenoid opens at? what? 3800rpm? It's written in the Fuel and Emissions Section of the series five FSM. They're not driven by the exhaust backpressure on a series five.
Last edited by HAILERS; 11-08-08 at 08:30 PM.
#6
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts

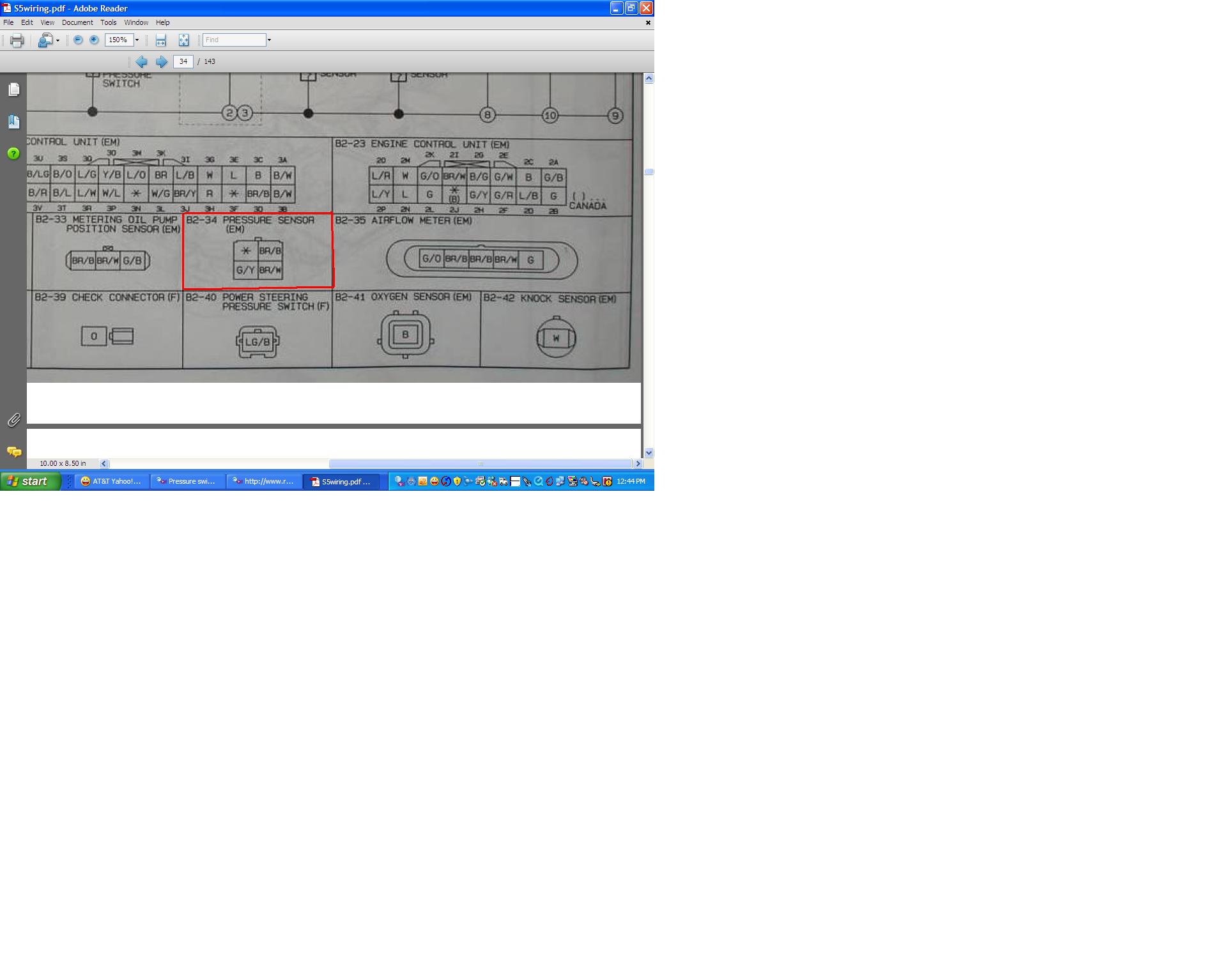

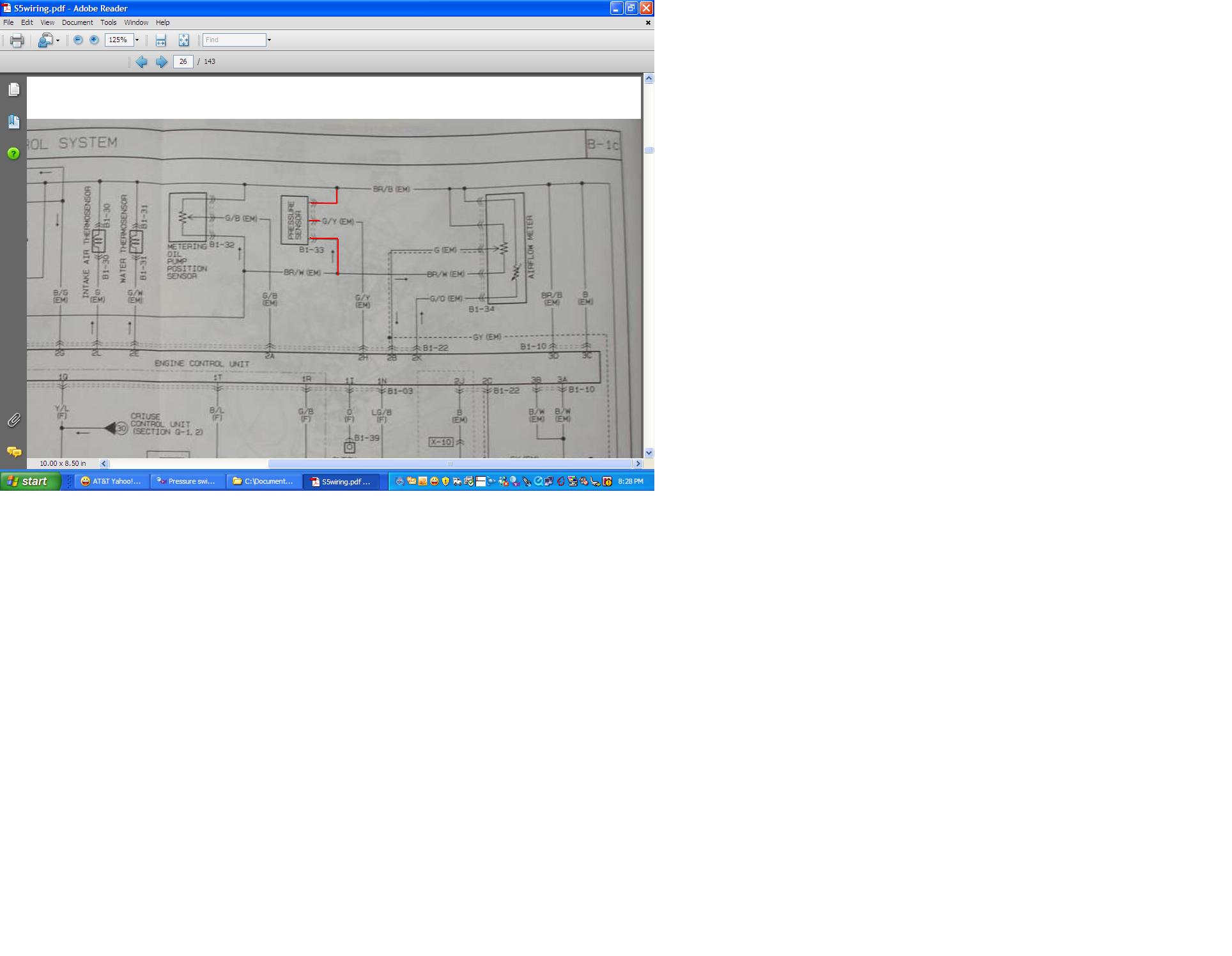

Ok, more info. It's a S5, 91, out of each terminal there are the following wires.
Going into B There's one G/Y and a white wire, the g/y goes into the harness and the white wire actually runs back to the ECU where the FSM says the g/y should connect. I suspect this is my problem.
Going into C There's the two Brown/Black wires that are attached to ground wires that attach to the back of the bracket that holds the pressure sensor. Should these be grounded?
Then into Terminal D there's two brown/white wires.
Going into B There's one G/Y and a white wire, the g/y goes into the harness and the white wire actually runs back to the ECU where the FSM says the g/y should connect. I suspect this is my problem.
Going into C There's the two Brown/Black wires that are attached to ground wires that attach to the back of the bracket that holds the pressure sensor. Should these be grounded?
Then into Terminal D there's two brown/white wires.
#7
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
The jpg attached shows the plug.
It shows the plug from the WIRE side. Your plug once looked like this.
The Brown/Black is the ground wire. IF he/they added another wire to this, it should not hurt anything. But I see TWO wires going to the bolt that holds the sensor on the chassis. That's puzzling...a bit.
Brown/White is what is called the ref voltage. Why two wires is beyond me. I'm clueless about that. If you put a meter on it with key ON, it should show approx 4.5-5 vdc.
Green/Yellow is the output to the ECU. Why two wires is beyond me. It should have been a direct run of wire from the sensor to the ECU plug on the original installation.
At the ECU, how does that green/yellow look? He has two wires going into the socket on the ECU plug? Or one wire?
Key ON and all plugs connected, does the voltage at the ECU green/yellow wire read what the manual/FSM says?
I suppose the guy was trying to piggyback new wires to the sensor because he lost faith the original wires were any good.
OR just disconnect the sensor. Flip it over and attach the elect plug. Key to ON. The brown/white should read 5vdc and the green/yellow should read 3.4 to 3.6 vdc. Engine OFF, key ON.
EDIT: I see the Brown/White in the plug look like factory wires. I've never seen a series five, and maybe, maybe they use two ref voltage wires, quite unlike a series four. I've no idea what's up there. If it reads approx 5vdc, then it's ok imho.
It shows the plug from the WIRE side. Your plug once looked like this.
The Brown/Black is the ground wire. IF he/they added another wire to this, it should not hurt anything. But I see TWO wires going to the bolt that holds the sensor on the chassis. That's puzzling...a bit.
Brown/White is what is called the ref voltage. Why two wires is beyond me. I'm clueless about that. If you put a meter on it with key ON, it should show approx 4.5-5 vdc.
Green/Yellow is the output to the ECU. Why two wires is beyond me. It should have been a direct run of wire from the sensor to the ECU plug on the original installation.
At the ECU, how does that green/yellow look? He has two wires going into the socket on the ECU plug? Or one wire?
Key ON and all plugs connected, does the voltage at the ECU green/yellow wire read what the manual/FSM says?
I suppose the guy was trying to piggyback new wires to the sensor because he lost faith the original wires were any good.
OR just disconnect the sensor. Flip it over and attach the elect plug. Key to ON. The brown/white should read 5vdc and the green/yellow should read 3.4 to 3.6 vdc. Engine OFF, key ON.
EDIT: I see the Brown/White in the plug look like factory wires. I've never seen a series five, and maybe, maybe they use two ref voltage wires, quite unlike a series four. I've no idea what's up there. If it reads approx 5vdc, then it's ok imho.
Last edited by HAILERS; 11-09-08 at 01:03 PM.
Trending Topics
#8
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
The jpg attached shows the plug.
It shows the plug from the WIRE side. Your plug once looked like this.
The Brown/Black is the ground wire. IF he/they added another wire to this, it should not hurt anything. But I see TWO wires going to the bolt that holds the sensor on the chassis. That's puzzling...a bit.
Brown/White is what is called the ref voltage. Why two wires is beyond me. I'm clueless about that. If you put a meter on it with key ON, it should show approx 4.5-5 vdc.
Green/Yellow is the output to the ECU. Why two wires is beyond me. It should have been a direct run of wire from the sensor to the ECU plug on the original installation.
At the ECU, how does that green/yellow look? He has two wires going into the socket on the ECU plug? Or one wire?
Key ON and all plugs connected, does the voltage at the ECU green/yellow wire read what the manual/FSM says?
I suppose the guy was trying to piggyback new wires to the sensor because he lost faith the original wires were any good.
OR just disconnect the sensor. Flip it over and attach the elect plug. Key to ON. The brown/white should read 5vdc and the green/yellow should read 3.4 to 3.6 vdc. Engine OFF, key ON.
EDIT: I see the Brown/White in the plug look like factory wires. I've never seen a series five, and maybe, maybe they use two ref voltage wires, quite unlike a series four. I've no idea what's up there. If it reads approx 5vdc, then it's ok imho.
It shows the plug from the WIRE side. Your plug once looked like this.
The Brown/Black is the ground wire. IF he/they added another wire to this, it should not hurt anything. But I see TWO wires going to the bolt that holds the sensor on the chassis. That's puzzling...a bit.
Brown/White is what is called the ref voltage. Why two wires is beyond me. I'm clueless about that. If you put a meter on it with key ON, it should show approx 4.5-5 vdc.
Green/Yellow is the output to the ECU. Why two wires is beyond me. It should have been a direct run of wire from the sensor to the ECU plug on the original installation.
At the ECU, how does that green/yellow look? He has two wires going into the socket on the ECU plug? Or one wire?
Key ON and all plugs connected, does the voltage at the ECU green/yellow wire read what the manual/FSM says?
I suppose the guy was trying to piggyback new wires to the sensor because he lost faith the original wires were any good.
OR just disconnect the sensor. Flip it over and attach the elect plug. Key to ON. The brown/white should read 5vdc and the green/yellow should read 3.4 to 3.6 vdc. Engine OFF, key ON.
EDIT: I see the Brown/White in the plug look like factory wires. I've never seen a series five, and maybe, maybe they use two ref voltage wires, quite unlike a series four. I've no idea what's up there. If it reads approx 5vdc, then it's ok imho.
So the br/w put out 5v like it should with the key on and the grounds with the br/b looked good as well.
The gr/y seems a little off. I don't have a vacuum gauge but when the engine is idling it reads about 2.2v and when I rev it up it'll go up to 2.4v but it never hits the 2.8-3.2 that the manual says. It also seems to spiratically jump around going down to .06V even. I don't know if that's normal. I have a new pressure sensor in the mail And that's looking like what i'll need. Thanks for the help HAILERS

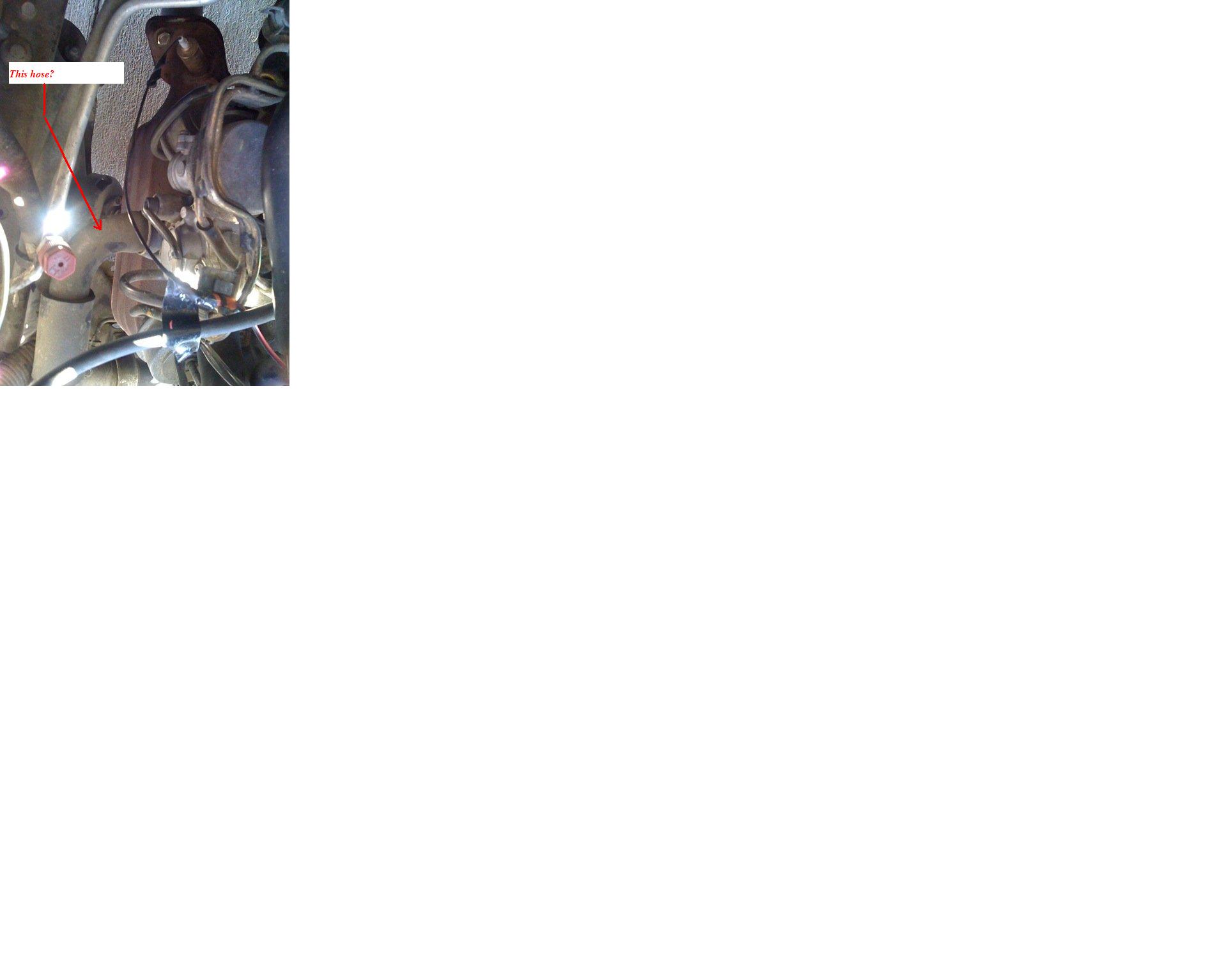

Also on a side note, who knows where this tube is supposed to go? It comes out from under the intake manifold and then just goes out to nowhere. This car needs a lot of work! When the engine runs I can feel hot air coming out of it and the car seems to kind of bog down when I can hear it putting out more air.
#12
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
It's the same hose from the first pic. It doesn't connect to anything, which is my problem. When my car sits for a while it smokes like a banshee, and I'm trying to figure out if this is why.
#14
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
At first I thought *this is bullshit*, what with the smoke etc. Then I thought of a way it could make smoke. If someone put the ACV on, and left the round spoked checkvalve out, then that would be exhaust smoke coming out.
That''s the only answer I have for that. I'd remove the ACV and see if there is a round/spoked checkvalve in the silver dollar sized hole in the manifold.
If it's there, then I've not a clue. The airpump pumps fresh air to the ACV and then sends it to the exhaust PORTS via the checkvalve mentioned above. The checkvalve keeps exhaust gases from coming back into the ACV. No smoke or exhaust fumes allowed.
That''s the only answer I have for that. I'd remove the ACV and see if there is a round/spoked checkvalve in the silver dollar sized hole in the manifold.
If it's there, then I've not a clue. The airpump pumps fresh air to the ACV and then sends it to the exhaust PORTS via the checkvalve mentioned above. The checkvalve keeps exhaust gases from coming back into the ACV. No smoke or exhaust fumes allowed.
#15
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
I've pretty much come to the conclusion that the smoking is it getting flooded out for some reason. Perhaps this pressure sensor is part of it. But I get horrible gas mileage and the car smokes really hardcore if I start it after not starting it for a while. It seems to happen more when I drive the car on the freeway for a long time and then park it overnight.
I did a champagne check and there's no bubbles coming from the radiator. I'm not losing coolant, or oil. The smoke is white and just smells like burnt.
Oh and just to be clear it smokes from the exhaust not from that tube that comes out of the ACV
I did a champagne check and there's no bubbles coming from the radiator. I'm not losing coolant, or oil. The smoke is white and just smells like burnt.
Oh and just to be clear it smokes from the exhaust not from that tube that comes out of the ACV
#16
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Ok. I thought it was smoke from the ACV hose. Ignore the answer.
If the car gets severly flooded, once it does start they smoke a lot. Normal smoke for a severe flood. Also if it floods a lot, the fuel will get in the pan and thin the oil out. You need to make a fuel cut switch to prevent severe flooding.
If the car gets severly flooded, once it does start they smoke a lot. Normal smoke for a severe flood. Also if it floods a lot, the fuel will get in the pan and thin the oil out. You need to make a fuel cut switch to prevent severe flooding.
#17
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
Ok. I thought it was smoke from the ACV hose. Ignore the answer.
If the car gets severly flooded, once it does start they smoke a lot. Normal smoke for a severe flood. Also if it floods a lot, the fuel will get in the pan and thin the oil out. You need to make a fuel cut switch to prevent severe flooding.
If the car gets severly flooded, once it does start they smoke a lot. Normal smoke for a severe flood. Also if it floods a lot, the fuel will get in the pan and thin the oil out. You need to make a fuel cut switch to prevent severe flooding.
I see that you're in forth worth, do you ever head out to the DFW meets?
Last edited by DallasGotorGuy; 11-09-08 at 08:15 PM.
#19
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Yeah. If flooded, you turn the switch to off and then crank the engine over. The engine will still have Spark this way, and when it lights the residual fuel off, you flip the fuel switch to On and hoepfully it'll now keep running.
The deflood method of pulling the EGI fuses sort of sucks in that it also kills Spark when the fuses are out. That method works, but sucks.
#20
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
If your experiencing a lot of flooding problems, then make a fuel cutoff switch. It'll save you a lot of time/trouble and help the engine. Being flooded a lot does not help the internals of the engine like apex seals, oil control rings etc.
Yeah. If flooded, you turn the switch to off and then crank the engine over. The engine will still have Spark this way, and when it lights the residual fuel off, you flip the fuel switch to On and hoepfully it'll now keep running.
The deflood method of pulling the EGI fuses sort of sucks in that it also kills Spark when the fuses are out. That method works, but sucks.
Yeah. If flooded, you turn the switch to off and then crank the engine over. The engine will still have Spark this way, and when it lights the residual fuel off, you flip the fuel switch to On and hoepfully it'll now keep running.
The deflood method of pulling the EGI fuses sort of sucks in that it also kills Spark when the fuses are out. That method works, but sucks.
#21
Junior Member
Thread Starter
Join Date: Oct 2008
Location: dallas, TX
Posts: 37
Likes: 0
Received 0 Likes
on
0 Posts
So I got a new pressure switch today and there is no check engine light and it seems to be running a lot more smoothly. Let's see if it stops smoking now
