post pics of your stainless steal fuel system!
08-17-07, 10:13 PM
#152
sorry if this was already asked.....(i have dial up and the pics take forever!!)
i wanted to know how much SS line i need to run the parralell setup and running the FPR on the shock tower? 6FT or 10FT?
return line may be EFI rubber but from the stock fuel filter on will be SS
i wanted to know how much SS line i need to run the parralell setup and running the FPR on the shock tower? 6FT or 10FT?
return line may be EFI rubber but from the stock fuel filter on will be SS
12-04-08, 07:22 AM
#156
I'm sure everyone's seen this pic by now and I've been hessitant on posting more just because I want to see what it will make on the dyno (should be dyno'd hopefully this week or next).
As always Aaron your setup is awesome!
I ended up going stainless steel on everything and also put a fuel cell in and went stainless all the way to the tank. The fuel system cost me a bit more than what I had stated before
500rwhp is the goal now and should be obtainable at 22+- psi on the t70. When the car is back from being tuned I'll post pics, specs, and possibly even times at the drag strip
As always Aaron your setup is awesome!
I ended up going stainless steel on everything and also put a fuel cell in and went stainless all the way to the tank. The fuel system cost me a bit more than what I had stated before
500rwhp is the goal now and should be obtainable at 22+- psi on the t70. When the car is back from being tuned I'll post pics, specs, and possibly even times at the drag strip
Last edited by hondahater; 12-04-08 at 07:25 AM.
05-05-09, 03:53 PM
#160
BDC Motorsports
That looks good, Aaron! I can tell you spent some time on yours. If you don't mind a recommendation, get yourself a heat blanket and wrap up that downpipe if you haven't already done so. The combination will dramatically drop under-hood temps and help make the heat exchangers indirectly more efficient.
B
B
05-05-09, 04:04 PM
#161
BDC Motorsports
Here's my setup:
- 2x Walbro pumps intank
- -8AN flexible to hardline mounted underneath the chassis
- Twin -6AN's to a Mallory removal element fuel filter
- Twin -6AN outs to the fronts of both fuel rails
- -6AN twin inputs to a Mallory EFI fuel pressure regulator
- -6AN single dump off the regulator back to the tank using the factory feed hardline
- Also using a Marren Motorsports FPD tee'd off the secondary rail, firewall side
First photo is from Aug 2007 about 2 years after I did the entire system. The second photo is from about 4-5 months ago and shows how it looks with the manifolds and hot-air pipe installed.
- 2x Walbro pumps intank
- -8AN flexible to hardline mounted underneath the chassis
- Twin -6AN's to a Mallory removal element fuel filter
- Twin -6AN outs to the fronts of both fuel rails
- -6AN twin inputs to a Mallory EFI fuel pressure regulator
- -6AN single dump off the regulator back to the tank using the factory feed hardline
- Also using a Marren Motorsports FPD tee'd off the secondary rail, firewall side
First photo is from Aug 2007 about 2 years after I did the entire system. The second photo is from about 4-5 months ago and shows how it looks with the manifolds and hot-air pipe installed.
05-05-09, 10:39 PM
#162
BDC Motorsports
Another suggestion while I'm looking at your engine bay, Aaron -- get yourself some wire separators on those plug wires. With them zip-tied together, you're begging for crossfire.
B
B
05-06-09, 01:30 PM
#163
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
That looks good, Aaron! I can tell you spent some time on yours. If you don't mind a recommendation, get yourself a heat blanket and wrap up that downpipe if you haven't already done so. The combination will dramatically drop under-hood temps and help make the heat exchangers indirectly more efficient.
B
B
.jpg)
Also I just installed an HKS EVC VI sot there is now some more -4 plumbing around the turbo and wastegate area.
They have been like that for 3 years now and no issues so far, but I do have plans to organize them a little better. The issue is primarily that the Jacobs wires are too long. Since the boots are sealed to the wire, shortening them is not an easy option. I think if I make some nice aluminum brackets they can snake down the strut tower and then horizontally to the engine but I still think they may be a bit long...
05-07-09, 08:26 PM
#166
That oil filter for the turbo is overkill...not to mention all the adapters you had to use to make it work. Peterson Fluids makes nice 75 micron inline filters that would be a better choice for your "peace of mind".
www.petersonfluidsys.com
05-07-09, 08:41 PM
#167
BDC Motorsports
That oil filter for the turbo is overkill...not to mention all the adapters you had to use to make it work. Peterson Fluids makes nice 75 micron inline filters that would be a better choice for your "peace of mind".
www.petersonfluidsys.com
www.petersonfluidsys.com
B
05-07-09, 09:13 PM
#169
Learned alot | Alot to go
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
Not that i think it would ever happen
Imagine if you didn't catch that small filter getting somewhat clogged and suddenly the turbo's only getting half the oil pressure it should be
again, its unlikly, but thats how i look at things.
Imagine if you didn't catch that small filter getting somewhat clogged and suddenly the turbo's only getting half the oil pressure it should be
again, its unlikly, but thats how i look at things.
05-08-09, 02:17 PM
#172
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Wow, such discussion on such a small part of my car...
The smallest Peterson filter has -8 connections, meaning the same number of adapters minus the cheap NPT adapters. It is also a less convenient shape and far longer. As I happened to have 90% of the fittings necessary for this installation, all I needed to do was to purchase a $20 oil filter relocation bracket and then plumb it up.
The reason I even have a turbo oil filter is because there is no provision on the NA block for a turbo oil feed. As I tap oil from the cooler, it is unfiltered. Thus, a filter is required to be nice to the turbo. Considering that a GT4088R costs more then what most people here paid for their cars, I figured that $50 worth of stuff to give it a clean oil supply was money well spent.
Nothing, nothing at all. Perhaps my "overkill" is why I have not blown a single engine since I started playing with rotary.
Sure. But imagine if I didn't catch a loose lug nut and my wheel fell off. Or a brake line vibrated free and suddenly I had no front left brake. Or I didn't change the main engine oil filter for several changes and it clogged up. Or a petostatic tube fell off of a plane passing overhead, landed into my radiator, punctured the radiator, all my coolant disappeared which caused a slick on the road, making my tires loose traction and throwing me into a wall which collapsed onto a buss load of bikini models on their way to a charity event, the funding from which would have ultimately resulted in the cure for cancer?
Raise your hand if you have had a Fram oil filter fail in real life.
Fram makes 10s of millions of filters per year and OEMs them out a lot of people. If there was really anything wrong with them, wouldn't we be seeing failures instead of just a few silly pages on the Web that say Fram is the root of all evil? Please...People should know me well enough by now on these forums to know I don't think like the typical sheep.
That oil filter for the turbo is overkill...not to mention all the adapters you had to use to make it work. Peterson Fluids makes nice 75 micron inline filters that would be a better choice for your "peace of mind".
www.petersonfluidsys.com
www.petersonfluidsys.com
The reason I even have a turbo oil filter is because there is no provision on the NA block for a turbo oil feed. As I tap oil from the cooler, it is unfiltered. Thus, a filter is required to be nice to the turbo. Considering that a GT4088R costs more then what most people here paid for their cars, I figured that $50 worth of stuff to give it a clean oil supply was money well spent.
Nothing, nothing at all. Perhaps my "overkill" is why I have not blown a single engine since I started playing with rotary.
Fram makes 10s of millions of filters per year and OEMs them out a lot of people. If there was really anything wrong with them, wouldn't we be seeing failures instead of just a few silly pages on the Web that say Fram is the root of all evil? Please...People should know me well enough by now on these forums to know I don't think like the typical sheep.
05-08-09, 03:15 PM
#173
Full Member
Join Date: Jan 2009
Location: utah
Posts: 53
Likes: 0
Received 0 Likes
on
0 Posts
Sick *** setup Aaron Cake!!!!!!!

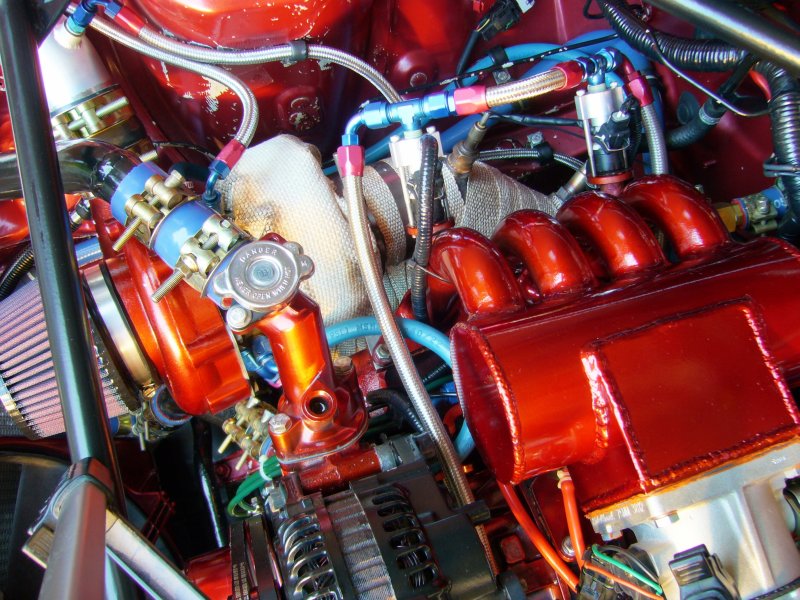

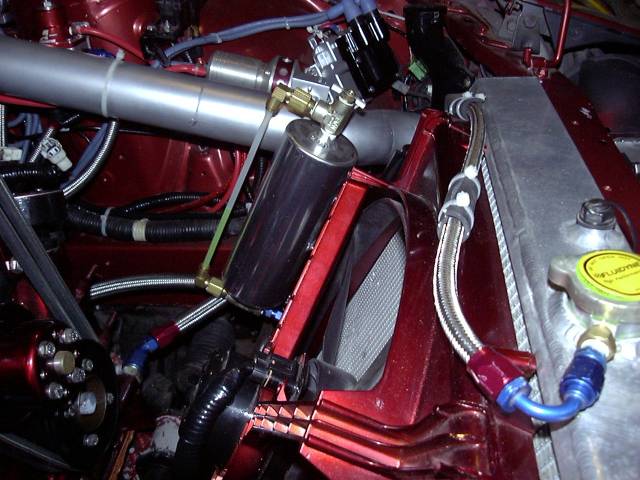

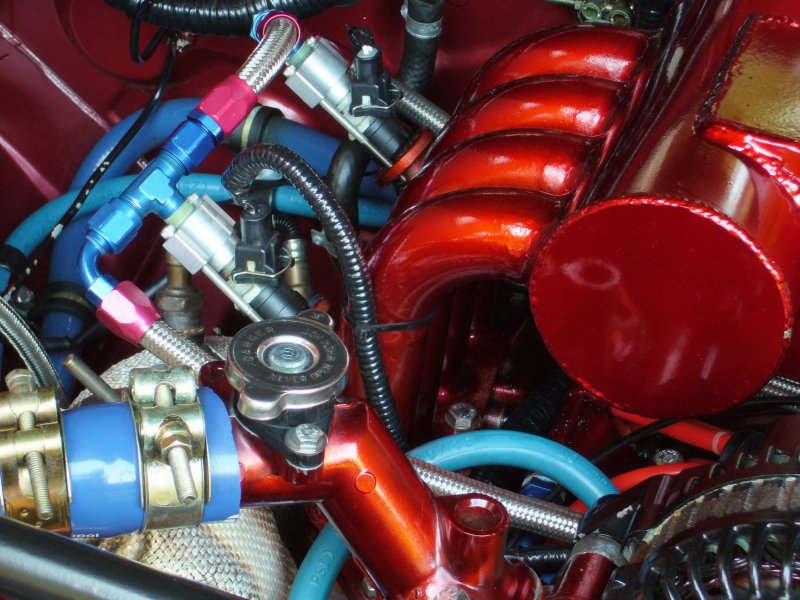

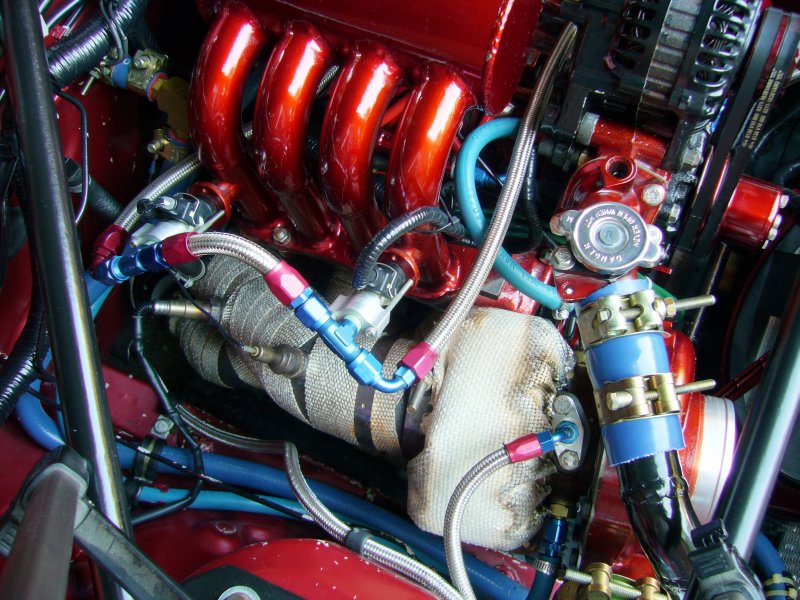

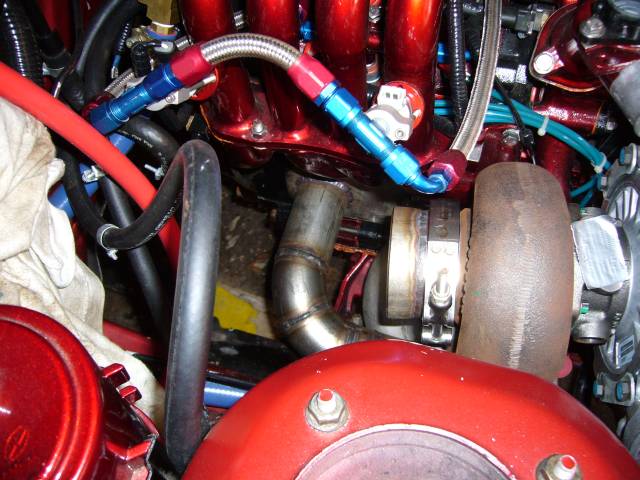

Here's a few more recent pictures of the stainless and AN stuff, which also shows the current state of the downpipe and manifold.
Also I just installed an HKS EVC VI sot there is now some more -4 plumbing around the turbo and wastegate area.
They have been like that for 3 years now and no issues so far, but I do have plans to organize them a little better. The issue is primarily that the Jacobs wires are too long. Since the boots are sealed to the wire, shortening them is not an easy option. I think if I make some nice aluminum brackets they can snake down the strut tower and then horizontally to the engine but I still think they may be a bit long...
Also I just installed an HKS EVC VI sot there is now some more -4 plumbing around the turbo and wastegate area.
They have been like that for 3 years now and no issues so far, but I do have plans to organize them a little better. The issue is primarily that the Jacobs wires are too long. Since the boots are sealed to the wire, shortening them is not an easy option. I think if I make some nice aluminum brackets they can snake down the strut tower and then horizontally to the engine but I still think they may be a bit long...
05-09-09, 10:29 AM
#174
Peterson makes more than what you see listed on the website. If you interested try the 800 number and ask about -6 inline filters. Earls makes nice ones too...
Maye you're not trying hard enough
Fram was ranked bottle of the barrel by SAE. Research the SAE J806 and SAE J1858 oil filter tests.
Raise your hand if you have had a Fram oil filter fail in real life.
Fram makes 10s of millions of filters per year and OEMs them out a lot of people. If there was really anything wrong with them, wouldn't we be seeing failures instead of just a few silly pages on the Web that say Fram is the root of all evil? Please...People should know me well enough by now on these forums to know I don't think like the typical sheep.
Fram makes 10s of millions of filters per year and OEMs them out a lot of people. If there was really anything wrong with them, wouldn't we be seeing failures instead of just a few silly pages on the Web that say Fram is the root of all evil? Please...People should know me well enough by now on these forums to know I don't think like the typical sheep.
08-20-13, 10:31 PM
#175
Senior Member
iTrader: (5)
Join Date: Sep 2007
Location: maryland
Posts: 283
Likes: 0
Received 0 Likes
on
0 Posts
Back from the DEAD!!I am building the fuel system from fc3s but was confused on part number
EAR-991954ERL. ON the fc3s page it shows the fitting without any oring style metric side, yet in summit and everywhere else the part number pulls up an oring style metric side?? So for the inlet on the rails is this the correct part number and the fc3s page has the incorrect pic? Thanks in advance..
EAR-991954ERL. ON the fc3s page it shows the fitting without any oring style metric side, yet in summit and everywhere else the part number pulls up an oring style metric side?? So for the inlet on the rails is this the correct part number and the fc3s page has the incorrect pic? Thanks in advance..
