post pics of your stainless steal fuel system!
#77
FKITALL
iTrader: (14)
LOLOLOLOLOLOL.... I know what ya mean! I bought this car 6 years ago with a blown engine. Just met my wife. Since, she has seen me stick two blown engines in it, and finaly this one. I have to say, she has been patient. Although, I have been remodling our house the entire time as well, keeps a smile on her face!

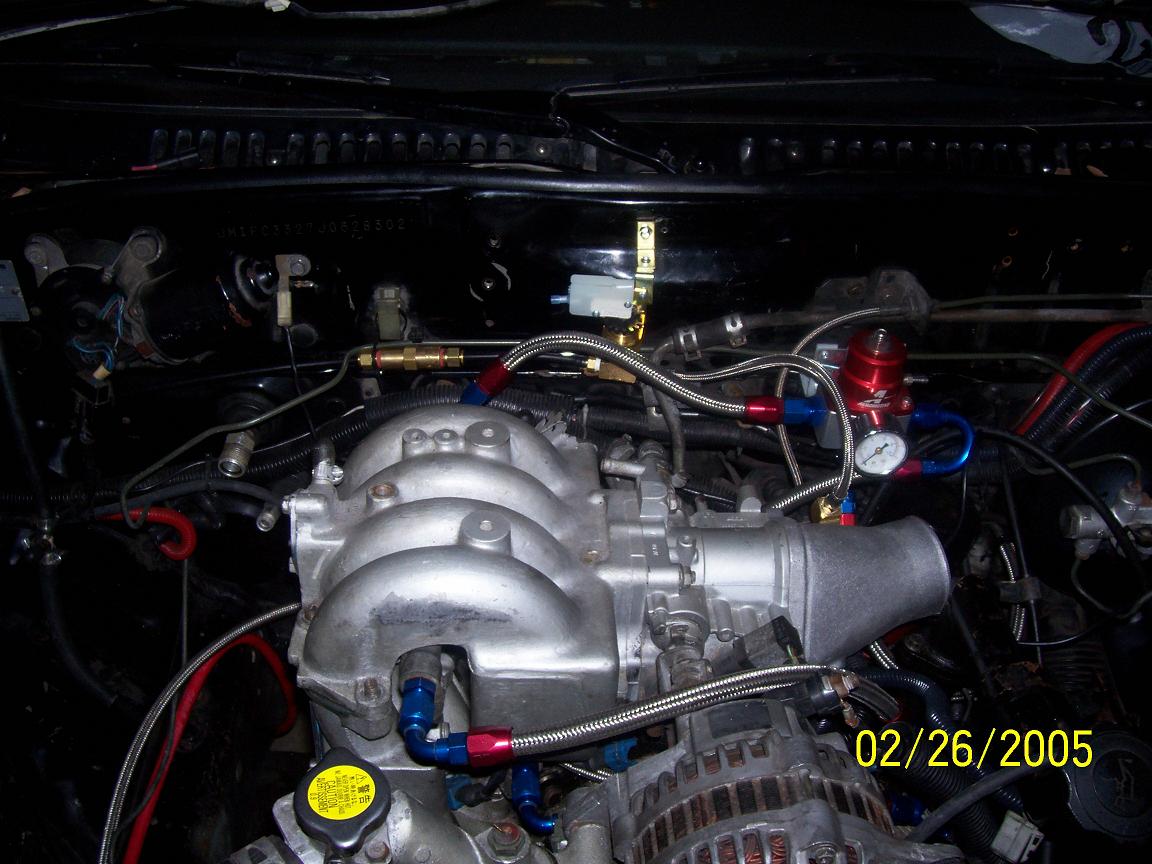

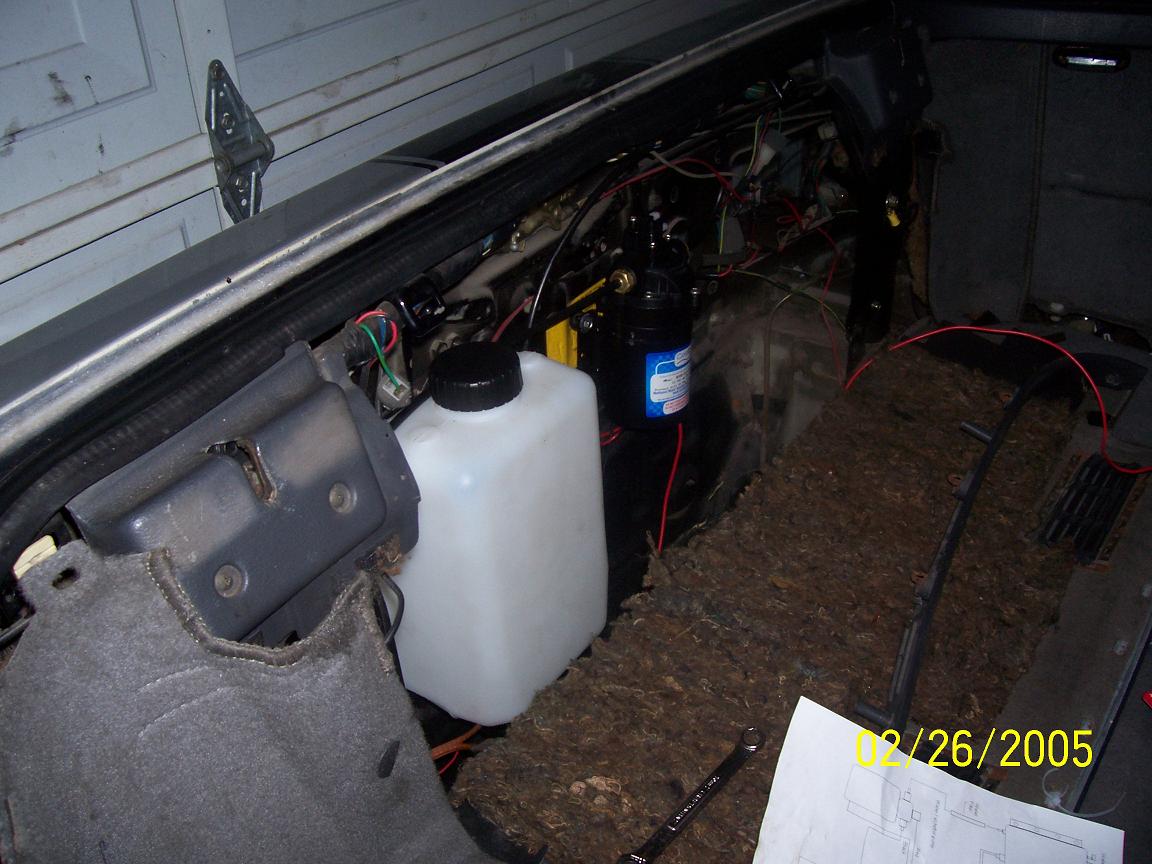

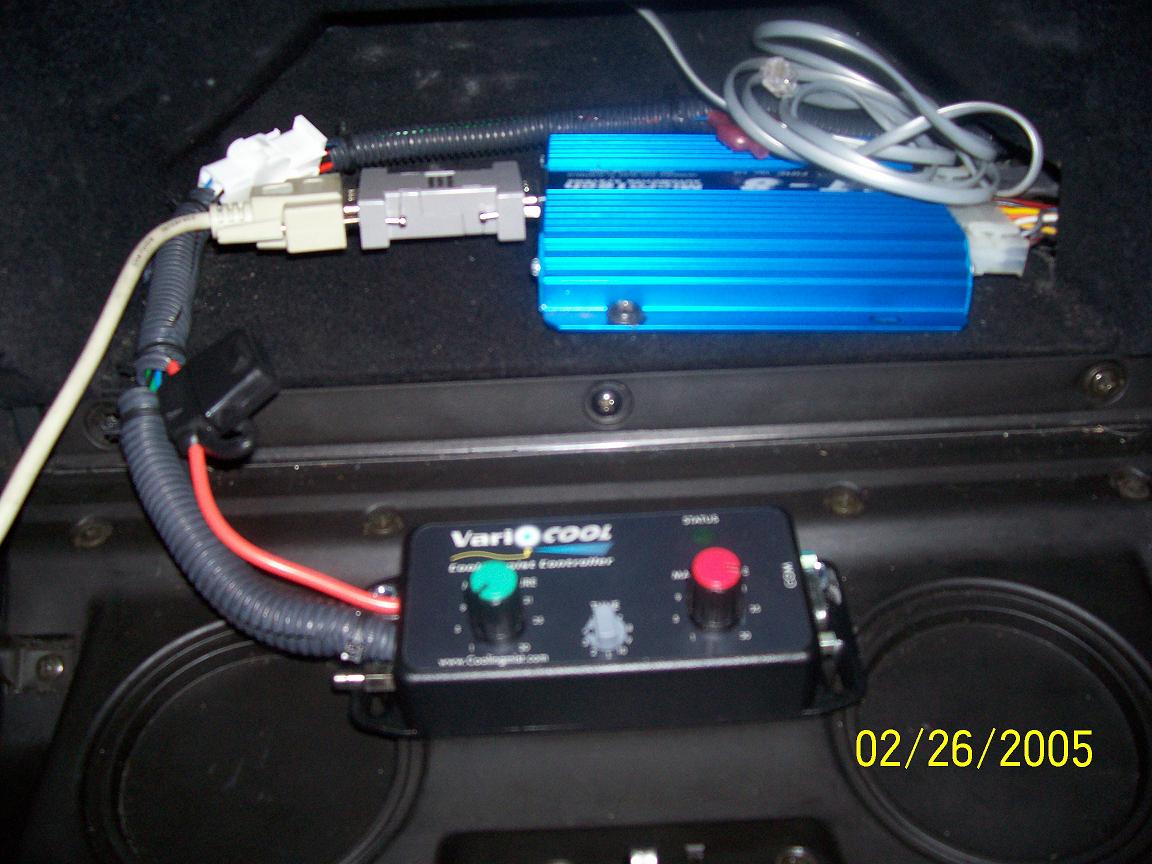

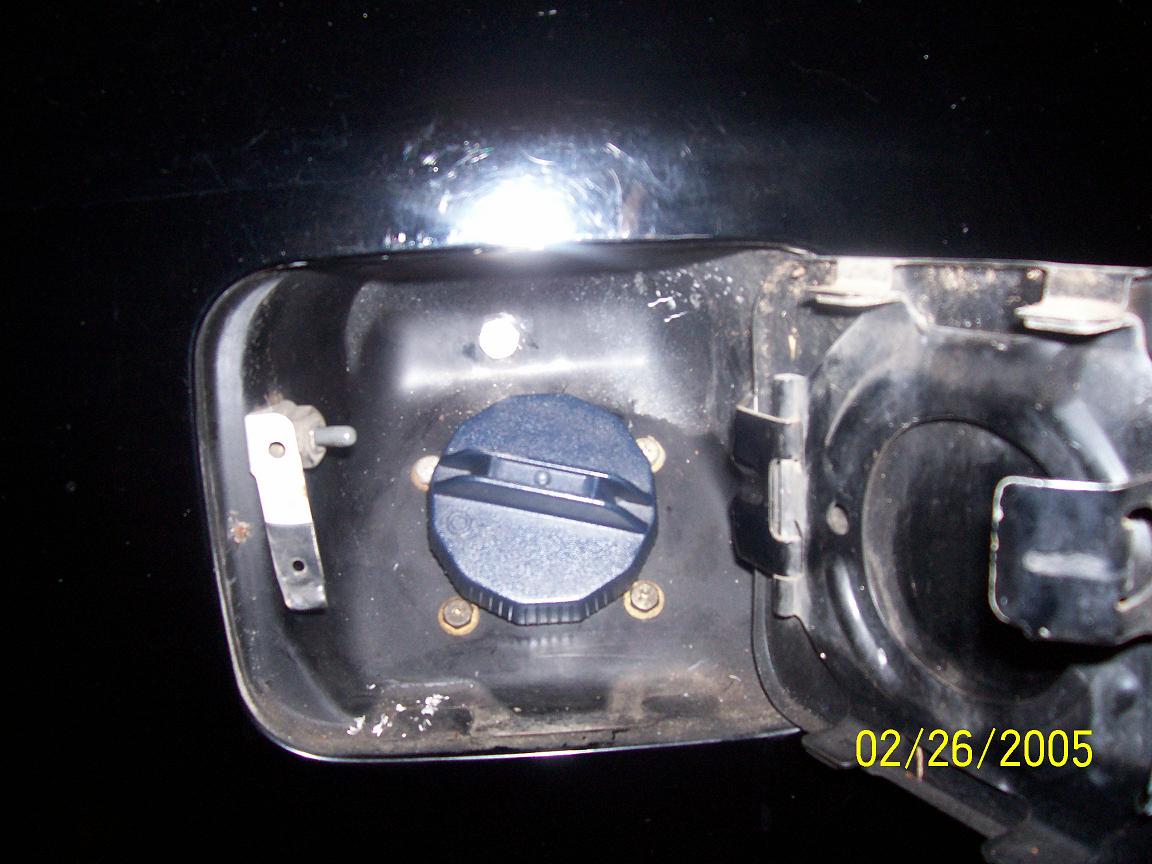

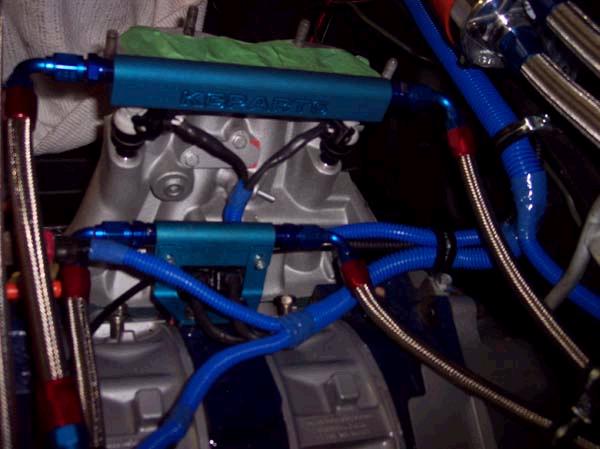

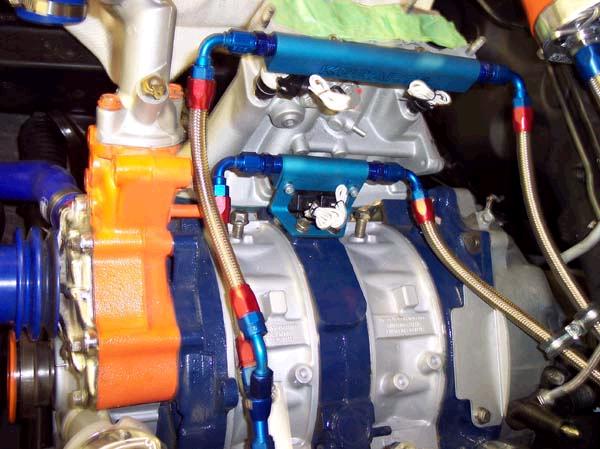

I also have a 82 I am rebuilding. Of course, it hit the back burner then I got the recent engine, but will be back in the garage soon cause I am heading to Rotaryshack to pick up my engine next month. Can not wait. Have had this car since 97. These images from 2004.
http://www.chrisandjocelyn.com/Pics/...tion/index.htm
Images are big....
I also have a 82 I am rebuilding. Of course, it hit the back burner then I got the recent engine, but will be back in the garage soon cause I am heading to Rotaryshack to pick up my engine next month. Can not wait. Have had this car since 97. These images from 2004.
http://www.chrisandjocelyn.com/Pics/...tion/index.htm
Images are big....
Last edited by The Wankler; 08-24-06 at 09:47 AM.
#78
lol, you remind me more and more of myself. I bought this car 6 years ago and it's been a constant project from day one. my wife doesn't like rx7's at all, infact she said if we ever got a divorce her first question to potential boyfriends would be do you own an rx7, haha. Well I thats a good idea about remodeling the house cause as long as your spending money on her too I've had to do the same thing as well but not to the extent of remodeling the house, haha.
#80
I live in the lounge...
Join Date: Aug 2004
Location: lathrup, MI
Posts: 2,000
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by hondahater
hey lil red the part numbers are
SUM-230610 .................................................. S.S. HOSE -6AN 10FT
SUM-220686............................................ ....... -6AN 45 HOSE END SWIVEL
NOS-17835NOS.......................................... .... 6AN Y BLOCK (BLUE)
EAR-991954ERL......................................... ..... -6AN TO 14MM X1.5
EAR-991945ERL......................................... ..... -6AN TO 12MM X1.25
EAR-818006ERL......................................... ..... -6AN 180 DEGREE SWIVEL
EAR-809106ERL......................................... ..... -6AN 90 DEGREE TUBE SWIVEL
AER-FBM1012........................................... ....... -6AN STRAIGHT HOSE END.
SUM-230610 .................................................. S.S. HOSE -6AN 10FT
SUM-220686............................................ ....... -6AN 45 HOSE END SWIVEL
NOS-17835NOS.......................................... .... 6AN Y BLOCK (BLUE)
EAR-991954ERL......................................... ..... -6AN TO 14MM X1.5
EAR-991945ERL......................................... ..... -6AN TO 12MM X1.25
EAR-818006ERL......................................... ..... -6AN 180 DEGREE SWIVEL
EAR-809106ERL......................................... ..... -6AN 90 DEGREE TUBE SWIVEL
AER-FBM1012........................................... ....... -6AN STRAIGHT HOSE END.
im looking to convert to stainless before the next meet in 2 weeks.
#82
Originally Posted by snowball
do you have numbers how how any of each you needed for just the fuel?
im looking to convert to stainless before the next meet in 2 weeks.
im looking to convert to stainless before the next meet in 2 weeks.
oh yeah and it's 2 of each on the 6an to metric fittings.
oh yeah and your also going to need 3 6an male to male adapters for the fpr (make sure they are the ones with the oring on them)
oh yeah and you'll need a 6an female to female connector and a 6an male to female 90* fitting.
Originally Posted by The Wankler
LOLOLOL... I hear ya.
When I brought up painting may car for about 3-5k, she gave me this look. Then I said, well, I think we just saved about 15k on the kitchen alone....... Enough said!!!!!! :0)
She is a wonderful lady, and knows I have hobbies. I am very lucky.
When I brought up painting may car for about 3-5k, she gave me this look. Then I said, well, I think we just saved about 15k on the kitchen alone....... Enough said!!!!!! :0)
She is a wonderful lady, and knows I have hobbies. I am very lucky.
Last edited by hondahater; 08-24-06 at 03:17 PM.
#83

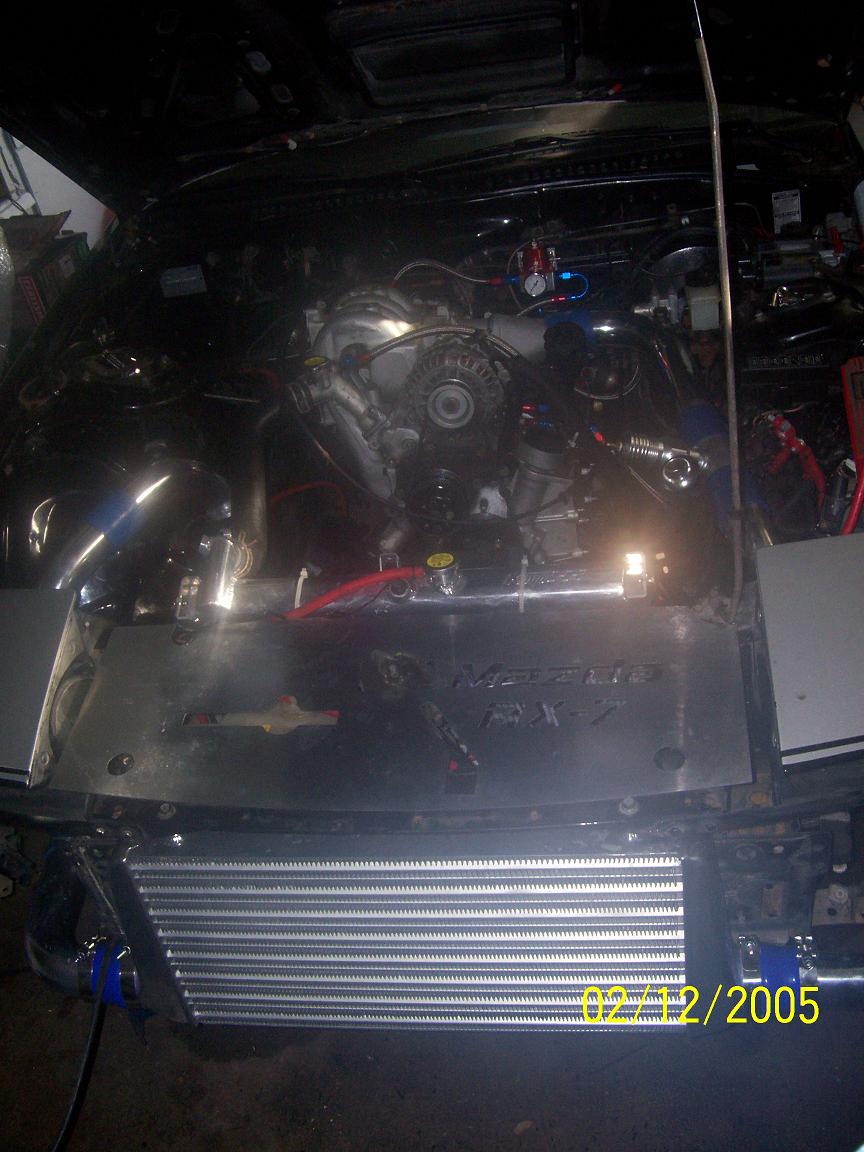

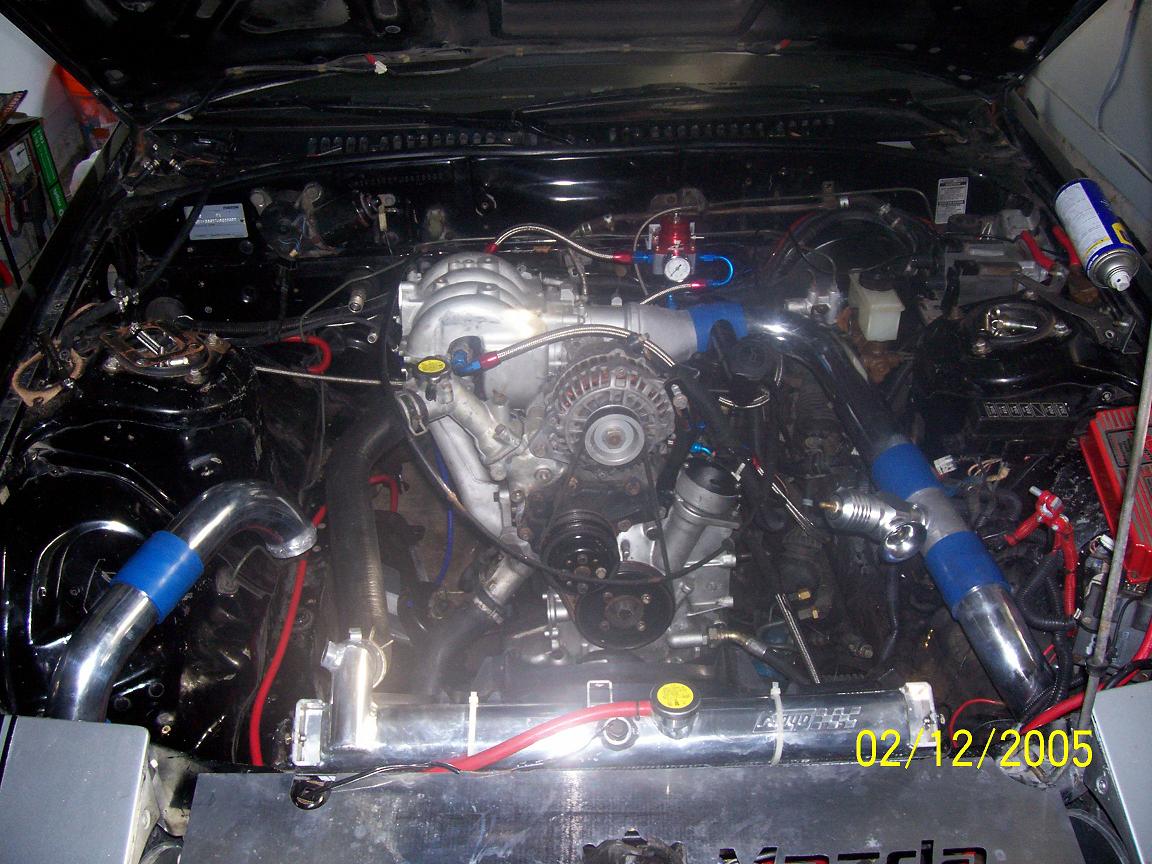

ok just a couple more update pics of the custome intercooler piping kit using ebay stuff and bead rolled ends - the turbo because the manifold is getting the flange cut and rewelded for a tial wastegate.
sorry for the bad pics the sun was commin in and making everything blurry.
sorry for the bad pics the sun was commin in and making everything blurry.
#84
Senior Member
Join Date: Sep 2003
Location: Berthier, Quebec
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
Well it might be a little silly question but....
is it possible to run the exact stock fuel system in AN SS lines? No parallel system, just the one with AN fitting and SS hoses
I mean, I dont feel like buying a brand new FPR when my stock one is still working well
I'm just way too pissed off at seeing little leakage here and there on my fuel system.
any input appreciated
l-p
is it possible to run the exact stock fuel system in AN SS lines? No parallel system, just the one with AN fitting and SS hoses
I mean, I dont feel like buying a brand new FPR when my stock one is still working well
I'm just way too pissed off at seeing little leakage here and there on my fuel system.
any input appreciated
l-p
#85
thats a lot of trouble to go through and lots of money to spend. buy the time you spend all that money you might as well just get the fpr and upgrade to the parallel fuel system. Don't think you could use an fittings with the stock stuff just because the stock fpr uses barbed fittings but you could just use -6AN line and use hose clamp but i think thats somewhat ghetto myself.
#86
Senior Member
Join Date: Sep 2003
Location: Berthier, Quebec
Posts: 355
Likes: 0
Received 0 Likes
on
0 Posts
yeah thanks a lot hondahater, I think i'Ll probably just go ahead and invest that 150$ for the FPR
do it once do it right
how much approximately did it cost you to do your fuel system conversion?
thanks
l-p
do it once do it right
how much approximately did it cost you to do your fuel system conversion?
thanks
l-p
#87
4 to 500 bux depending on what you do but count on getting everything i mentioned in this thread and you can see how much exactly it will cost. I need to do a write up on the exact parts and where they go but i'm too lazy. But I do mention everything I bought in a post in this thread.
#92
IIMMM BBAAACCKKK!!
iTrader: (8)
damn hondahater.. looking good....
i used your part # reference and ordered my whole setup... but i was stupid and forgot i had kgparts rails.. so the rail fittings didnt work... had to go to local shop and get new ones.. plus had to get extra straights for my edelbrock (yeah, i know.. i said edelbrock) fuel filter....
hopefully mine will be done tomarrow/monday... ill post pics of my finished product
i used your part # reference and ordered my whole setup... but i was stupid and forgot i had kgparts rails.. so the rail fittings didnt work... had to go to local shop and get new ones.. plus had to get extra straights for my edelbrock (yeah, i know.. i said edelbrock) fuel filter....
hopefully mine will be done tomarrow/monday... ill post pics of my finished product
#96
yeah you will need the s4 fuel rail because the s5 rail has fittings that don't come off of it. Once you get the right fuel rails then you can just get the right fittings witch can be found at summit or jegs. The basic parts list including part numbers for the fittings that adapt the fuel rail to an fittings can be found here http://www.fc3spro.com/TECH/MODS/FUEL/fsystem.htm

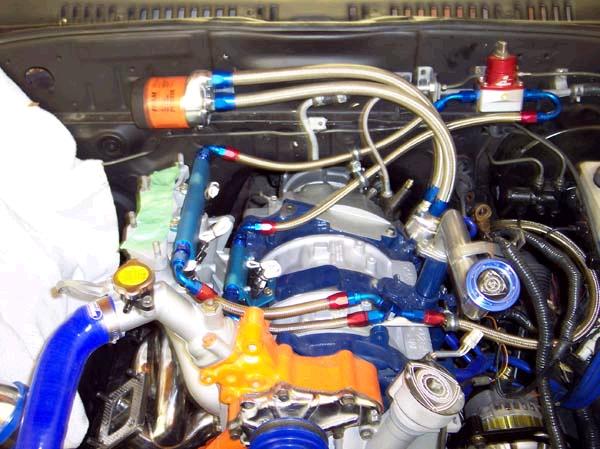

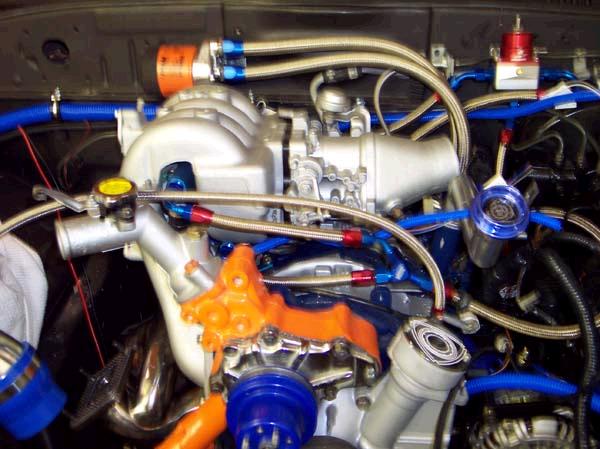

Thanks viper for the compliment. I've got the upper and lower intake manifolds, exhaust manifold and turbine housing off getting ceramic coated now but as soon as they come back I will snap more pics. Also the battery relocation is finished as well as a few other little things. Hopefully some time real soon it will all be done. Oh yeah did all the other part numbers work out for you?
Thanks viper for the compliment. I've got the upper and lower intake manifolds, exhaust manifold and turbine housing off getting ceramic coated now but as soon as they come back I will snap more pics. Also the battery relocation is finished as well as a few other little things. Hopefully some time real soon it will all be done. Oh yeah did all the other part numbers work out for you?
Last edited by hondahater; 09-24-06 at 03:47 PM.
#97
#garageguybuild
iTrader: (32)
Originally Posted by hondahater
yeah you will need the s4 fuel rail because the s5 rail has fittings that don't come off of it. Once you get the right fuel rails then you can just get the right fittings witch can be found at summit or jegs. The basic parts list including part numbers for the fittings that adapt the fuel rail to an fittings can be found here http://www.fc3spro.com/TECH/MODS/FUEL/fsystem.htm
Thanks viper for the compliment. I've got the upper and lower intake manifolds, exhaust manifold and turbine housing off getting ceramic coated now but as soon as they come back I will snap more pics. Also the battery relocation is finished as well as a few other little things. Hopefully some time real soon it will all be done. Oh yeah did all the other part numbers work out for you?
Thanks viper for the compliment. I've got the upper and lower intake manifolds, exhaust manifold and turbine housing off getting ceramic coated now but as soon as they come back I will snap more pics. Also the battery relocation is finished as well as a few other little things. Hopefully some time real soon it will all be done. Oh yeah did all the other part numbers work out for you?
Thanks for the reponse!
#98
IIMMM BBAAACCKKK!!
iTrader: (8)
Originally Posted by hondahater
yeah you will need the s4 fuel rail because the s5 rail has fittings that don't come off of it. Once you get the right fuel rails then you can just get the right fittings witch can be found at summit or jegs. The basic parts list including part numbers for the fittings that adapt the fuel rail to an fittings can be found here http://www.fc3spro.com/TECH/MODS/FUEL/fsystem.htm
Thanks viper for the compliment. I've got the upper and lower intake manifolds, exhaust manifold and turbine housing off getting ceramic coated now but as soon as they come back I will snap more pics. Also the battery relocation is finished as well as a few other little things. Hopefully some time real soon it will all be done. Oh yeah did all the other part numbers work out for you?
Thanks viper for the compliment. I've got the upper and lower intake manifolds, exhaust manifold and turbine housing off getting ceramic coated now but as soon as they come back I will snap more pics. Also the battery relocation is finished as well as a few other little things. Hopefully some time real soon it will all be done. Oh yeah did all the other part numbers work out for you?
#100
oh nice job man, looks very very nice! basically what the the ones you mentioned do is extend the upper rear fuel rail out. I'm not sure if the k2rg fuel rail already does this but with my stock rail it was just not clearing the uim. so this exteded the fuel line out a bit so it would clear everything.
