^^good point.



I've seen a lot of FPR's mounted on the drivers side shock tower.



That is what I will do.



couple of classics:



damn, so many differant ways to do this it really makes me wish I had a speed shop around me so that i could just buy from them however that can't be the case here.....of course I gotta order everything from summit so if I don't get everything right the first time more ordering and more ordering and more ordering...........blah! Oh well guess thats what you gotta do.



I go to a speed shop everyso often. They almost charge twice the price. In quantity, summit seems cheaper. But for one part here and there, I go to the speed shop.



I think the difference is the fuel will dump on the ground from the feed area but if you run your FPR on the firewall it will spray fuel on the exhasust or top of the engine and run down on to the exhaust.



True I suppose.... Im not losing any sleep over it though.



It's a matter of having a small cross section of fuel hose versus having part of your fuel system sitting out there.
If the clutch does come apart, it's usually hot pieces of sintered clutch material or a copper composite.
When this explode like that, it can send spark flying all over the place.


-Ted



that blue car doesnt look like a normal tII manifold?? or is it?



Note the holes on top for the stock top-mount intercooler.

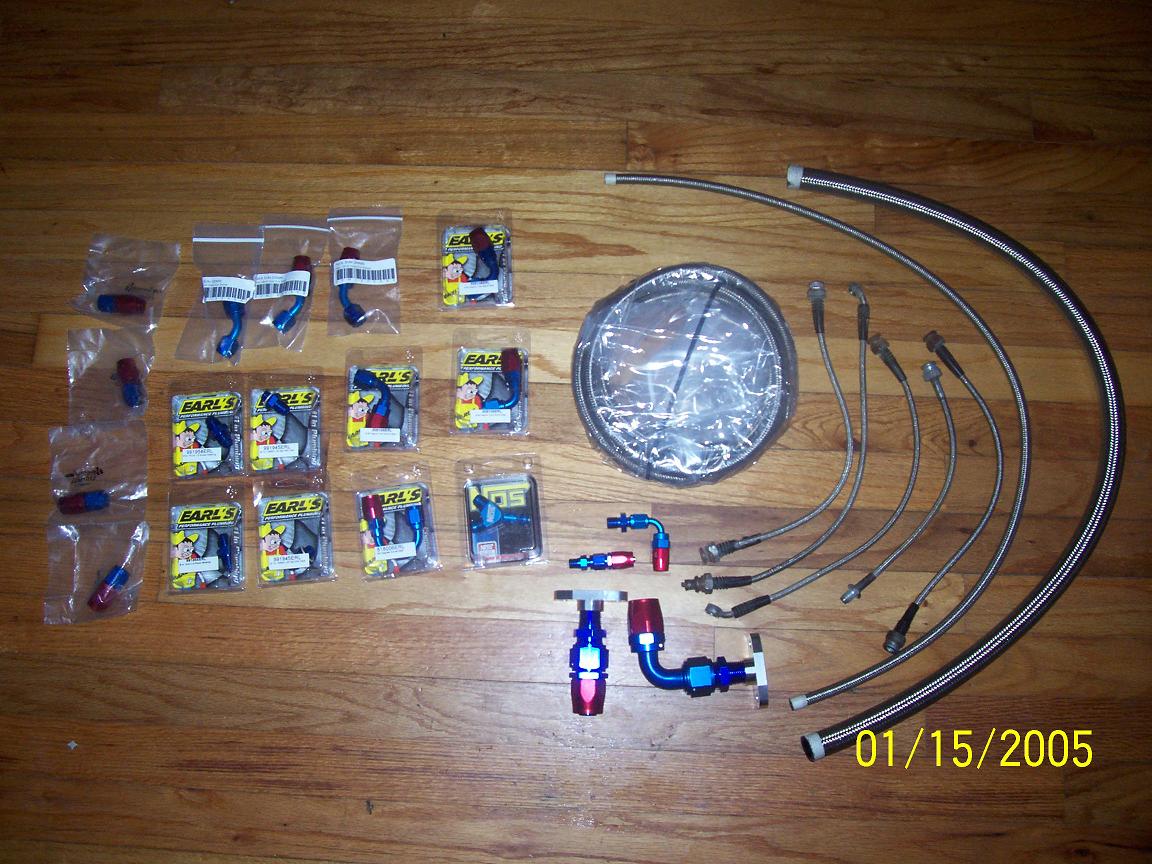

Santa finally came and saw me

- ss fuel lines and fittings
- ss oil feed line and fittings
- ss oil return line and fittins
- ss brake lines
- ss clutch line

I'm happy



I don't want to know how much that cost do I?



haha probably not but all I do is order and then don't look at my bank account afterwards that way I don't start crying, lol.



Yeah, good call... if you have money.

Some of us have to look at our bank account to make sure we CAN order.



ahhh **** it your car is worth having your bank account go into the negative isn't it



Maybe if it's nice enough to live in.



can you give me the part numbers for everything except the brake, oil feed and clutch lines.



PM me please



Wankler, What kind of pump setup are u using? & are u using a Fuel cell?

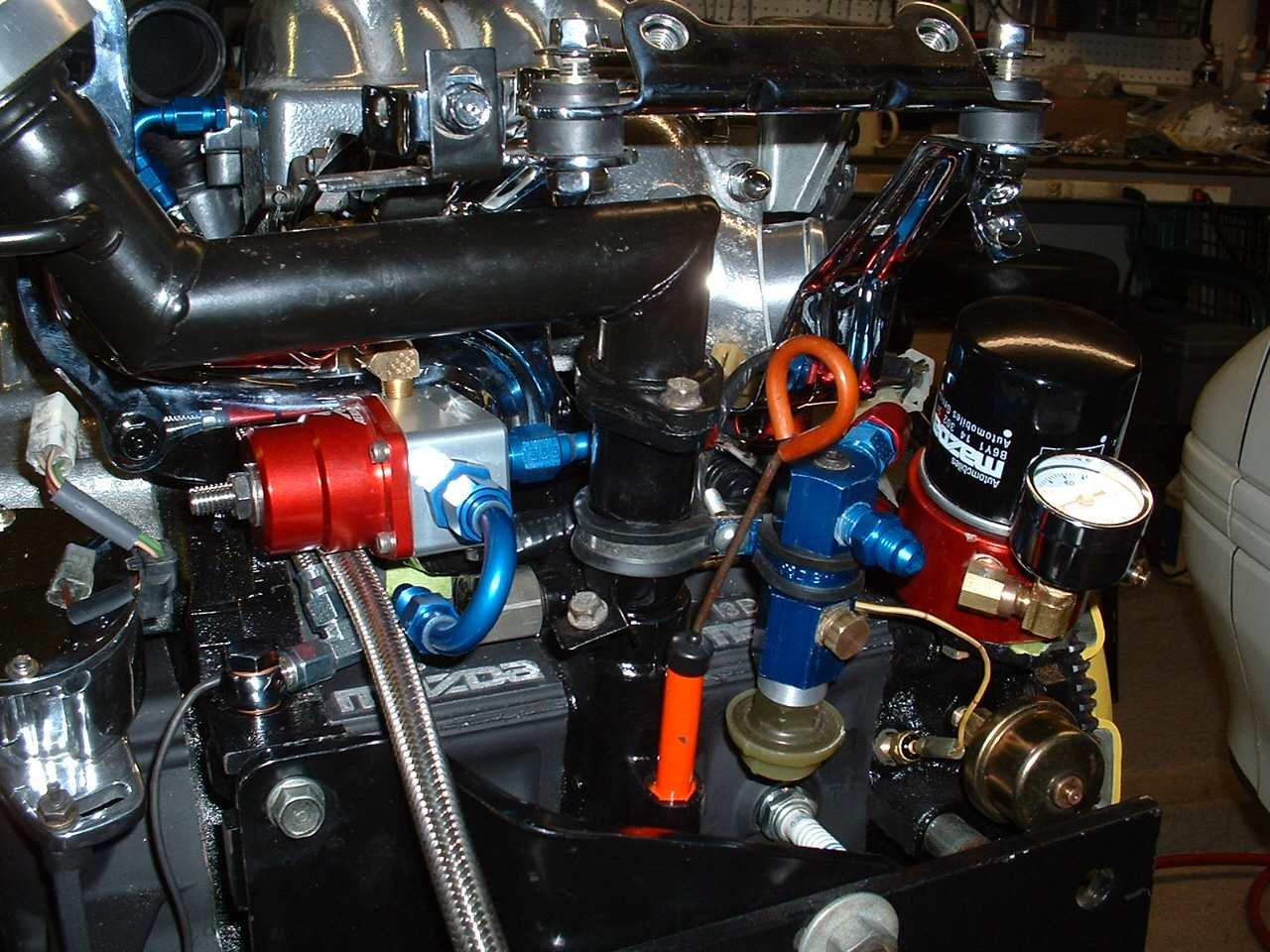

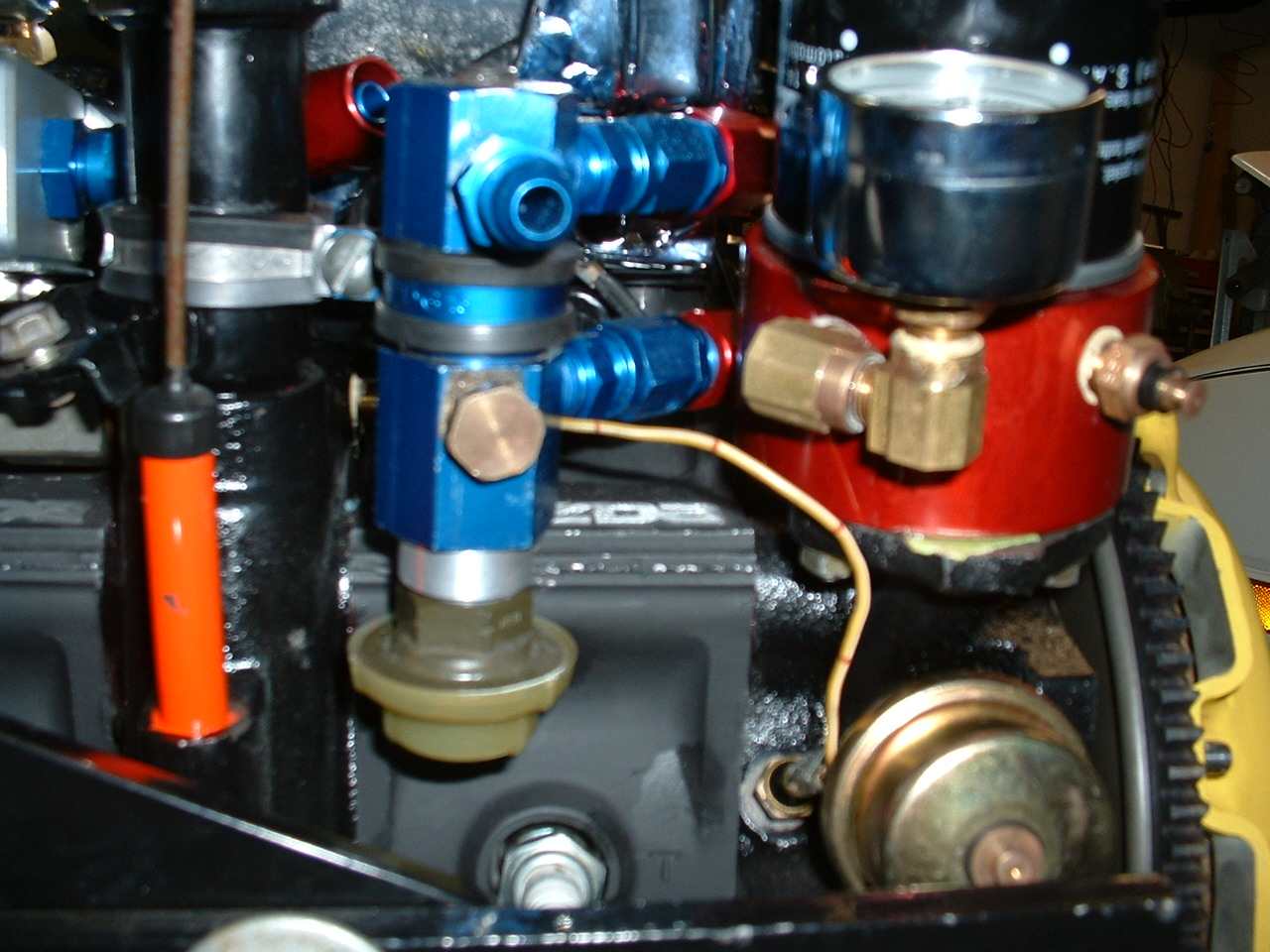

I started with a Earl's fuel block, inlet and two outlets with a modified thread and spacer to fit the pulsation damper. Go ahead and flame the damper. I think it's purpose is useful to control pressure surges.

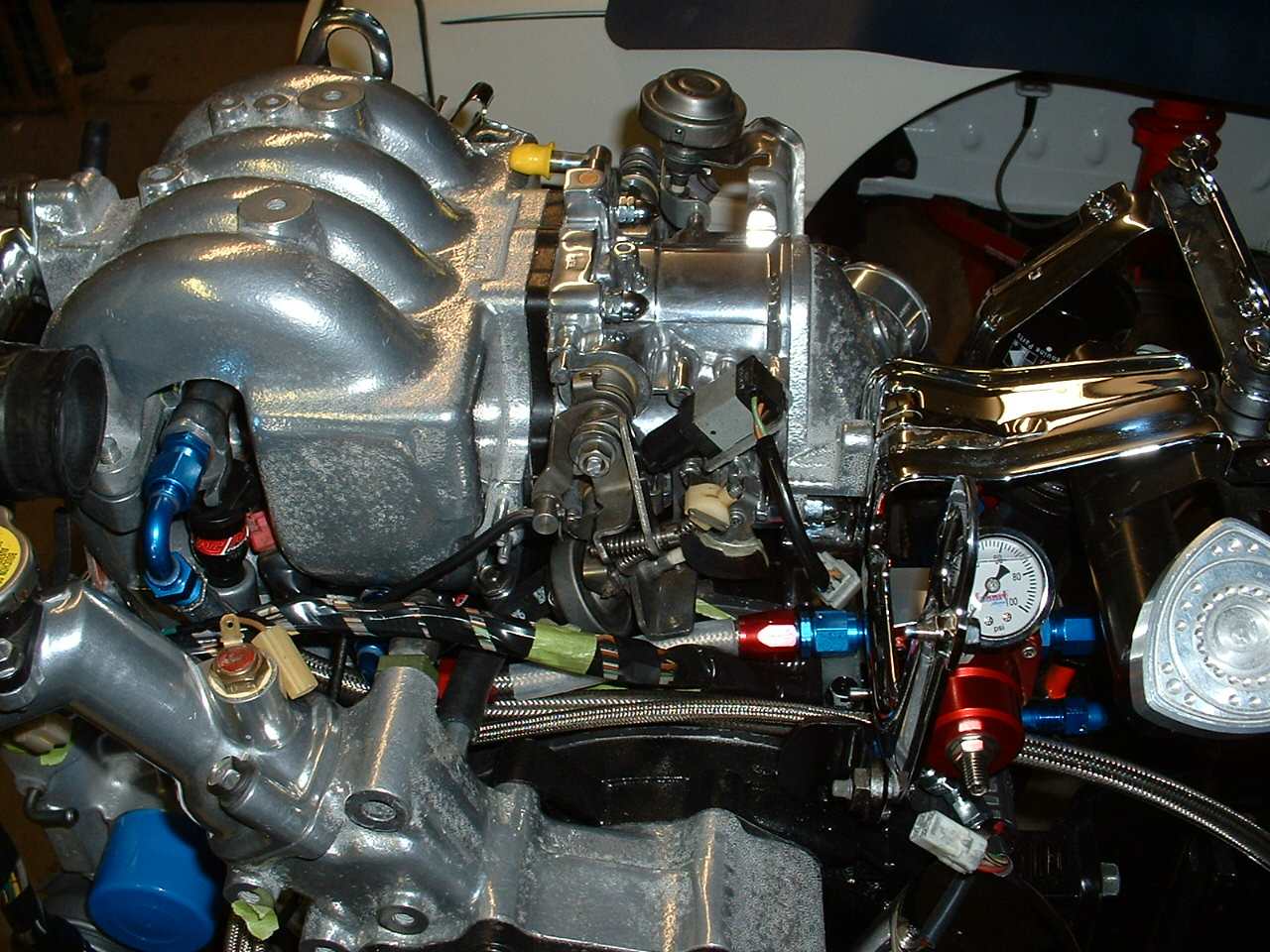

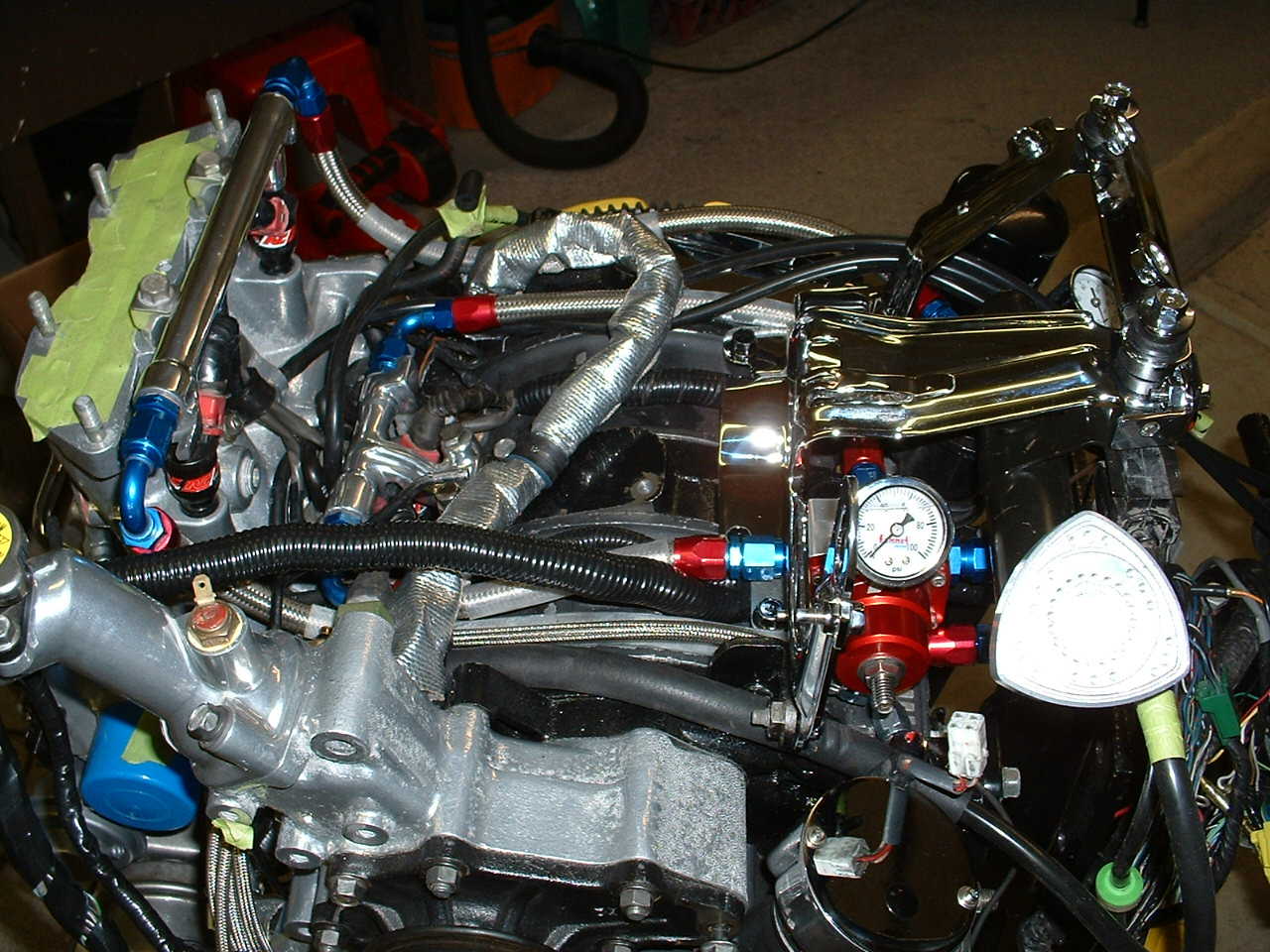

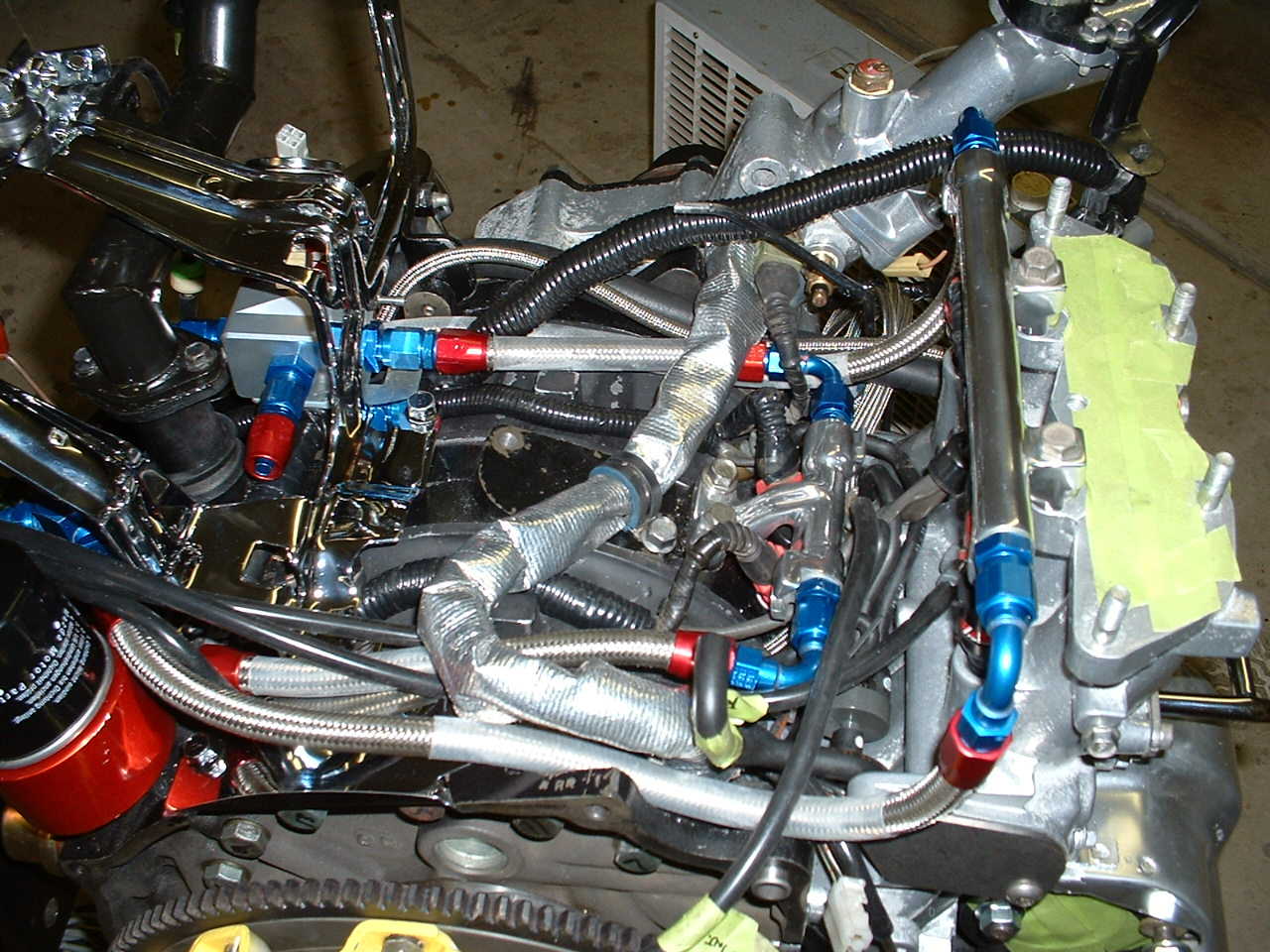

Parallele lines to the rails outlet lines to the fuel reg. I proud of that location. It bolts to an exixting boss and fits well even with the TMIC bracket. When I go to the Air/water IC, I can clean up the fuel line routing a little by getting rid of the bracket.
Fuel reg to return and complete.
Lots of fitting and what-if line routing.
This set-up lends itself to those who want to keep the TMIC. It also gets the fuel reg away from the exhaust.



hey lil red the part numbers are

SUM-230610 .................................................. S.S. HOSE -6AN 10FT
SUM-220686............................................ ....... -6AN 45 HOSE END SWIVEL
NOS-17835NOS.......................................... .... 6AN Y BLOCK (BLUE)
EAR-991954ERL......................................... ..... -6AN TO 14MM X1.5
EAR-991945ERL......................................... ..... -6AN TO 12MM X1.25
EAR-818006ERL......................................... ..... -6AN 180 DEGREE SWIVEL
EAR-809106ERL......................................... ..... -6AN 90 DEGREE TUBE SWIVEL
AER-FBM1012........................................... ....... -6AN STRAIGHT HOSE END.



why you think all the brothas been puttin' tv's in thier escalaides and then going back to thier shack? Same thing



those are part numbers for fuel lines and oil return?



no just fuel lines.

if you go here http://www.fc3spro.com/TECH/MODS/FUEL/fsystem.htm that will show you what you need.

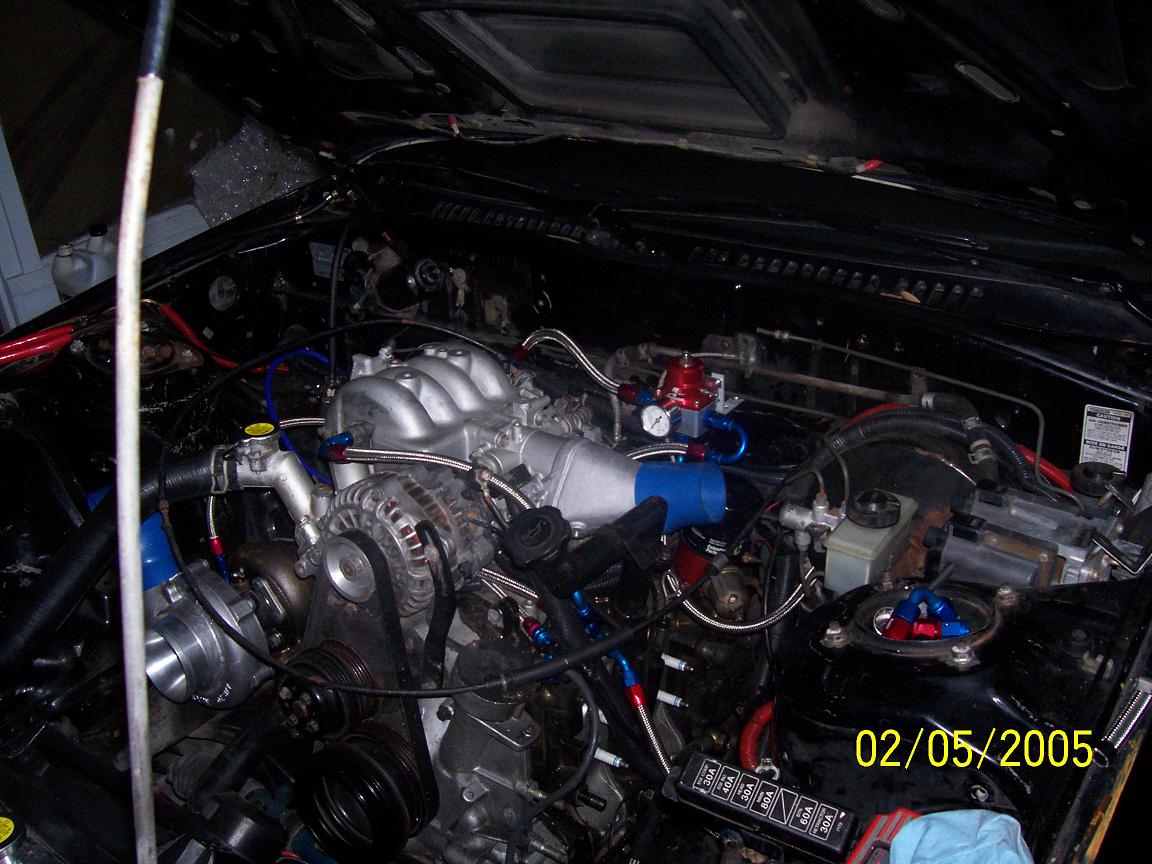

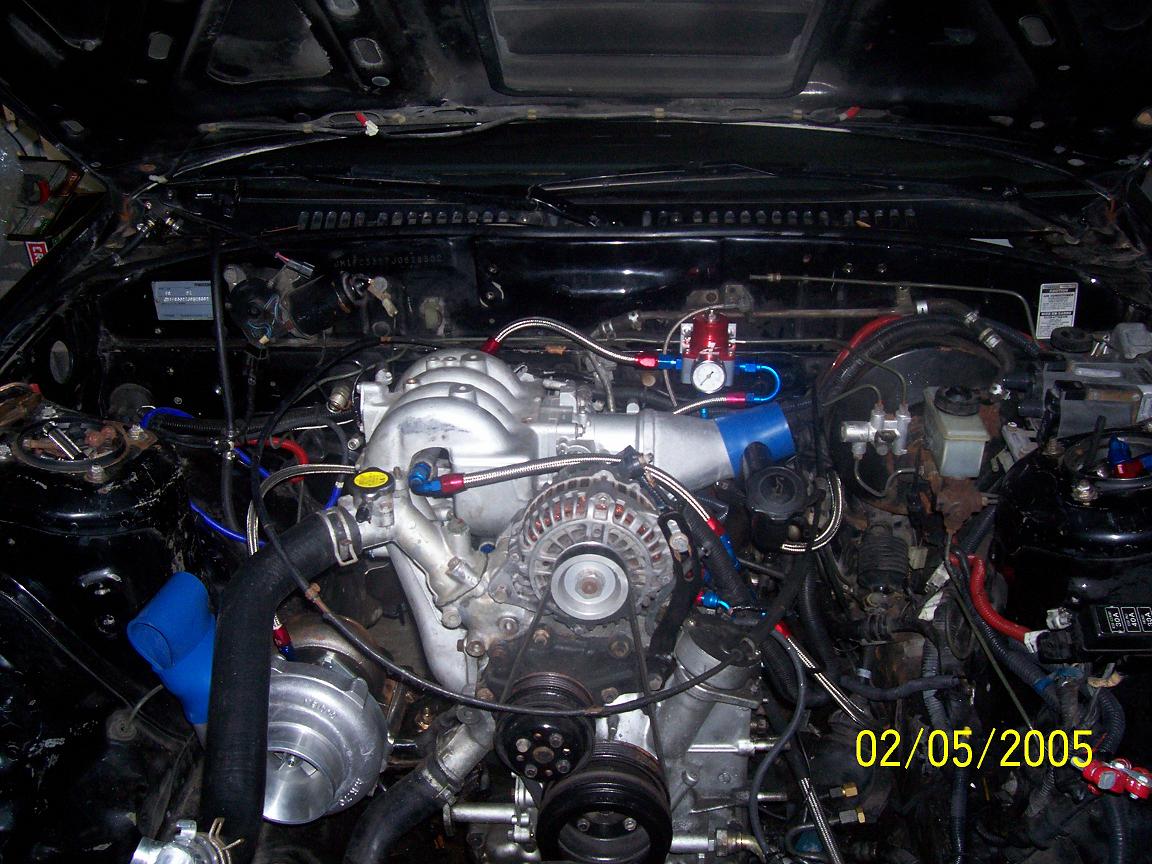

and all my work nad money paid off.........at least for the fuel system.



sick prop-rod

are those RE pullies??

oh, and to keep it on topic - purdy fuel system!!
