Please help.. What all is broke here?

Thread Tools

Search this Thread

Old 11-07-09, 05:58 AM
  #1
Junior Member
Thread Starter

kcdclan's Avatar

Join Date: Dec 2007
Location: Arkansas
Posts: 43
Likes: 0
Received 0 Likes on 0 Posts
Please help.. What all is broke here?
I slid into a curb and fucked up my right rear tire bad...
It makes my car turn when im driving it...
and my car is at a angel driving straight
here are some pic...
Can i just weld it back?
What all will need replaced if i replace it?





kcdclan is offline
Reply Like
Old 11-07-09, 08:47 AM
  #2
NASA-MW ST4

iTrader: (7)

farberio's Avatar

Join Date: Dec 2004
Location: Norcal, Bay Area
Posts: 3,800
Likes: 0
Received 3 Likes on 3 Posts
Wow...judging by that last picture you destroyed your rear hub. That will have to be replaced.
farberio is offline
Reply Like
Old 11-07-09, 09:02 AM
  #3
Eats, Sleeps, Dreams Rotary

iTrader: (1)

Turbonut's Avatar

Join Date: Feb 2002
Location: NJ
Posts: 3,965
Received 54 Likes on 44 Posts
Hopefully it's just the toe control hub assembly and can replaced with one from a used vehicle. Replace the unit and see if it brings it back into alignment, if not more parts might be needed.
Turbonut is offline
Reply Like
Old 11-07-09, 10:56 AM
  #4
Rotary Enthusiast

iTrader: (1)

solareon's Avatar

Join Date: Mar 2008
Location: VA Beach
Posts: 797
Likes: 0
Received 0 Likes on 0 Posts
seen that before. Friend rolled his FD and it ripped the wheel from the hub. broke right in that same spot. Replace it asap
solareon is offline
Reply Like
Old 11-07-09, 02:41 PM
  #5
Who Shot the Sheriff?

iTrader: (2)

Turbo II Rotor's Avatar

Join Date: Jan 2007
Location: Aurora, CO
Posts: 3,858
Likes: 0
Received 1 Like on 1 Post
You broke the cast alum hub and I bet you bent the lateral link too. (not pictured)
Turbo II Rotor is offline
Reply Like
Old 11-07-09, 02:47 PM
  #6
Listen to King Diamond.

iTrader: (4)

need RX7's Avatar

Join Date: Dec 2006
Location: Sterling Heights, MI
Posts: 2,832
Received 6 Likes on 6 Posts
I'd look for a complete rear control arm with everything attached to it (from a car being parted out or something), maybe even keep a replacement rear subframe on standby in case that's bent too.
need RX7 is offline
Reply Like
Old 11-08-09, 02:15 AM
  #7
Junior Member
Thread Starter

kcdclan's Avatar

Join Date: Dec 2007
Location: Arkansas
Posts: 43
Likes: 0
Received 0 Likes on 0 Posts
i have some one who will sale me a auto for like 400 so i can probably get all off it...
kcdclan is offline
Reply Like

Trending Topics

Old 11-08-09, 02:23 AM
  #8
HAILERS


HAILERS's Avatar

Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes on 19 Posts

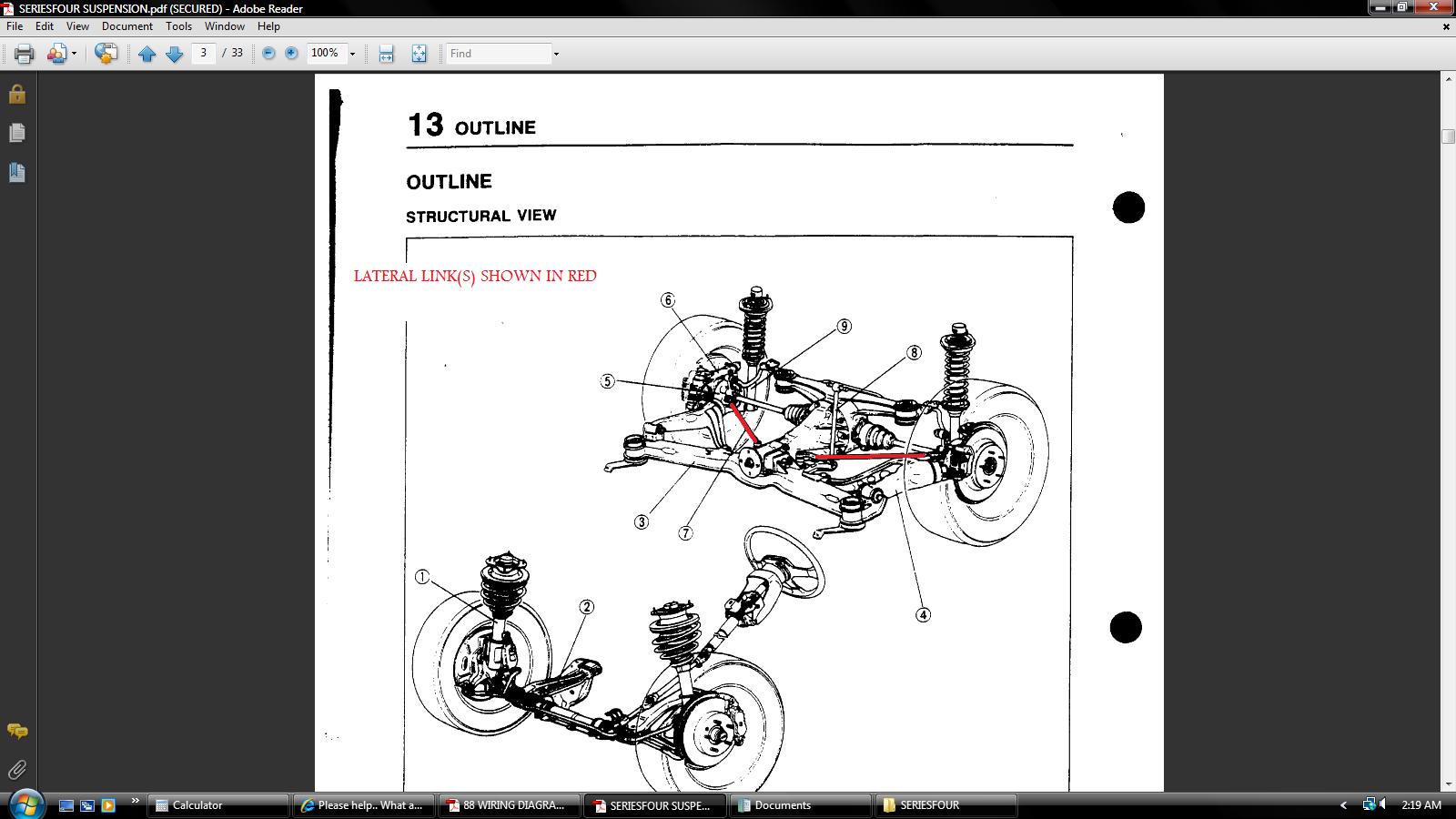

Lateral link is probably also bent.

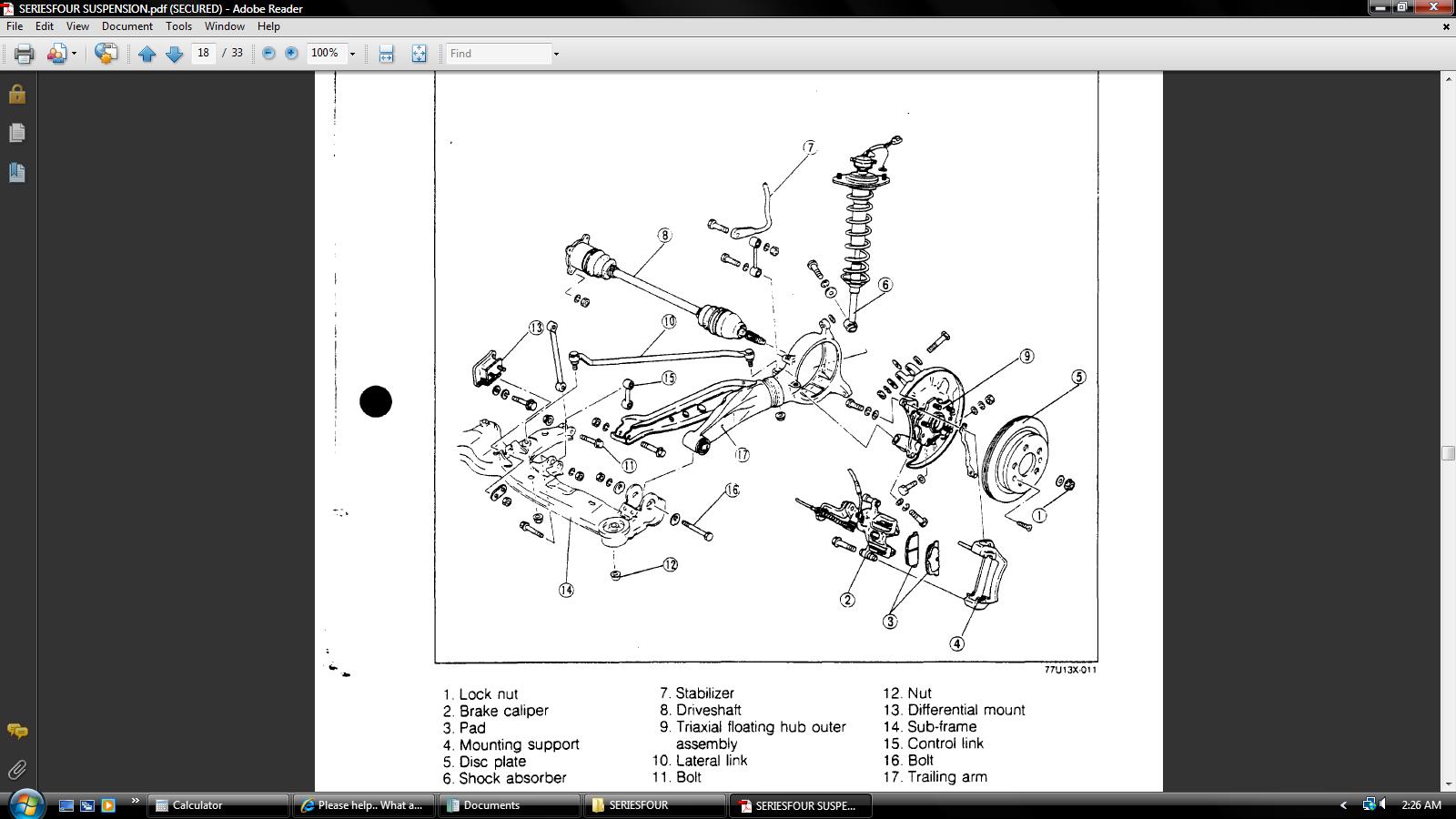

Download chapter 13 of the online FSM for SUSPENSION.
Attached Thumbnails Please help.. What all is broke here?-laterallinks.jpg   Please help.. What all is broke here?-chapterthirteen.jpg
HAILERS is offline
Reply Like
Old 11-09-09, 10:21 PM
  #9
Junior Member
Thread Starter

kcdclan's Avatar

Join Date: Dec 2007
Location: Arkansas
Posts: 43
Likes: 0
Received 0 Likes on 0 Posts
Okey I changed the tie rod and control arm and spindle ..
It seems to be fine but is vibrating when i drive...
The cv fell out at the diffrental and leaked alot of oil... I think thats what is vibrating
Im probably just going to sale the car now...







I dont know what was fucked up on the a arm but i changed it anyways....it was shoved back ... so something was bent on it.

took about a day to do..
kcdclan is offline
Reply Like
Old 11-09-09, 10:30 PM
  #10
Rotary Freak

iTrader: (9)

turboIIrotary's Avatar

Join Date: Feb 2007
Location: dayton,ohio
Posts: 2,618
Likes: 0
Received 3 Likes on 3 Posts
so you drove the car without oil in your diff?
turboIIrotary is offline
Reply Like
Old 11-09-09, 10:35 PM
  #11
Eats, Sleeps, Dreams Rotary

iTrader: (19)

Natey's Avatar

Join Date: Aug 2004
Location: West Coast
Posts: 4,455
Received 1,442 Likes on 746 Posts
Slide it into a curb, **** it up, then sale it.

A 240sx is next on the list, am I rite?
Natey is offline
Reply Like
Old 11-09-09, 11:02 PM
  #12
zoom zoom go boom


ForsakenRX7's Avatar

Join Date: Oct 2001
Location: Gainesville, Fl
Posts: 962
Likes: 0
Received 1 Like on 1 Post
If had another parts car you should have just dropped the whole damn assembly and replaced it.

Natey...I think we all know the answer to that.
ForsakenRX7 is offline
Reply Like
Old 11-09-09, 11:36 PM
  #13
Who Shot the Sheriff?

iTrader: (2)

Turbo II Rotor's Avatar

Join Date: Jan 2007
Location: Aurora, CO
Posts: 3,858
Likes: 0
Received 1 Like on 1 Post
Time to get an alignment.
Turbo II Rotor is offline
Reply Like
Old 11-10-09, 03:19 PM
  #14
Junior Member
Thread Starter

kcdclan's Avatar

Join Date: Dec 2007
Location: Arkansas
Posts: 43
Likes: 0
Received 0 Likes on 0 Posts
No I have another fc3s ... I have three lol
kcdclan is offline
