Strange. I checked the hard copy of the '87 FSM, and it's different from the diagram. From page 1-70 and 1-74, I gathered the following (looking at the s4 pump):
Top left (blue): front intake
Top right (white): front housing
Bottom left (green): rear intake
Bottom right (yellow): rear housing
You may not be able to see the color coding. Mine has long since faded away.
Top left (blue): front intake
Top right (white): front housing
Bottom left (green): rear intake
Bottom right (yellow): rear housing
You may not be able to see the color coding. Mine has long since faded away.
#9
Senior Member

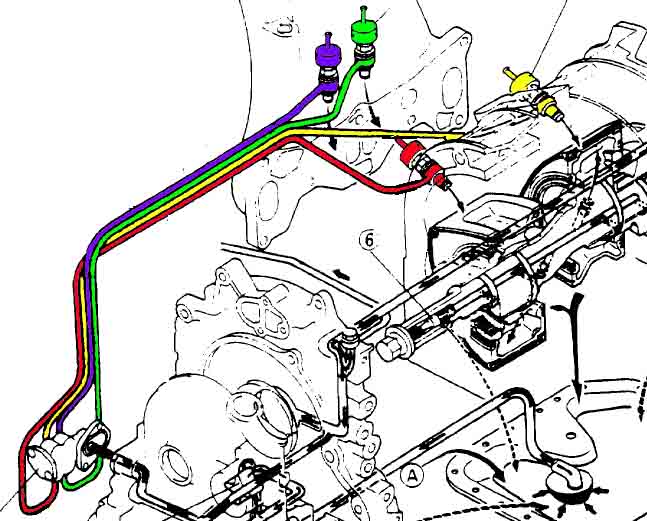

I looked again at the FSM. The diagram you posted is from page 2-2, and is a structural drawing intended to show the layout of the components. I would not trust it to show the routing of the lines, since it conflicts with the explicit instructions provided on pages 1-70 and 1-74 of the same manual.
I would go with the instructions I provided above. Again, this is for the s4 with the mechanical pump.
I would go with the instructions I provided above. Again, this is for the s4 with the mechanical pump.
#10
...94% correct.
Originally Posted by buttsjim
I looked again at the FSM. The diagram you posted is from page 2-2, and is a structural drawing intended to show the layout of the components. I would not trust it to show the routing of the lines, since it conflicts with the explicit instructions provided on pages 1-70 and 1-74 of the same manual.
I would go with the instructions I provided above. Again, this is for the s4 with the mechanical pump.
I would go with the instructions I provided above. Again, this is for the s4 with the mechanical pump.
