Not getting my supposed boost level
Hiya'll!
I got a FC3C TII, S5. Before, I got my 7-9 PSI, whatever is stock, but now I only get 4-5, which means the duty solenoid controlling the boost isn't working somehow. It is clicking, so in that manner it works.
What can cause this to happen? The possible causes that I can think of are these:
Solenoid, wastegate, MAP, vac lines to solenoid, or my intake being straight instead of the S-shaped rubber one.
Any other ideas/ways to test?
Does it matter what way the solenoid is plugged on the vac lines?
I got a FC3C TII, S5. Before, I got my 7-9 PSI, whatever is stock, but now I only get 4-5, which means the duty solenoid controlling the boost isn't working somehow. It is clicking, so in that manner it works.
What can cause this to happen? The possible causes that I can think of are these:
Solenoid, wastegate, MAP, vac lines to solenoid, or my intake being straight instead of the S-shaped rubber one.
Any other ideas/ways to test?
Does it matter what way the solenoid is plugged on the vac lines?
#4
Senior Member
Thread Starter
Join Date: Feb 2010
Location: Norway
Posts: 504
Likes: 0
Received 0 Likes
on
0 Posts
Do you have any numbers I should look for?
I am struggling with the evaporator box, PO fecking glued one of the brackets to the firewall mount, so I can't get it out for ****, except maybe by taking out the dash, which I ain't doin'.
So that is first pri anyways.
I am struggling with the evaporator box, PO fecking glued one of the brackets to the firewall mount, so I can't get it out for ****, except maybe by taking out the dash, which I ain't doin'.
So that is first pri anyways.
#5
Rotary Freak

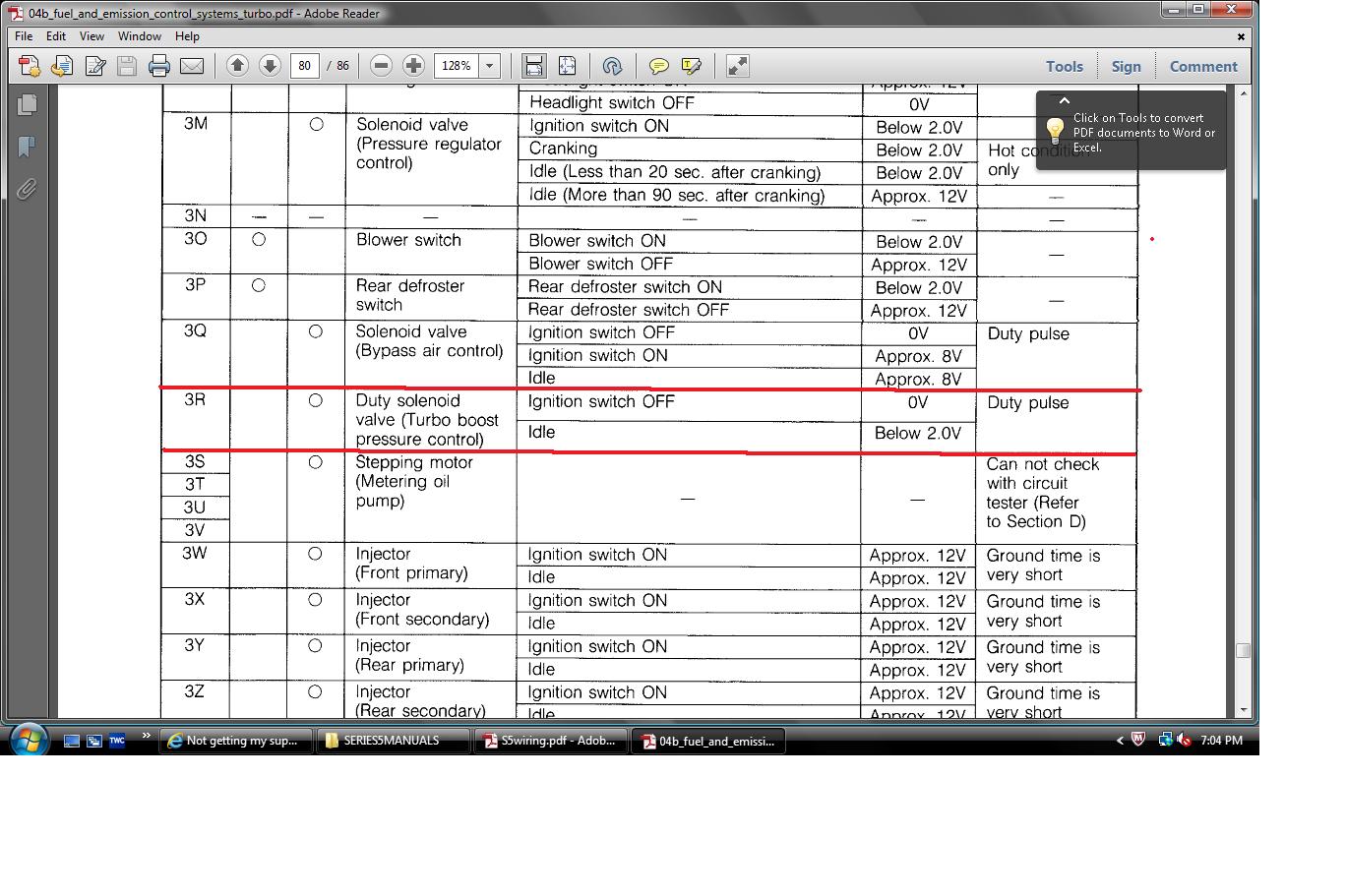

Get a meter and look at the voltage on pin 3R with key OFF and then key ON and compare with the jpg I attached in my other post above.
