No window Switch Please Help!!!!

Well both windows switched have broken and my passenger window is still down, and neither of the switched are usable. I cant seem to find a replacement either. Is there a way to manually let my window up? Pleas help. I have an S5VErt
Reply
Old Sep 16, 2008 | 06:45 PM
  #2
Jpk3200's Avatar
Jpk3200
Tenured Member 05 Years

Joined: Oct 2006
Posts: 824
Likes: 0
From: San Antonio, TX

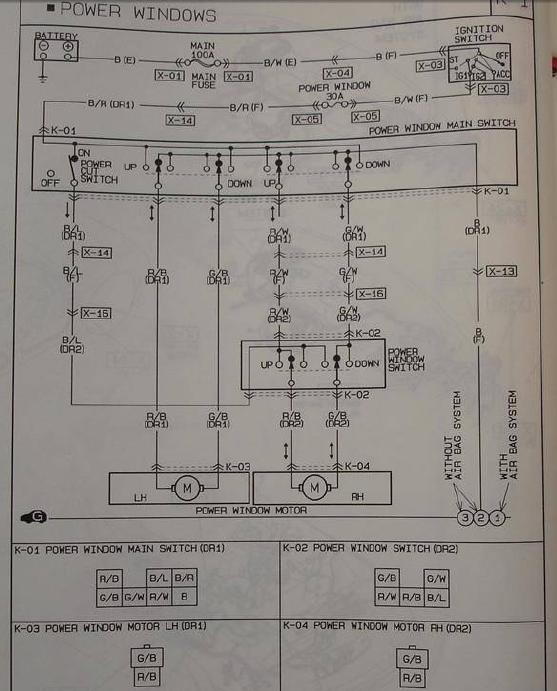

You could jumper the wires to make the windows roll up as long as the motors still work.

Attached Thumbnails No window Switch Please Help!!!!-s5windowswitch.jpg
Reply
Old Sep 16, 2008 | 06:51 PM
  #3
Musada's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2004
Posts: 164
Likes: 0
From: Georgia
umm....that looks greeek to me, but I found a post that said connect a 12v battery to the prongs on the connector going to the window motor, but i'm not sure exactly where it is
Reply
Old Sep 16, 2008 | 09:25 PM
  #4
NJGreenBudd's Avatar
rx-for-my-7
Tenured Member 15 Years
iTrader: (1)

Joined: Jul 2004
Posts: 2,207
Likes: 15
From: New Jersey
That's what you would be doing when you jumper the wires at the switch. Whether it's the car battery or a separate 12v battery it's the same thing, all your doing is bypassing the switch. The wires would be on the inside of the door panel, just find the window switch and there you go.

This will only help if the switch is actually bad and not the motor itself.
Reply
Old Sep 16, 2008 | 09:57 PM
  #5
87 t-66's Avatar
not a drifter
Tenured Member: 20 Years
iTrader: (133)

Joined: Jun 2004
Posts: 9,337
Likes: 6
From: Columbus, Ohio
the process to manually put the windows up/down is in the FSM. i believe to put them up you put 12v on the horizontal spade connector on the plug, and ground the vertical connector. could be the other way around, but its in the FSM (body - electrical section). it is very easy.
Reply
Old Sep 17, 2008 | 06:57 AM
  #6
Musada's Avatar
Thread Starter
Full Member
Tenured Member 10 Years

Joined: Jul 2004
Posts: 164
Likes: 0
From: Georgia
Well, the motors work, its just the switched are in peices. so i connect the battery to the plug that went to the window switch right?
Reply
Old Sep 17, 2008 | 10:08 AM
  #7
87 t-66's Avatar
not a drifter
Tenured Member: 20 Years
iTrader: (133)

Joined: Jun 2004
Posts: 9,337
Likes: 6
From: Columbus, Ohio
Originally Posted by Musada
Well, the motors work, its just the switched are in peices. so i connect the battery to the plug that went to the window switch right?
no, connect it to the 2 prong plug connected to the window motor. its under the door panel.
Reply
Old Sep 17, 2008 | 08:29 PM
  #8
ITSWILL's Avatar
Wiring Nightmare
Tenured Member 15 Years
iTrader: (12)

Joined: Dec 2007
Posts: 1,714
Likes: 2
From: Ortonville, MI
post in the 2nd gen part for sale section

I'm sure you can get a switch, I just put up a post the other day for the same thing and three people offered to sell me the switch.
Reply
Old Sep 17, 2008 | 08:47 PM
  #9
macan724's Avatar
Junior Member

Joined: Mar 2008
Posts: 6
Likes: 0
From: Wyoming
have you tried taking the switches apart??? I had/ have the same problem, and have to take a wire brush or sand paper to the contacts on the inside of the switch assemblies. It always works. Everytime.
Reply
Old Sep 17, 2008 | 09:01 PM
  #10
311unity13B's Avatar
That's JDM tight, yo
Tenured Member 15 Years

Joined: Nov 2003
Posts: 1,599
Likes: 0
From: Atlanta
Originally Posted by Musada
Well, the motors work, its just the switched are in peices. so i connect the battery to the plug that went to the window switch right?
correct, and if it goes up, switch the wires on the battery (reverse polarity) and it should go down, or the other way around, depending on which way u want it to go
Reply
Old Sep 17, 2008 | 09:10 PM
  #11
ITSWILL's Avatar
Wiring Nightmare
Tenured Member 15 Years
iTrader: (12)

Joined: Dec 2007
Posts: 1,714
Likes: 2
From: Ortonville, MI
does anyone know if there is a place to get new bridges?
