need help i have no spark
11-29-07, 08:09 PM
#2
Automatic = Power drain
Join Date: Nov 2006
Location: Pennsylvania
Posts: 399
Likes: 0
Received 0 Likes
on
0 Posts
Is everything properly connected (CAS, computer, coils?)
Do your injectors click if you spin the CAS (Crank Angle Sensor)?
Check and double check connections is about the best advise I can give.
Do your injectors click if you spin the CAS (Crank Angle Sensor)?
Check and double check connections is about the best advise I can give.
11-30-07, 08:41 AM
#4
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Engine fuse blown or EGI fuse.
EGI fuse supplys the 12 to the Main Relay.
Engine fuse supplys 12vdc to pull in the Main Relay.
Then coils get 12vdc from the Main relay on a black/yellow wire. So check for 12v on that wire, especially at the Lead coil assy.
IF your fuel pump runs when the fuel check connector is jumpered, then the Engine fuse and main relay are pulling in and have power. If that's so, then what I wrote above is mute.....almost. I'd still check for 12v at the black/yellow wire and batt voltage at the ECU plug at each injector wire. Series four would be at the small plug, green/white, light green. light green/black, light green/red. PUll the plug off and check those wires at the plug.
IF you've a spare cas, then attach it to the harness like the man above said, and key ON, spin the bottom gear of that cas and you should hear spark and fuel injectors clicking. If not, then you've no voltage at the coils.
It's ASSUMED you have the plug on the cas and all the plugs are on the ECU and all the plugs on the EM harness are connected up, especially those two orange ones above and to the right of the passengers feet that mate with the Front harness.
EGI fuse supplys the 12 to the Main Relay.
Engine fuse supplys 12vdc to pull in the Main Relay.
Then coils get 12vdc from the Main relay on a black/yellow wire. So check for 12v on that wire, especially at the Lead coil assy.
IF your fuel pump runs when the fuel check connector is jumpered, then the Engine fuse and main relay are pulling in and have power. If that's so, then what I wrote above is mute.....almost. I'd still check for 12v at the black/yellow wire and batt voltage at the ECU plug at each injector wire. Series four would be at the small plug, green/white, light green. light green/black, light green/red. PUll the plug off and check those wires at the plug.
IF you've a spare cas, then attach it to the harness like the man above said, and key ON, spin the bottom gear of that cas and you should hear spark and fuel injectors clicking. If not, then you've no voltage at the coils.
It's ASSUMED you have the plug on the cas and all the plugs are on the ECU and all the plugs on the EM harness are connected up, especially those two orange ones above and to the right of the passengers feet that mate with the Front harness.
11-30-07, 10:53 AM
#5
Full Member
iTrader: (2)
Join Date: Jul 2007
Location: los angeles
Posts: 78
Likes: 0
Received 0 Likes
on
0 Posts
my car just started this.
it sparks when u first crank it and spark when u stop cranking, it seems like the starter is taking all the voltage and not giving any to the coils
it sparks when u first crank it and spark when u stop cranking, it seems like the starter is taking all the voltage and not giving any to the coils
11-30-07, 03:00 PM
#6
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2007
Location: knox,tn
Posts: 418
Likes: 0
Received 0 Likes
on
0 Posts
dose the right side harness connect with the left side harness some were.all i did was use the right side harness that came with the motor and the ecu that came also and installed everything the same way it was pulled
Trending Topics
11-30-07, 03:20 PM
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
You don't state what EM harness you used. USA Turbo? JDM turbo? Non turbo (best choice of all).
11-30-07, 06:33 PM
#9
Senior Member
Thread Starter
iTrader: (1)
Join Date: Oct 2007
Location: knox,tn
Posts: 418
Likes: 0
Received 0 Likes
on
0 Posts
The EM harness on the engine mates also with the FRONT harness, using two ORANGE plugs above the passengers feet and off to the right. The FRONT harness does only minor functions. Like supply the ECU and injectors with batt voltage.
You don't state what EM harness you used. USA Turbo? JDM turbo? Non turbo (best choice of all).
You don't state what EM harness you used. USA Turbo? JDM turbo? Non turbo (best choice of all).
I used usa turbo em, i hope .the guy i bout it from told me it was an 88 t2 but for some reason it came with s5 turbo but who knows. just got back in side and took the intake off to make sure every thing was hooked up right.
11-30-07, 06:56 PM
#10
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
You need to go to Rotary Rescurrections site and modify your turbo EM harness to fit a non turbo Front harness.
Bottom line is a Turbo EM harness is really not compatible with a non turbo Front harness. Just a couple of wires need changing.
It's not possible to help any further without going out and use a meter on the plugs etc.
Actually there's only two wires in the turbo harness mating with the non turbo front harness that will cause heartburn.
I'd bet the engine fuse is blown.
FYI....The stock non turbo EM harness is virtually plug and play if you forget about the twin scroll solenoid and knock sensor. Neither of which is required to run and drive the car.

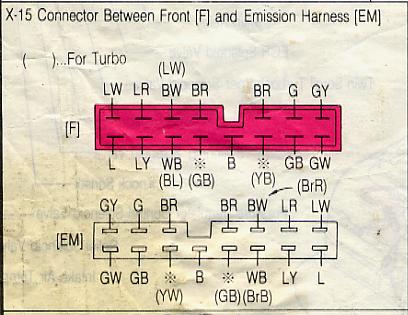

EDIT: There should be a jpg attached. It's of one of the plugs on the EM harness that mates with the Front harness. See the letters with the ( )around them? They are Peculiar to TURBO EM harness. Those ( ) wires are not compatible with non turbo Front harness wires without the ( ) around them.
The only one that can blow a ENGINE fuse would be the one with (BrR) around it. It's a Brown/Red wire going to the boost sensor and also to the ECU pin 2B. Not good.
I'd also say your water temp does not work either. YW wire. Nor the alternator.
The ENGINE fuse is shown in the FAQ thread at the beginning of this site. It''s on the third row from the bottom, second one over from the left.
Bottom line is a Turbo EM harness is really not compatible with a non turbo Front harness. Just a couple of wires need changing.
It's not possible to help any further without going out and use a meter on the plugs etc.
Actually there's only two wires in the turbo harness mating with the non turbo front harness that will cause heartburn.
I'd bet the engine fuse is blown.
FYI....The stock non turbo EM harness is virtually plug and play if you forget about the twin scroll solenoid and knock sensor. Neither of which is required to run and drive the car.
EDIT: There should be a jpg attached. It's of one of the plugs on the EM harness that mates with the Front harness. See the letters with the ( )around them? They are Peculiar to TURBO EM harness. Those ( ) wires are not compatible with non turbo Front harness wires without the ( ) around them.
The only one that can blow a ENGINE fuse would be the one with (BrR) around it. It's a Brown/Red wire going to the boost sensor and also to the ECU pin 2B. Not good.
I'd also say your water temp does not work either. YW wire. Nor the alternator.
The ENGINE fuse is shown in the FAQ thread at the beginning of this site. It''s on the third row from the bottom, second one over from the left.
Last edited by HAILERS; 11-30-07 at 07:18 PM.
