Motor Is Hard to Turn
Ok I rebuilt my motor last year and had a few problems getting it started. Finally did and now the past few times I have run it, about 20 seconds into it, it just stops. it doesn't stall out, it just stops as if some one stuck a wrench in there. Now it is hard to turn, by hand and when trying to start it. I am still in the ATF to get compression stage. I anyone has any ideas let me know.
Thanks
Ryan
Thanks
Ryan
#4
Rotary Enthusiast
Join Date: Aug 2003
Location: Calgary, AB
Posts: 868
Likes: 0
Received 0 Likes
on
0 Posts
First check the endplay with a dial indicator. Check your specs from OEM.
Sounds like you don't have enough. Once ur thrust bearing heats up it expands, doesn't have enough clearence and seizes.
Can also be a # of other things, but start there.
Sounds like you don't have enough. Once ur thrust bearing heats up it expands, doesn't have enough clearence and seizes.
Can also be a # of other things, but start there.
#5
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
If you go to the factory service manual that is free and online, you WILL see a procedure to check to see if the Torrington bearings have dropped and everything is as it is supposed to be. the measurement requires the front E shaft pulley bolt be removed. Then you measure from the front of the Eshaft to the front of the pulley boss. The measurement should be 0.0961 MAX.
It's shown on page 1-67 of the 1987 manual on page 1-67.
Then again, it could be another thing.
It's shown on page 1-67 of the 1987 manual on page 1-67.
Then again, it could be another thing.
#6
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: Turners Falls MA
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
Thanks, I am going to check all of that tomorrow. and maybe take the front cover off just for the hell of it and check all of that crap out. Again thanks and I will let you know what i discover.
Ryan
Ryan
Trending Topics
#8
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: Turners Falls MA
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts

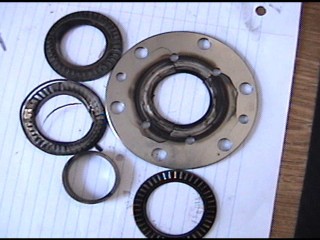

I found the problem. I had taken out the front bolt a while back and in doing so a bearing dropped. I killed the bearing, hurt the thrust washer and destroyed the thrust plate. i think the spacer is still good but i am going to keep looking at it. Thanks for the hepl folks here is a pic.
#10
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Ouch. Remember that by doing that, you may have spread metal shavings throughout the engine. Pull your oil filter and split it in half to check for evidence of this. The babbet on the main bearings will absorb some of this, but if too much of it goes through, you will rapidly wear all the bearings in the engine. At the least, it will cause premature wear. At the worst, it will seize the engine and kill the bearings, stationary gears, rotors, eccentric, etc. And running with metal in the oil could cause the rotors to grind down the irons, thus making them unusable.
After a failure like this, you need to totally flush the oil system. Flush the pan, engine (use an air compressor to force oil through it) and oil cooler (make sure to heat the oil as to activate the bypass thermostat).
After a failure like this, you need to totally flush the oil system. Flush the pan, engine (use an air compressor to force oil through it) and oil cooler (make sure to heat the oil as to activate the bypass thermostat).
#11
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: Turners Falls MA
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
I don't think any of that is needed because i didn't run it that much. it did mess up the front of the main bearing on the stationary gear too. But that is all the inside of the bearing was fine. I put in another stationary gear and new of everything that was toast. should have it all back together tomorrow. The good news is that i can turn it by hand again so i think all is good. i love just having parts lying around.
#12
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: Turners Falls MA
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
i got it all back together, and i started it up. Runs a whole hell of a lot better. even ran on its own, but eventually stalled when it got warmed up. rpms got to low and the compression isn't top notch just yet. but i am very happy, its on its way.
#14
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Originally Posted by rymnryan
I don't think any of that is needed because i didn't run it that much. it did mess up the front of the main bearing on the stationary gear too. But that is all the inside of the bearing was fine. I put in another stationary gear and new of everything that was toast. should have it all back together tomorrow. The good news is that i can turn it by hand again so i think all is good. i love just having parts lying around.
(Also notice the crappy ports on that center iron).
#15
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2002
Location: Turners Falls MA
Posts: 162
Likes: 0
Received 0 Likes
on
0 Posts
i will look into the metal chunk issue of course. but mine was not as bad as yours Aaron. there were no metal shavings at all on the shaft or around it. but i will get new oil and stuff.
Thanks
Thanks
#16
Open up! Search Warrant!
Join Date: May 2002
Location: Kicking down doors in a neighborhood near you
Posts: 3,838
Likes: 0
Received 2 Likes
on
2 Posts
they make magnetic oil pan drain plugs to collect metal shavings. Or you can put a magnet in the pain. That would require you to drop the pan to check it, but it will attract bigger pieces of metal than a magnetic drain plug since the drain plug on the 13B is on the side of the pan and not the bottom.
