I removed all my old oil lines on my 86' FC RX7, -replacing with lines I purchased from MSC industrial supply. I don't remember which oil lines - go from pump to injectors? Looking at the pump from the passenger side could anyone tell me where; [upper left], [upper right], [lower left], and [lower right] go? (Front housing/ rear housing) lower intake man. looking inside at gasket; the two middle runners- (left/right)-oil injectors.
--any help is appreciated.

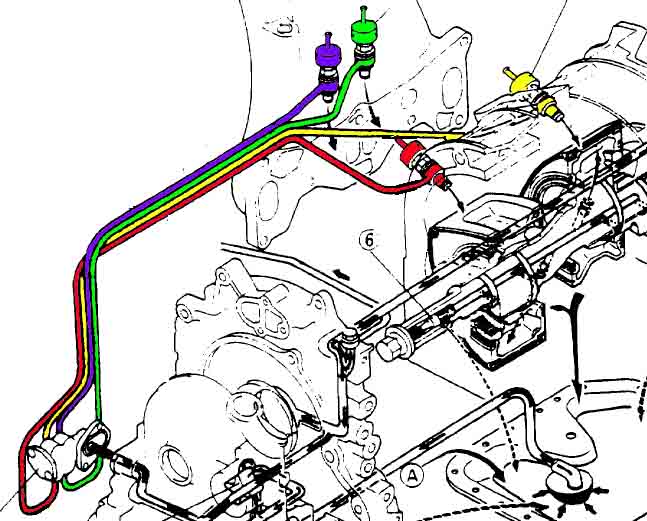

here



kungfu wheres that shematic from, is it out of the FSM?



i did this on my car like 2 years ago, still works great, only cost like $5 tops

https://www.rx7club.com/2nd-gen-archive-72/rebuilding-omp-oil-injection-lines-348068/



Right on... thanks for the pic.



Aside from the bends in the line wanting to fit only one way, it doesn't matter which nozzle gets which line.
