Racer X-8

I was helping MRX Rotary with getting to his aux port sleeves (another story all together). We got to the intake manifold oil injector removal. We no more than breathed on the injector lines (yes, both of them). They both cracked-off the banjo fittings right at the tip of the barb. Brittle. Suddenly, we had another problem to fix.

Cause of failure? My opinion - the oem tubing is marginal at best of heat toleration. Perhaps they're nylon. Not much better than 200 degrees F. material.

Ok, so, this is what I have selected to use. Both the tubing and clamps were found online at http://www.corbincorp.com which is MSC Industrial supply Co.

1) Tubing: MSC # 48701031 available in 10' lengths. Perfect length - still have about 3-4' to spare. 1/8 x 3/16 (CTL) Teflon PFA - Industrial. Translucent. 1/8" I.D., 3/16" O.D.

PFA Characteristics
• Excellent abrasion & temperature-resistance
• Low coefficient of friction for ease of flow
• UV & Gamma radiation stable, chemically inert
• Thermally superior to most plastics
• Outstanding chemical & electrical properties
• Durometer=shore D 55±5
• Temperature range: -320°F to +500°F

$1.51 per foot x 10' = $15.10

2) Clamps: MSC # 48547962. Two-Ear Clamps
Type: 2-Ear
Nominal Size: 1/4
Inner Width of Ear: 0.118 In.
Thickness: 0.0276 In.
Width: 0.236 In.
Material: Stainless Steel

$.33 ea. x 12 = $4.00 (yeah, only needed 8, but that's only if you don't booboo. I got 4 spares. Wanna buy em?)

OK, I splurged a tad here - could have gotten zinc plated @ .19 ea. Woooo!

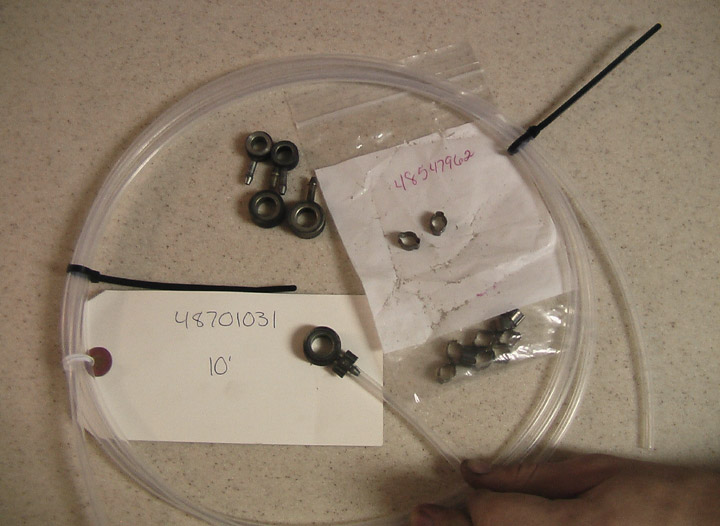

Some pix:

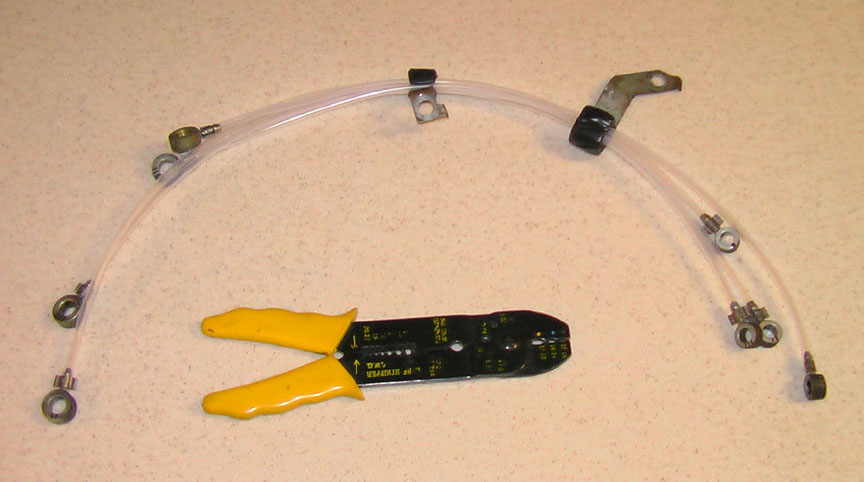

So, what's wiring tool doing here? It made the perfect crimper for the clamps! Just do one side at a time. Not all at once. Just a small squeeze at a time, then the other side, back, etc. Finally, the clamp goes fully squished and is gripping the teflon tube so hard, it's hard to rotate anything anymore!

Racer X-8

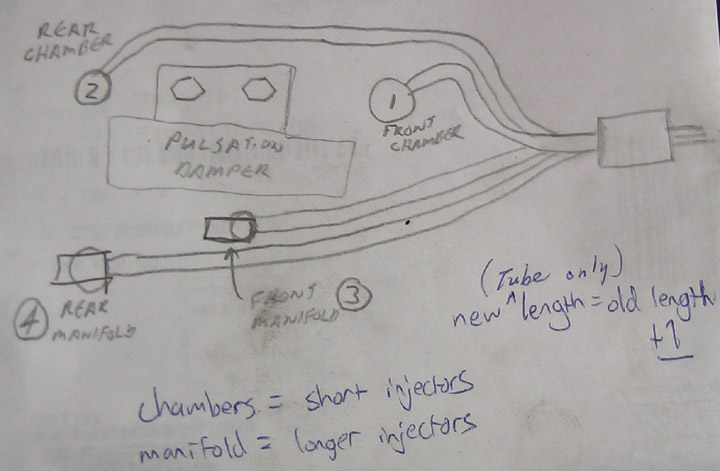

Okay, so here are a couple sketches of the lines in there.

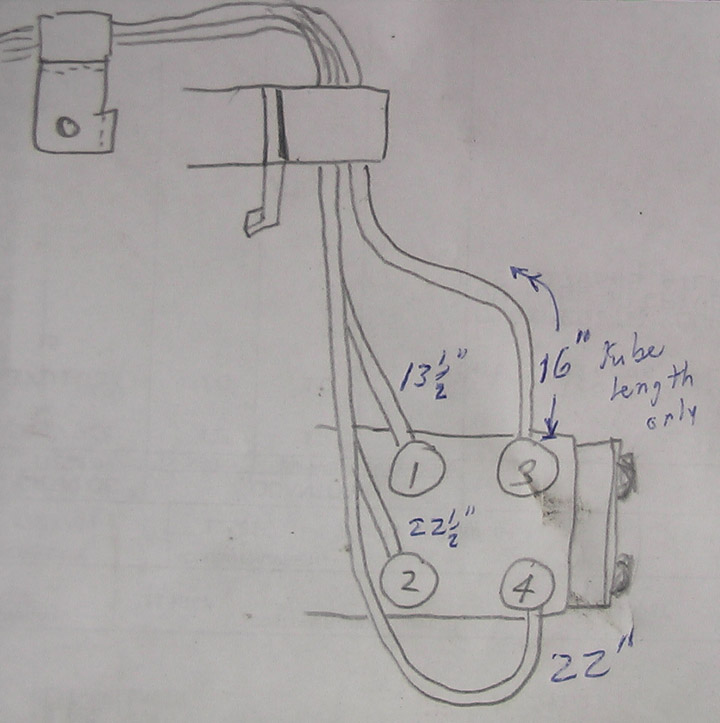

I added 1" to the measured lengths. It's a thing I do when I can. Dunno why really, other than I hate being too short. Those lengths are written on the setch at the pump.

How to reclaim the banjo fittings: Patience!!!!!!

1) GRIND-OFF just enough of both ears of the clamp ring, and it will come (fall?) apart in two halves. I got a bench grinder which most would consider a toy. It was perfect.

2) Whittle-away at the plastic tubing WITHOUT MESSING-UP THE METAL BARB!!!...PATIENCE!!!!!

That's about all there was to that.

Putting the tubing onto the banjo fitting barb: Patience!!!!!!

Just push it on with steady force - NOT TOO MUCH THOUGH!!! Twisting it while pushing really does help a lot. A little spit or something is good to lubricate it some. A paper towel helped me to grip the teflon tubing, and helped to keep me from crushing it in the process...

I did 8 out of 8 without a screw-up, so it can't be that hard...

Let me just make this perfectly clear: DON'T FORGET TO SLIDE A BAND CLAMP ONTO THE TUBE BEFORE YOU PUSH THE SECOND FITTING ON!!!!

Racer X-8

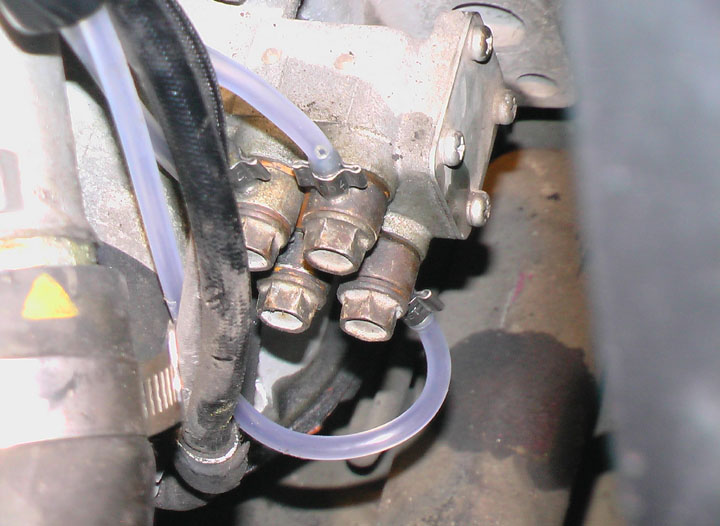

Some pix of the (almost) completed project. (Still waiting on a parts order for the aux. port sleeves...)

The two loose ends go to the intake manifold injectors, when they get put back on.

Note how I marked them I, II, III & IIII to coincide with my sketch numbering system.

Well, that's all I can think of. I like to write-out anything I can think of. Not trying to insult anyone's intellegence with being overly detailed. I just hate not having the info that I need AFTER I commit to a project like this!

I think I spent more time just looking for the right materials, and ordering the stuff, than the time that I spent doing the actual work.

Hopefully you know of someone like me who works at a place that regularly buys from MSC. We recieve our orders next-day from their Allanta location. Nice.

DerangedHermit

What kind of pressure can the tubing take? I didn't see it listed....

ajsuper7

check these out, as much as the oem ones but far superior for those who dont want to make their own...

http://www.rotorsportsracing.com/per...g/OMPlines.htm

DerangedHermit

Useless link....

BlaCkPlaGUE

That tubing is pretty cool see-thru so you can see the oil and stuff. But yea, what kind of pressures can it take? braided lines can take almost anything, but cost a shitload. I spose if the see-thru ones that you have are better than the stock ones, then its all good.

Racer X-8

I know. I couldn't find that number anywhere either. I was a little worried about that until I got this tubing in my hand and did this work with it.

I can say that I have more than a lot of experience with your garden variety polyethylene tubing which is used everywhere in industrial pneumatics. That stuff is rated for 125 or 150 psi. This teflon tubing seems to me to be just as capable, if not more. It's pretty tuff stuff, hard to just expand it over the barb. It takes a few minutes of steady pushing to finally push it all the way on.

Sorry not to have a number for you on that...

DerangedHermit

Anyway you can call them or something and find out? I'm kinda lazy and don't feel like it... .

Fijensen

Good find, mine are getting crunchy. I priced replacements the other day and nearly soiled myself. I have to agree that teflon is superior. I work in a chemical plant, and the instrument techs use it on their pressure calibrators. That o.m.p. can't put out too much pressure or mine would have already disintegrated.

Racer X-8

OK.

Do you (or anybody) know what kind of operating pressure they will see? I thought I read somewhere that the pressure is like real low...

But, yeah, ok, I'll call tomorrow...

DerangedHermit

I searched and apparently there isn't much pressure in the lines.

Racer X-8

Yeah, the ones off of this engine broke so easily, it was like they were made of blown glass. LOL (wasn't funny at the time though...)

Side note: See the vacuum line above the front chamber injector - the one with a big wedgie chunk out of the end of it? Found it that way, and yes, it wasn't even connected at all!!! Good thing he was at least using MMO. He hasn't put more than 1000 miles on it snce he bought it from a guy in Charleston...

edit: Oh, never mind, I just realized I didn't post that pic.

And yeah, the primary mode of tubing failure here is heat degradation. I'll call tomorrow though, if just for kix...

Raymr

Great pics and writeup. I'm glad theres a low-cost solution for those brittle lines. Thanks.

Racer X-8

Well, OK, if you insist.

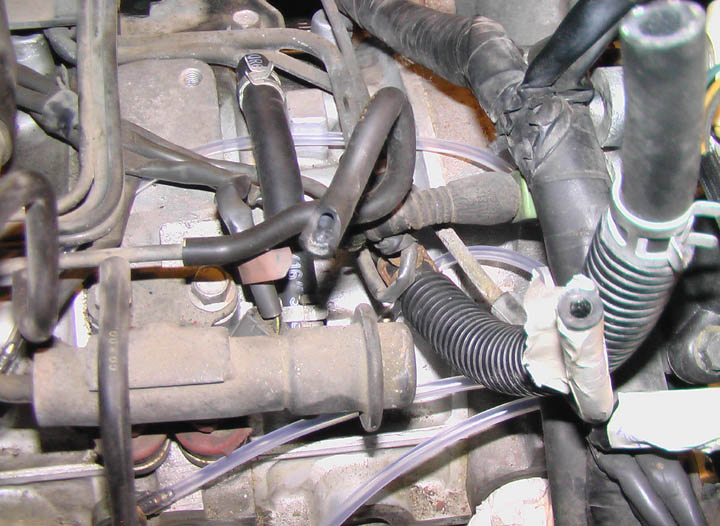

It's the vacuum line right in the middle of the pic. It was supposed to be for the front camber oil injector. It's rotated around from its position when connected. See the big missing chunk? It was laying to the side of the injector, not even close to being connected to it. It also was most likely ruining the level of vacuum in the other lines! And , yes, there was a suspicion that the vacuum system had a nasty leak before this work began. This little sucker is really hidden big-time when the engine is all-together, you know...

Also, you can see more of the teflon lines in this pic too...

Another tip I just now remembered that I didn't include above, assemble the longest lines first. That way, if you booger-up an end while trying to push the tubing onto the banjo barb, you can re-cut it to a shorter length and still use it. (Not that I had to, of course )
