Location of S5 Passive Shoulder Belt CONBOX (FC01-67-780A)?

2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.
Sponsored by:

Location of S5 Passive Shoulder Belt CONBOX (FC01-67-780A)?

Old 02-11-19, 03:13 PM
  #1
Senior Member
Thread Starter

Hot_Dog's Avatar

Join Date: Nov 2001
Location: Alexandria, VA
Posts: 625
Liked 20 Times in 20 Posts
Location of S5 Passive Shoulder Belt CONBOX (FC01-67-780A)?

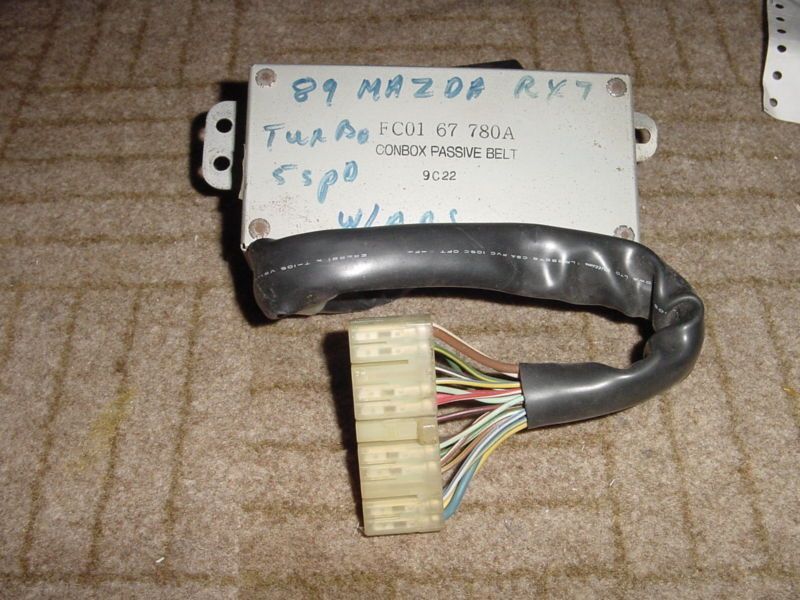

My passive shoulder belts have operating sluggishly and oftentimes hanging up along the way. I removed the driver's belt assembly and it seems to work okay when I apply 12V directly to the motor. I was measuring less than 1V at the harness to motor connector at the driver's side. I think the problem might be with the Passive Shoulder Belt CONBOX (FC01-67-780A). There are apparently four relays along with some electronics in the CONBOX that may be limiting the voltage to the belt motors. I'm not sure where the CONBOX is located. I think it's located behind the glove box. Below, I've posed a picture of a S5 CONBOX that I got off the web. So, my question is does anybody know where this box is located?


Hot_Dog is offline
Old 02-11-19, 03:25 PM
  #2
Eats, Sleeps, Dreams Rotary
iTrader: (1)

Turbonut's Avatar

Join Date: Feb 2002
Location: NJ
Posts: 3,702
Likes: 0
Liked 5 Times in 5 Posts
Probably know, but don't want to be bothered, but the S5 seat belts come with a lifetime warranty, so take it in and the dealer will fix if free as long as parts are available.
This is for rail repair:
NHTSA Campaign Number:96V173000

You're correct as it looks like it is on the passenger side directly in front of the passenger seat, but not certain the exact location under the dash

Last edited by Turbonut; 02-11-19 at 03:35 PM.
Turbonut is offline
The following users liked this post: Turbonut
onefastrx7turbo (02-12-19)
Old 02-11-19, 03:36 PM
  #3
Armchair engineer
iTrader: (2)

j9fd3s's Avatar

Join Date: Mar 2001
Location: http://www.k2rd.com
Posts: 24,391
Likes: 0
Liked 108 Times in 98 Posts
next to the ECU
j9fd3s is offline
Old 02-11-19, 03:44 PM
  #4
Senior Member
Thread Starter

Hot_Dog's Avatar

Join Date: Nov 2001
Location: Alexandria, VA
Posts: 625
Liked 20 Times in 20 Posts
Originally Posted by Turbonut View Post
Probably know, but don't want to be bothered, but the S5 seat belts come with a lifetime warranty, so take it in and the dealer will fix if free as long as parts are available. This is for rail repair
This is for rail repair:
NHTSA Campaign Number:96V173000
http://www.13betc.com/images/article...-7/14_Body.pdf
Yes Sir, I'm aware of the lifetime warranty. I already had the driver's side belt replaced under this warranty a number of years ago. My rails look good with no protruding cables, which IMO is usually the cause of failure. My problem is that the belt motors apparently aren't getting full 12V, which is supplied by the CONBOX. My car is 29 years old, so I'm thinking that the relays in the CONBOX may be corrupted.

It's pouring rain outside and my '90 FSM is in the car. I was hoping that somebody on this forum may have firsthand knowledge of where this box is located.
Hot_Dog is offline
Old 02-11-19, 03:48 PM
  #5
Senior Member
Thread Starter

Hot_Dog's Avatar

Join Date: Nov 2001
Location: Alexandria, VA
Posts: 625
Liked 20 Times in 20 Posts
Thank you j9fd3s for the info. So, it's next to the ECU, which makes it a PITA to get to.
Hot_Dog is offline
Old 02-11-19, 04:36 PM
  #6
Senior Member
Thread Starter

Hot_Dog's Avatar

Join Date: Nov 2001
Location: Alexandria, VA
Posts: 625
Liked 20 Times in 20 Posts
Thanks all for your quick responses!

Last edited by Hot_Dog; 02-11-19 at 04:51 PM.
Hot_Dog is offline
Old 02-12-19, 07:09 AM
  #7
OEM Parts Hoarder
iTrader: (11)

JerryLH3's Avatar

Join Date: Feb 2001
Location: Tampa, FL
Posts: 2,387
Likes: 0
Liked 5 Times in 5 Posts
Next to the ECU or under the dashboard? I remember the ABS computer being next to the ECU, but don't recall anything else there. For some reason, I remember it being under the dash, specifically underneath the panel for the passenger side 4" dash speaker.
JerryLH3 is offline
Old 02-12-19, 07:14 AM
  #8
OEM Parts Hoarder
iTrader: (11)

JerryLH3's Avatar

Join Date: Feb 2001
Location: Tampa, FL
Posts: 2,387
Likes: 0
Liked 5 Times in 5 Posts
I do believe that is it...

JerryLH3 is offline
Old 02-12-19, 08:16 AM
  #9
Senior Member
Thread Starter

Hot_Dog's Avatar

Join Date: Nov 2001
Location: Alexandria, VA
Posts: 625
Liked 20 Times in 20 Posts
Ok...cool! Looks like it's easily accessible.
Hot_Dog is offline
