Old 01-24-06, 12:05 PM
  #101
Rotary Freak

Thread Starter

Bukwild's Avatar

Join Date: Apr 2003
Location: DC Area
Posts: 2,702
Likes: 0
Received 1 Like on 1 Post
well a few forum members were over at my house last night and saw a few of these panels done in Red and Blue 2x2 Carbon/Kevlar weave I got. So I might as well be the one that confirms that yes there will be a few of these available. I have to sand them more before they are ready but I will post a few pics of them. The CF/Kevlar weave is not fun at all to work with because it does not want to lay flat. But we got this stuff to lay down and it looks kick ***. Red came out great but the blue is ridiculously hot.
Old 01-24-06, 12:23 PM
  #102
I'll blow it up real good

iTrader: (1)

RX-Heven's Avatar

Join Date: May 2001
Location: San Francisco, CA
Posts: 2,390
Likes: 0
Received 1 Like on 1 Post
I would buy a cf dash in a heartbeat, especially if hat has all the mounting tabs in it.
I would not expect it to be cheap.
Old 02-01-06, 07:23 AM
  #103
Rotary Freak

Thread Starter

Bukwild's Avatar

Join Date: Apr 2003
Location: DC Area
Posts: 2,702
Likes: 0
Received 1 Like on 1 Post

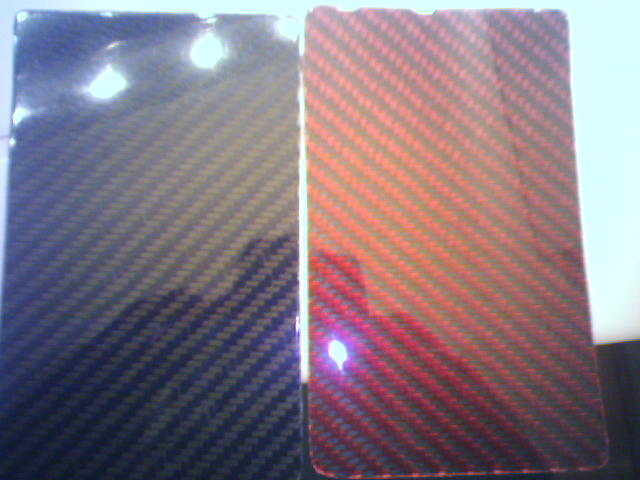

well here is a few pics of the 2x2 CF/Kevlar weave in blue and red. First off I have to say it worked out to be the oposite of what I thought it would be. After we layed it up the blue looked great and the red was ok. After 3 coats of clear most of the color was knocked out of the blue and came out great with the red (go figure). Blue color comes out in the direct light and really comes out in the sunlight. Red looks good in the light and great in the sunlight. But at the end of the day I will no be doing anything with this material because when you look at the picture of both the blue and red matched up against one of our black 4x4 twills it reminded me why we only use the best 4x4 on the market because the other 2x2's and CF/Kevlar weaves just are not as good IMHO. Also I had a real problem getting the frays to lay down on the edges and I bet you could get this to mold around corners either. So I think us working with color'd CF is not going to happen. I am sticking with 4x4 8.9oz twill from now on.
Attached Thumbnails Intrest in a Carbon Fiber control panel?-cfcolors2.jpg
Old 02-01-06, 07:25 AM
  #104
Rotary Freak

Thread Starter

Bukwild's Avatar

Join Date: Apr 2003
Location: DC Area
Posts: 2,702
Likes: 0
Received 1 Like on 1 Post

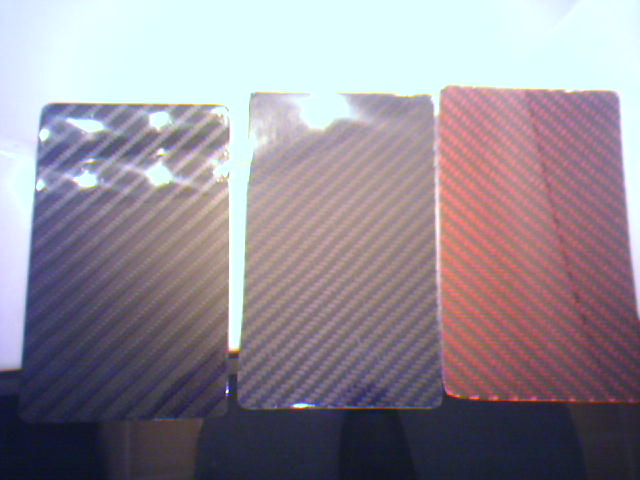

You can really see the difference in material with the black 4x4 to the (left) compared to the 2x2 blue (middle) and 2x2 red (right)
Attached Thumbnails Intrest in a Carbon Fiber control panel?-cfcolors1.jpg
