Intrest in a Carbon Fiber control panel?
#1
Rotary Freak
Thread Starter
Intrest in a Carbon Fiber control panel?
I thought about for the next project making the control panel that houses my vert headrest speaker controls, the gay security flashing button and the power window controls. Now I know these are not FC universal with the different cutouts but I think the plate size and shape is FC universal. Then you guys could cut out the required/desired switch controls. I know at one time someone did a few of these but the quaility of CF used was suspect. Let me know I might make just 10 in 4x4 3d twill unless a few more people want them.
#5
Rotary Freak
Thread Starter
yeah I was searching around and I found that their is like 3 different setups of these for the 86-91 NA-turbo-vert models which is going to be a bitch. No one wants one of these with holes cut into it and they don't have anything to put their. I would be willing to bet everyone could do without that ugly *** "security" button.
What do you guys think about just making it a flat plate and you can cut out what ever you want or need? Does anyone know for a fact if the square is universally the same size atleast? Give me some feed back.
What do you guys think about just making it a flat plate and you can cut out what ever you want or need? Does anyone know for a fact if the square is universally the same size atleast? Give me some feed back.
#6
Rotary Freak
Thread Starter
"make a cf dash"
The full CF dash is a winter project. Its just dog *** hot out right now and the shop temps hit 120. I just bought a portable ac unit from home depot that works great. Should help with some of the temp issues.
The full CF dash is a winter project. Its just dog *** hot out right now and the shop temps hit 120. I just bought a portable ac unit from home depot that works great. Should help with some of the temp issues.
#7
Rotary Freak
Thread Starter
I tried looking at mazda trix to see what the differences are between these panels. Knowing Mazda they were all the same except if you didn't have a switch where a cutout goes you got a plastic blank. And one have anymore info on these?
Trending Topics
#8
Rotary Freak
Thread Starter
I looked through a bunch of show your interior posts and as fas as i can see one person had a different control panel than everyone else. One difference I see is that the verts have controls for the headrest speakers and the coupes have a change tray their but I am more than sure mazda made the panel cutout the same size to make it universal. I might pull out my measuring tape tonight and see. I was amazed when we made the window switch covers that the driver "dual" and passanger "single" were the same size panel just different cutouts on the factory plastic
#10
Senior Member
iTrader: (3)
same size in all, s4 or s5. Same cutouts for all, with the only difference being:
The spot closest to the shifter...
GXL = AAS control
Vert = Headrest Speaker Control
All others = coin tray
The Security light is replaced by a pop in piece if it is not optioned with the car. Doubt I would be interested, but I just wanted to share the info, since you should be able to get away with one mold. Only issue is that the coin holder is cemented on while the AAS and Headrest speaker control pop are removable/interchangable. Hope that helps.
The spot closest to the shifter...
GXL = AAS control
Vert = Headrest Speaker Control
All others = coin tray
The Security light is replaced by a pop in piece if it is not optioned with the car. Doubt I would be interested, but I just wanted to share the info, since you should be able to get away with one mold. Only issue is that the coin holder is cemented on while the AAS and Headrest speaker control pop are removable/interchangable. Hope that helps.
#11
Rotary Freak
Thread Starter
Thanks Duncan for the info. I will make it with all the stock cutouts except the security one because that screams 80's interior and its gay as hell. And people that have the coin tray can cement or super glue the stocker on my CF panel. And yes I will just make one mold. I am not going to keep a Catolog of **** for the FC. I plan to make a limited quanity if items and once they are sold thats it.
#13
Rotary Freak
Thread Starter
No it won't clip in. Its easier and cheaper to make without clips. Plus they brake off everytime you try and remove the panel anyway. Few dabs of superglue or contact cement should do the trick. One of the main reasons we are making this next is because 2 of the 4 clips are broken on the stocker in my vert now. Most people's stuff I have seen have atleast 1 clip broken off. Ah well should turn out to be a nice upgrade to the outdated interior
#14
Safety Guy
iTrader: (3)
Join Date: Jan 2002
Location: Apple Valley area in MN
Posts: 1,433
Likes: 0
Received 0 Likes
on
0 Posts
I'd be interested in a CF hatch cover but I'm assuming it'd be cost prohibitive due to the size and geometry but since you're looking for suggestions...
The other thing would be a CF steering column ignition switch surround. I can't get the top OR bottom to last as the plastic screw holes always break and the bottom slim piece always cracks as well. I'd buy that from you immediately.
The other thing would be a CF steering column ignition switch surround. I can't get the top OR bottom to last as the plastic screw holes always break and the bottom slim piece always cracks as well. I'd buy that from you immediately.
#15
King of the Loop
Originally Posted by JDuncan
same size in all, s4 or s5. Same cutouts for all, with the only difference being:
The spot closest to the shifter...
GXL = AAS control
Vert = Headrest Speaker Control
All others = coin tray
The Security light is replaced by a pop in piece if it is not optioned with the car. Doubt I would be interested, but I just wanted to share the info, since you should be able to get away with one mold. Only issue is that the coin holder is cemented on while the AAS and Headrest speaker control pop are removable/interchangable. Hope that helps.
The spot closest to the shifter...
GXL = AAS control
Vert = Headrest Speaker Control
All others = coin tray
The Security light is replaced by a pop in piece if it is not optioned with the car. Doubt I would be interested, but I just wanted to share the info, since you should be able to get away with one mold. Only issue is that the coin holder is cemented on while the AAS and Headrest speaker control pop are removable/interchangable. Hope that helps.
Just adding my info.
#17
Rotary Freak
Thread Starter

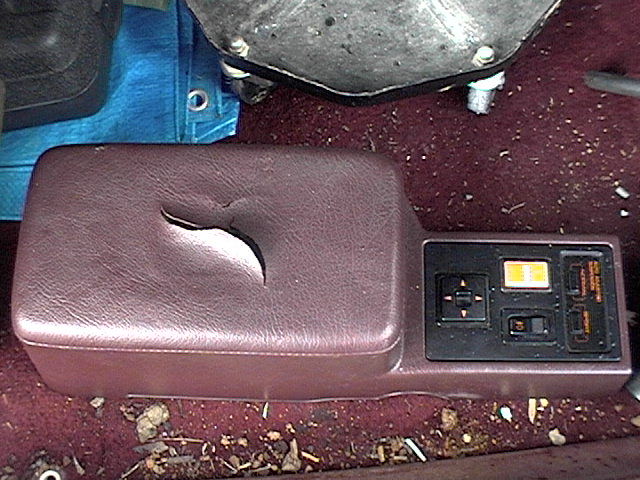

I bought this one from a 89 a few weeks ago. This is about the same as my 88 vert as far as I can rememeber. I will have to check that. Post pics if your are different and let me know what model car you have thanks
#19
Rotary Freak
Thread Starter
yeah just a update.
We are now going to make 30 of these one time only (as we do with all our stuff)
They will be 4x4 3d twill and they will be made with no cutouts. We messed with it this week and the stock "switch modules" sit in on a beveled edge and this makes it very tuff for this stuff to fit correctly so to hell with it. It will look a 100 times better as a flat piece. I plan on relocating my electric window module to the drivers side door and the other three slots are uneeded. I will post some proto type pics soon.
We are now going to make 30 of these one time only (as we do with all our stuff)
They will be 4x4 3d twill and they will be made with no cutouts. We messed with it this week and the stock "switch modules" sit in on a beveled edge and this makes it very tuff for this stuff to fit correctly so to hell with it. It will look a 100 times better as a flat piece. I plan on relocating my electric window module to the drivers side door and the other three slots are uneeded. I will post some proto type pics soon.
#20
Junior Member
Join Date: Sep 2005
Location: Savannah, GA
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Bukwild
I bought this one from a 89 a few weeks ago. This is about the same as my 88 vert as far as I can rememeber. I will have to check that. Post pics if your are different and let me know what model car you have thanks
i have:
headrest speaker controls,
power mirrors (but i have manual )
security switch,
and something else. ill get a pic up in a few minutes.....
#23
Rotary Freak
Thread Starter
88 rag I have the same thing as you except I relocated my vert top switch to the black blank piece and changed it over to a toggle switch. I plan to change this again to a smaller switch because when chicks are coming over into my lap going down the highway at 90 they tend to brake the switch right off. (Happend twice already) I also will install the red, green, yellow arming lights for water/alcoh injection on this aswell. Plenty of stuff you can do with this space and ditch all that old BS.
#25
Junior Member
Join Date: Sep 2005
Location: Savannah, GA
Posts: 42
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by Bukwild
Plenty of stuff you can do with this space and ditch all that old BS.
ill take one of those 30 if they arent all claimed yet.
