I just got my old school front mounted intercooler in (thanks eraumazda) and have a couple of questions.

1. anyone have a diagram of where the pipes go??? If not thats cool I can figure it out.

2. How exactly does a pop off valve work??? I know what it does just don't know how to set it for the differant boost levels?? Like if I don't want to go above 14psi how do I set it for that???

3. I'm guessing you use the stock tb inlet???

If anyone has some pics or advise on installing this or tips etc.. please let me know! Thanks

hondahater

iTrader: (2)

does anyone still have this??? I remember a long time ago when I finally got an atari and everyone else was getting nintendos, lol. and when I finally got a nintendo everyone else was geting nintendo 64's lol. Why does this seem strangly the same

gildardo

gildardo

I have the same kit, but is doesn't have all the piping.

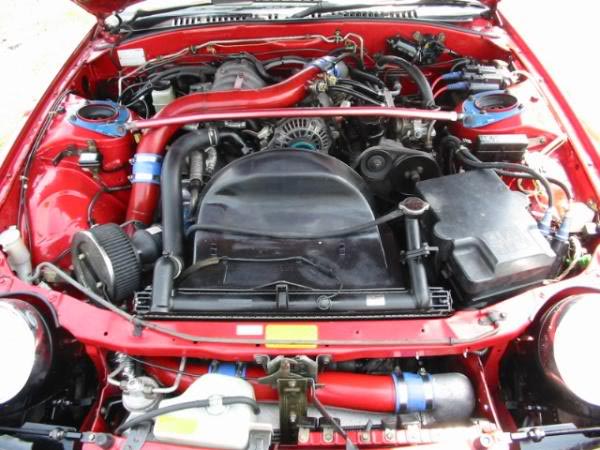

1 - You can kind of get an Idea from the pic.

2 - ?

3 - yes


gil

hondahater

iTrader: (2)

yep I saw that along with a blue one in a black s4, and very nice might I add however I believe the s5 is differant from the s4. Man getting that paint off is fun I have that industrial strangth stuff that you spray on like spray paint and it just crinkles right off exept for the spots that are baked in.

gildardo

I don't this the S5 or S4 are different.
Do you have a pic of your kit?




GIl

hondahater

iTrader: (2)

I'll snap a pic real quick

hondahater

iTrader: (2)

here it is

hondahater

iTrader: (2)

I"m confused my kit doesn't look like either of the ones in these pics.

https://www.rx7club.com/showthread.p...st+intercooler

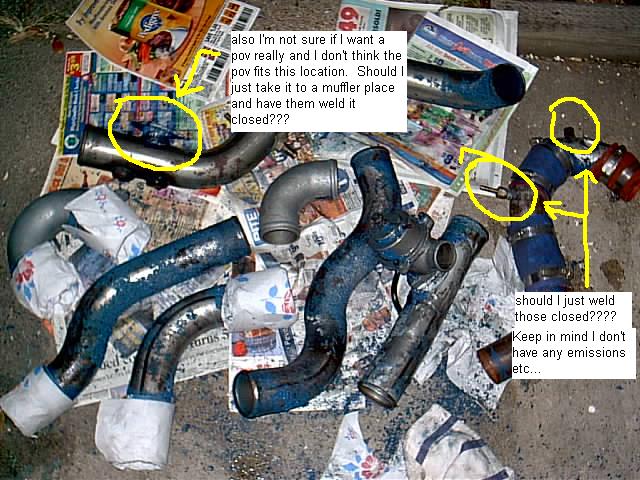

ps. Look at the pic and tell me if I should do this???

gildardo

I think you have the complete piping.

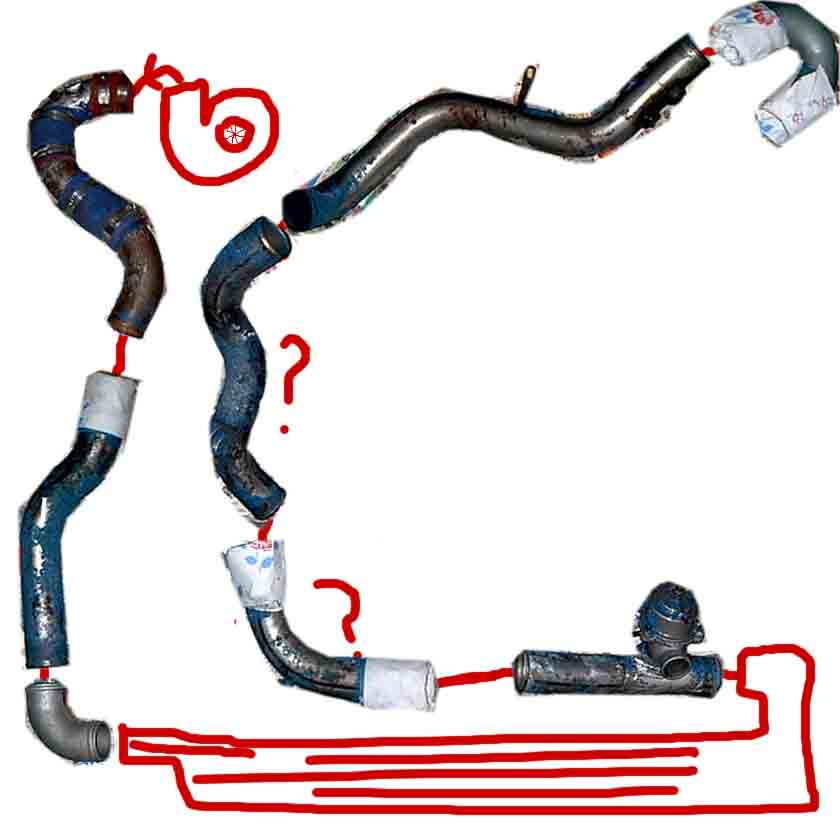

Here is a start to the puzzle.

hondahater

iTrader: (2)

you are the man That looks about how it should be! Good job! As soon as I get them totally stripped of the paint re painted chrome I will try this way first.

hondahater

iTrader: (2)

anyone else have this setup?

gildardo

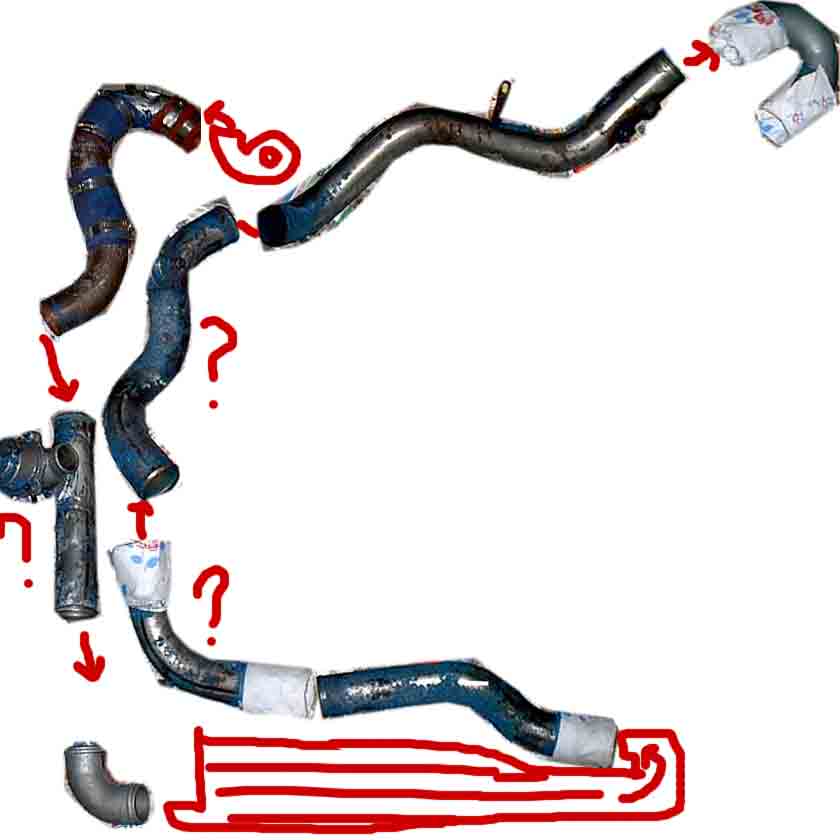

or like this.. some one that has the kit can berify this.

FC3S.USD

iTrader: (2)

This is sweet keep it comming,

I have a RE amemiya front mount just like that .need to install soon also

hondahater

iTrader: (2)

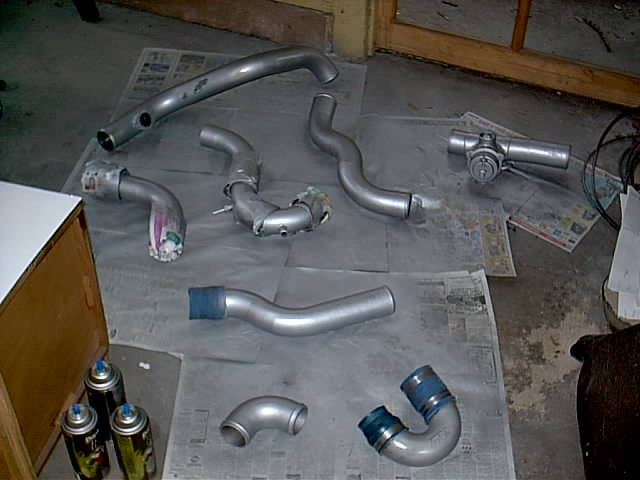

LOL, I'm going to show you guys the end result of painting them. It is looking sweet so far! First coat is on right now of the 500 degree engine enamel paint color aluminum.

hondahater

iTrader: (2)

one more question. How the hell do you mount it???? There is one little tab at the top of the intercooler is that supposed to fit in some sort of stock bolt hole location???

hondahater

iTrader: (2)

bump

Bukwild

why are you painting them? If you want the aluminum look just polish them and seal them with zoop.

hondahater

iTrader: (2)

This looks about 100% better and easier to do. There is alot of surface rust from the heat so I sanded alot of it off as well as got all the paint off and now I put the first two coats of aluminum on and have one more to go, after witch I will spray a coat or maybe two of clear coat on it. Looks good so far and when I'm done I'll post some pics.

hondahater

iTrader: (2)

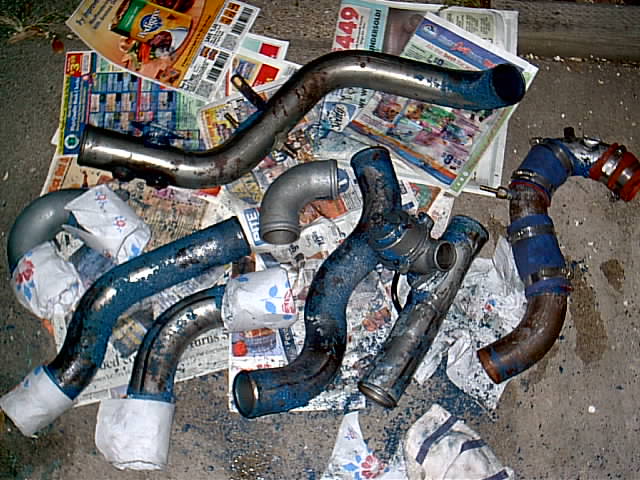

here is a pic of the before and durring proccess of painting the ic piping. Is it ok to paint the intercooler???

V8what?!

The configuration you have drawn is correct. I too have this kit. Any other questions about it?

V8what?!

The one mount located on the top middle of the intercooler bolts up to the hood latch. Any other q's?

hondahater

iTrader: (2)

v8what you are the man!!!!! Thank you much!!!!!

hondahater

iTrader: (2)

oh and witch one is correct the first or second one???? I'm following the second one and damn I can't get the piece after the long piece that goes over the manifold on. Oh you got any good pictures???

gildardo

DO you mean the U shaped one.



Gil
