i'm going to install a switch but i don't know what wire goes to which thing on the switch(which ones for the light also). i don't know how to put the picture up so can someone tell me how.

SPIKEFC

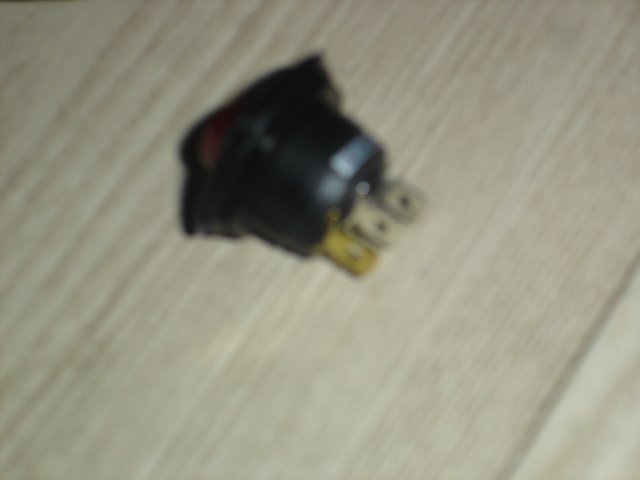

here i think i got it. one of them is yellow/gold/copper, is that one for the light?also where do you connect it to(for the light)? btw sorry for the quality of the picture.

kungfuroy

iTrader: (6)

You still have the packaging for that? Alot of times there is a diagram on the packaging. All you need is either a spst or dpst switch depending on what wire(s) you splice the switch into.

Cant really tell you what terminal goes to where from a picture. You will need to test it out with a DMM if its not on the packaging

SPIKEFC

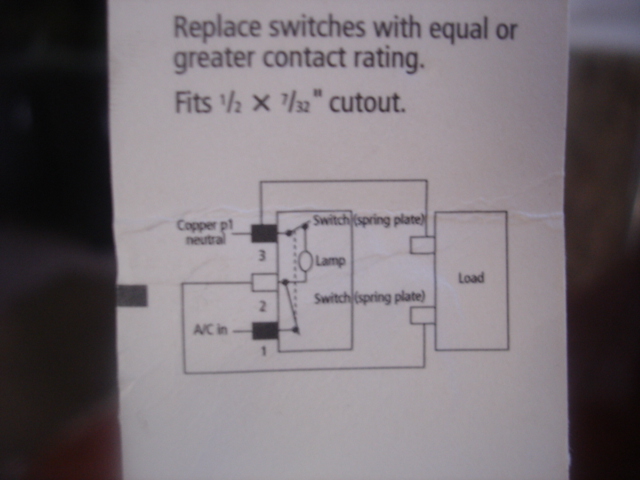

here there's a diagram on the back.

SPIKEFC

can anyone read this diagram for me and tell me which wires goes to which? please.

SPIKEFC

c'mon i need help here. i'm stupid when it comes to electrical stuff, especially reading a diagram.

JJ01769

I cant remember right off hand which wire it is under the dash I have spliced into. Ill look out in the car when I get home. I think I even have the diagram I used on my computer still.

SPIKEFC

alright cool hope it'll be soon but meanwhile does anyone else know which is what?

JJ01769

Here you go man. Check out this old thread I had made about it. Shows the connector that you have to splice into in one of the pictures.
https://www.rx7club.com/2nd-generation-specific-1986-1992-17/fuel-cut-switch-help-420650/

And also check out this page. These were the instructions that I used when I went to install mine back when. http://www.rotaryresurrection.com/ro.../flooding.html

SPIKEFC

can you figured which is the prong for the light on my switch. i know which wire it is but i'm all confused about my switch. i don't know where the wire is suppose to go. which prong is which? i posted up the diagram that was on the back of the package but i don't get it.can someone figure it out?

HAILERS

Prong for the light??????>?

Who makes this switch? Company name.

SPIKEFC

well it has three prongs on the back of it so i figured two were for the on/off and the third was for the light to come on when it's switched on.

NZConvertible

Why do you need a switch with a light anyway. Most people don't install fuel cut switches where they can be seen...

kungfuroy

iTrader: (6)

Wrong, pin#3 is common ground. pin#2 goes out to your load(in your case I guess the fuel pump) and pin#1 is your power in.


I would not use that switch, atleast not in how its diagram shows. You dont need a switch with a lamp, its just going to draw power away from your load and like NZ said, fuel pump switches tend to be hidden .

SPIKEFC

thanks kungfuroy for the explaining the diagram. by common ground, do i just connect it to any thing metal? is that just for the light to come on or do i have to use that to make everything work? do you think i will have problems if i use it, since it's draws power? what do mean "atleast not in how its diagram shows", how would you use it?

i don't mind the light as long as it doesn't cause me problems. i pretty much have a place in mind where you won't even see it.

dubber91

Are you trying to switch the fuel relay or the fuel pump directly? When i installed one on my rotary beetle i bought a FIA approved battery cut off switch and made it switch the earth on the fuel pump directly

kungfuroy

iTrader: (6)

NO, you are going to start shorting and burning things up doing it that way.

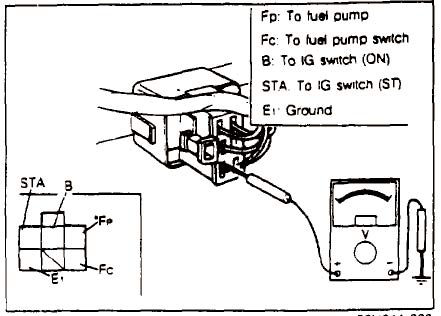

You first needs to look how the fuel pump gets turned on and the wiring diagram for it.


If you insist on using that switch, I would cut the Fp(if this is the thick Blue wire) wire in the above diagram. One of the wires I would connect to Pin#2 on your switch, the other wire to pin#1. Do not connect anything to pin 3 and make sure all the wires and connects are insulated and mounted so it doesnt touch the chassis.

SPIKEFC

whoo thanks i was going try and see if i could've figured this out, man i would've burned everything.

how come ever where else i read it says to cut the middle wire "B"?

one more thing, for whoever could answer, would a 18 gauge wire do fine?

SPIKEFC

really confused now. i checked my car out right now and the fp, the thick blue wire with green lines on it, and there's two of them in the same hole/slot. do i just cut one of them or cut both and have two wires connected to one prong?

FC3S_nataku

iTrader: (3)

look its not that hard, i just asked this ? last weekend. they gave me really good diagrams. just search my name and look for threads i have started and you will see it.

SPIKEFC

i get just about everything on what and where, but the only thing i don't get is that there's two wires in one slot(2 wires in fp slot) both blue/identical. do i have to only cut one of them or both to connect into one?

SPIKEFC

c'mon can't someone tell me?

my problem is that there's 2 wires in the fp place and i don't know if i'm suppose to cut them both or just one of them.

since there's 2 wires do i have to cut one of them and just connect them to the switch?
or
cut them both and connect 2 to one(on) and the other 2 to the other one(off)?

HAILERS

According to your profile you have a 1986 non-turbo.

The Circuit Opening Relay is under the dash and above the steering wheel.

Pull the plug off the Circuit Opening Relay.

The Black/White wire is in the center of the top row of the plug.

Cut the B/W wire at least two inches back from the plug.

Attach a new piece of wire to one half of that cut wire.(THE B/W wire)

Attach another new piece of wire to the OTHER half of that cut wire (THE B/W wire).

Attach a spade connector to the other end of each piece of new wire.

Now attach one spade to your switches blade connection. Then attach the other spade to the switches other blade connector.

Attach the new wires to blade 1 and blade 2 of the switch.

Start the car. IF it runs, then click the switch and the car should die.

If the car does not start, click the switch and try again. It should start.

Car did not start? Go to RADIO SHACK or FRY'S and buy a cheap mulit meter. Go to your battery. Turn the meter to DCvolts. PUt one lead on the positive post and the other on the negative post. IF you turned the meter ON, you should read battery voltage.

Now turn the meter to OHMS, usually a upside down horse shoe symbol. Touch one meter lead to the intake manifold and the other lead to the base of one of the coil assy. It should read 0.01 to 1.0 ohms. Thats all you need to know on using a meter.

Now go to your new switch. Put the meter on ohms (ignition OFF). Put one meter lead on one of the blades that you have a wire going to. Now put the other meter lead on the other blades on the switch that you have connected to. The meter should read 0.1 to 1.0 ohms. IF not, then click the switch. The meter should now read 0.1 to 1.0 ohms. IF that is so, the switch is working and there is something else wrong with the car.

OR, if that did fail, then turn the key to ON. Put the meter on dcvolts. Put one meter lead on a good ground point. Put the other meter lead on one blade of the new switch. The meter should read battery voltage.

Now touch the other blade on the new switch. The meter should read battery voltage. If not, click the switch and now it will read battery voltage. At this point both blades should read battery voltage showing the switch works when the switch is in one positon and when you switch the switch again only one side of the switch should have battery voltage.

Long way of saying cut the B/W wire and splice a switch b/t the two halves of that wire.
