Injector placement

Thread Tools

Search this Thread

Old 12-04-13, 08:05 PM
  #1
Senior Member

Thread Starter

iamsisyphus's Avatar

Join Date: Sep 2006
Location: Surry, NH
Posts: 266
Likes: 0
Received 1 Like on 1 Post
Injector placement

Just got my injectors back Marren. According to the flow test results they provided, one is flowing 150 cc/minute and another 149.9. The other two are flowing 145.8 and 146.3. My thought is to out the first two in as primaries and the other other two in as secondaries. Does this make sense.

Also, is an aftermarket fuel rail worth the cost?
Old 12-04-13, 08:44 PM
  #2
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
i think instead of 14x you mean 44x. the discrepancy is so minor if so that it won't matter.

i dont even think boingers have injectors that small..
Old 12-04-13, 08:55 PM
  #3
Rotorhead


Evil Aviator's Avatar

Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes on 33 Posts
Originally Posted by iamsisyphus
Does this make sense.
No, because the fuel injectors are supposed to flow between 444 and 472cc/min at 34-40psi, so if they are only flowing 150cc/min then you need to throw them away and buy new injectors.

Originally Posted by iamsisyphus
Also, is an aftermarket fuel rail worth the cost?
I don't know. Why do you want an aftermarket fuel rail?
Old 12-04-13, 08:57 PM
  #4
Senior Member

Thread Starter

iamsisyphus's Avatar

Join Date: Sep 2006
Location: Surry, NH
Posts: 266
Likes: 0
Received 1 Like on 1 Post
Now I'm really confused. I copied the numbers correctly. What's 44x? For that matter, what's a boinger? I'm assuming they're OEM. It's an 89 convertible.
Old 12-04-13, 09:09 PM
  #5
boosted fc

iTrader: (3)

89fc3sgtu's Avatar

Join Date: Dec 2007
Location: texas
Posts: 370
Likes: 0
Received 0 Likes on 0 Posts
Na injectors are 460cc and primary and secondary flow the same if you are only flow the posted numbers pick up a set
Old 12-04-13, 09:21 PM
  #6
Senior Member

Thread Starter

iamsisyphus's Avatar

Join Date: Sep 2006
Location: Surry, NH
Posts: 266
Likes: 0
Received 1 Like on 1 Post

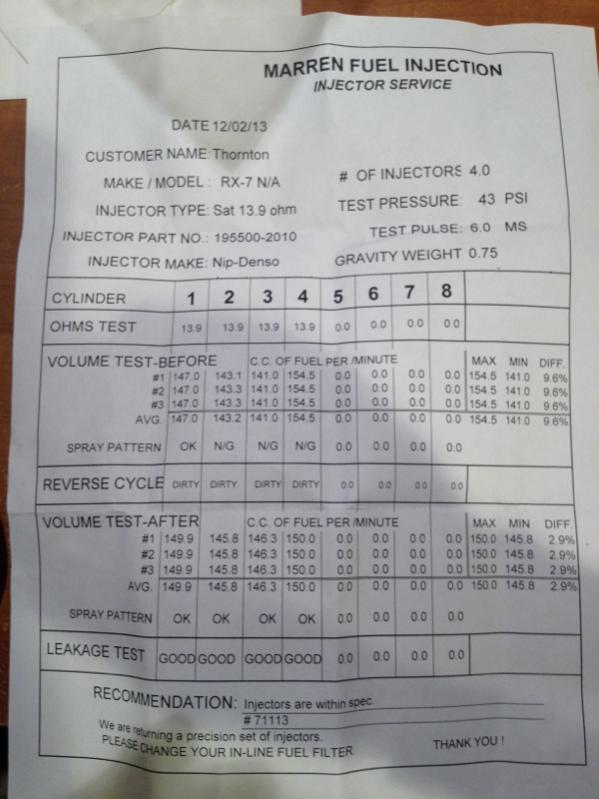

Here's the text results. Am I reading it wrong? If they were working at 1/3 of what they were supposed to do, would the car run at all?
Attached Thumbnails Injector placement-image-2466164926.jpg
Old 12-04-13, 10:05 PM
  #7
Junior Member

kincaid89TII's Avatar

Join Date: Aug 2013
Location: knob knoster, mo
Posts: 28
Likes: 0
Received 0 Likes on 0 Posts
Look like you need injectors. As for the fuel rail question, I only upgraded my fuel rails because I put bigger injectors in my 89 tII(4 850cc) and wanted to be Able to change my fuel pressure if need be considering all the parts I threw at the car. I went with rising RPM because I saw a lot of good reviews on them. I'm now using an aero motive A1000-6 FPR with those rails and a walboro 255lph fuel pump. Really unless you're gonna be doing a lot of work to the car, I don't think there's much of a point in upgrading your fuel rails.
Old 12-04-13, 10:22 PM
  #8
Senior Member

Thread Starter

iamsisyphus's Avatar

Join Date: Sep 2006
Location: Surry, NH
Posts: 266
Likes: 0
Received 1 Like on 1 Post
I guess the fuel rail issue is mostly cosmetic. The issue regarding the injectors is way more important
Old 12-05-13, 12:37 AM
  #9
Retired Moderator, RIP

iTrader: (142)

misterstyx69's Avatar

Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes on 114 Posts
Why not get the info from the source and call Marren and ask about the Numbers?
Give them the injector part number and ask why the CC/min numbers don't "add up".

this is the specs on your injectors: 89-91 13B NA, high oval center, 460cc, red, 195500-2010

..and a Boinger is a Slang term for a piston engine.

Last edited by misterstyx69; 12-05-13 at 12:49 AM. Reason: added specs
Old 12-05-13, 08:26 AM
  #10
Senior Member

Thread Starter

iamsisyphus's Avatar

Join Date: Sep 2006
Location: Surry, NH
Posts: 266
Likes: 0
Received 1 Like on 1 Post
Talked to Marren this morning. They test the injectors at partial throttle to measure open and closing speed. The number does not reflect the static flow rate. So injectors are good. The opinion that the variation isn't big enough to make a difference is reassuring.
Old 12-05-13, 08:46 AM
  #11
FC guy

iTrader: (8)

Rob XX 7's Avatar

Join Date: Oct 2002
Location: Long Island, New York
Posts: 8,714
Received 16 Likes on 16 Posts
never mind this is for a NA convertible, you are over thinking the placement with that small a difference
