Hello,
I need a little help once again.
I have a S5 TII engine going into a 87 base.

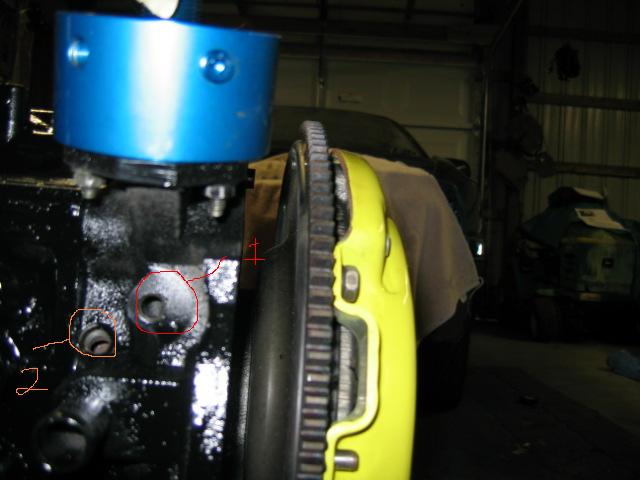

In pic #1 I need to identify what goes into these 2 holes. I know one is the oil pressure sending unit, but not sure what the other one is.

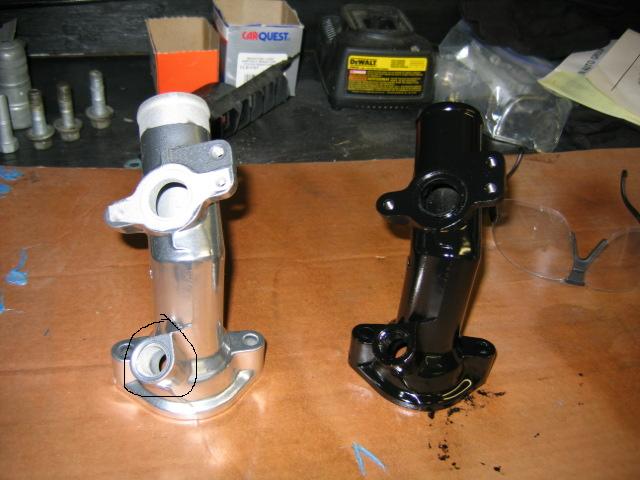

In pic #2 (S4 TII water pump housing) I am not sure what goes here. Is it the water temp sending unit. This is a different setup than my S4 NA.
Also when you put on the intake gaskets do you use RTV (blue or black)?
Thanx in advance for your help.
Michael
I need a little help once again.
I have a S5 TII engine going into a 87 base.
In pic #1 I need to identify what goes into these 2 holes. I know one is the oil pressure sending unit, but not sure what the other one is.
In pic #2 (S4 TII water pump housing) I am not sure what goes here. Is it the water temp sending unit. This is a different setup than my S4 NA.
Also when you put on the intake gaskets do you use RTV (blue or black)?
Thanx in advance for your help.
Michael
#2
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
I can't see very clearly.
But in that area are the oil pressure sensor and the water temp sensor, I think.
It's a little plug with a clip on it for the wire to connect to.
--Gary
But in that area are the oil pressure sensor and the water temp sensor, I think.
It's a little plug with a clip on it for the wire to connect to.
--Gary
#3
Senior Member
Thread Starter
Join Date: Jul 2002
Location: Mt. Pleasant, MI
Posts: 291
Likes: 0
Received 0 Likes
on
0 Posts
More help
I ran into another problem.

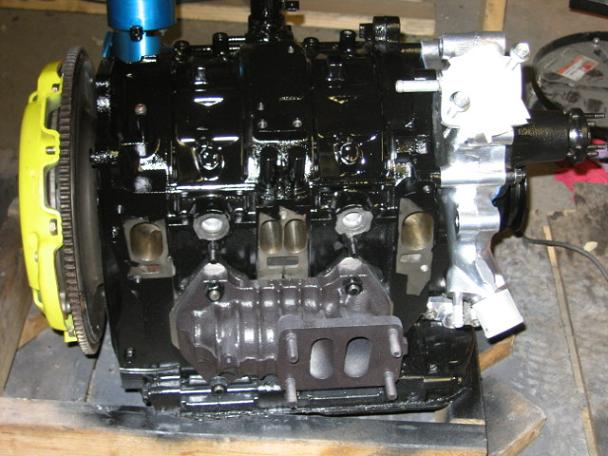

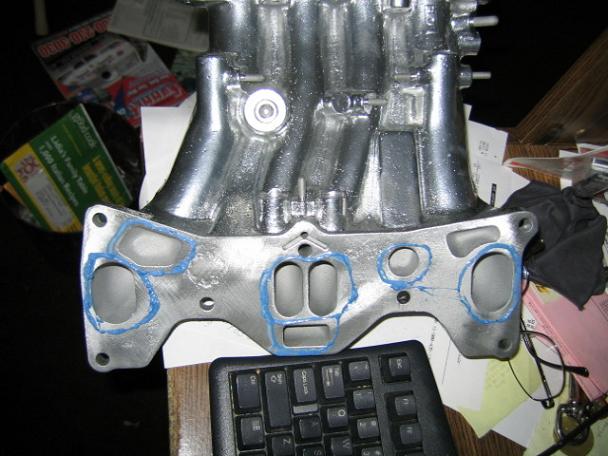

My enginie has 2 coolant passages and my LIM (see pics) only has one hole.
Is this right?
That explains why my LIM would not go on. I have taken it off and flipped it.
Thanx
Michael
My enginie has 2 coolant passages and my LIM (see pics) only has one hole.
Is this right?
That explains why my LIM would not go on. I have taken it off and flipped it.
Thanx
Michael
Last edited by devdog1one; 01-07-05 at 02:45 PM. Reason: Info
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,819
Received 2,590 Likes
on
1,839 Posts
water temp sensor, and the fan switch (you dont NEED this). btw your exhaust manifold is on backwards
#6
Rotary Enthusiast
Join Date: May 2004
Location: SoCal
Posts: 1,325
Likes: 0
Received 0 Likes
on
0 Posts
I'm almost sure the coolant passage is supposed to dead end there, by design... I know it seems weird.
But you might want to make sure someone that has hands on experience with your engine confirms that.
Btw is that RTV blue? I used way more than that! Maybe too much... *shrug*
--Gary
But you might want to make sure someone that has hands on experience with your engine confirms that.
Btw is that RTV blue? I used way more than that! Maybe too much... *shrug*
--Gary
#7
I wish I was driving!
1 is oil pressure sending unit. Thing is shapedlike a mushroom.
2 is water temp sensor for the interior gauge. Sensor is small, made of brass, and connects via a single male bullet connector.
Trending Topics
#8
I wish I was driving!
Temp sensor to activate the electric fan on some mdoels. Most S4 N/A's didn't have the fan, so they didn't have the sensor. Sesnro is small, made of brass, and connect via a male terminal connection.
I use zero RTV on intake gaskets. I lubricate mine with synthetic grease for easy removal later (no more scraping them, and machine the mating surfaces of my intake manifolds to ensure they are flat. I use a small amount of hylomar to hold the o-rings in place.
#9
I wish I was driving!
Originally Posted by devdog1one
My enginie has 2 coolant passages and my LIM (see pics) only has one hole.
Is this right?
Michael
Is this right?
Michael
The hole on the rear iron feeds coolant through the intake manifold into the turbocharger, to cool it.
The hole in the front rotor housing is block off by a flat spot on the intake manifold. I usually tap this hole and install an NPT plug, and then leave the front o-ring off.
Make sure you install the two rubber o-rings in these holes, or you will get a leak.
Thread
Thread Starter
Forum
Replies
Last Post
Nosferatu
2nd Generation Specific (1986-1992)
7
09-05-15 02:13 PM
