I Need A Schematic !!
#1
RR
Thread Starter
Join Date: Jan 2005
Location: Bronx
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
I Need A Schematic !!
I Need A Schematic Diagram On How The Injectors Get's It's Power. From Where The Wires Get Power Etc. Does Any 1 Knows Where I Can Get This From?
#2
Respecognize!
front primary : brown (-) and light Green (+)
front secondary: brown w/ white stripe (-) and light green w/ white stripe (+)
rear secondary: brown w/ yellow stripe (-) and light green w/ red stripe (+)
rear primmary: brown w/ red stripe (-) and light green w/ blue stripe (+)
the grounds connect to the soleniod resistor if you have low impedance injectors, the postive comes off the ECU for all. also, the grounds are connected to a black w/ yellow stripe wire. that may or may not have the soleniod block with it. that goes to the main relay.
front secondary: brown w/ white stripe (-) and light green w/ white stripe (+)
rear secondary: brown w/ yellow stripe (-) and light green w/ red stripe (+)
rear primmary: brown w/ red stripe (-) and light green w/ blue stripe (+)
the grounds connect to the soleniod resistor if you have low impedance injectors, the postive comes off the ECU for all. also, the grounds are connected to a black w/ yellow stripe wire. that may or may not have the soleniod block with it. that goes to the main relay.
#7
RR
Thread Starter
Join Date: Jan 2005
Location: Bronx
Posts: 17
Likes: 0
Received 0 Likes
on
0 Posts
I Want To Test The Continutity On Each Wires That Goes To The Injectors That Is Why I Was Asking For The Diagram. But If You Can Give Me The Verbal Wiring I Can Do It.
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts

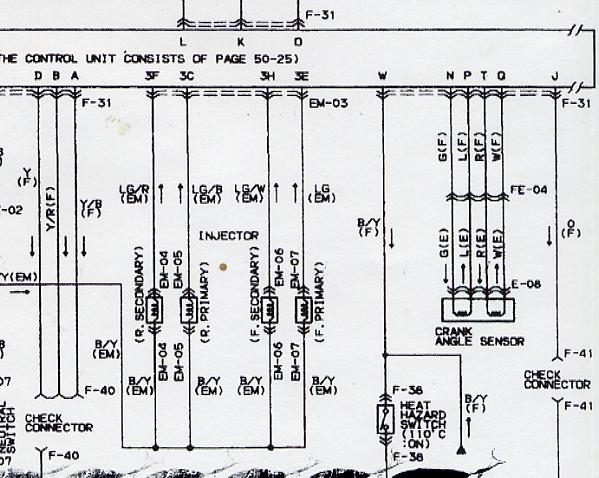

Just pull the small plug off the ECU and check for 12vdc on the pins 3C, 3E, 3F and 3H. Key to ON, please.
One side of the injectors is feed 12vdc from the MAIN RELAY, it passes thru the injector to those pins on the ECU where, IF the CAS is turning, the ECU will pulse a ground to those pins at a given time, measured in miliseconds.
So, you see, all you have to do is put the key to ON and pull the plug off and check for approx 12v on the plug. Not the ECU side. Done.

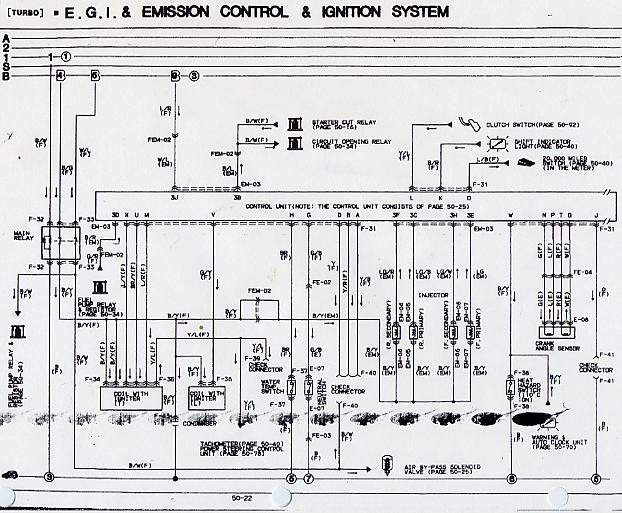

There is a online fsm for the 88model. It has the wiring diagrams. It shows the wiring. It shows how the plug is numbered.
The download is free.
One side of the injectors is feed 12vdc from the MAIN RELAY, it passes thru the injector to those pins on the ECU where, IF the CAS is turning, the ECU will pulse a ground to those pins at a given time, measured in miliseconds.
So, you see, all you have to do is put the key to ON and pull the plug off and check for approx 12v on the plug. Not the ECU side. Done.
There is a online fsm for the 88model. It has the wiring diagrams. It shows the wiring. It shows how the plug is numbered.
The download is free.
#10
I am 2Furious
Join Date: Sep 2004
Location: NJ / Philly
Posts: 846
Likes: 0
Received 0 Likes
on
0 Posts
So Confusing To Read. You can find FSM at http://www.iluvmyrx7.com/ as stated in the faq.
#13
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by gingenhagen
So Confusing To Read. You can find FSM at http://www.iluvmyrx7.com/ as stated in the faq.
