how can I tell what turbo I have???
10-12-04, 07:49 PM
#1
how can I tell what turbo I have???

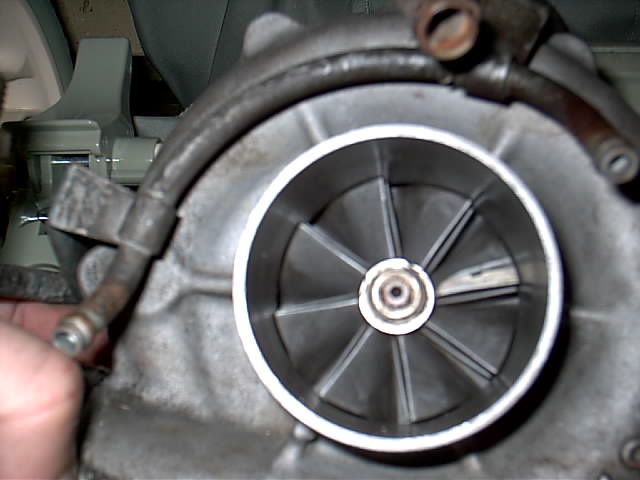

I don't have a stock turbo however when I bought it, it was under the pretenses that it was stock and when I got the turbo in to my pleasant suprise it was not stock but I am dumb when it comes to the tech terms of turbos can someone tell me, if it is possible, what turbo compressor I have??? The reason I'm wondering this is to know what the horsepower potential I'm looking at with this turbo
Trending Topics
10-13-04, 01:38 AM
#12
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
The stock compressor housing has been machined to take a bigger wheel. Until you remove the housing and measure the wheel's dimensions it's impossible to tell exactly what it is.
10-13-04, 03:53 AM
#13
Microtech Tuning!
Join Date: Feb 2002
Location: 626 Socal
Posts: 1,828
Likes: 0
Received 0 Likes
on
0 Posts
Measure the wheel. It is a T04B compressor wheel of some sort due to having 8-paired blades. It will either measure out to be a V-trim wheel or slightly smaller as the largest T04B wheel that will fit within the stock compressor housing (machined to fit) is a V-trim wheel. I would say you will make anywhere from 280-320rwhp @15psi.
Last edited by Infini IV; 10-13-04 at 03:55 AM.
10-13-04, 09:03 AM
#14
thanks guys I'm going to measure it now to find out what it is. I would take the housing off but I had a rough time taking the hotside off
I Just suck at turbo's. Anyways let me go check and I'll post what I found. oh infini IV what exactly should I be looking for when i measure the wheel??? Thanks.
I Just suck at turbo's. Anyways let me go check and I'll post what I found. oh infini IV what exactly should I be looking for when i measure the wheel??? Thanks.
10-13-04, 12:55 PM
#15
crap it looks like it's a stage one witch is better than stock but less than a stage two. Here is why it looks like a stage one taken from bnr website.
"Stage 1 turbocharger consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover. The turbine wheel is clipped to spec to decrease back pressure and to help stabalize rotating assembly RPM. The rotating assemblies are balanced and blue printed to minimize vibrations and to give you a more reliable turbocharger upgrade. The stage 1 is acapable of 300-310 RWHP at or below 15 psi of boost. The turbo will make peak boost at around 3800 RPM. *All Turbochargers come with a 1- Year / Unlimited Mileage Warranty as long as the oil supply lines are replaced* *All Rotating Assemblies are Balanced and Blueprinted* *For Stage 2 and 3 applications, a 360 thrust package is offered for $60 additional charge* "
Mine is a Stage 1 turbocharger because it consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover". Well I guess 310rwhp is kinda respectable
"Stage 1 turbocharger consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover. The turbine wheel is clipped to spec to decrease back pressure and to help stabalize rotating assembly RPM. The rotating assemblies are balanced and blue printed to minimize vibrations and to give you a more reliable turbocharger upgrade. The stage 1 is acapable of 300-310 RWHP at or below 15 psi of boost. The turbo will make peak boost at around 3800 RPM. *All Turbochargers come with a 1- Year / Unlimited Mileage Warranty as long as the oil supply lines are replaced* *All Rotating Assemblies are Balanced and Blueprinted* *For Stage 2 and 3 applications, a 360 thrust package is offered for $60 additional charge* "
Mine is a Stage 1 turbocharger because it consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover". Well I guess 310rwhp is kinda respectable
10-13-04, 04:13 PM
#16
Microtech Tuning!
Join Date: Feb 2002
Location: 626 Socal
Posts: 1,828
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by hondahater
crap it looks like it's a stage one witch is better than stock but less than a stage two. Here is why it looks like a stage one taken from bnr website.
"Stage 1 turbocharger consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover. The turbine wheel is clipped to spec to decrease back pressure and to help stabalize rotating assembly RPM. The rotating assemblies are balanced and blue printed to minimize vibrations and to give you a more reliable turbocharger upgrade. The stage 1 is acapable of 300-310 RWHP at or below 15 psi of boost. The turbo will make peak boost at around 3800 RPM. *All Turbochargers come with a 1- Year / Unlimited Mileage Warranty as long as the oil supply lines are replaced* *All Rotating Assemblies are Balanced and Blueprinted* *For Stage 2 and 3 applications, a 360 thrust package is offered for $60 additional charge* "
Mine is a Stage 1 turbocharger because it consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover". Well I guess 310rwhp is kinda respectable
"Stage 1 turbocharger consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover. The turbine wheel is clipped to spec to decrease back pressure and to help stabalize rotating assembly RPM. The rotating assemblies are balanced and blue printed to minimize vibrations and to give you a more reliable turbocharger upgrade. The stage 1 is acapable of 300-310 RWHP at or below 15 psi of boost. The turbo will make peak boost at around 3800 RPM. *All Turbochargers come with a 1- Year / Unlimited Mileage Warranty as long as the oil supply lines are replaced* *All Rotating Assemblies are Balanced and Blueprinted* *For Stage 2 and 3 applications, a 360 thrust package is offered for $60 additional charge* "
Mine is a Stage 1 turbocharger because it consists of an upgraded compressor wheel (T04B) machined to fit the factory compressor cover". Well I guess 310rwhp is kinda respectable
Look for the diameter of the inducer, and while you're at it, might as well measure the exducer as well. Inducer is the smallest diameter part of the wheel, and exducer is the largest diameter.
10-13-04, 05:03 PM
#17
EIT
Join Date: Jan 2002
Location: Austin, TX
Posts: 1,790
Likes: 0
Received 0 Likes
on
0 Posts
I agree, the inlet is not machined out that much at all.
Do both the t04e and t04b trim turbo's have 8 fins? If it's not a s-trim or t5/t6, then it could be majestics turbo upgrade which uses a small to4e-46 trim wheel. Is the exhuast wheel clipped at all?
Do both the t04e and t04b trim turbo's have 8 fins? If it's not a s-trim or t5/t6, then it could be majestics turbo upgrade which uses a small to4e-46 trim wheel. Is the exhuast wheel clipped at all?
10-13-04, 06:23 PM
#18
how can I tell if its clipped??? What do you think this turbo could produce if its what you guys say it is??? I'll go ahead and measure everything and give the specs. I'm deffinatley not certain it is a bnr at all just going off of his site because I"m sure he can't be the only one doing it. This I'm pretty sure came from a jspec engine so more than likely came from japan, lol I gotta jdm turbo
anyways Thanks for the help so far.
anyways Thanks for the help so far.
10-13-04, 06:47 PM
#19
Microtech Tuning!
Join Date: Feb 2002
Location: 626 Socal
Posts: 1,828
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by gsracer
I agree, the inlet is not machined out that much at all.
Do both the t04e and t04b trim turbo's have 8 fins? If it's not a s-trim or t5/t6, then it could be majestics turbo upgrade which uses a small to4e-46 trim wheel. Is the exhuast wheel clipped at all?
Do both the t04e and t04b trim turbo's have 8 fins? If it's not a s-trim or t5/t6, then it could be majestics turbo upgrade which uses a small to4e-46 trim wheel. Is the exhuast wheel clipped at all?
any T04B wheel = 8-paired blades
60-1 wheel = 7-paired blades
10-13-04, 06:51 PM
#20
Microtech Tuning!
Join Date: Feb 2002
Location: 626 Socal
Posts: 1,828
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by hondahater
how can I tell if its clipped??? What do you think this turbo could produce if its what you guys say it is??? I'll go ahead and measure everything and give the specs. I'm deffinatley not certain it is a bnr at all just going off of his site because I"m sure he can't be the only one doing it. This I'm pretty sure came from a jspec engine so more than likely came from japan, lol I gotta jdm turbo anyways Thanks for the help so far.
anyways Thanks for the help so far.Funny thing is, I got my hybrid (the one I was trying to sell) with my Jspec too... so I guess I had a "JDM" turbo... lol
10-13-04, 09:55 PM
#21
I'll take a pic of my exhaust fins to see if they have been cliped. You know what sucks, man I feel like such a jack ***. Before I knew anything about these cars etc... I got an upgraded turbo for about 450 plus core that never spooled I got so pissed I bought another one and traded to a guy for putting in the new one (before I did all the work myself) that turbo that could never spool had 7 fins and had the stock housing but the inlet was milled way down to fit that bastard. I probably had a 60-1 but for some stupid reason no matter how high I reved that sack of **** it would not spool. Those fins where huge compared to this one to. I'll see if I can get a pic of my old turbo
Last edited by hondahater; 10-13-04 at 09:58 PM.
10-14-04, 01:36 PM
#22

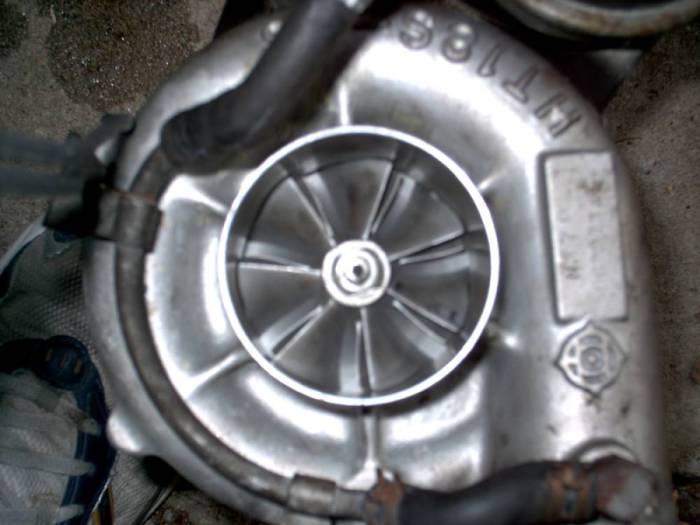

https://www.rx7club.com/attachment.p...chmentid=59096, here is a picture of the turbo I used to have but wouldn't spool for ****. Notice the 7 turbine fins but its in a stock housing. does that look like a 60-1 and how can you fit a 60-1 into a stock housing?
10-14-04, 01:47 PM
#23
Microtech Tuning!
Join Date: Feb 2002
Location: 626 Socal
Posts: 1,828
Likes: 0
Received 0 Likes
on
0 Posts
A 60-1 wheel won't fit in a stock housing. It could have been a wheel from any other turbo manufacturer, as your current wheel could be as well (although your current wheel looks a lot like a Garrett wheel to me).
Last edited by Infini IV; 10-14-04 at 01:50 PM.
10-14-04, 08:36 PM
#24
hum....ok so that doesn't look like a 60-1 to you??? I thought they had 7 fins or could any turbo have 7 fins??? Thanks for the info your teaching me alot about these things. Can you see anything wrong with the above turbo why it wouldn't spool??? Thanks again.
