bain3277

ok i bought a 1986 turbo 2 it smoked blue and white so from what i readi thought the apex seals were gone. so i bought a used motor and it appers to be different mine is a 13b the one i got is 13bt?? the wireing is differnet will the block work?? new to rotorys . the car is a one owner and is like new very nice car .any help will be appreciated

TehMonkay

iTrader: (-1)

You have a non turbo motor in the car unless it was swapped previously, i assume it says 13b injection on the dynamic chamber right?

BTW that would be your oil seals causing the smoke

RETed

What is your VIN?
US-spec 1986 FC turbos are somewhat rare...


-Ted

bain3277

ok did a little more research it is a 1986 turbo II . my fault i bought a 1987 - 1988 engine that is also a turbo it looks basicly the same the wireing harness is different but the block looks the same will it work or hell ill sell the whole mess its a mint car

Aaron Cake

iTrader: (1)

We have no idea whether or not it will work since you have not provided any information other then the fact that "it's different". How about posting some pictures, a description of the differences, etc.?

riverzendz

Some suggestions:

Post your VIN#
Post pictures of the engine in your car and the engine you bought

That will help greatly.

RETed

Since you like to claim it's legit, why not tell us what the VIN is?


-Ted

bain3277

im at work and the cars home ill post some pics tonight.

riverzendz

Don't forget to post the VIN #.

bain3277

vin JM1FC3328H0141216

bain3277

vin JM1FC3328H0141216 i cant get the pics to load but some of the issues are the original wiring harness dosent unplug ill have to unplug each wire from every plug in order to remove the motor the oil sending unit is in a differnt location . the motor i got the main wiring harness unplugs at the side of the motor so the harness stays with the motor

MaczPayne

iTrader: (5)

That's a turbo VIN alright...

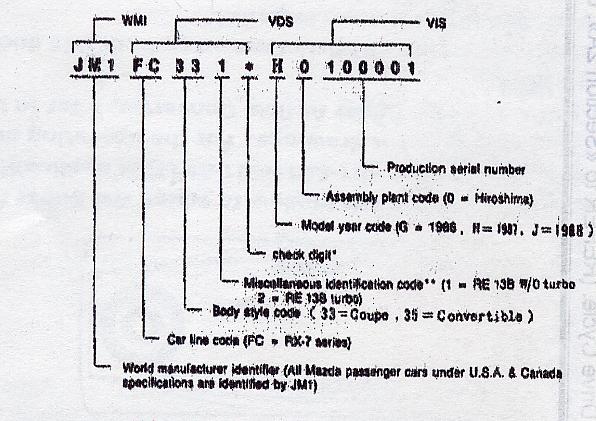

RETed

Turbo VIN, yes.
1986 model? No.

The "H" code in the VIN means it's a 1987 vehicle.
If your title / reg / paperwork states it's a 1986 model, it's a mistake.


-Ted

sidewayz_FC

i thought where the h is stands for where the car was made??

RETed

NO.


-Ted

FrankV702

iTrader: (14)

We really need pics to really see whats going on. Maybe the engine you bought was a S5? The engine in your car should be a 13BT also. Unless someone put a 6 port NA in a turbo model??

Aaron Cake

iTrader: (1)

Seriously, who cares if it's an '86 or an '87? The original poster needs help with a wiring problem, not the year of his car...

The oil sending units in all the 2nd gens (and all the 1st gens, and all other Mazda rotaries...) are in the same spot under the oil filter. It would REALLY help if you post pictures of the two engines because with the minimal description you are providing, it's impossible to know what you're seeing...

HAILERS


riverzendz

I was actually more interested in the VIN to determine if the car was a Turbo II or a turbo swap. Considering the OP isn't really too sure of what he's got on his hands, it's helpful information to have.
