rusty FC

iTrader: (7)

so i removed the interior from my 1988 turbo II to fix all the rust holes in the floor and was also rebuilding the engine.
i have the dash back in and wiring harness all plugged back in ( except one i cannot find were it goes)
but i connected the battery to see how everything was working and the hazard lights immediately came one. and will not go off.
even if i unplug the switch for the hazard they still stay on. key on or off does not matter. but everything else seems to work correctly.
does anyone have any ideas on this?

FührerTüner

iTrader: (5)

Yep.

You took the connector that goes at the front of the dash near the windshield and plugged it into your blower box near the passenger footwell under the dash.

You're welcome.

rusty FC

iTrader: (7)

will look at that today, thanks!
so does that mean i plugged the connector for the blower into the one at the windshield or will that one not reach there?
the one i have not found place for is a smaller connector, i will guess a 6 spade terminal would need to go count it to be sure but it is under the glove box

rusty FC

iTrader: (7)

YES! that was it. got it plugged into the terminal at the windshield
thanks!

the one plug i cannot find a place for is a 9 pin connector (not a 6 spade, was thinking wrong)
it has
blue w red
white
blue w white
green
green w black
green w red
green
blue w yellow
and i think the last one is a black wire but it is so discolored it is hard to tell
and it is under the glove box and at the end of the dash harness

if anyone has an idea on this one?

rusty FC

iTrader: (7)

I think i found what that connector is. i think it goes to the powered speaker under the glove box, which i do not have anymore

so only thing now is the logic con does not seem to do anything. it does light up but the blower does not come on and the flapper does not move.
so need to figure that one out.
i did check the fuse box and the circuit breaker looks to be correct. and all my fuses are good

FührerTüner

iTrader: (5)

Post a pic of the connector? I looked through the wiring diagrams and im not seeing anything.

As for the logicon, I remember mine stopped working at some point. Now I know why. Is there 1 light on?

rusty FC

iTrader: (7)

on the logicon, it lights up as it should. so it appears correct but does not actually do anything
i am leaving for thanksgiving early in the morning so will not get to look at this again till i get back
thanks for your help, i will post a pic of that connector when i am back also

rusty FC

iTrader: (7)

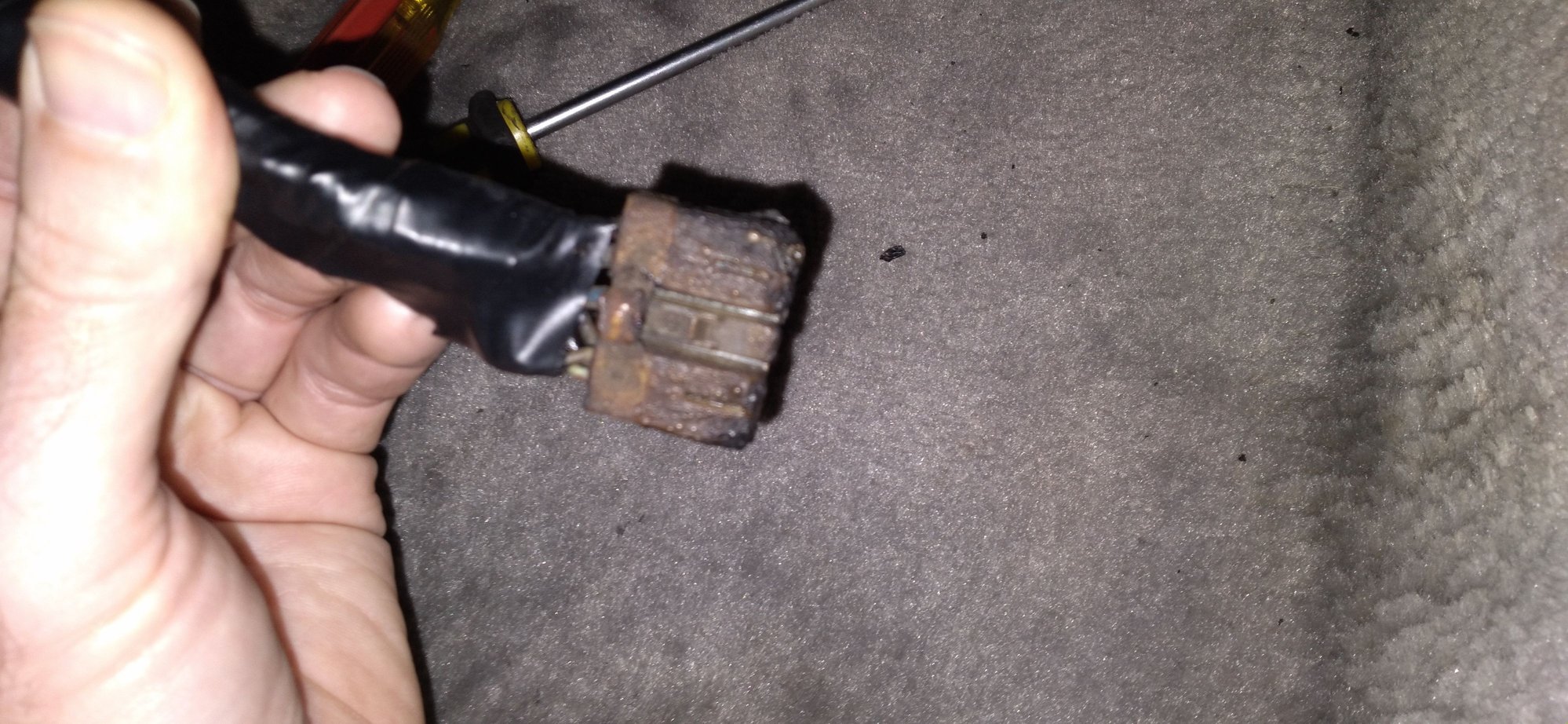

here it the one plug that i think is for the powered speaker under the golve box

this is the only other thing that i can find that is not plugged in. i think the security box plugs in here but i do not have one
i still can not get the logican to work. like i said it lights up but the blower does not come on and the 2 flaps do not move (cold to hot and the foot/vent/defrost)
also i noticed the fuel guage does not move, i am sure there is fuel in the tank, maybe a half tack. not sure it that is related to the logican

mazdaverx713b

iTrader: (91)

Was there an interior fire at one time? I would be concerned to use those connectors as im not sure they would seat properly in the corresponding connector. Even the box for the evaporator is melted! Not a huge deal unless you plan on making the A/C work.

rusty FC

iTrader: (7)

no ac, its gutted so the air will just blow throu. the only wires that were melted are the security box and the powered speaker and i do not have that stuff anyway.

Nosferatu

Non a/c cars came with a duct instead of the evaporator box. Might want to consider it and try and source one.
