Engine Stand Mounting
#1
Carter 2.0
Thread Starter
Engine Stand Mounting
I am looking at one of the manuals from the sticky threads above. It shows the Mazda engine stand bolts in four places to the front steel part. The four bolts or studs under the pulleys??
I haven't done this so far but from what I can see reading ahead this is the only place to mount the engine becuase of the future breakdown of the motor. Am I right????
I have an engine stand that works for Chevy's. All I need to do is modify it to fit those four places and that should be it..... correct???
I haven't done this so far but from what I can see reading ahead this is the only place to mount the engine becuase of the future breakdown of the motor. Am I right????
I have an engine stand that works for Chevy's. All I need to do is modify it to fit those four places and that should be it..... correct???
#2
Nurse I need 1300cc's NOW

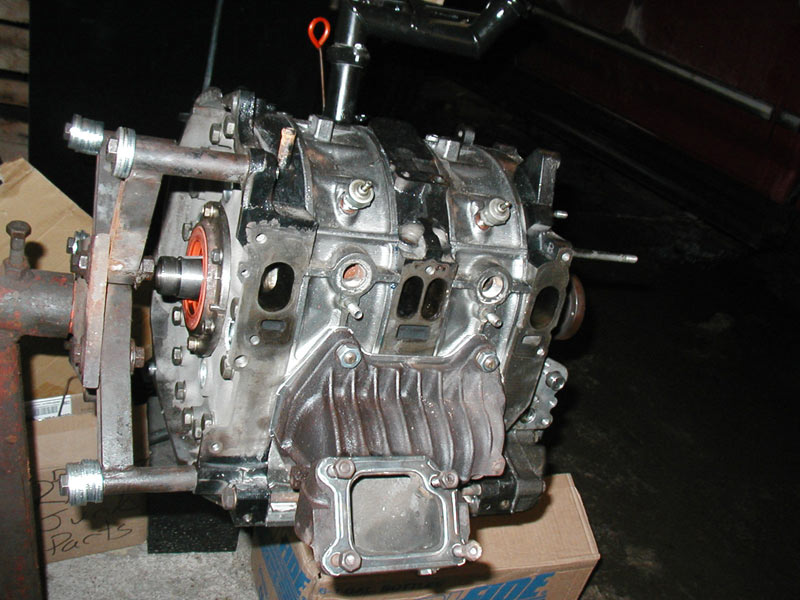

i have a stand thats fully adjustable .. its been around since the late 70's and worked fine. the only real problem i had was finding bolt long enough with the threat pattern i needed to mount the engine. BTW you mount the engine to the stand where the tranny bell housing bolts up to the engine
Last edited by alwayssideways; 01-14-05 at 11:43 PM.
#3
Mechanical Engineering

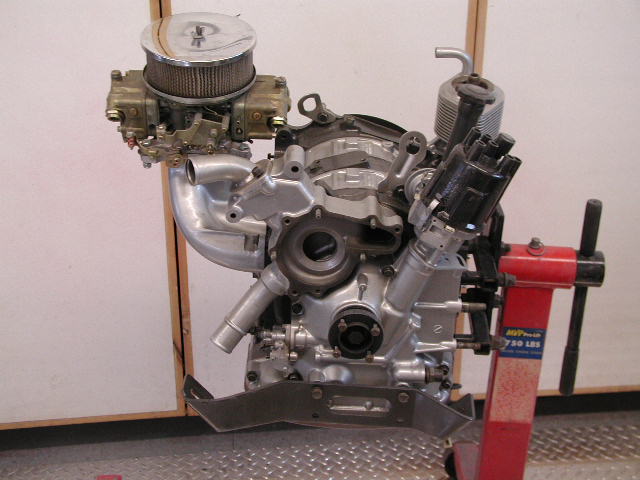

this is what i have, its a pineapple racing engine adapter. you bolt it to the side studs in the second picture. the adapter should fit most stands
#4
Carter 2.0
Thread Starter
See, I would have thought that you just bolt it to where the Tranny mounts like alwayssideways said. But then capn said what the manual said.
Always, did you go through your whole engine with it bolted up like that??? Mine will mount like that way with out any modifications at all.
Always, did you go through your whole engine with it bolted up like that??? Mine will mount like that way with out any modifications at all.
#6
Nurse I need 1300cc's NOW
i think they go in about a inch .. those are 5 inch bolts and i had to shim the hell out of them to get them to work .. the thread and pitch size is 10mm x 1.25 i blieve ,, might be 1.50 .. damn i forgot it already just take your starter bolt with you ,, i think its the same thread .
Trending Topics
#8
Mechanical Engineering
i forget how much it cost i think it was like $70, its well made and well worth it www.corksport.com just search for adapter. the three side bolts mount to where your AC PS braket attach to the engine and its only three bolts and you can tear the engine down totally to the front iron. makes it much eaiser and more manageable.
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
CP Racing ( http://www.cpracing.ca ) sells the adapters as well. Mine is from CP.
If you have a welder, some steel and an hour, you can make your own.
If you have a welder, some steel and an hour, you can make your own.
#12
Sharp Claws
iTrader: (30)
Originally Posted by capn
this is what i have, its a pineapple racing engine adapter. you bolt it to the side studs in the second picture. the adapter should fit most stands
this is what you want, the others are for decoration..
this adapter style will allow you to spin the engine side up or side down holding onlt the front iron so you can build the engine while it is on the stand, if you mount it at the bellhousing or spread out across the side of the motor you cannot tear the engine down and reassemble it.
#13

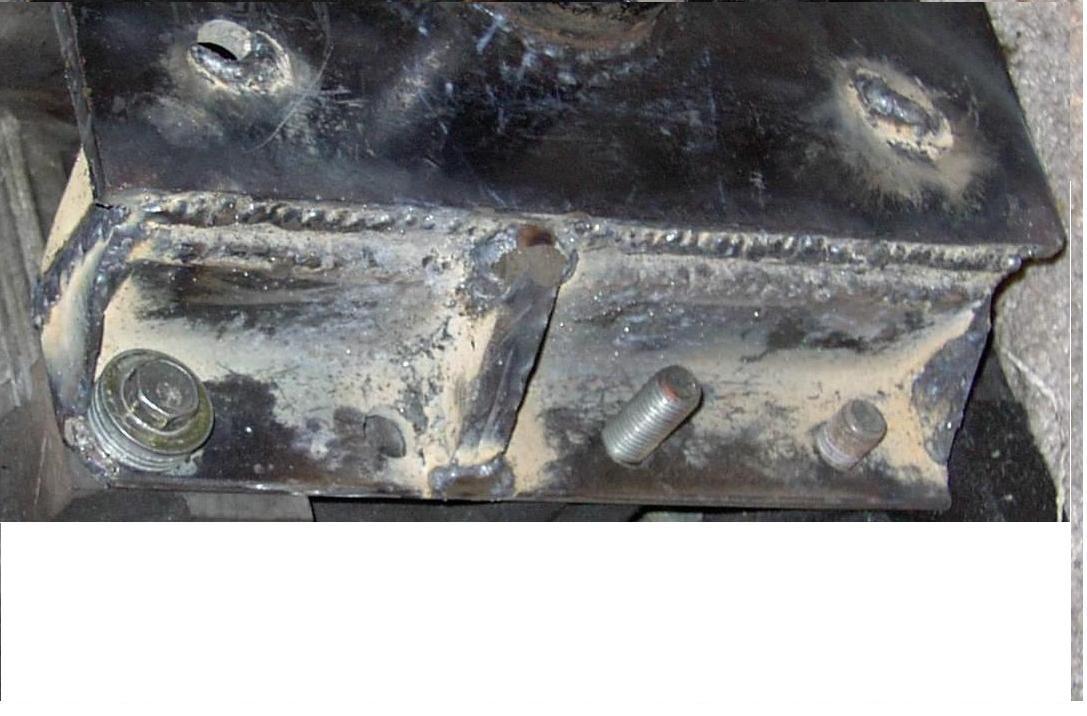

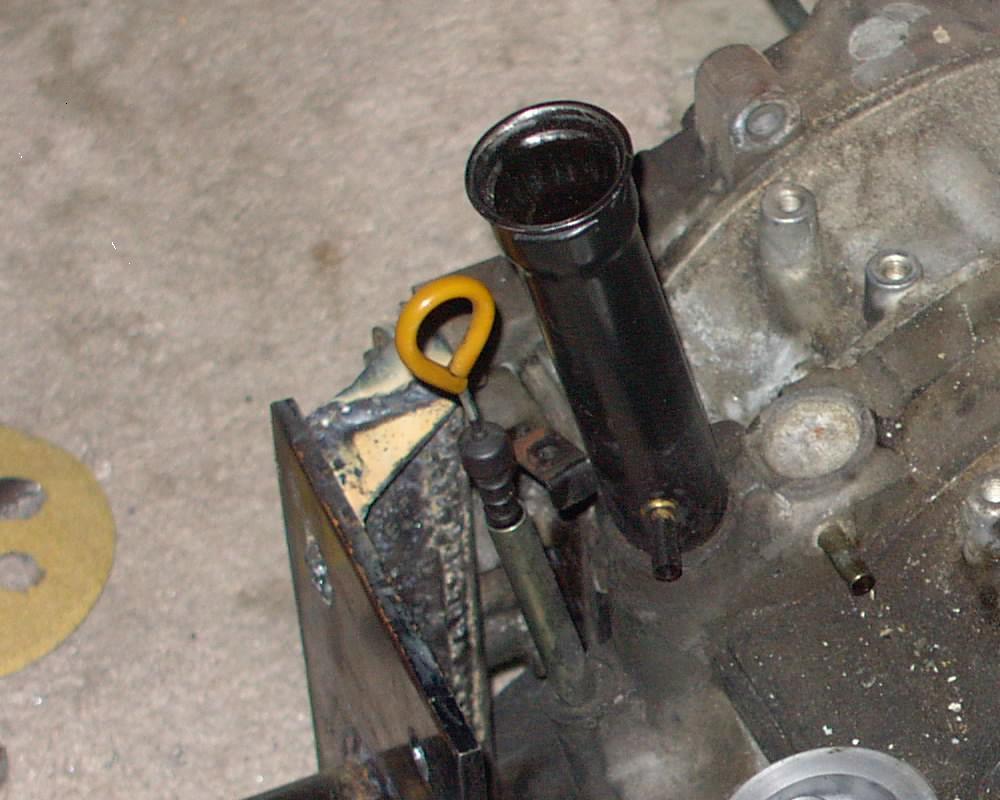

i made one just recently. its not worth having to buy steel to make one. i used the existing head for the stand and welded 2 angle irons to it. the steel i used was kinda thin so i added some gussets. like my shitty weld job?!?!
Last edited by DubbayoC; 01-16-05 at 04:14 AM.
#14
Nurse I need 1300cc's NOW
Originally Posted by Karack
this is what you want, the others are for decoration..
this adapter style will allow you to spin the engine side up or side down holding onlt the front iron so you can build the engine while it is on the stand, if you mount it at the bellhousing or spread out across the side of the motor you cannot tear the engine down and reassemble it.
this adapter style will allow you to spin the engine side up or side down holding onlt the front iron so you can build the engine while it is on the stand, if you mount it at the bellhousing or spread out across the side of the motor you cannot tear the engine down and reassemble it.
im doing mine on a normal engine stand. and ive been able to assemble the engine just fine ..
#15
Carter 2.0
Thread Starter
Alwayssideways,
That is what I was asking. Can you bolt up to the rear and go through the whole engine?? Have you pulled yours apart and rebuild it while on this stand??
That is what I was asking. Can you bolt up to the rear and go through the whole engine?? Have you pulled yours apart and rebuild it while on this stand??
