emissions removal HELP ASAP PICS
#2
WTF is a Piston?..Anyone?

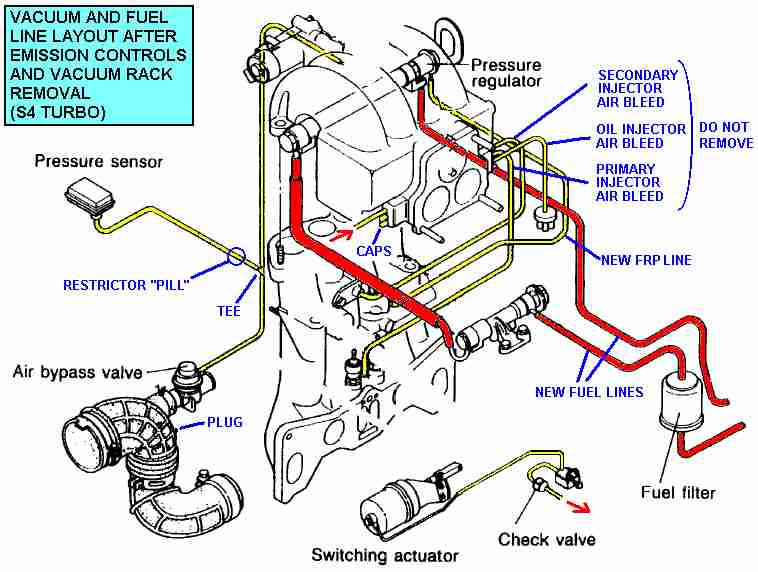

all i did was kept my twin scroll valve solinoid and check valve. the rest can be tossed. (3rd pic) (the one your fingers on) you will also want to make sure that check valve is working properly
#7
WTF is a Piston?..Anyone?
make sure you check futher down the vac line. it should be a green and white check valve with an arrow marking the air flow. if one is missing yes you will need one i will go take a pic of mine if u need it i have the same year and motor.
Trending Topics
#9
lite rotary = easy push
Thread Starter
iTrader: (1)
Join Date: Mar 2009
Location: Whitby
Posts: 1,385
Likes: 0
Received 0 Likes
on
0 Posts

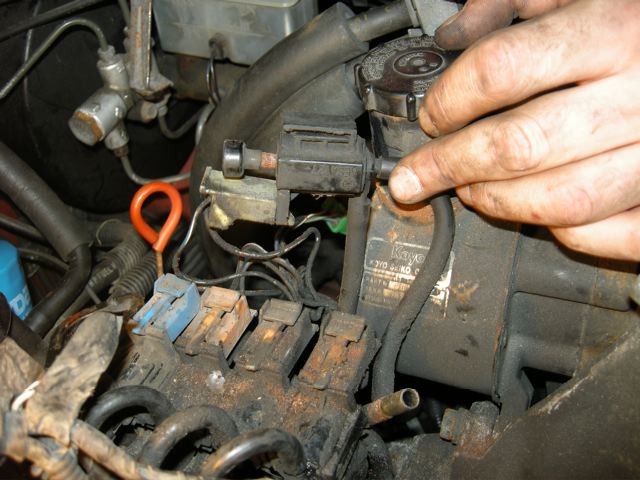

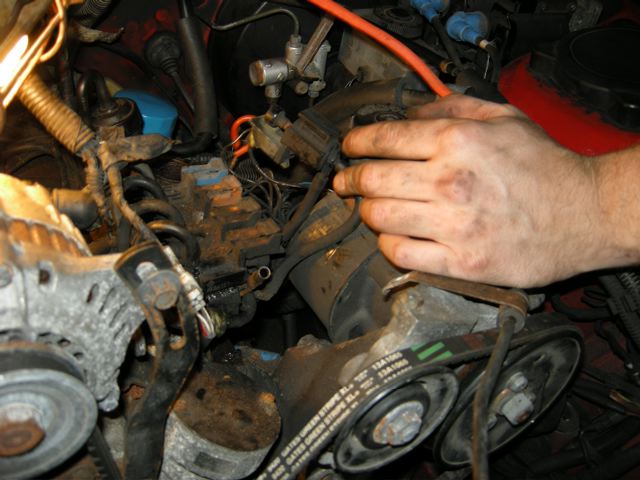

here are the same pics, labeling the first solenoid and the check valve ..... and just for reference the solenoid im holding in the the pics is the same solenoid
#11
WTF is a Piston?..Anyone?
ya all of the other solinoids can be removed here is a pic the first one is just the valve itself and plug. the check valve is kinda jammed between the altinator and oil filler neck. the arrow on the valve points towards the altinatior or passanger side of the car. make sure you install it the right way lol. it also dont hurt to blow through it and make sure you cant suck air. if you can you will need to find a different valve.
http://i707.photobucket.com/albums/w...d/SDC10960.jpg
http://i707.photobucket.com/albums/w...d/SDC10964.jpg
i know its hard to see but in the second photo the valve is the white and green thing just beside the throttle cable bracket. sorry about the crappy pics my car is stored outside for the moment. by the time i drove to where it was it was pitch black.
http://i707.photobucket.com/albums/w...d/SDC10960.jpg
http://i707.photobucket.com/albums/w...d/SDC10964.jpg
i know its hard to see but in the second photo the valve is the white and green thing just beside the throttle cable bracket. sorry about the crappy pics my car is stored outside for the moment. by the time i drove to where it was it was pitch black.
