just looking for a simple diagram of how to wire my e-fan to my fc. i have a toggle switch right now that i want to hook up instead of thermo switch... thank you in advanced.



https://www.rx7club.com/2nd-generation-specific-1986-1992-17/how-control-electric-fan-factory-thermoswitch-886862/

Guess how i found that link?



i could have sworn that i said i was running a toggle instead of thermoswitch... not what im looking for



Toggle switch... o.O

like the one's you operate manually, with your finger?

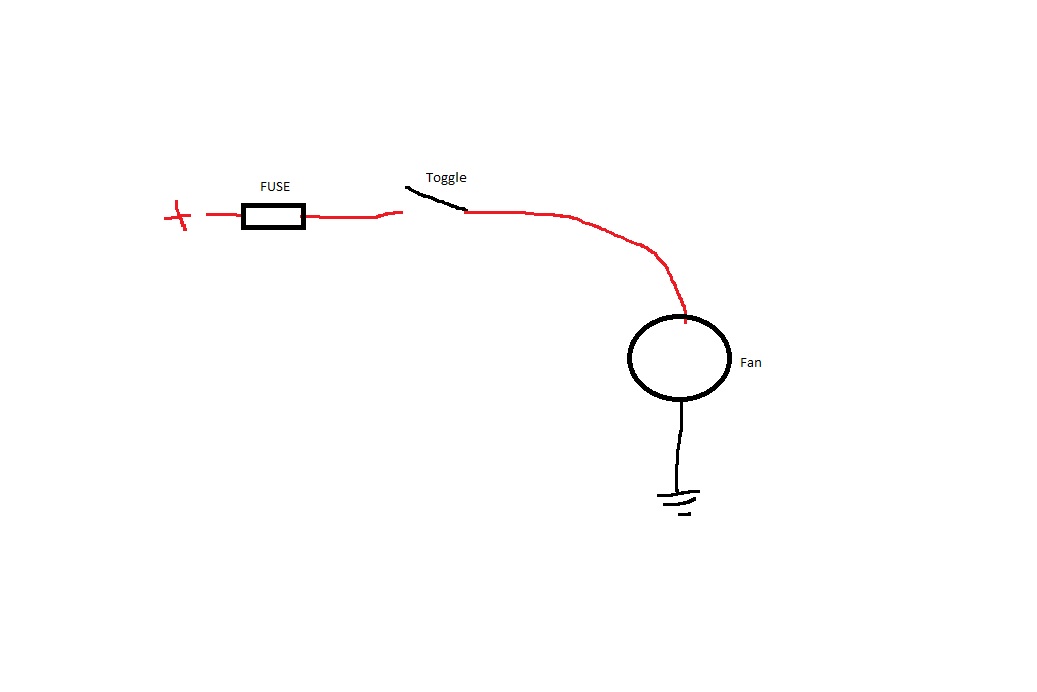

If this is what you're thinking, I know someone who is going to need an engine rebuild in the near future!



Your idea is a bad idea. Wire your e-fan properly.



If you need a diagram like this to figure out this wiring, you really shouldn't be wiring it yourself. Just make sure to use a toggle with contacts rated to match your fan current.




This really is a bad idea, tho.



http://www.aaroncake.net/rx-7/efaninstall.htm



Nice freehand MS paint diagram. It looks like a toddler started messing with his mommy's ipad

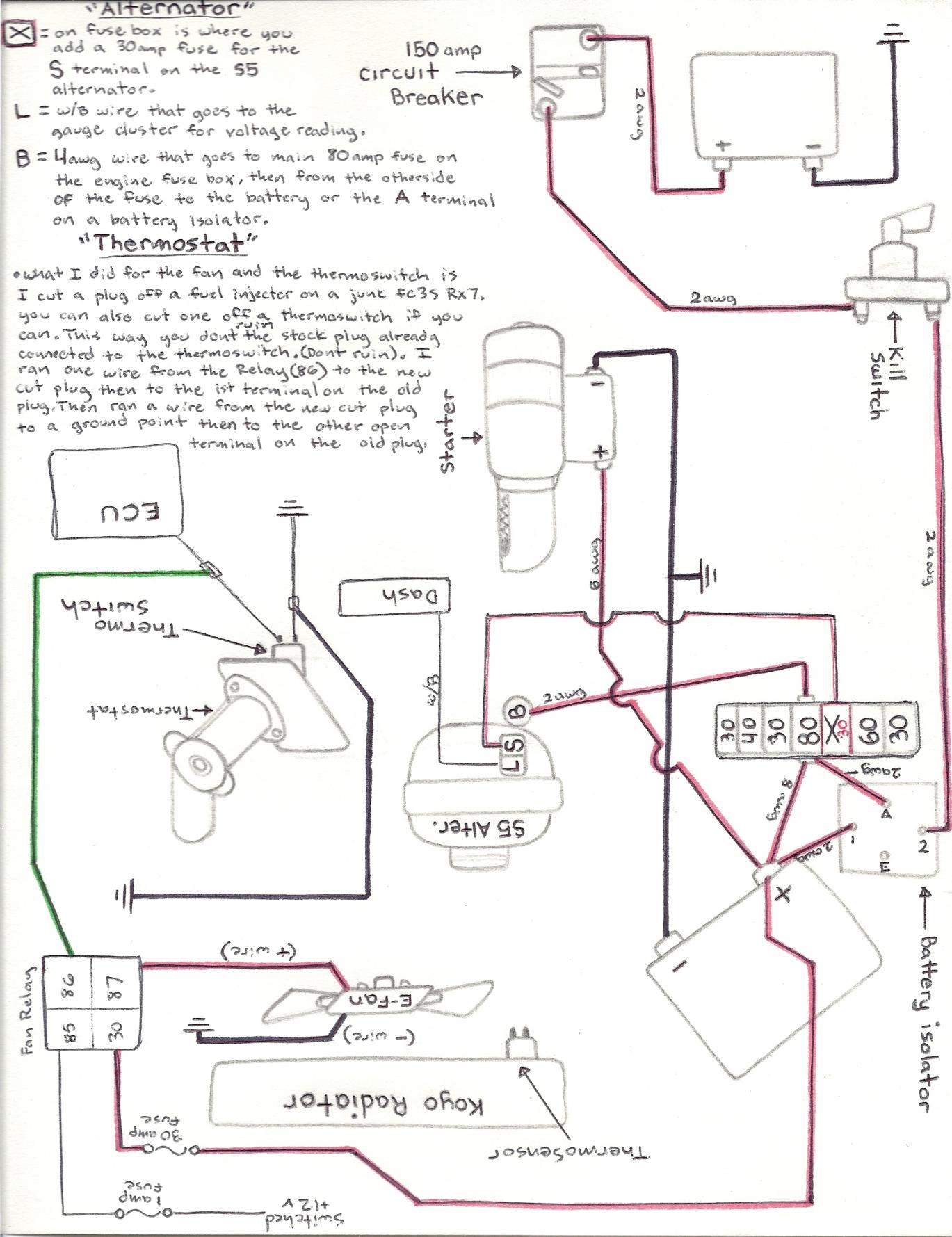

this is how i ran mine.... works great

used aaroncakes and rotaryrocket88s knowledge to help me...thanks guys

im more of a visual person so i decided to draw this up.
