dual pulley vs gilmers

which is better? any? none? what are you running
Old 11-02-11, 03:32 AM
  #2
Rotary Zealot!

iTrader: (8)

Derekcat's Avatar

Join Date: Jun 2004
Location: Milwaukie, Or
Posts: 1,735
Likes: 0
Received 2 Likes on 2 Posts
The best solution is probably to keep the air pump for most people XD

Dual pulleys require very closely matched belt lengths, glimmers require all new pulleys and specialized belts..
Personally, I think glimmers look awesome, but I've yet to afford one.. So I still have the air pump on my NA
Old 11-02-11, 08:17 AM
  #3
Make It Happen!

iTrader: (11)

AmT_T's Avatar

Join Date: Jun 2010
Location: Ontario, Canada
Posts: 522
Likes: 0
Received 0 Likes on 0 Posts
I have the dual pulley on an FD alt. Imo its all u need for a D.D. Without an airpump. Gilmer is a little overrated in a street car to me. Before the dual pulley my belt would slip very easily no matter how new or tight I set the belt. I have not yet heard any slipping with this setup.
Old 11-02-11, 10:02 AM
  #4
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
gilmer is mainly a show piece or for limited applications where you want to be sure that the belt will not slip.

problem with gilmers are you can't just run down to the parts store and get a belt..
Old 11-02-11, 10:14 AM
  #5
Theoretical Tinkerer

iTrader: (41)

RXSpeed16's Avatar

Join Date: Oct 2003
Location: Norcal/Bay Area, CA
Posts: 1,589
Received 46 Likes on 32 Posts
There is also the yoohoo belt option that just runs around the main pulley and water pump. It seems to avoid the fit issues of dual belt setup and availability issues of gilmer. I am running the air pump in smog **** run California.
Old 11-02-11, 10:30 AM
  #6
Disco Biscuit

iTrader: (9)

LunchboxCritter's Avatar

Join Date: Dec 2006
Location: Florida
Posts: 755
Likes: 0
Received 1 Like on 1 Post
It really comes down to a few things.

Can you afford a glimmer belt system? They are much more expensive than the dual alt pulley.

Are you using PS or AC? Glimmer belt system make those useless.
Old 11-02-11, 11:30 AM
  #7
Rotary Enthusiast


jerd_hambone's Avatar

Join Date: Jan 2005
Location: Good Ol' Ky
Posts: 1,482
Likes: 0
Received 0 Likes on 0 Posts
Not to thread jack, but exactly why is the Gilmer setup so expensive for these cars?
Old 11-02-11, 11:34 AM
  #8
Trunk Ornament

iTrader: (11)

AGreen's Avatar

Join Date: Sep 2006
Location: Goose Creek, SC
Posts: 3,054
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by jerd_hambone
Not to thread jack, but exactly why is the Gilmer setup so expensive for these cars?
FC owners are cheap, therefore lack of demand makes 1) supply low and 2) parts expensive.
Old 11-02-11, 11:34 AM
  #9
S5 T2
iTrader: (6)

Bamato's Avatar

Join Date: Jun 2010
Location: Mesa, AZ
Posts: 948
Likes: 0
Received 0 Likes on 0 Posts
The new, much larger pulleys and giant belt is what makes them expensive. And demand is so low, that production costs are high.

IMO, they look/sound pretty cool. If I didn't sport any accessories (PS, AC, AP) I'd fork the money over for one.
Old 11-03-11, 12:14 AM
  #10
Rotary Enthusiast


jerd_hambone's Avatar

Join Date: Jan 2005
Location: Good Ol' Ky
Posts: 1,482
Likes: 0
Received 0 Likes on 0 Posts
I just noticed that a Gilmer setup for an SBC is $120ish. Crazy how supply and demand causes that much difference.
Old 11-03-11, 12:47 AM
  #11
Full Member


camman's Avatar

Join Date: Dec 2005
Location: utah
Posts: 189
Likes: 0
Received 0 Likes on 0 Posts
I run a yoohoo belt it works awesome!
Old 11-03-11, 01:14 AM
  #12
Rotary Enthusiast
Thread Starter

ben.farnath's Avatar

Join Date: Sep 2010
Location: new zealand
Posts: 804
Received 8 Likes on 5 Posts
gilmer kits are only like 350 nzd which is 270usd. i dont think thats bad and yea i got no emissions gear, de-powered rack and no a/c so they are definately the way im leaning.
Old 11-03-11, 01:59 AM
  #13
Mazda Misfit

iTrader: (4)

3vil's Avatar

Join Date: Feb 2010
Location: Springtuckey
Posts: 574
Received 1 Like on 1 Post
Originally Posted by camman
I run a yoohoo belt it works awesome!
+1 to this. put a yoohoo belt on when i did my swap and have not had a problem with slipping (yet)
Old 11-03-11, 02:37 AM
  #14
Senior Member
iTrader: (1)

nvmarx's Avatar

Join Date: May 2011
Location: new zealand
Posts: 359
Likes: 0
Received 1 Like on 1 Post
almost evry one runs gillys in new zealand it 250nzd for the cheapst set
Old 11-03-11, 02:50 AM
  #15
Rotary Enthusiast
Thread Starter

ben.farnath's Avatar

Join Date: Sep 2010
Location: new zealand
Posts: 804
Received 8 Likes on 5 Posts
they do sound the buisness
Old 11-03-11, 02:51 PM
  #16
RIP Mark

iTrader: (2)

YaNi's Avatar

Join Date: May 2006
Location: Dublin, OH
Posts: 657
Likes: 0
Received 1 Like on 1 Post
Running a gilmer drive setup without a supercharger is like putting 10.5" slicks on a FB... massive overkill.
Stock accessories doesn't require that much power and the gilmer is noisy and inefficient. It's only purposes are is to transfer large amounts of power such as from the crank to a massive supercharger, or from the transmission to the rear wheel on a motorcycle, or to keep pulleys synchronized such as for a timing belt.
Old 11-03-11, 06:13 PM
  #17
Sharp Claws

iTrader: (30)

RotaryEvolution's Avatar

Join Date: Oct 2003
Location: Central Florida
Posts: 5,107
Likes: 0
Received 41 Likes on 40 Posts
Originally Posted by YaNi
Running a gilmer drive setup without a supercharger is like putting 10.5" slicks on a FB... massive overkill.
Stock accessories doesn't require that much power and the gilmer is noisy and inefficient. It's only purposes are is to transfer large amounts of power such as from the crank to a massive supercharger, or from the transmission to the rear wheel on a motorcycle, or to keep pulleys synchronized such as for a timing belt.
not sure i agree, the water pump belt angles when simplifying the engine obviously become a flaw in design and the result is belt slippage at moderate to high RPMs. it does have a practical purpose but locating a new belt for it is far from practical.
Old 11-04-11, 07:00 AM
  #18
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,824
Received 307 Likes on 179 Posts

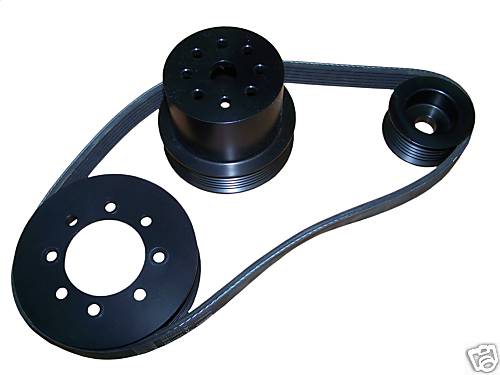

Another option is the 6 rib belt conversion which allows you to keep the A/C and PS (if you have them) and cost less than $200. This is what we use on our 13b-re Vert.

Attached Thumbnails dual pulley vs gilmers-6f8b_12.jpg
Old 11-04-11, 07:08 AM
  #19
Full Member


BurritoBut's Avatar

Join Date: Jan 2009
Location: Auckland, New Zealand
Posts: 152
Likes: 0
Received 0 Likes on 0 Posts
I run gilmers on mine and love it. The whine sounds awesome and they look good, also there is no way that sucker is going to slip.
My set was $550NZD delivered but $120 of that was for the p/s pulley as well. I have since removed the p/s and will be flicking off the pulley if anyone is keen.

I don't think you can walk of the street and buy the belts that easily but they are easy to get online. Just have a spare in the boot and you will be fine. I have never had any issues.
Old 11-04-11, 09:53 AM
  #20
Theoretical Tinkerer

iTrader: (41)

RXSpeed16's Avatar

Join Date: Oct 2003
Location: Norcal/Bay Area, CA
Posts: 1,589
Received 46 Likes on 32 Posts
Originally Posted by Banzai-Racing
Another option is the 6 rib belt conversion which allows you to keep the A/C and PS (if you have them) and cost less than $200. This is what we use on our 13b-re Vert.

By "keep the A/C and P/S" you do you mean the stock v-belt pulleys bolt to your kit's main pulley? Or do you have a 6-rib pulley/belt conversion for the condenser and power steering as well?
Old 11-04-11, 10:05 AM
  #21
Rotary Specialists
RX7Club Vendor
iTrader: (11)

Banzai-Racing's Avatar

Join Date: Jan 2008
Location: Indiana
Posts: 4,824
Received 307 Likes on 179 Posts
Stock accessory pulleys bolt onto the main hub over the main pulley. Here is a pic http://www.banzai-racing.com/Project...y_09-15-10.jpg

I forgot to mention that we bought the kit from Atkins.
Old 11-04-11, 06:46 PM
  #22
Junior Member

doctech's Avatar

Join Date: Mar 2011
Location: austraila
Posts: 18
Likes: 0
Received 0 Likes on 0 Posts
i have the above kit on my fc with p/s and its great
Old 11-05-11, 07:48 PM
  #23
On the fasttrack!

iTrader: (22)

magus2222's Avatar

Join Date: Oct 2006
Location: virginia beach, virginia
Posts: 2,493
Likes: 0
Received 0 Likes on 0 Posts
banzai, do you carry these now?! if so, sign me up to order one, F the price!

Lloyd
Old 11-05-11, 10:08 PM
  #24
Trunk Ornament

iTrader: (11)

AGreen's Avatar

Join Date: Sep 2006
Location: Goose Creek, SC
Posts: 3,054
Likes: 0
Received 2 Likes on 2 Posts
Originally Posted by Banzai-Racing
Stock accessory pulleys bolt onto the main hub over the main pulley.


If it was a true serpentine kit, I'd be ordering one right now.
Old 11-06-11, 04:10 AM
  #25
Rotary Motoring

iTrader: (9)

BLUE TII's Avatar

Join Date: Mar 2001
Location: CA
Posts: 8,209
Received 763 Likes on 505 Posts
6 rib belt looks awesome!

Gilmer drive belt is just way too loud. That noise is engine power being turned into sound by the inefficient design- not a sexy sound unless it is needed.
