J-Rat

iTrader: (2)

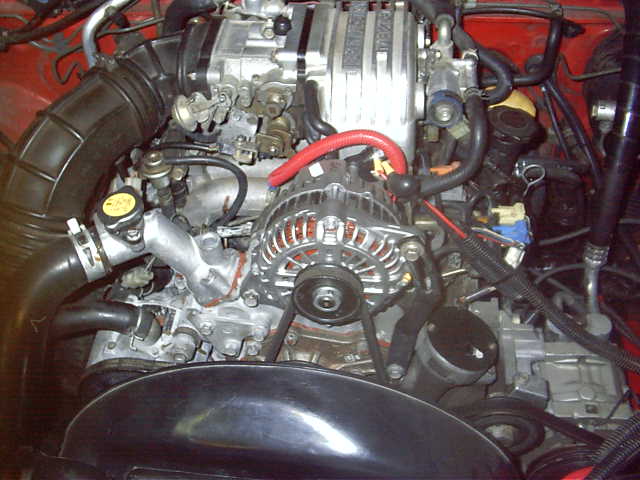

Spent last night converting the car to an FD alternator. Wasnt too hard, except for widening the spacer...

MIKE-P-28

iTrader: (1)

Good going, notice any power improvements ?

Weezle

Got time to do a write up?
That sounds like something I may wanna consider at some point.

J-Rat

iTrader: (2)

Are you kidding?!?! That thing is the SHIZNIT!!! My fans run better, the car feels better (could just me be), I am really happy about it!

Rpeck

Well how's the output? How much has it helped?

J-Rat

iTrader: (2)

I used this write up to do it...

http://www.geocities.com/rx7_ragtop/alternator.html

MIKE-P-28

iTrader: (1)

Sweet!

J-Rat

iTrader: (2)

I get 14.5 volts at idle, no loads. At idle with E-fans, A/C, rear defroster, headlights, I get about 12.9 Volts. The thing puts out some juice....

J-Rat

iTrader: (2)

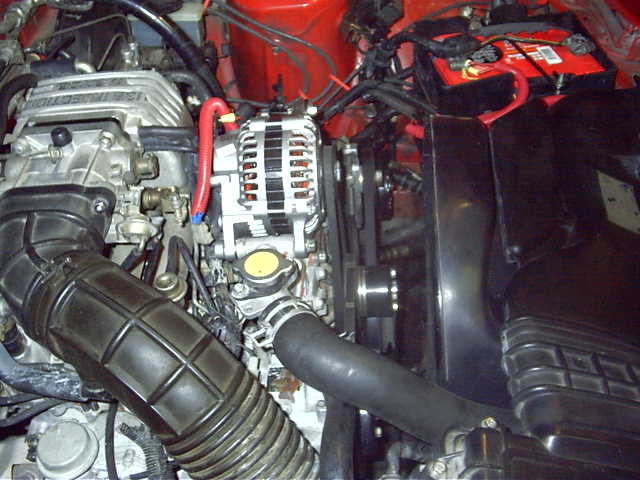

Here is a side shot...

Rpeck

What does a FD altinator go for? what brand did you get? Got it new at a parts shop I assume?

J-Rat

iTrader: (2)

Its a Pro Amp alternator, it was a little spendy, about $160.00. It was a toss up between the $199.00 135 amp that Alterstart makes, or the FD alternator. The FD was less expensive, so I went that route. I wish I could have gotten one used, but they arent easy to find here....

J-Rat

iTrader: (2)

Just went for a drive, A/C fan blows better, temps stay lower... I HIGHLY reccomend this mod...

Rat

soul assassin

now you will have enuff power to run your NAAAAWWWS solenoids and under body neon kit!

J-Rat

iTrader: (2)

Dont forget my electrical supercharger!

soul assassin

and you can plug your **** annilahtor 2000 ***** in your cigarette lighter and drive with it up your *** now

J-Rat

iTrader: (2)

LOL!! I forgot about that! It always ran poorly at idle...Its probably gonna rip now!

marlaman

What does one of those run and where can i get one? does it give such improvemtns as Nos stickers or neon kits.

J-Rat

iTrader: (2)

JumpyRoo

Hey, J-Rat... how'd you do the pulley for that thing? I've been looking for a V pulley for this thing for a while.

J-Rat

iTrader: (2)

I got the pulley off of an old '67ish GM alternator. For some reason, it fit right on. Its the one peice style. My guess is, I got lucky. The only thing I had to machine was the spacer. From my experiment, I gathered that all GM pulleys will fit. You just gotta get one that wont grind the case. Plus I tried to custom grind a spacer, that was harder then I thought, so I just widened the orignal FC spacer with a Dremel. It fit like a champ..

Rat

J-Rat

iTrader: (2)

I can do a write up if you like..Honestly, it was a really easy conversion.

NRA T2

I neeeeeed to know hows it done

NRA T2

is it strait swap

JumpyRoo

A dremel... I tried drilling out the FC pulley and I couldn't get an even circle. Trying to get a spacer that doesn't grind the case is hard. I really don't know how the FD serpentine pulley did it, but it did. How do you tell?

silverrotor

iTrader: (1)

You may want to swap out your old wires with new and bigger ones to maximize your Charging System now:
https://www.rx7club.com/forum/showth...hreadid=114675
