custom v mount
05-16-11, 08:06 PM
#1
custom v mount

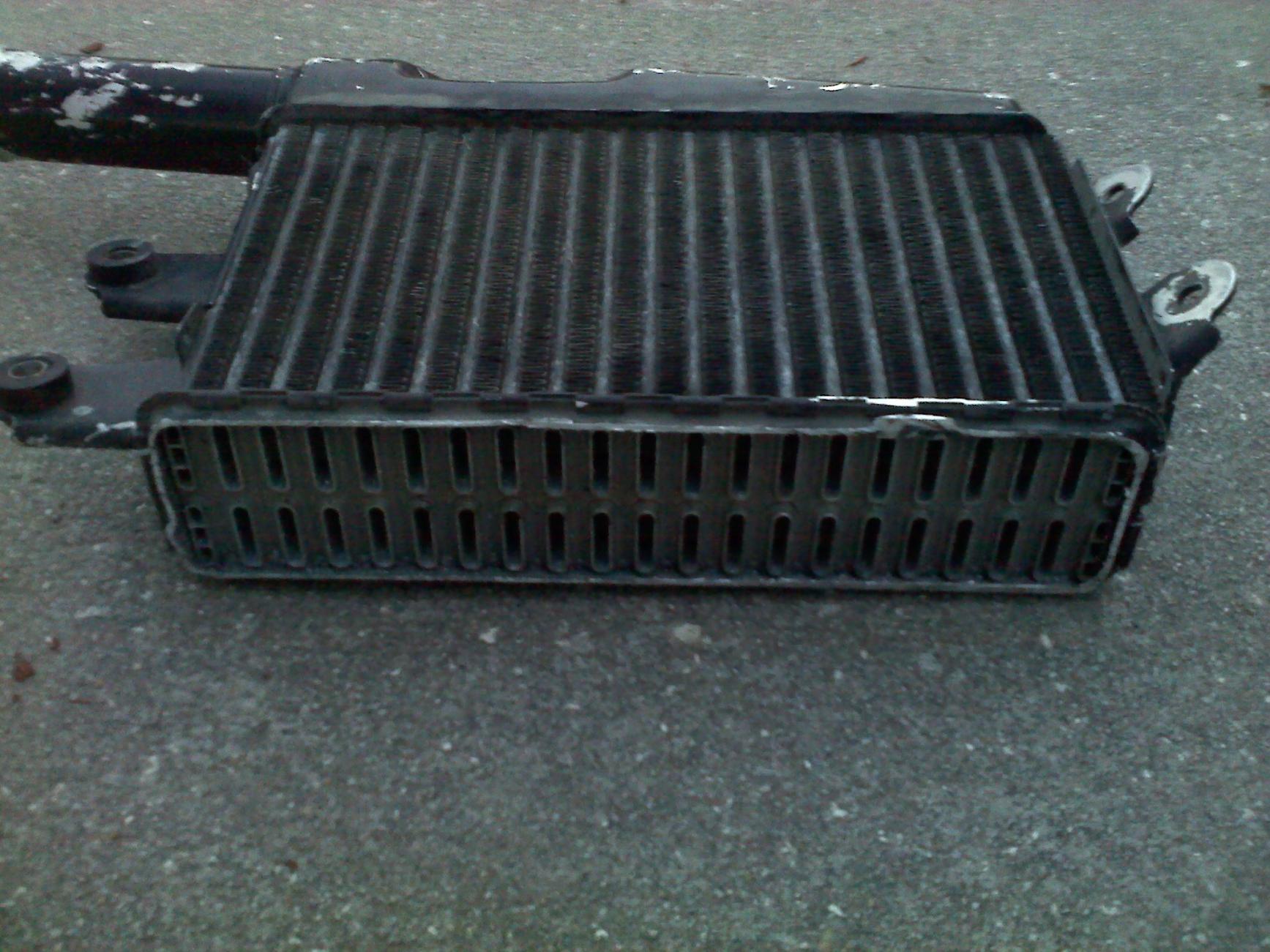

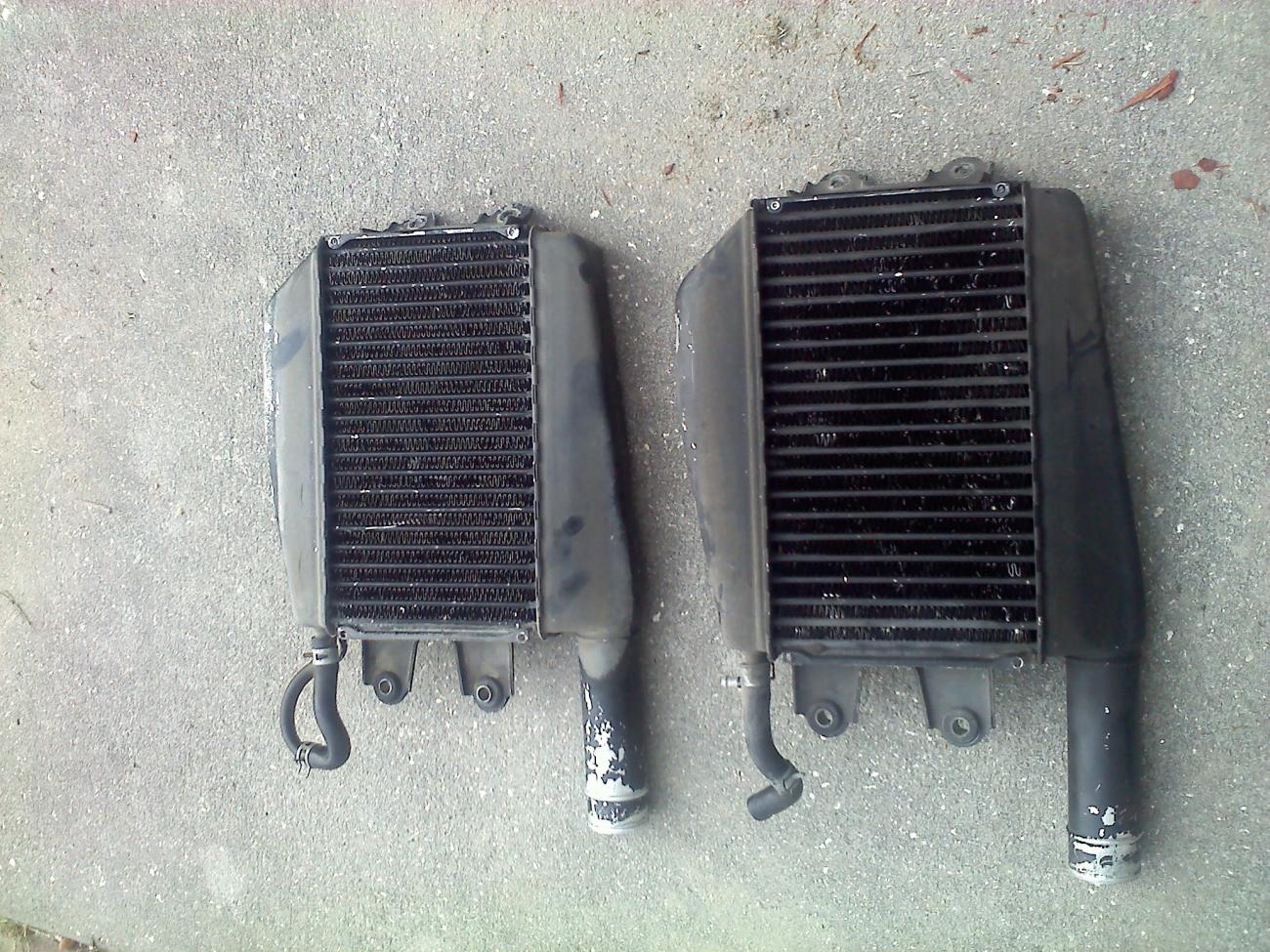

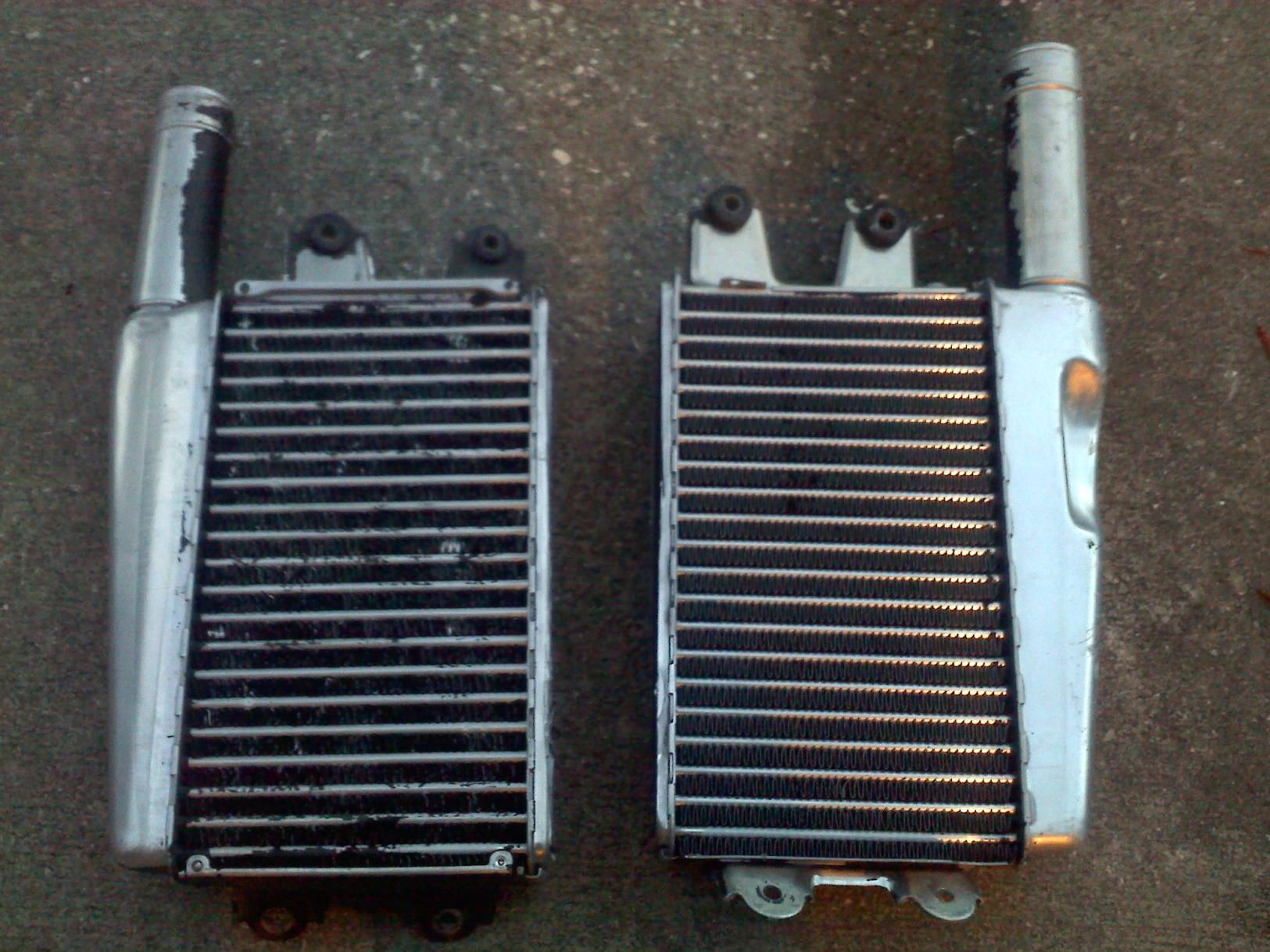

I came up with this idea when I was looking for a good v-mount. The thought is to take 2 stock tmic and cut to end caps off and weld or epoxy them together. I used some heavy duty paint stripper. They stll need some work but you get the idea.
Here are some pics.
Here are some pics.
05-16-11, 08:17 PM
#2
talking head
thats something we used to do 15 years ago when intercoolers where hideously expensive
now they are not,, and even china types will do a better job with less pressure drop
you have the serial pressure drop of 2 stock intercoolers,, which where not known for being free flowing already
when you go V mount,,, you win something,,,, AREA
AREA is what indy and many china coolers are about,, they use AREA to get thermally efficient
the reason they need AREA is that they are not restrictive inside,,,they are not as efficient at transfering heat to the core internally as more restrictive types
the idea is here you get the cooling you need ( due to area ) without crippling pressure drop
if you make a V mount and use two serial stock I/C you are not making the best out of the oppurtunity provided by the V situation
go the china style/ indy bar and plate cooler,, they can be had very cheaply
and i have seen them make excess of 500 rwhp and without huge drop across the core like some very expensive tube fin styles
now they are not,, and even china types will do a better job with less pressure drop
you have the serial pressure drop of 2 stock intercoolers,, which where not known for being free flowing already
when you go V mount,,, you win something,,,, AREA
AREA is what indy and many china coolers are about,, they use AREA to get thermally efficient
the reason they need AREA is that they are not restrictive inside,,,they are not as efficient at transfering heat to the core internally as more restrictive types
the idea is here you get the cooling you need ( due to area ) without crippling pressure drop
if you make a V mount and use two serial stock I/C you are not making the best out of the oppurtunity provided by the V situation
go the china style/ indy bar and plate cooler,, they can be had very cheaply
and i have seen them make excess of 500 rwhp and without huge drop across the core like some very expensive tube fin styles
05-16-11, 10:01 PM
#6
talking head
its easy enough to measure if you use a pair of boost gauges , a couple of tees a couple of one way valves and a couple of rack solenoids
you rig a system that will make the gauges peak hold via the one way valve and open when 12v is enabled to the solenoid ( teed around the one way valve )
you hook one gauge off the turbo discharge ( usually teed off the wastegate hose )
and another on engine side of TB
drive the car with the solenoids turned off and each gauge will record the peak boost settings
( as long as the BOV is functional and you dont let off the peddle quickly while driving it will be acurate enough for this purpose )
from what i have seen , expect 6 + psi above when 15 psi is seen at engine -while other coolers will do it with less , good ones less than 2 psi
21 psi while on a target for 15 psi is a lot of boost the turbo has to do,, even pushing some out of the efficient map zones
i have seen around 350 rwhp on a ballooning stock intercooler pushed beyond reasonable limits
and doubled ones will make LESS on the same turbo
most of the guys with twinned units and highflows back in the day where limited to less than 300 rwhp
you rig a system that will make the gauges peak hold via the one way valve and open when 12v is enabled to the solenoid ( teed around the one way valve )
you hook one gauge off the turbo discharge ( usually teed off the wastegate hose )
and another on engine side of TB
drive the car with the solenoids turned off and each gauge will record the peak boost settings
( as long as the BOV is functional and you dont let off the peddle quickly while driving it will be acurate enough for this purpose )
from what i have seen , expect 6 + psi above when 15 psi is seen at engine -while other coolers will do it with less , good ones less than 2 psi
21 psi while on a target for 15 psi is a lot of boost the turbo has to do,, even pushing some out of the efficient map zones
i have seen around 350 rwhp on a ballooning stock intercooler pushed beyond reasonable limits
and doubled ones will make LESS on the same turbo
most of the guys with twinned units and highflows back in the day where limited to less than 300 rwhp
