Clip below oil filter

Reply Subscribe

Thread Tools

Search this Thread

08-25-09, 04:48 PM

alemmons

89 GXL Turbo

Thread Starter

iTrader: (14)

Join Date: Nov 2005

Location: Albany, Or

Posts: 492

Likes: 0

Received 3 Likes on 3 Posts

Clip below oil filter

What is the clip just below the oil filter for? Still trying to rewire the JDM engine and I am trying to figure out what wire goes here and what wire goes to the A/C pump.

Reply Like

08-25-09, 04:50 PM

alemmons

89 GXL Turbo

Thread Starter

iTrader: (14)

Join Date: Nov 2005

Location: Albany, Or

Posts: 492

Likes: 0

Received 3 Likes on 3 Posts

I have the wire schematic coming from the ecu, so I can trace that if I know what it is. I am assuming the AC is coming from one of the wires in the dash. Does the FSM have this pin out also?

Reply Like

08-25-09, 05:06 PM

alemmons

89 GXL Turbo

Thread Starter

iTrader: (14)

Join Date: Nov 2005

Location: Albany, Or

Posts: 492

Likes: 0

Received 3 Likes on 3 Posts

Might make a difference. It is an S5 Turbo

Reply Like

08-25-09, 05:12 PM

mazdaverx713b

Have RX-7, will restore

iTrader: (91)

Join Date: Oct 2003

Location: Ohio

Posts: 21,725

Likes: 1,322

Received 1,059 Likes on 897 Posts

got a pic of exactly what you're talking about?

Reply Like

08-25-09, 05:38 PM

alemmons

89 GXL Turbo

Thread Starter

iTrader: (14)

Join Date: Nov 2005

Location: Albany, Or

Posts: 492

Likes: 0

Received 3 Likes on 3 Posts

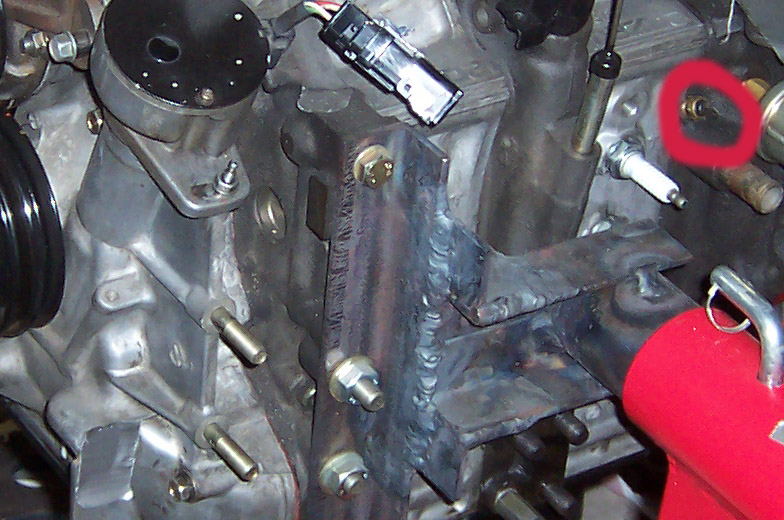

Yes, here is a picture.

Attached Thumbnails

Reply Like

08-25-09, 05:42 PM

Robs86gxl

The Red Flash

Join Date: Feb 2007

Location: texas

Posts: 21

Likes: 0

Received 0 Likes on 0 Posts

oil pressure to the factory guage

Reply Like

08-25-09, 06:09 PM

alemmons

89 GXL Turbo

Thread Starter

iTrader: (14)

Join Date: Nov 2005

Location: Albany, Or

Posts: 492

Likes: 0

Received 3 Likes on 3 Posts

Any idea what color this wire should be on the S5 turbo?

Reply Like

Trending Topics

Greddy Vmount IATs with single turbo 450+hp - Does it work?

64

2.9k
Confirm the model of my SA22C

11

214
What did you do to your FB today?

8.4k

881.9k
Hello from Auburndale FL

9

161
3.73 Ring & Pinion gears for FD's

76

15.6k

08-25-09, 07:48 PM

mazdaverx713b

Have RX-7, will restore

iTrader: (91)

Join Date: Oct 2003

Location: Ohio

Posts: 21,725

Likes: 1,322

Received 1,059 Likes on 897 Posts

no sir, that is the coolant temp sender for the gauge.

Reply Like

08-26-09, 01:38 AM

alemmons

89 GXL Turbo

Thread Starter

iTrader: (14)

Join Date: Nov 2005

Location: Albany, Or

Posts: 492

Likes: 0

Received 3 Likes on 3 Posts

Wow, two people, two answers. Hmmm, anyone else?

Reply Like

08-26-09, 02:14 AM

#10

darinn

Banned. I got OWNED!!!

Join Date: May 2008

Location: gilbert, az

Posts: 177

Likes: 0

Received 0 Likes on 0 Posts

100% its coolant, the oil pressure will be a bigger (5x the size) and is just above the heater core bung (look on your rear iron...the round piece attached to a brass fitting....thats your oil pressure. the small one you have circled is coolant temp

Reply Like

08-26-09, 02:27 AM

#11

need RX7

Listen to King Diamond.

iTrader: (4)

Join Date: Dec 2006

Location: Sterling Heights, MI

Posts: 2,834

Likes: 18

Received 6 Likes on 6 Posts

Yep, coolant.

Reply Like

08-26-09, 06:47 AM

#12

clokker

Cake or Death?

iTrader: (2)

Join Date: Jan 2007

Location: Mile High

Posts: 10,249

Likes: 2

Received 63 Likes on 53 Posts

100% coolant.
Oil pressure sending unit is right next to it in your pic.

Reply Like

08-26-09, 08:17 AM

#13

eage8

1308ccs of awesome

iTrader: (9)

Join Date: Sep 2003

Location: Woodbine, MD

Posts: 6,189

Likes: 2

Received 17 Likes on 15 Posts

+1 coolant for stock coolant gauge (not the ECU)... the wire for that is in the emissions harness and doesn't go to the ECU

the AC wire is in the power (or ignition) harness on the other side of the car.
