Broken plastic piece on bellhousing. What is it?
#1
Say what?
Thread Starter
Join Date: Apr 2009
Location: Lee's Summit, MO
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
Broken plastic piece on bellhousing. What is it?

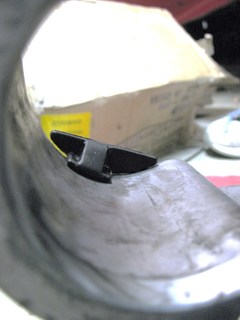

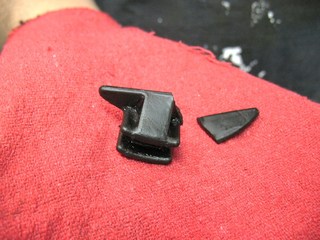

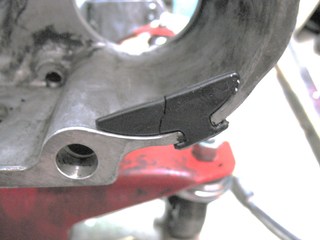

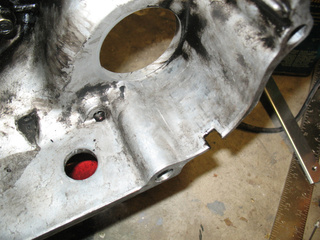

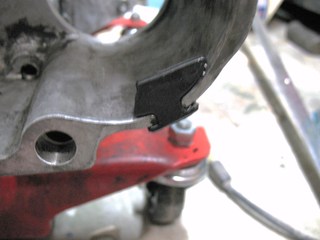

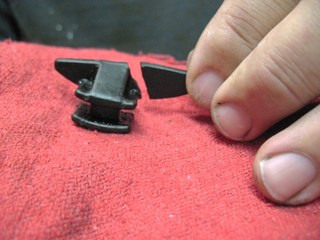

I just bought my first 7 a couple of weeks back. Its a completely stock 88 FC3S SE NA with a manual. I noticed that my clutch was slipping in 4th and 5th so I decided to replace it. I pulled the transmission and when I got it out from underneath the car, I noticed something laying in all the greasy muck in my bellhousing. I picked it up and cleaned it off. It looked as if broke off something. I started looking for where it came from and noticed this plastic spacer thing directly in line with where the starter would be and on the very edge of the bellhousing where it mates to the engine. I have no clue what this thing is. I have searched the forums, the fsm's, everything and I can't find anything on it.
So I have a few questions...
1) Is it important?
2) What does it do?
3) If it needs to be replaced, where can I buy it?
4) If I can not buy it, do you think fixing it with something like an epoxy would be acceptable.
Thanks in advance.
Here are some pictures,
So I have a few questions...
1) Is it important?
2) What does it do?
3) If it needs to be replaced, where can I buy it?
4) If I can not buy it, do you think fixing it with something like an epoxy would be acceptable.
Thanks in advance.
Here are some pictures,
#3
Rotary Freak
iTrader: (7)
Update

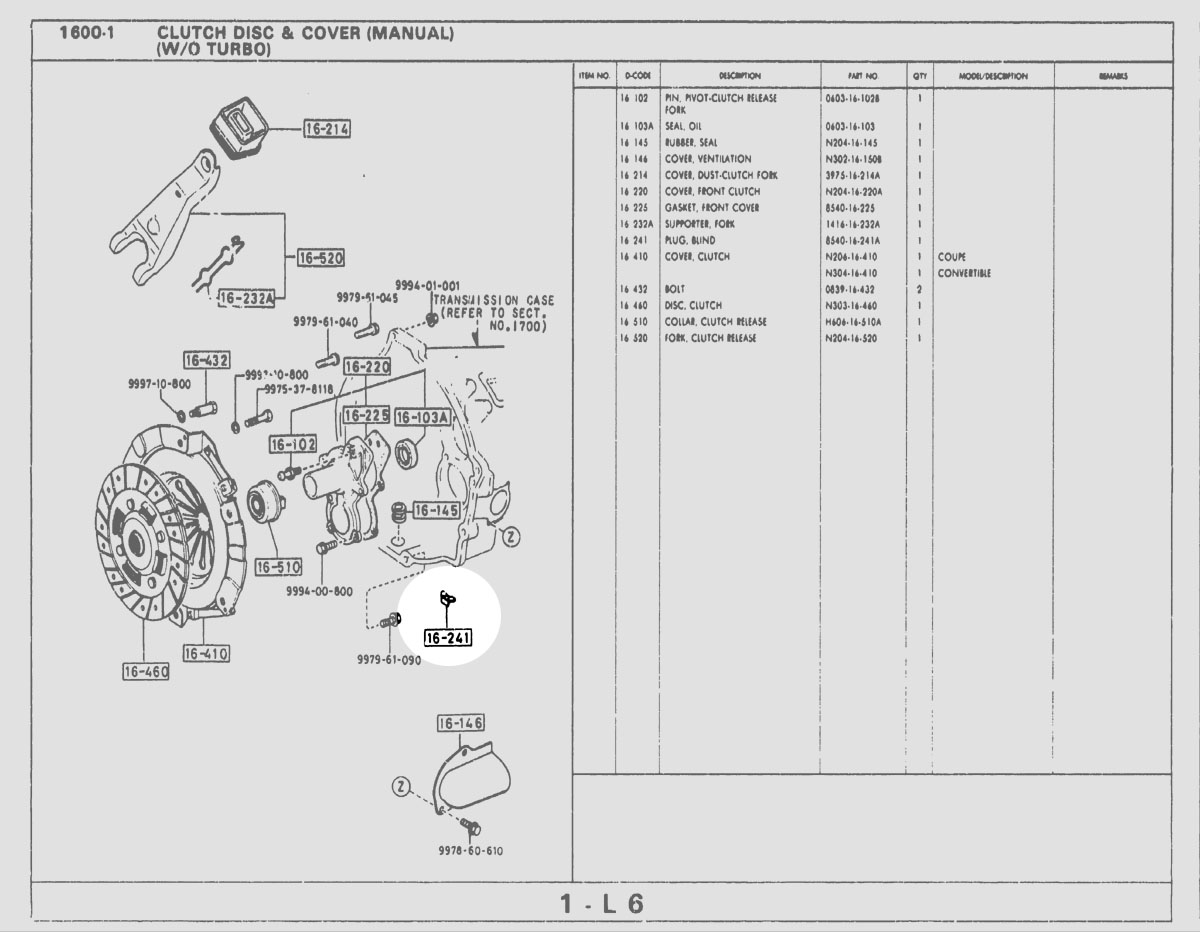

I think the part you are looking for is identified in the attached parts page as a "blind plug", 16-241, part number 8540-16-241A (the 8 may be a "B"). Probably just a plug to fill a non-funtional opening in the housing required during casting or manufacture. Clean off the break with alcohol and try some JB Weld to see if that will hold, then reinstall. Otherwise get a replacement from a dealer parts dept.
#4
(blank)
iTrader: (1)
If nothing else, shove a grommet or piece of rubber (cut a hose) or foam to keep dirt and other crap out of your clutch area. Think of that piece being like the round rubber grommet at the bottom of the bellhousing near that broken piece.
I find JB weld a little too permanent for something like this.
I find JB weld a little too permanent for something like this.
#5
Say what?
Thread Starter
Join Date: Apr 2009
Location: Lee's Summit, MO
Posts: 43
Likes: 0
Received 0 Likes
on
0 Posts
thanks GO48! I just plan on glueing it back together and putting it back in. I just wanted to make sure that it wasn't something important that needed to be replaced (ie: the correct way of doing things) haha
Trending Topics
#8
Junior Member
Join Date: Dec 2020
Location: San Diego
Posts: 10
Likes: 0
Received 0 Likes
on
0 Posts
My fear is that it will break inside the transmission bell housing and get caught inside the clutch, pressure plate, and flywheel assembly.
#9
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,816
Received 2,587 Likes
on
1,838 Posts
you'd be better off just leaving it out
