AUGieDogie

iTrader: (4)

With my might powers of shitty luck I found out today that I did!!

Got my car at the shop right now and he calls me at tells me that in all the years he's been doing this he has never seen a broken one. WHOOOO HOOOOO I love being first!!!!!!!

I gues it sheared right throuth the center area. I guess it started near the oil jet(?) and just halved the the thing. It was still alowing my engine to turn over so that I would get good compression numbers, but it wouldn't go any more.

I'll try and post picts next week if I can.

RotaryEvolution

iTrader: (30)

never heard of it or seen it happen. i wouldn't even believe it until i see it for myself.

why do i still have a hard time believing it? because these e-shafts can easily handle 1000 horsepower. i guess there is a possibility of imperfections in the steel mix but you are very very very unlucky if that is the case, they have an almost bulletproof reputation of taking abuse.

BurntOrangeT2

iTrader: (30)

PICS or it didn't happen

Nismo Convert86

iTrader: (7)

Pics from Teds Website, yes it has happened, a few times, just have to search.

beefhole

iTrader: (29)

I could only imagine one breaking from improper balance or extreme over rev. Like, you downshifted to 1st at... oh.. 110MPH.

Now, who has broken an apex seal. Don't be shy

RotaryEvolution

iTrader: (30)

i remember ted talking about one of his buddies on the track who's flywheel key sheared off and the motor spun up to 16k RPMs, broke the stat gear and fractured everything in the engine when the rotor locked up against the housing but that is far from daily driving a stock powered FC.

i'm sure it is possible but it is highly unlikely and just unlucky if/when it happens.

Nismo Convert86

iTrader: (7)

Extreme tension on drive belts can cause e-shafts to break, we have lots of space between journals.

TX_RX

Ted's site claimed that snapped e-shaft was due to unknown causes, but was suspected to be due to a dramatic loss of oil pressure.

Nismo Convert86

iTrader: (7)

Yes, that will happen, seeing as the shaft is stuck in the front stat gears.

rx7racerca

iTrader: (1)

Have heard of, though only second hand. So how'd it happen?

AUGieDogie

iTrader: (4)

dunno how it happened. I was just driving it around town not boosting it and it was running great. Stopped at a light, accelerated, not gunning it, and she just died. Oil pressure was quite good at the time and it didn't seize anywhere.

This info is comming from my mechanic who has been working on our cars for quite some time. He is going to take a pic, and (if my current car can make the drive) i'll probably post a pict here in the middle of next week.

j9fd3s

iTrader: (3)

this was ours; http://fc3spro.com/TECH/HOF/K2RD/k2rdhof01.html as per class rules it was a stock S5 engine, stock ecu.

eshaft was bad, but not broken.

there was some debate about why it let go like that (you can see the rotors stopped orbiting, and tried to become round)

the likely verdict was the stock ecu's rev limiter, 30 seconds a lap is bad.

the next engine used the haltech, and went to 9400rpm, and its BEAT but didn't blow up

arghx

iTrader: (3)

a broken eshaft is not a major concern on a 2 rotor engine. It's kind of a freak occurance.

AUGieDogie

iTrader: (4)

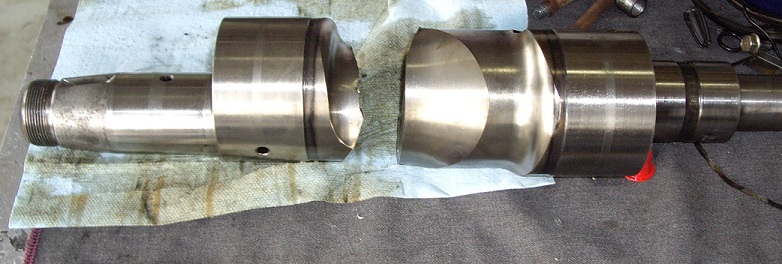

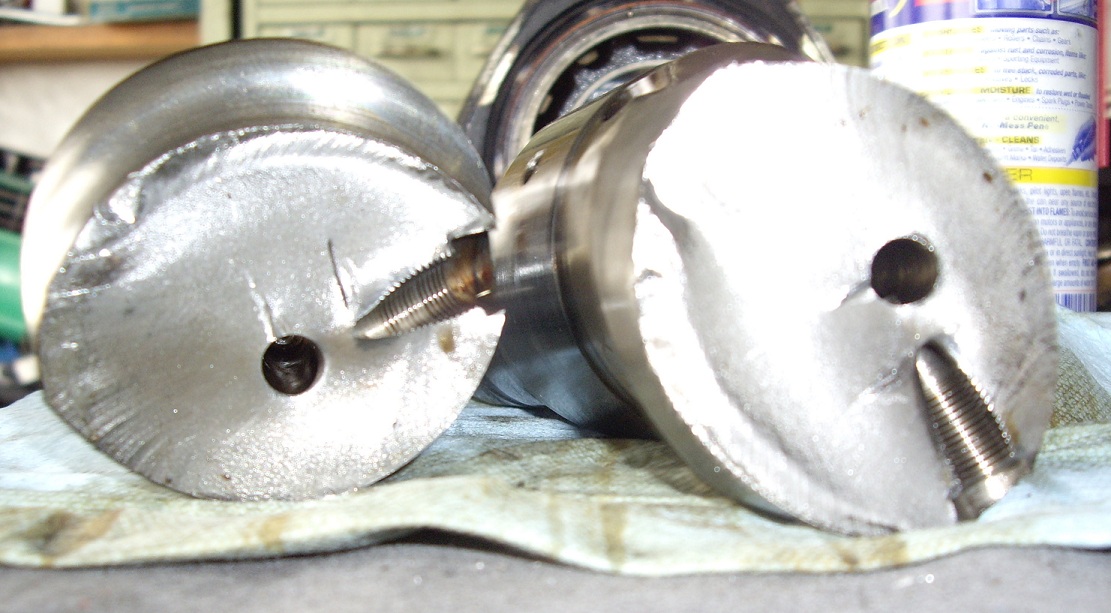

Finally got my camera back. So I thought I'd post.

MadScience_7

Wow... Right through pretty much the thickest part.

PvillKnight7

iTrader: (16)

woah you did get lucky!

Carzy Driver

wow

Syritis

iTrader: (2)

was in the shop when my old boss got the news that one of his buddies obliterated his flywheel key and spun the flywheel, pretty much taking out the back half of the motor. was on a 1000+ hp 20B
