13bbuggy

iTrader: (2)

This should be an easy one I hope, I'm trying to get a signal to my tachometer and I have read on here about a few different places to get my signal from. I started with the Y/L wire off the trailing coil and got nothing, then I tried pin 1M off the ecu (I read that one somewhere on here bu they seemed unsure about it) and that didn't work. I only have a few wires from the front harness hooked up (just the ones that go to the coils, main relay, and battery) so that might be why some of these aren't working properly. I have also read I can hook it up to the black wire off the leading coil; is that correct? This is for a dune buggy and aftermarket tachometer fyi.

13bbuggy

iTrader: (2)

I forgot to mention that I have already checked for spark on the trailing coils, and I am getting spark consistently. I am using stock S4/5 coils and a S5 NA ecu (I can't remember the # but it's either N370 or N350, from a 1991 NA).

satch

iTrader: (1)

Remember the Black wire connected to nothing at each of the coils? Jumper a wire to connect these two wires to each other and see if the tach works.

satch

iTrader: (1)

Another thing, the Y/L wire is part of the Front harness and this particular wire connects to the Meter harness at connector FME-01. If this connection is not made then the tach cannot work regarless of what you try.

13bbuggy

iTrader: (2)

Are you saying that if I'm not using that part of the harness (which I'm not because all I had was the connector at the ecu with a few inches of wire to start and I wired it directly to the coils and injectors) then there is nowhere to get a signal for my tachometer? What about on the coils where the wires connect to them (there are 2 "studs" with nuts on them under a cover)?

satch

iTrader: (1)

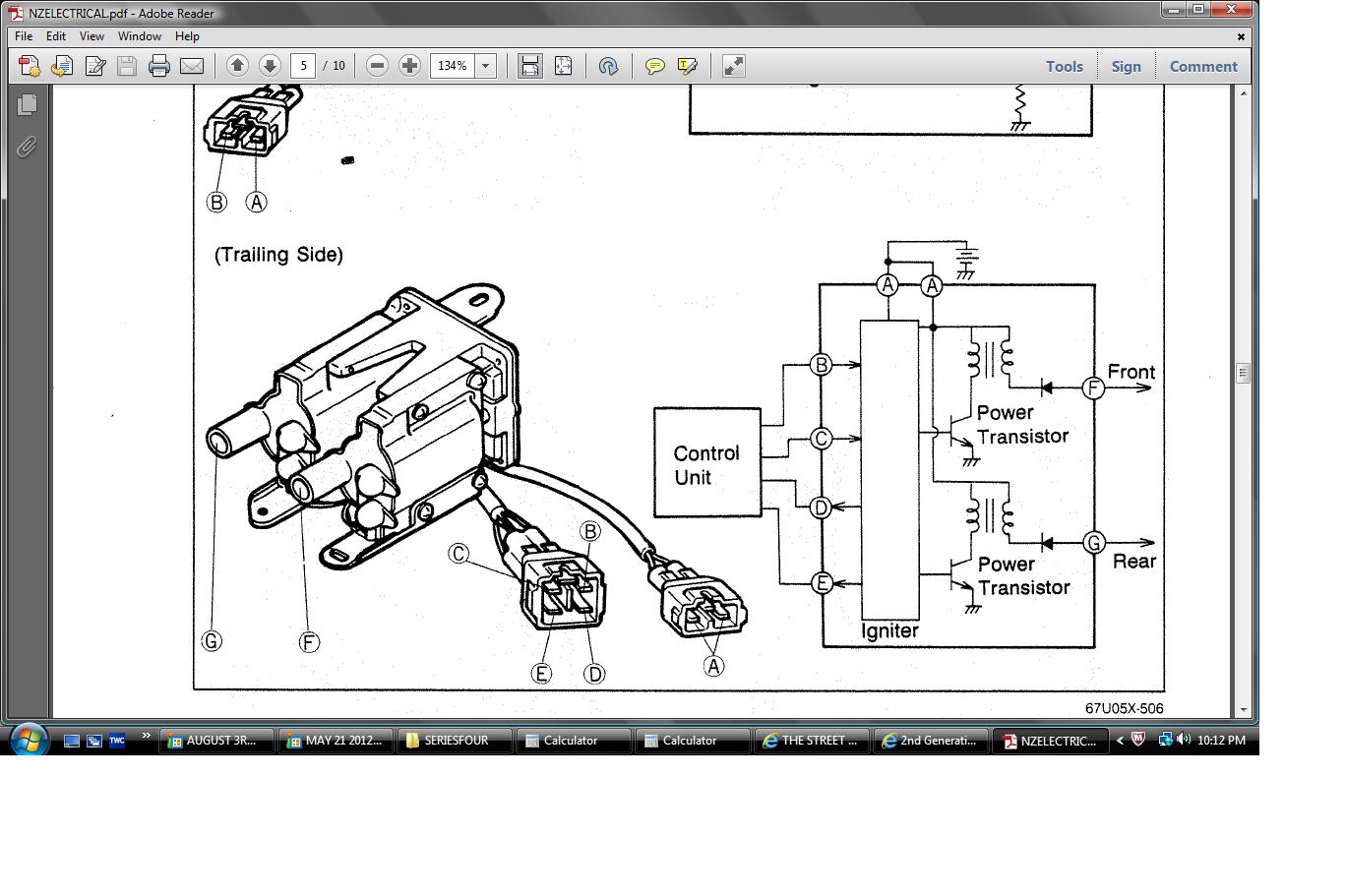

There are two plugs on the back of the gauge cluster. One of them contains the Y/L wire. Run the Y/L wire off of the trailing coil to this wire and you should have a functioning tach.

13bbuggy

iTrader: (2)

This is in a dune buggy. I don't have a gauge cluster, just an autometer 4" tachometer, oil pressure, and temperature gauges. I already have the other 2 working I just need to get my tach to work as well.

satch

iTrader: (1)

Are you sure the tach is in working condition and if you ran the Y/L wire to it and it didn't work did you then try the jumper trick suggested?

HAILERS2

Connect the Autometer tach up to the coil like the Autometer site suggests you do.

13bbuggy

iTrader: (2)

If someone would help me find the negative connection for the coil then I believe that would work, I just don't know where it is.

HAILERS2

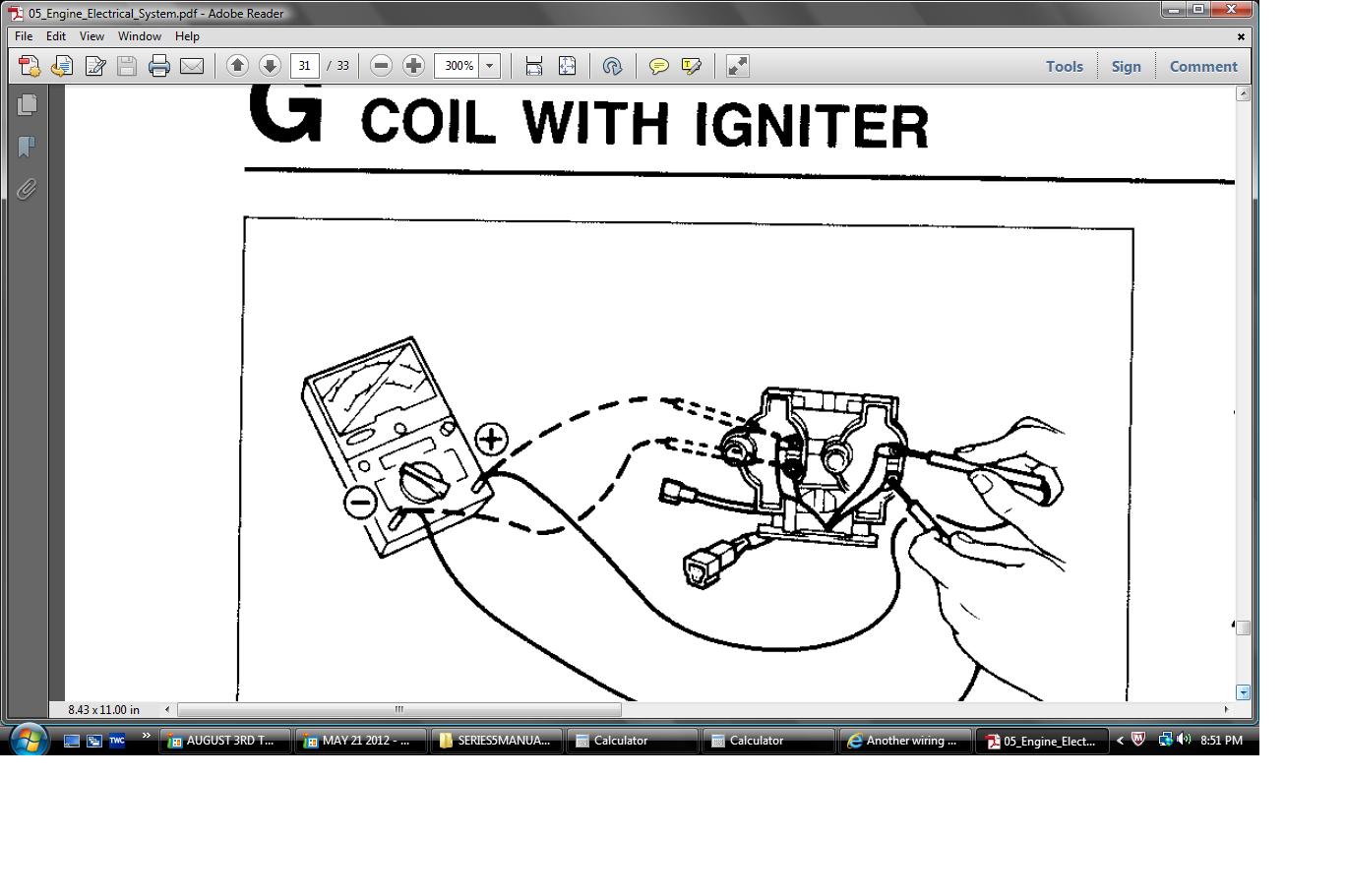

I believe the coil assy has a big negative symbol next to the negative post and big plus symbol near the positive side.

HAILERS2

J
