air/fuel guage wire at ecu?
#1
Rotary Enthusiast
Thread Starter
Join Date: May 2003
Location: chicago land
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
air/fuel guage wire at ecu?
ive been searching but the search on here wont recognize af, a/f so its realy hard to find. i know that the black wire is shielded near the o2 sensor so its best to connect the guage near the ecu. i have the carpet pulled back ready to splice but need to know what wire is the o2 at the ecu?
#2
Rotary Enthusiast
Thread Starter
Join Date: May 2003
Location: chicago land
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by NZConvertible
Don't connect to the shielded O2 sensor wiring in the engine bay; you have about a 50/50 chance of screwing it up and grounding the whole signal though the wire shield. Always connect at the ECU where the wire is unshielded.
#3
Rotary Enthusiast
Thread Starter
Join Date: May 2003
Location: chicago land
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
well i have it hooked up and it lights up. i drove my car untill it was completely warmed up and the entire time regardless of throttle the guage read full rich. does this mean:
1. I am running crazy rich all the time
2. I need a new o2 sensor
3. I hooked it up wrong
Before i go take my carpet out again i want to make sure i know what the problem is
1. I am running crazy rich all the time
2. I need a new o2 sensor
3. I hooked it up wrong
Before i go take my carpet out again i want to make sure i know what the problem is
#4
slide style_AUTO (Iowa)
Join Date: Aug 2004
Location: Fayette, Iowa (Upper Iowa University)
Posts: 980
Likes: 0
Received 0 Likes
on
0 Posts
I have the same problem. My only guess is that its the O2 sensor. I'm looking to get a new one...maybe that'll fix the problem.
#6
slide style_AUTO (Iowa)
Join Date: Aug 2004
Location: Fayette, Iowa (Upper Iowa University)
Posts: 980
Likes: 0
Received 0 Likes
on
0 Posts
At WOT what should the proper reading be? Stoich? Mine is leaning towards the lean end when I am at WOT. But yeah....my gauge reads fully rich when I am at idle or at a cruising speed without accelerating.
#7
Lives on the Forum
Hmmm, at cruise she should be bouncing back and forth at stoich (whatever that is on the gauge- it's .4 to .5 volts on a meter).
At WOT she'll jump around a bit- first go lean, then get rich as the secondaries kick in, all the while attempting to stay around that stoich point...
At WOT she'll jump around a bit- first go lean, then get rich as the secondaries kick in, all the while attempting to stay around that stoich point...
Trending Topics
#8
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by WAYNE88N/A
At WOT she'll jump around a bit- first go lean, then get rich as the secondaries kick in, all the while attempting to stay around that stoich point...
#12
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
A full rich reading means the gauge is getting a 1V (or higher) signal. Try reading the voltage at the ECU while the engine is running and fully warmed up (after a drive). It should be under 1V and varying as you rev the engine. If this reading is okay, the gauge is bad.
#15
Rotary Enthusiast
Thread Starter
Join Date: May 2003
Location: chicago land
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
testing time!
OK, i just put in a new o2 sensor just to make sure that wasnt the problem. before when i had my A/F guage hooked up, as soon as the key was in the ON position the guage would light up showing full rich. now with the key in the ON position it does not light up, so the first question is: Is it supposed to light up with the key in the ON position or not untill the car is running and warmed up. my multimeter shows no voltage reading at this time too. I have not started the car yet since installing the o2 sensor.
once i start it up and get it running, i understand that it should be reading between 0-1V and while cruising it should bounce around .4V
I also need to know if higher voltage means Rich or Lean, so i can figure out if my guage is broken or my car is actually running fully rich at all times.
And any details on what kind of readings i should have at different time like idle, wot, decel, cruise and such.

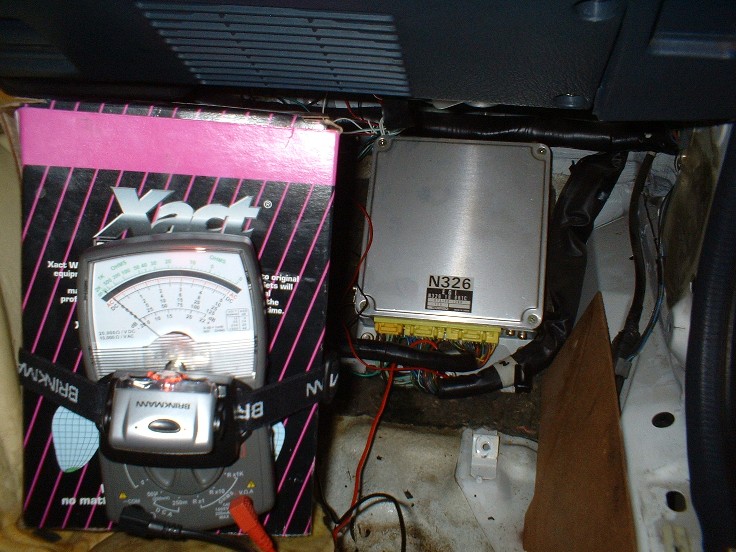

the pic is to show how i have it set up, its dark out so i have a strap light on the multimeter. thanks for any info!
PS. how do you put pictures in the text instead of attachments??
once i start it up and get it running, i understand that it should be reading between 0-1V and while cruising it should bounce around .4V
I also need to know if higher voltage means Rich or Lean, so i can figure out if my guage is broken or my car is actually running fully rich at all times.
And any details on what kind of readings i should have at different time like idle, wot, decel, cruise and such.
the pic is to show how i have it set up, its dark out so i have a strap light on the multimeter. thanks for any info!
PS. how do you put pictures in the text instead of attachments??
#16
Senior Member
Join Date: Feb 2004
Location: MIAMI,FL
Posts: 319
Likes: 0
Received 0 Likes
on
0 Posts
a wide band can give you a much more accurate reading but of course there is the price difference . on the other hand many many engines have been blown even though the almighty a/f guage has been pegged on the rich side when this has happened . thats why you see more and more guys invest in widebands and run them full time . FJO makes one that looks just like the autometer with the semicircular l.e.d lights runnin across the top but has a number screen in the middle as well . will run you about 300-400 bucks for it but well worth the price if you plan on extending the life of your engine . spend it now and make it last or wait till it she blows because you didnt want to shell out 400 bucks . beats shelling 1500 for rebuilt engine . just my 2 pennies
#17
Rotary Enthusiast
Thread Starter
Join Date: May 2003
Location: chicago land
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
i was just wanting a general idea of what my engines doing, i know all this a/f guage is is a voltmeter. my car has been stuttering at high rpm. it stutters differently depending on whether i have the 5/6 ports and vdi open, or just the vdi, or just the 5/6 ports. so i wanted to see what its doing.
if you havent read the thread please read my last post on the first page to see if you can help
if you havent read the thread please read my last post on the first page to see if you can help
#19
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
I know nothing about the silly gauge.
I know a touch about reading the stock 02 sensor with a digital meter.
On a stock, everything in place engine, at idle it should be reading way low. Such as .01vdc or other ridiculous figure.
If you don't have a airpump/acv up and running, then at idle it will read rich. Such as .65vdc or .7vdc
In either configuration, while driving at a steady speed, it should read b/t .4vdc to .5vdc. Actually jumping b/t those figures or numbers CLOSE to those figures.
At wide open throttle, it'll probably read something like .8vdc to .9vdc.
I've never seen a 02 sensor put out anything over 1vdc.
There is a free onlin factory service manual available for downloading. The url is on this site.
I know a touch about reading the stock 02 sensor with a digital meter.
On a stock, everything in place engine, at idle it should be reading way low. Such as .01vdc or other ridiculous figure.
If you don't have a airpump/acv up and running, then at idle it will read rich. Such as .65vdc or .7vdc
In either configuration, while driving at a steady speed, it should read b/t .4vdc to .5vdc. Actually jumping b/t those figures or numbers CLOSE to those figures.
At wide open throttle, it'll probably read something like .8vdc to .9vdc.
I've never seen a 02 sensor put out anything over 1vdc.
There is a free onlin factory service manual available for downloading. The url is on this site.
#20
Rotary Enthusiast
Thread Starter
Join Date: May 2003
Location: chicago land
Posts: 998
Likes: 0
Received 0 Likes
on
0 Posts
well i just took it to test it after fully warmed up. I do not have air pump/acv and at idle the guage doesnt even light and the voltmeter reads nothing.
at steady speed, the guage will show either nothing or full lean. the voltmeter will show roughly .1-.2V
While under LIGHT accelaration, the guage will bounce back and forth like it is supposed to at steady speed, same with voltmeter
at wide open throttle im reading about .8v, at 3800 WOT it drops to zero then back to .8v(ya i cant find the grounding problem) at 6000 and up it will read .9v and then start bouncing from .3v to .9v untill 8000. above 6k i can feel it bucking and stuttering.
Do you think any of this could be related to timing? before i did s5 uim/lim swap my car ran great up to 8000. after the swap I relized my timing had been advanced as far as it would go the entire time so it was put back to stock specs. now i am having all sorts of problems with idle and high rpm. anyone have any ideas on where i should start?
at steady speed, the guage will show either nothing or full lean. the voltmeter will show roughly .1-.2V
While under LIGHT accelaration, the guage will bounce back and forth like it is supposed to at steady speed, same with voltmeter
at wide open throttle im reading about .8v, at 3800 WOT it drops to zero then back to .8v(ya i cant find the grounding problem) at 6000 and up it will read .9v and then start bouncing from .3v to .9v untill 8000. above 6k i can feel it bucking and stuttering.
Do you think any of this could be related to timing? before i did s5 uim/lim swap my car ran great up to 8000. after the swap I relized my timing had been advanced as far as it would go the entire time so it was put back to stock specs. now i am having all sorts of problems with idle and high rpm. anyone have any ideas on where i should start?
