Aftermarket/hydrid/rebuilt S5 T2 turbo id
10-19-11, 11:58 AM
#1
Banned. I got OWNED!!!
Thread Starter
Join Date: Oct 2011
Location: Oregon
Posts: 7
Likes: 0
Received 0 Likes
on
0 Posts
Aftermarket/hydrid/rebuilt S5 T2 turbo id
I'm trying to figure out what turbo I have... can anyone help?
Anyone recognize the compressor? I believe it's a T04B compressor housing... The inlet diameter is 2 3/4" where a stock s5 t2 HT-18 is 2 5/8"

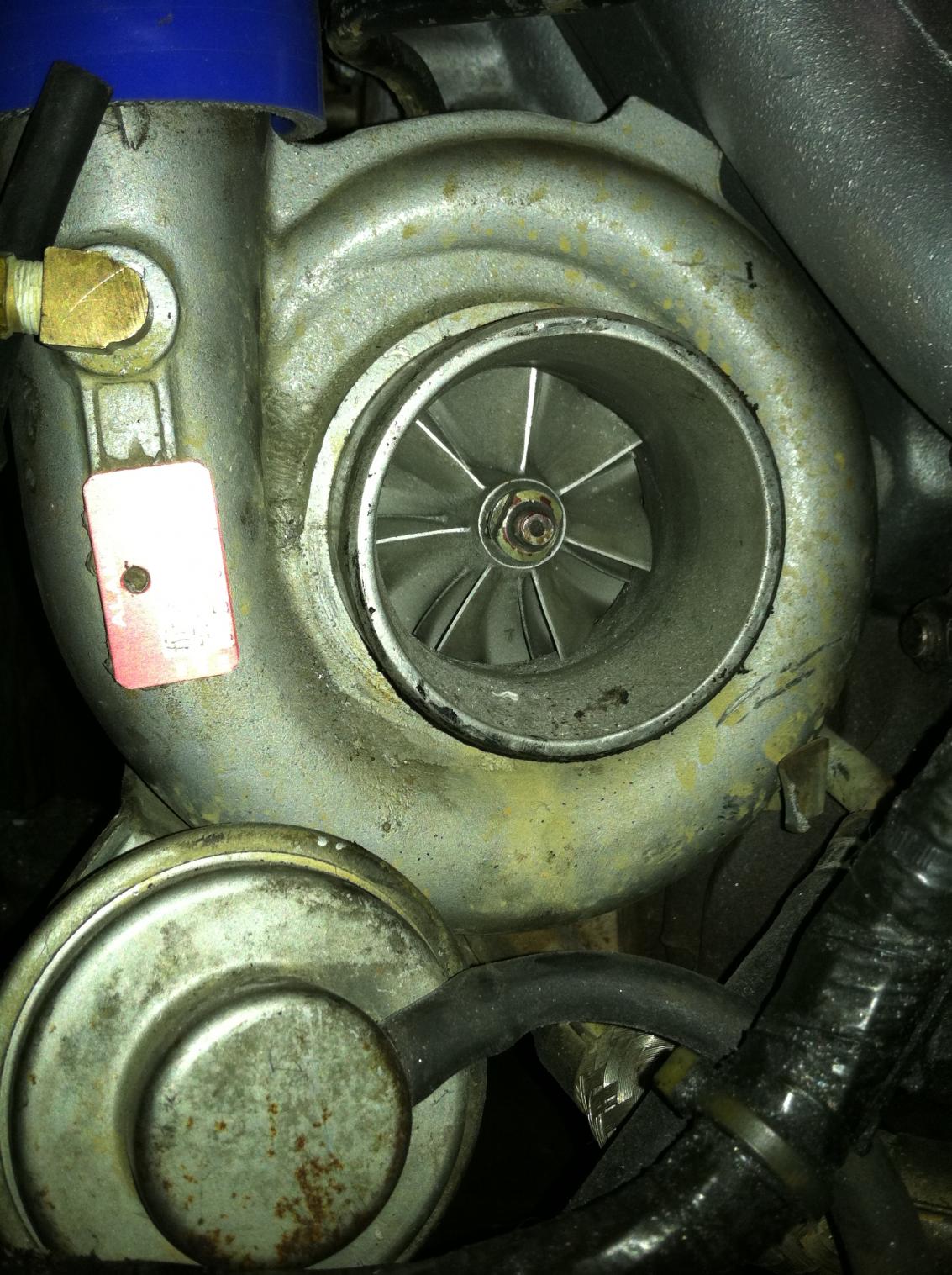

I've attached a pic of the compressor with an ID tag from Alamo which states:
ALAMO
pn ht-19
mod ht-19
Ser 100506 77
I've called Alamo Industries (http://www.alamoturbochargers.com/home.html), but, all they could tell me was it was made/rebuilt on October 5, 2006.
I sure appreciate any help.
-Chris
Anyone recognize the compressor? I believe it's a T04B compressor housing... The inlet diameter is 2 3/4" where a stock s5 t2 HT-18 is 2 5/8"
I've attached a pic of the compressor with an ID tag from Alamo which states:
ALAMO
pn ht-19
mod ht-19
Ser 100506 77
I've called Alamo Industries (http://www.alamoturbochargers.com/home.html), but, all they could tell me was it was made/rebuilt on October 5, 2006.
I sure appreciate any help.
-Chris
10-19-11, 02:09 PM
#2
The only way to know for sure what its specs are is to remove the housings and measure both wheels. Check post 1 for dis-assembly info, and post 2 for hybrid info: https://www.rx7club.com/2nd-generation-specific-1986-1992-17/how-rebuild-stock-ht-18-turbo-build-hybrid-959045/
10-19-11, 06:33 PM
#3
talking head
looks like the 7 blade wheel and also the trust type cover used in the s320 /rf320 knightsports
off memory the compressor inducer is 55.5 mm ish
if you take off the rear volute-
s320 uses a stock rear wheel and the RF has reverse thread and lesser height at the tips
off memory the compressor inducer is 55.5 mm ish
if you take off the rear volute-
s320 uses a stock rear wheel and the RF has reverse thread and lesser height at the tips
