afm position
I have a TID mod on my 87 TII. However I was forced to run the whole thing slightly upwards from turbo. Is having AFM slightly tilted up (about 25*-30*) affect it's functionality ?
Btw here's a funny vid i found
just paste the link, should work
http://mark2.markscash.com/bookmark/...upinflames.wmv
Btw here's a funny vid i found
just paste the link, should work
http://mark2.markscash.com/bookmark/...upinflames.wmv
#2
Yes, having it tilted will affect it's operation. IIRC, it will tend to read more airflow than actual (because of gravity pulling on the door), and you'll run rich.
-=Russ=-
-=Russ=-
#3
I live in an igloo
Join Date: Jul 2004
Location: calgary alberta
Posts: 2,546
Likes: 0
Received 0 Likes
on
0 Posts
The TII model AFMS have a slightly stronger spring than the NA counterparts. I would agree with the above statement on an NA, but for a turbo engine AFM im not to sure if it matters if the incline is ever so slight.. any other opinions?
#4
Senior Member
Join Date: Sep 2003
Location: Syracuse, New York
Posts: 488
Likes: 0
Received 0 Likes
on
0 Posts
Doesn't the AFM have some sort of counterbalance mechanism?
I just assumed there was a weight on the same pivot as the flapper door so that it wouldn't go flying shut when you jam on the brakes?
Ah, I just found a GREAT link on the AFM's.
http://www.atlanticz.ca/zclub/techtips/afm/
There is a "damper chamber" and "damper plate", but it does not seem to be perfectly balanced about its point of rotation, as I would have thought.
The upside is that you could do a simple test:
1) Unplug the AFM.
2) Measure the resistance from the wiper on the potentiometer to either side of the pot.
3) Set AFM as installed by factory.
4) Measure again
I just assumed there was a weight on the same pivot as the flapper door so that it wouldn't go flying shut when you jam on the brakes?
Ah, I just found a GREAT link on the AFM's.
http://www.atlanticz.ca/zclub/techtips/afm/
There is a "damper chamber" and "damper plate", but it does not seem to be perfectly balanced about its point of rotation, as I would have thought.
The upside is that you could do a simple test:
1) Unplug the AFM.
2) Measure the resistance from the wiper on the potentiometer to either side of the pot.
3) Set AFM as installed by factory.
4) Measure again
Trending Topics
#8
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Originally Posted by fc3sguy
any chance u would happen to know which tabs in the connectors to check for resistance?
There's only ONE exception. If you *loosen* the spring to such an extent that it now does not hit the mechanical stop, I can assure you that that afm will perform like a piece of junk. There won't be enough spring tension to keep the vane from hitting its full travel even under light loads.

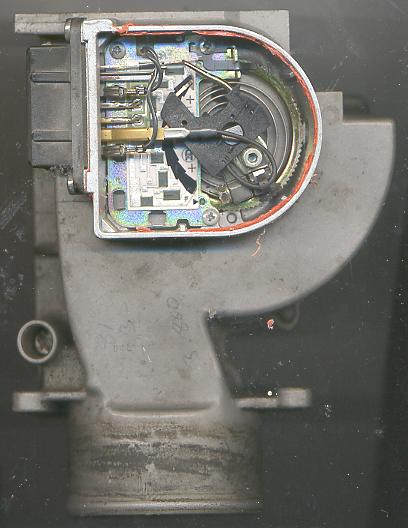

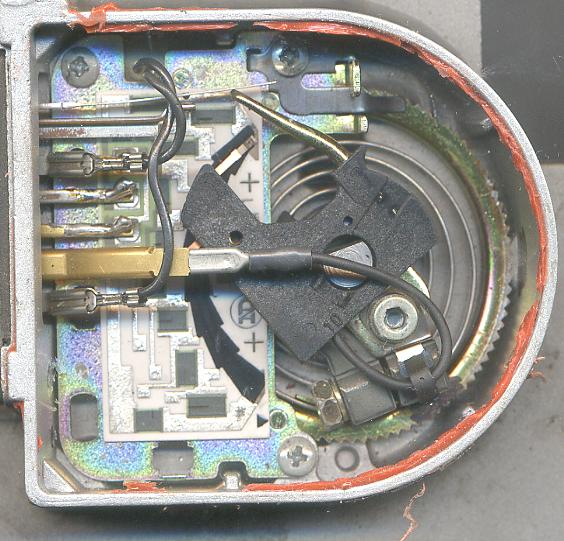

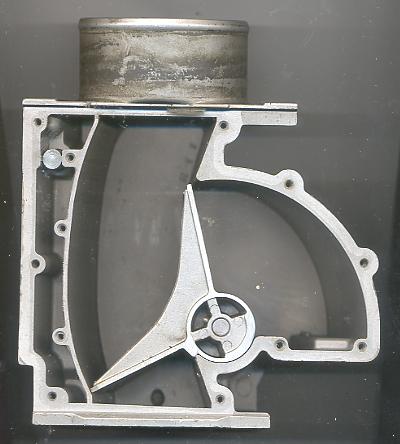

The pins your looking for are the second and third ones from your right if the afm is in its normal upright position. I'll attach some jpgs of the afm internal and external parts later.
The above said, you SHOULD ohm out the afm to the fsm's figures. That WILL NOT guarantee the afm is good/reading as stock etc.
#10
Senior Member
Join Date: Sep 2003
Location: Syracuse, New York
Posts: 488
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
I'm not sure what your up to.
As I understand it, he's just running the AFM at a slight incline, not messing with the spring. He just want's to know if a small tilt is going to significantly effect the sensor.
#12
Senior Member
Join Date: Mar 2004
Location: Cleveland
Posts: 458
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by fc3sguy
yeah it's probably affecting my boost too. I noticed I've been boosting about 3 or more psi less.
#13
Full Member
Thread Starter
Join Date: May 2002
Location: NC
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by HAILERS
The tilt won't make a difference. The tilt you described.
One person says yes one person says no. Still, I'm gonna try to level it out see If it makes a difference.
#14
Green Flameless
iTrader: (2)
Join Date: Feb 2002
Location: North Central PA
Posts: 2,242
Likes: 0
Received 0 Likes
on
0 Posts
I can't add anything to the AFM dicussion (Some of us are AFM Free! ), I would just like to say that having your car go up in flames in front of you would SUCK. I feel REALLY bad for the guy with the GTI.
#15
The GTI video is yet another reminder to CARRY A BLOODY FIRE EXTINGUISHER in your car. It's a lot more likely to be useful than a random video camera... I'm pretty sure that fire could have been put out with a small fire extinguisher when it started.
-=Russ=-
-=Russ=-
#16
Full Member
Thread Starter
Join Date: May 2002
Location: NC
Posts: 56
Likes: 0
Received 0 Likes
on
0 Posts
yeah
I like to jack threads, specially my own
which reminds me of this. Talk about knowing the road in your head.
http://videos.streetfire.net/Player....3-761051EFD4B3
I like to jack threads, specially my own
which reminds me of this. Talk about knowing the road in your head.
http://videos.streetfire.net/Player....3-761051EFD4B3
