1990 Gxl

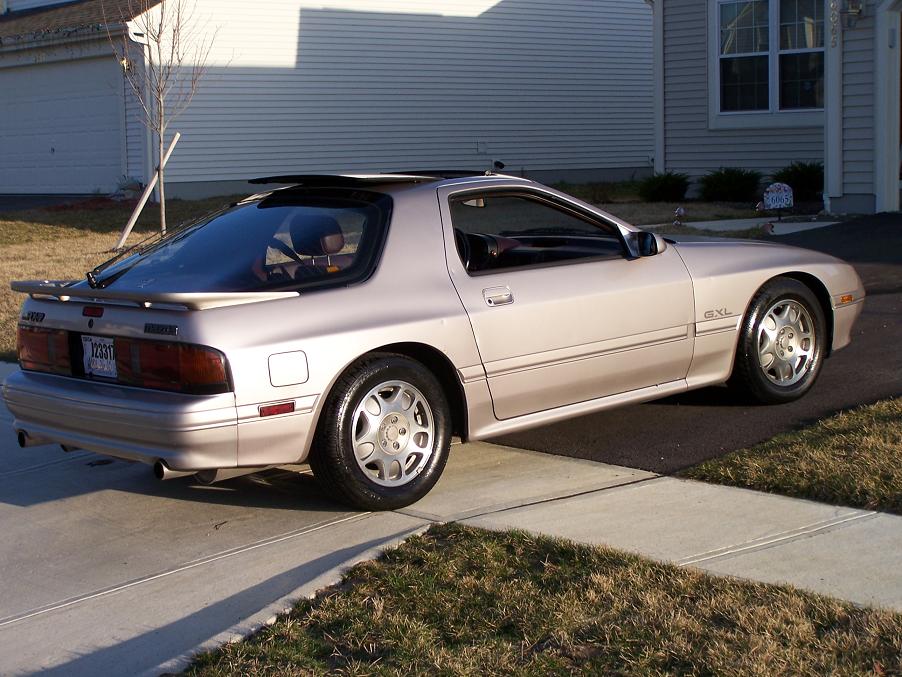

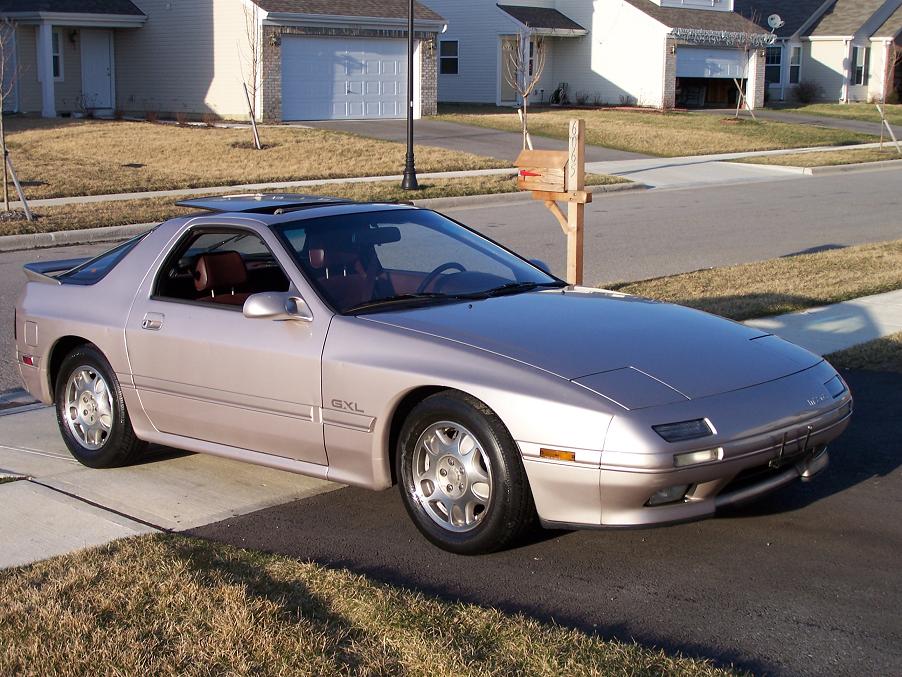

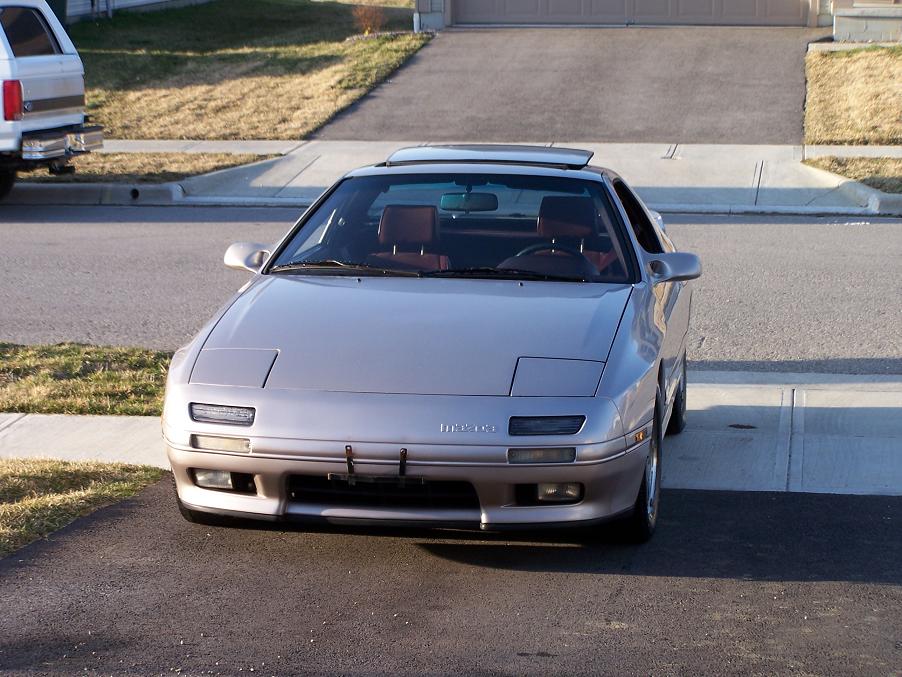

Hi all, noob here. I've really enjoyed searching the posts, I've found a lot of useful information! A week ago I bought a 1990 GXL with a rebuilt 13b (has about 10k on it) new tranny and a HKS exhaust. The car runs really well except at idle. It idles spiratically (after it warms up it will idle at 200 then up to 1 grand) and sounds like it may be missing. Also when revved to about 3 grand it kind of sputters but above that it is smooth. When under power I don't notice any of this and it is pretty strong. I ordered some NGK plugs (7s and 9s) and wires but was wondering if there was anything else I could do to alleviate the problem? Otherwise it's a great car and I am proud to be among fellow RX7 owners!
I did do a search for these symptoms but I didn't have much luck finding anything specific to my problem. Thanks for the help!
I did do a search for these symptoms but I didn't have much luck finding anything specific to my problem. Thanks for the help!
#2
Rotary Enthusiast
Join Date: Feb 2005
Location: Bossier City, LA
Posts: 984
Likes: 0
Received 0 Likes
on
0 Posts
Damn that is clean. Nice job. I love it when the car is left in it's original beauty!
So it's revving up and down AFTER it warms up? Seems Ive seen somethings on the forums lately about this.
Try searching for revving and see what comes up.
So it's revving up and down AFTER it warms up? Seems Ive seen somethings on the forums lately about this.
Try searching for revving and see what comes up.
#3
Rotary Freak
iTrader: (1)
Join Date: Oct 2003
Location: Hampton, Va
Posts: 2,506
Likes: 0
Received 0 Likes
on
0 Posts
Sweet! It looks just like my car, 'cept I'm in the middle of replacing the engine..... I really don't know much about what may be wrong, but the first thing that pops up in my head is check the vac lines..... but you'd probably have bigger problems idling if the a vac line was off....
#4
still love the FC
Join Date: May 2002
Location: Dayton, Ohio
Posts: 360
Likes: 0
Received 0 Likes
on
0 Posts
Here is one of the idle threads in the archive:
https://www.rx7club.com/showthread.p...highlight=idle
Here's another:
http://www.teamfc3s.org/info/articles/idle.html
If you do some searching, you should be able to find out how to set the Throttle Position Sensor (TPS). That could be the problem.
https://www.rx7club.com/showthread.p...highlight=idle
Here's another:
http://www.teamfc3s.org/info/articles/idle.html
If you do some searching, you should be able to find out how to set the Throttle Position Sensor (TPS). That could be the problem.
Trending Topics
#9
Junior Member
Thread Starter
Join Date: Mar 2005
Location: Ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts
OK, I've been reading a lot about the TPS and ways to adjust it and I have all the tools gathered that I will need. I understand that the explanations given are often times geared toward the experienced do-it-yourselfer, but that I am not. My question is, where exactly is the TPS and the wires/leads that I am going to be connecting my meter to? I understand your frustration as I am sure this topic has been driven into the ground, but I am anxious to get this car in top shape.
Thanks again for the help.
Thanks again for the help.
#12
Junior Member
Thread Starter
Join Date: Mar 2005
Location: Ohio
Posts: 25
Likes: 0
Received 0 Likes
on
0 Posts

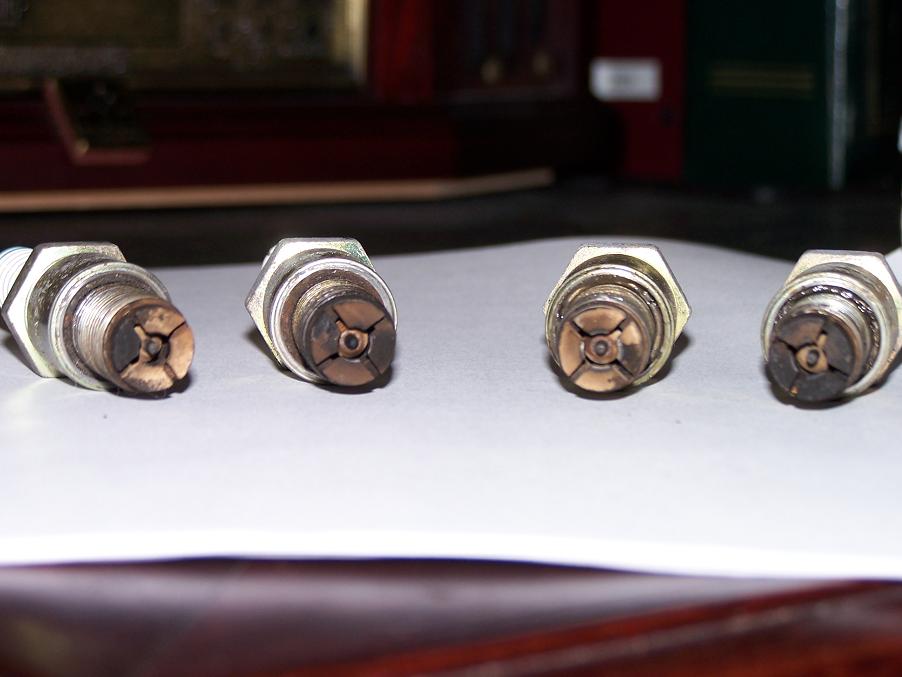

I just finished changing the plugs and wires with a minor improvement as a result. The car stull hunts and pops at idle. I am guessing that I still need to tinker with the TPS if I only knew exactly where to find it. Hopefully someone can point me in the right direction. Remember, I know very little about this car, so go easy. I've included a picture of the old plugs. Thanks again guys.
#14
Rotary Enthusiast
Join Date: Feb 2005
Location: Bossier City, LA
Posts: 984
Likes: 0
Received 0 Likes
on
0 Posts
Have you downloaded the Factory Service Manual available here?
http://www.teamfc3s.org/main/factory...ual/1989_1991/
You should be able to find the TPS location and LOTS more with that manual. It is VERY handy to have around.
http://www.teamfc3s.org/main/factory...ual/1989_1991/
You should be able to find the TPS location and LOTS more with that manual. It is VERY handy to have around.
