swap over to a ribbed pulley set up, its much easier to do if you dont have PS and AC anymore.

I have now have all ribbed belts, but I have manual steering and had to get my AC bracket machined to accept a FD AC compressor.



So, do you have one serpentine belt that does waterpump Alt and A/C?

No airpump and no P/S?

I can't do without A/C and I have emissions testing in Dallas, but I admit the serpentine belt is attractive option.

Post some pics? Thanks Rob.



Try a local alternator repair shop. I was able to get both the proper size pulley and connector from my local shop, Gen-Star Electric. If your concerned about the connector wiring they should be able to help you with that too. Just be sure to use 4ga on your wiring coming off the 100A fuse in the engine bay. One side goes to the alt and the other goes to the starter on my setup.



I have one ribbed belt that runs alt/waterpump, and another that runs AC

I have no PS or air pump.
I dont have a picture of the final AC set up yet because the bracket is getting re-powdercoated after the machinist finished modifying it to mount a FD compressor to it. Im using a PS delete bracket from a S4 car, and finally a FD tensioner.

If you are not using AC, PS, or air pump there are couple of people selling aftermarket ribbed pulley set ups. I got these pulleys from a cosmo engine I sold someone, but I ended up only using the crank and waterpump pulleys, the alternator came with its ribbed pulley already.

I have this picture, but it shows the S4 v-belt AC set up still, we are finishing the FD upgrade this week, should have pictures later in the week.

I can now ditch the 2 V-belt pulleys from the crank, a cosmo uses v-belt AC so thats why I still had them on there, originally thought I was going to keep v-belt S4 AC set up.



I'm curious if the Taurus alt would fit under an OEM TMIC? I've got a vert with a JDM swapped into it. I've got an FD alt that barely squeezes under the TMIC.



Probably not. I have an 88 TII out back under a cover, but I really haven't looked at that aspect. If the FD is tight, the Taurus alt probably isn't going to fit with my mounting method.

Hmmm...my S5 alternator will retro onto the S4 TII (w/slight rewire). Free upgrade!



From the pics you posted, that's what I was expecting you to say...unfortunately. My best option may be an FD alt that's been upgraded for high output.



Guess what I found at summitracing.com? Dorman OEM Spec fans.

Would any of you guys feel better if you paid Summitt bucks for the exact same fan sold on Ebay?

http://cgi.ebay.com/ebaymotors/90-91...spagenameZWDVW


http://store.summitracing.com/partde...5&autoview=sku

Interesting that Summit Racing has picked up the entire line of Dorman OEM replacement fans-and they are charging premium prices for these fans.

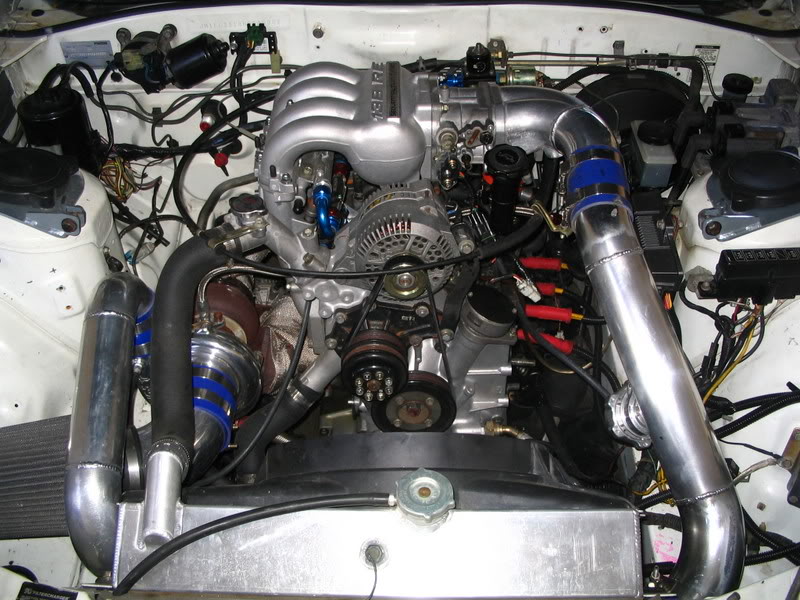

got the AC back on, now using a FD AC compressor and belt tensioner, FD alternator, and cosmo pulleys- but it was by no means a bolt on modification. AC bracket is from a power steering delete FC

Still have to get the AC lines made, I probably wont bother for now and do it over the winter months.



[QUOTE=Rob XX 7;8629014]got the AC back on, now using a FD AC compressor and belt tensioner, FD alternator, and cosmo pulleys- but it was by no means a bolt on modification. AC bracket is from a power steering delete FC

Still have to get the AC lines made, I probably wont bother for now and do it over the winter months.

Very nice. I am impressed.


Since the tensioner is from a PS delete kit, could you have actually used a power steering pump in that spot?



the tensioner is from a FD, the bracket is from a TII with no PS

I did not try a PS/AC bracket from a FD because I am not using PS. With a good manual rack you dont need PS with these cars, they feel great witout PS.

If I wanted PS and ribbed belts I would say to give a FD bracket a shot, you may have to modify it to bolt up and have the belts line up.

On my bracket 2 bolts lined up with the AC compressor, and 2 did not. So extra material was welded where needed and then drilled and tapped so that the AC compressor can bolt up.



****! I am seeing 10.8 volts at idle(1000rpm)!! New battery and all..

I have a S4 re-man and have been studying this thread and others BUT still am up in the air to what to purchase.



when my "advertised as 3600CFM fan" kicks on, with the headlights on, stereo on- im seeing still seeing 14volts



The second main crank pulley, is that off the FD or are those two cosmo main pullies? cheers



everything is either cosmo or FD

main and waterpump- cosmo

alternator, ac and its tensioner- FD



Very nice,clean.... looks OEM. cheers



So ted did you try the maxima alternator yet? I have not looked but would I have to make a bracket?



hi guys...

dont know if this has been posted yet but -

i got onto an awesome site on the net that do custom alternators as well.
i asked them about my car. i've got a 1990 Mazda Luce with factory 13bt configuration.
i used the same version rx7 alt description that i knew is the same as my Luce alt.
cause sure as **** as soon as i said Luce i would have got a HUH?? lol

they are here - http://www.qualitypowerauto.com/

question i asked -

answer -


so there is another option for you you guys. you just need to stipulate what model your car is. for the 1989 boys where the change in wiring configuration happened to the rx7 alternator you will need to state its early or late 1989 model

hope this helps



Just wanted to post some pictures



what exactely are we looking at?

Make model it came from or company bought from?



I checked the other night how I was doing: headlights on, stereo with subwoofer and 3 channel amp, stand alone, supra TT fuel pump, few extra gauges and electric fan running at a red light idling im at 14.3 volts.

thats with a new FD alternator.

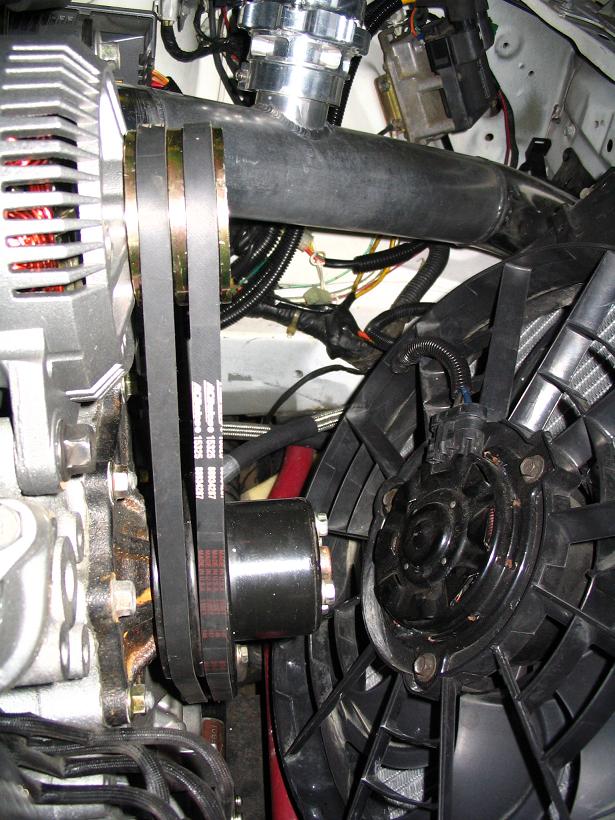

Will those pulleys line up? Pic makes it look like they won't.

That must be the 3g (ford tempo) alternator.

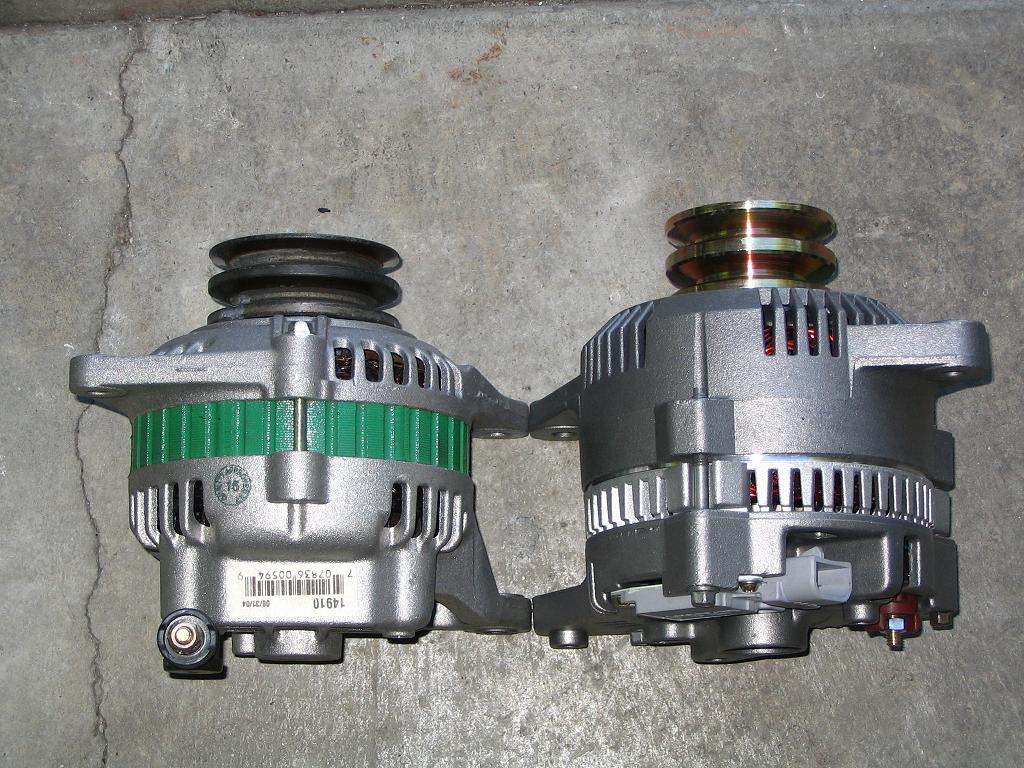

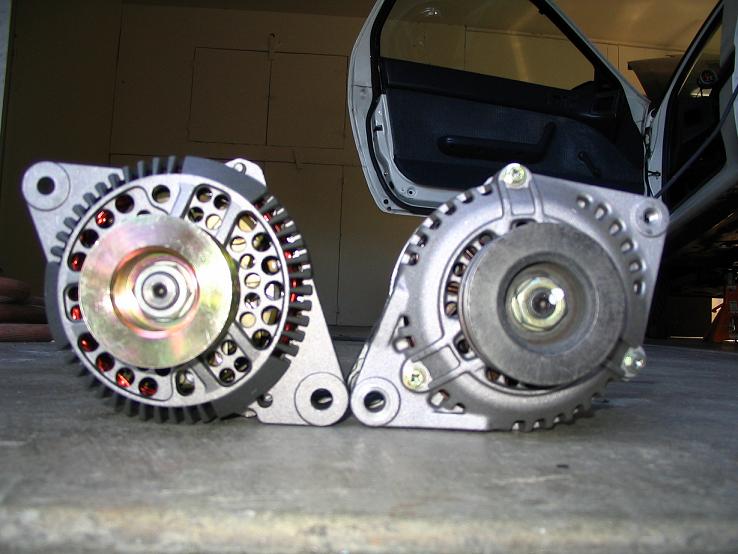

sorry, I got called into a meeting earlier so i couldn't finish my post... anyhow, those pictures are of a stock S4 alt Vs. the 3G alternator from the Ford Tempo. It is the same alternator in the picture posted below. The dual sheave pulley does not line up and requires the modification of the waterpump housing boss to fit... basically you have to machine off about 3/8th +/- of an inch of material in order for it to line up... however, if you opt for the 13b-re multi groove pulley's instead it should line up with no modifications to the waterpump housing



I think the key to this is that the alternator is new. It hasn't been abused or overloaded yet. Probably wouldn't have the same success with a used/abused alt off the FD thread-but then, who knows.

I am extremely pleased with the performance of my Taurus alternator to date. Like your setup, everything works and the volts don't vary. Just for kicks, I should hook up my meter through the cig lighter just to verify the actual volts, instead of looking at the 19 year old volt meter on the dash. I assume you got your voltage from the datalogger of your Haltech(?)?



I get it from the wolf dash controller, but my stock 20 year old gauge reads the same, just not with a digital display.

The alternator came tested over 100amps, I forget what it was now- getting old sucks, I do know it was over 110 amps, seem to be thinking like 120?

I also have the battery in the trunk with 0 gauge to the dist. box under the hood.
