Actually its aluminum...I have it and I reccomend it. It may pose some problems when routing my front mount, but that doesn't look like a problem you'll be running into



Whens The roll cage going in?



Ahh, lol I just read that. Thank you for the correction



getting it back in is also a one man job when you have a lift like that, just a juggling act here and there.



Didn't see a lift.
I never had a lift
But that's fine; between bench pressing FC rear end parts and driving my friend's non-functioning power steering (not to be confused with de-powered [easy] or manual [easier]) car while mine was down this spring I got jacked! lol



Just a few small updates, nothing major.

I have given the HKS Intercooler a good clean, degrease and polish and it has come up pretty good compared to how it was. I think it should look nice atop of the engine with the new silicone hoses I have for it.

I have also got the Series 5 LSD out and sitting next to the subframe and will give them both a really good wash before I start to work on the suspension and diff.

I have ordered...

MMR Rear Camber Adjusters
X-Treme Rotaries DTSS Rear Steer Eliminator Bushes
Rear Diff Mounts

The diff mounts arrived yesterday and the other parts will be here next week.

So if all goes well the car will be back on the road by the end of August.

Here are some various photos...

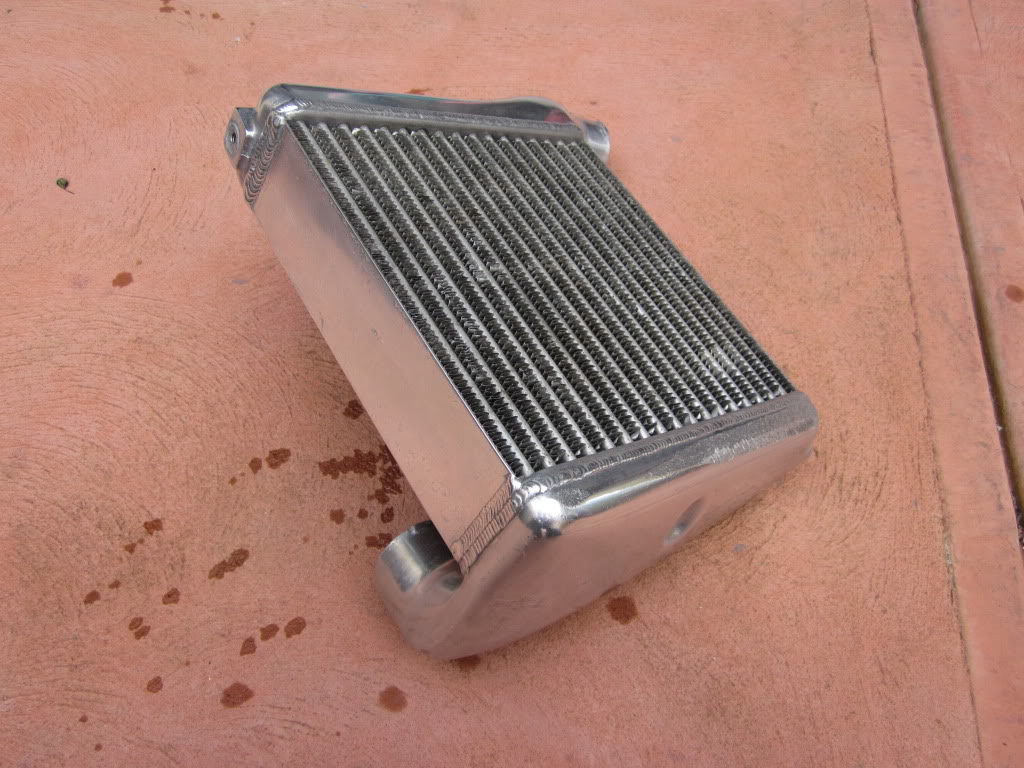

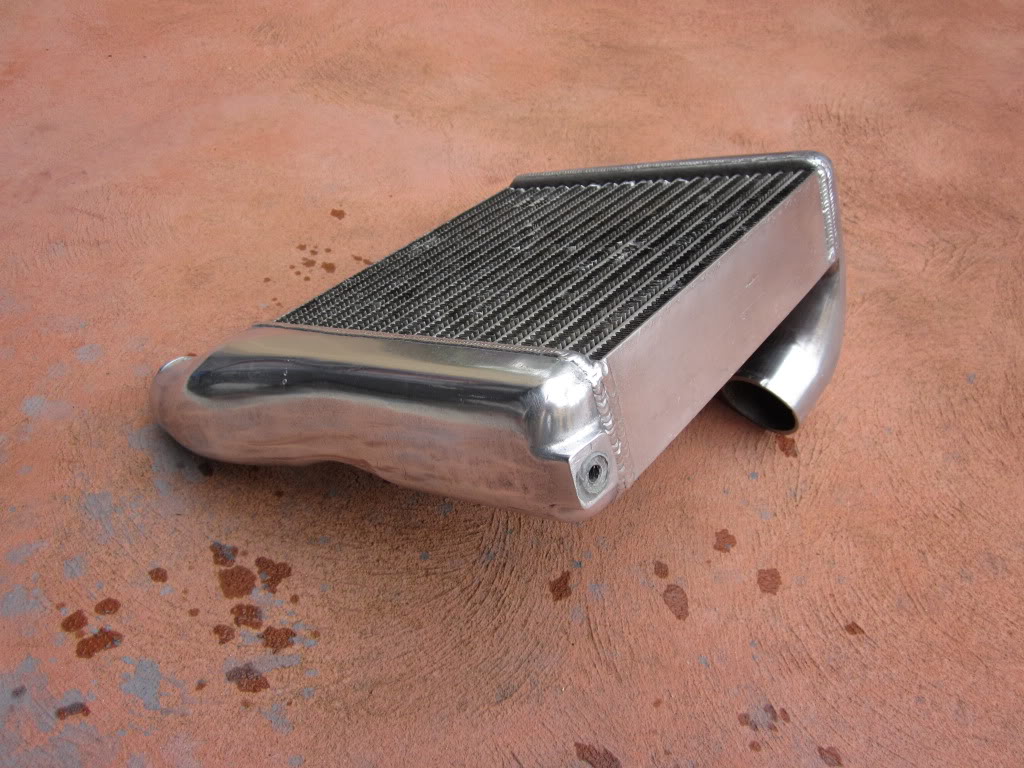

CLEANED UP INTERCOOLER

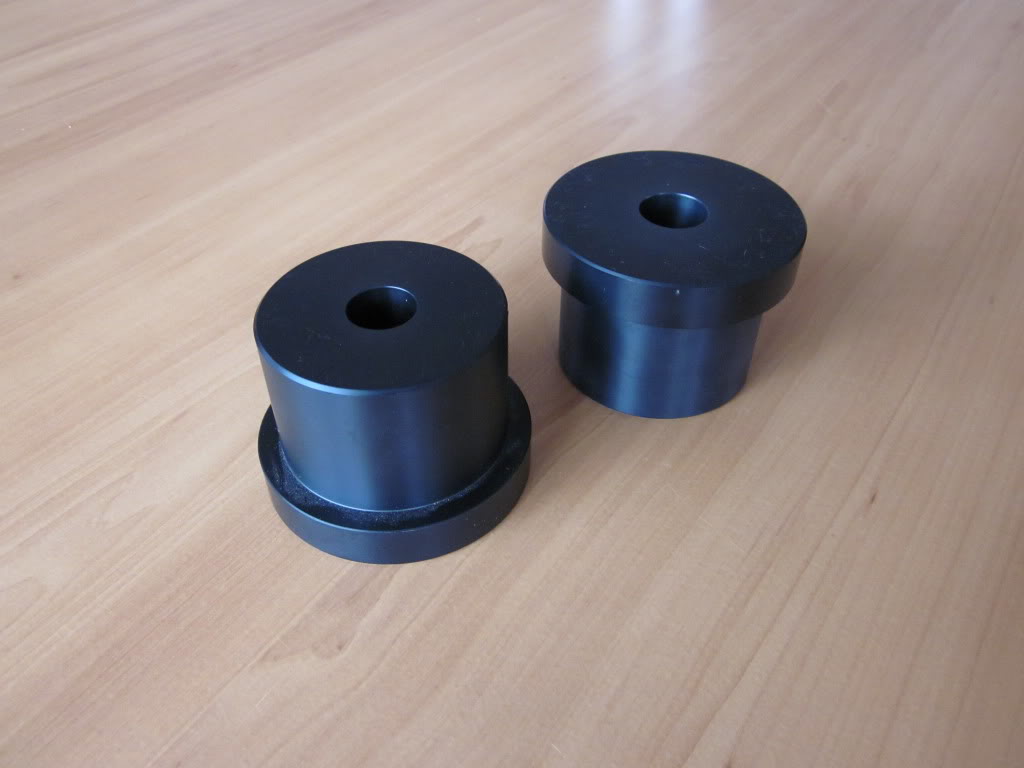

SOLID DIFF MOUNTS

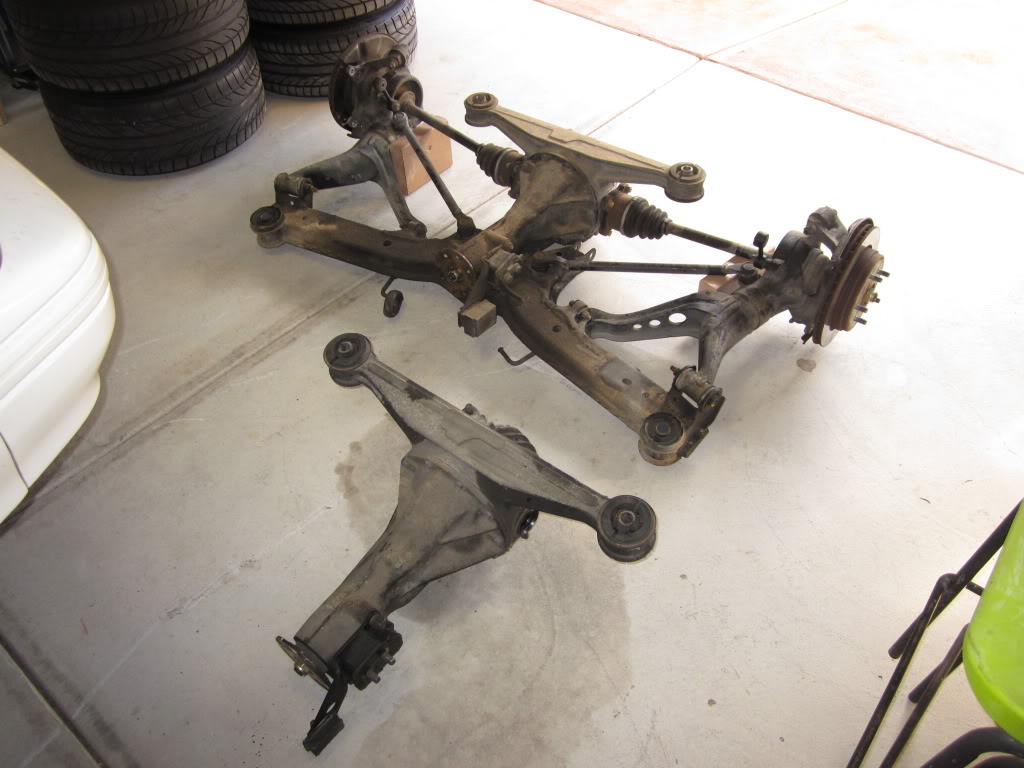

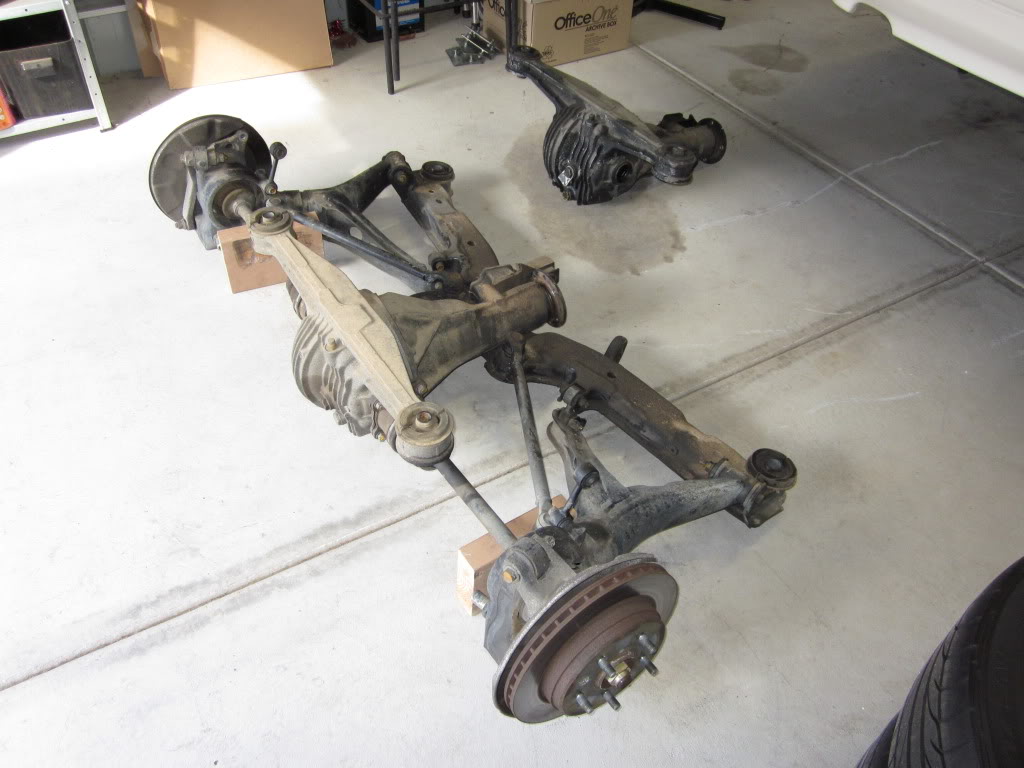

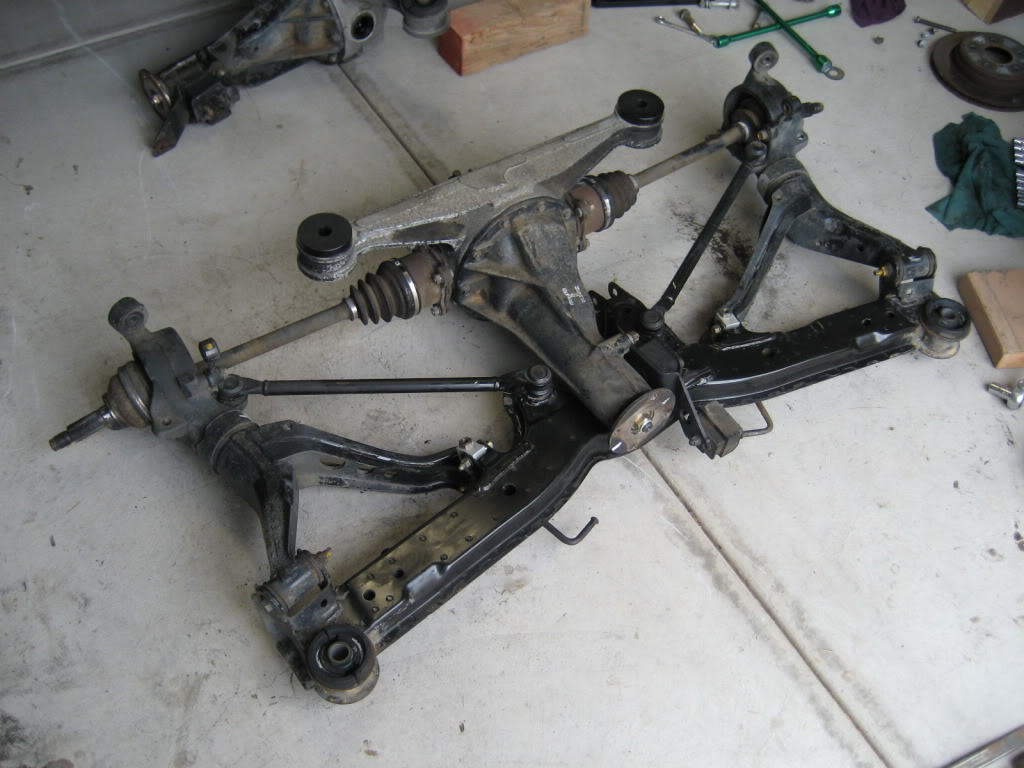

SERIES 5 LSD AND SERIES 4 SUBFRAME / DIFF / SUSPENSION WAITING FOR A WASH



If you want to go hardcore perfect, you can sand out those scratches.. I had got a few on mine and took em out.



nice



I came across this thread whilst Googling for info on RX7 short shifters.

I signed up to just say I really like what you've done here. It's a nice, clean, subtle, sensible car and is looking GREAT with those wheels. The amount of work you've done yourself on your garage floor is pretty inspirational for me working on my own Aus-delivered S4 Turbo.

Keep up the awesome work



I thought about it, but it would stand out to much in my engine bay as everything else in there is plain jane. As it is now, it will look neat and clean, which will match the rest of the bay.


Unfortunately the 2nd cage I bought also did not fit!! Killer. So I am now just going to get a custom weld in cage made in the next month or two.


Much appreciated. I know how much I get motivated and inspired by reading other peoples build threads, so it is good that mine is having the same affect.



Amazing FC can i have it now haha jk jk but amazing car keep up the good work



I just polished mine yesterday but than i washed the car after = water spots lol

yours seems to be missing the badge
http://i38.tinypic.com/x3brpc.jpg



^Mother's aluminum polish & microfiber cloth will make quick work of those water spots.



yeha thats what i have lmao



Does anyone use the PlastX on their tail lights??



don't most people get the s4 diff instead of the s5 because it is more durable?



The S4 is a mechanical LSD , so you can always purchase parts for it and rebuild it, or do some custom stuff to it like shim it for extra lock etc. S5 is vicious and those are not really rebuildable or anything.



I scored the Series 5 LSD for free off a friend, so for now, it will be far better than the auto single spinner I have in the car.

If it does give up the ghost I will replace the centre with a Cusco, KAAZ or Mazdaspeed item.



I have not had any updates in a while, but today I spent a lot of time out in the garage.

To start with I removed the old diff mounts from the S5 LSD I am installing and then fitted the new Delrin mounts I had ready to go in.

I also removed the old S4 auto single spinner diff from the subframe and removed the axles and half shafts ready to install on the S5 LSD.

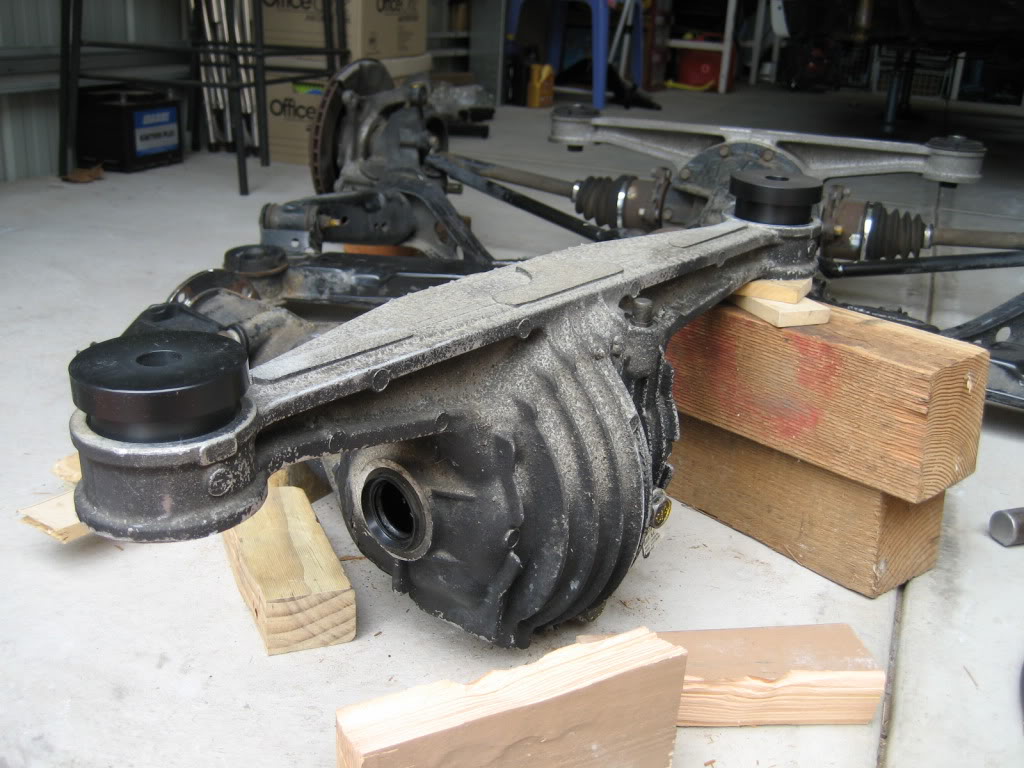

SOLID DIFF MOUNTS INSTALL

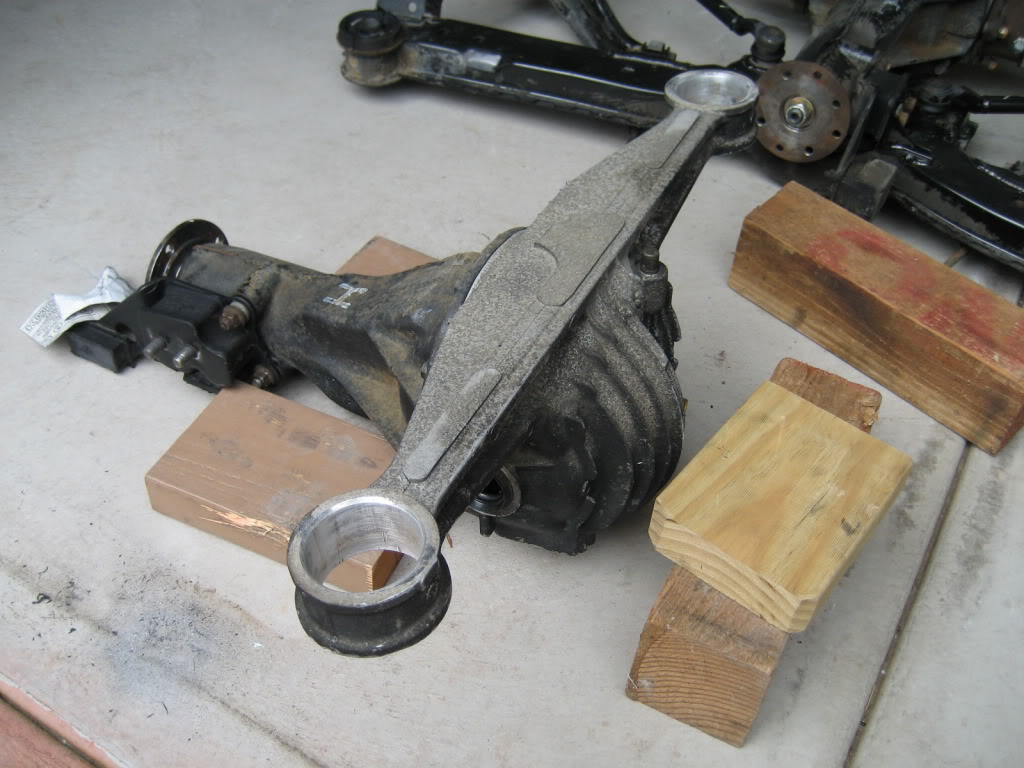

GETTING READY TO INSTALL


OLD MOUNTS OUT



NEW MOUNTS HALF WAY IN

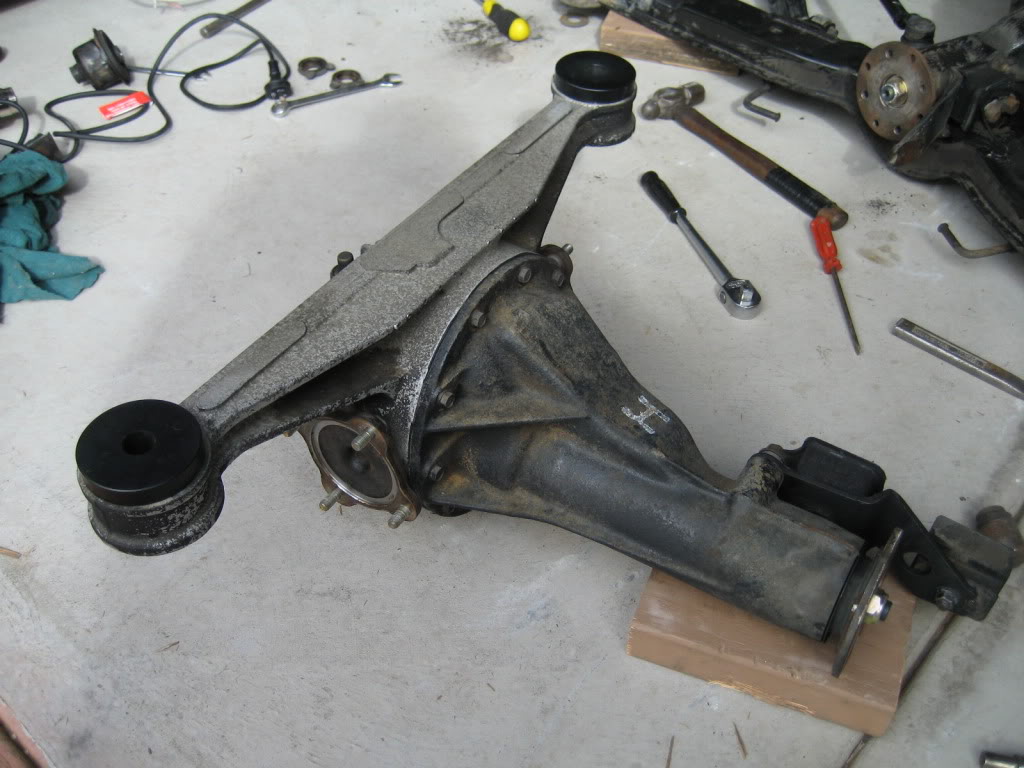

ALL DONE
In the below picture you will notice I have removed the half shafts from the old auto single spinner diff and installed into the S5 LSD ready to bolt the axles back onto.



I then worked on removing the axle carriers so I could remove the old DTSS bushes and install the Xtreme Rotaries DTSS Eliminator bushes.

This job was also a lot easier than I thought, but I have hit a snag half way through. I took the carriers to the local suspension shop to have them press the old ones out and press the new ones in, but the guys farked one of the new bushes whilst pressing in. So now I have to wait for them to get a replacement before I can re-install.

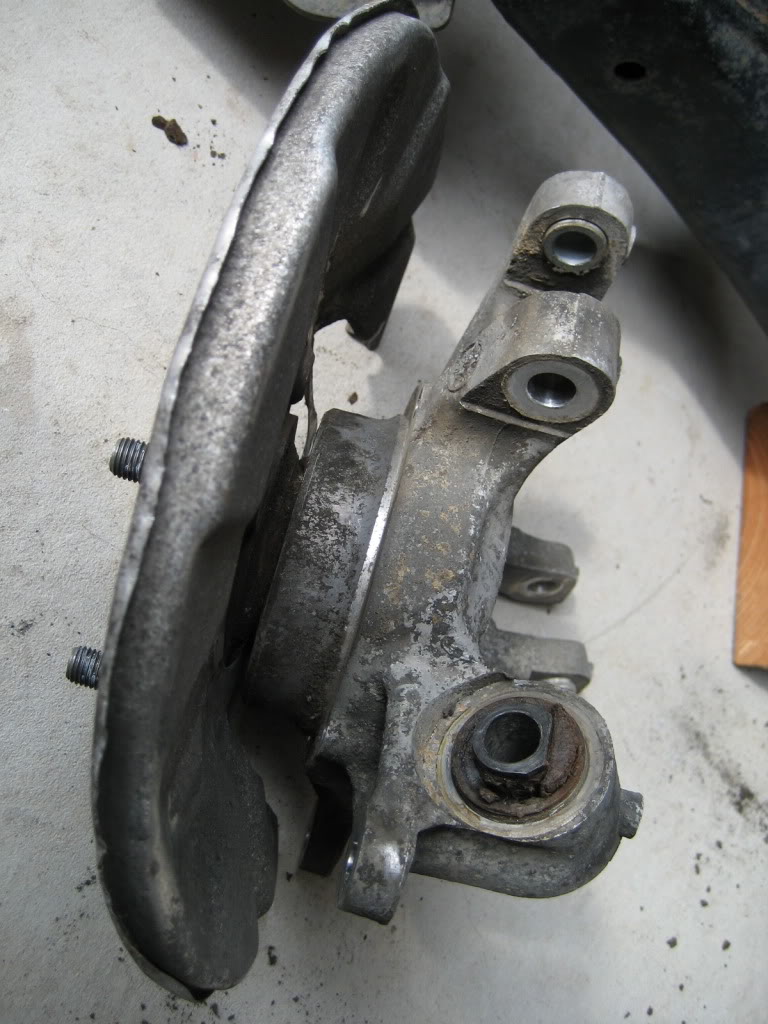

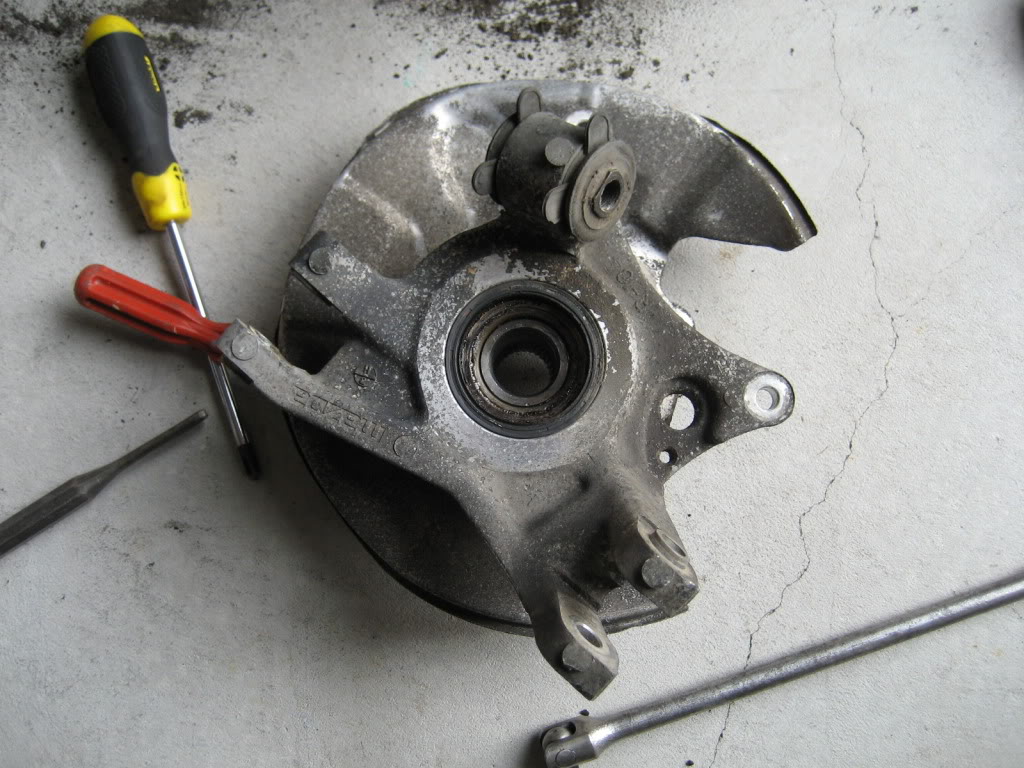

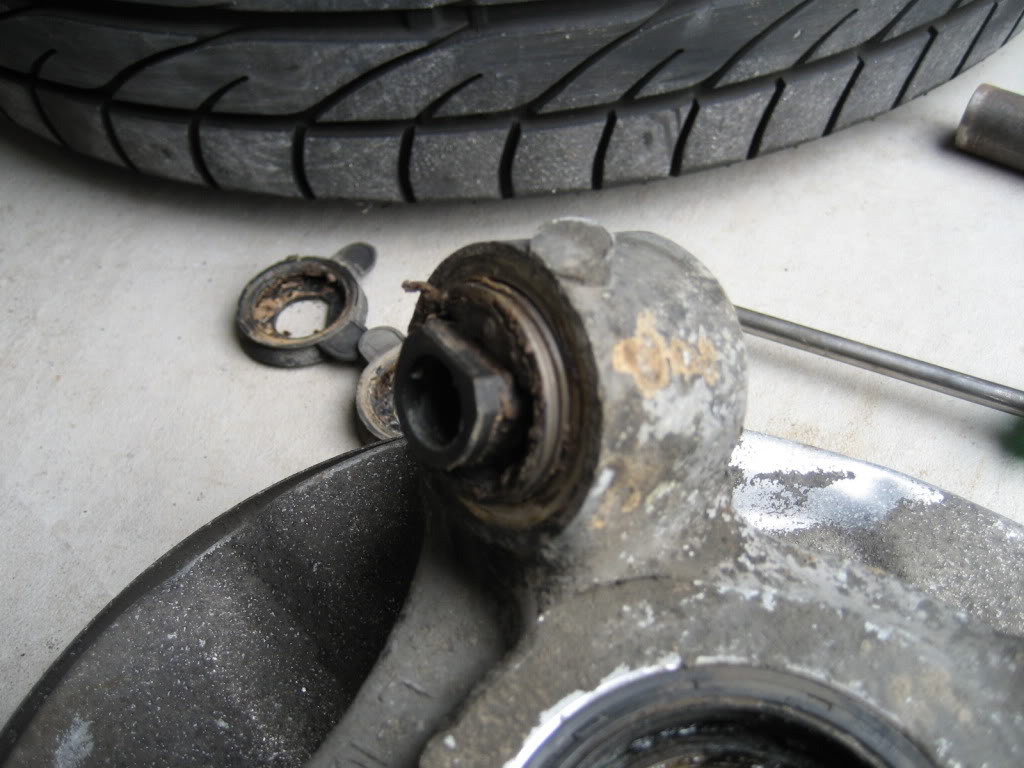

You will notice in the below pictures the factory DTSS bushes are not in good shape, so I am happy to be replacing them anyway. The car will hold rear toe settings much better now.

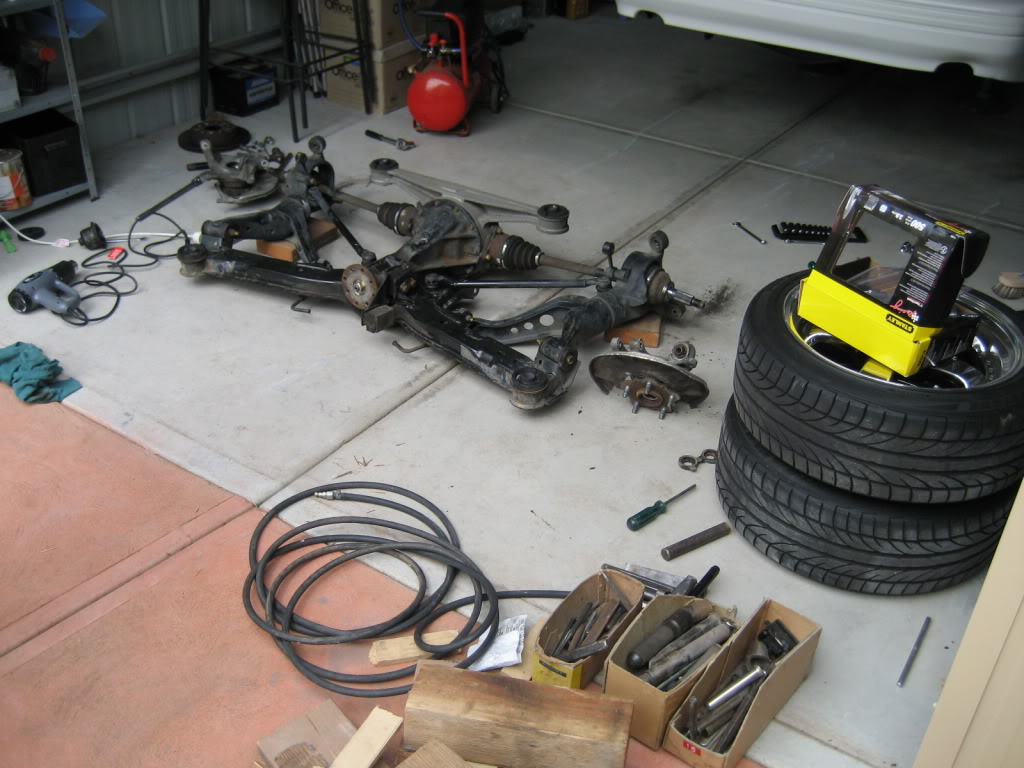

AXLE CARRIER / HUB REMOVAL

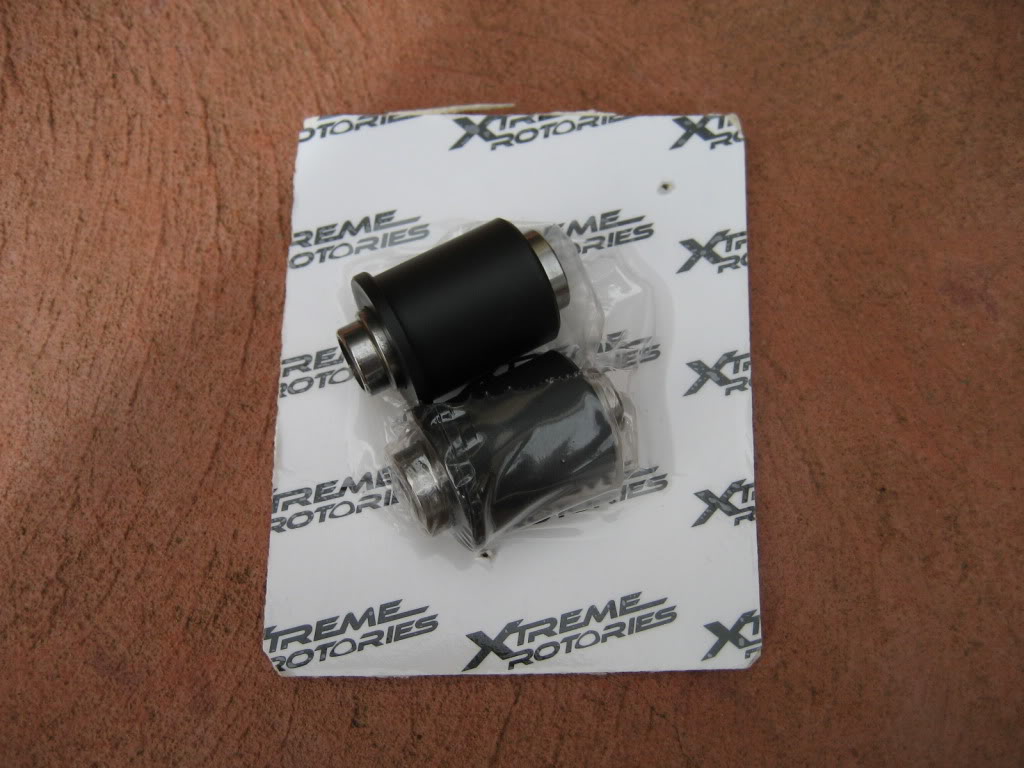

XTREME ROTARIES REAR STEER / DTSS ELIMINATORS

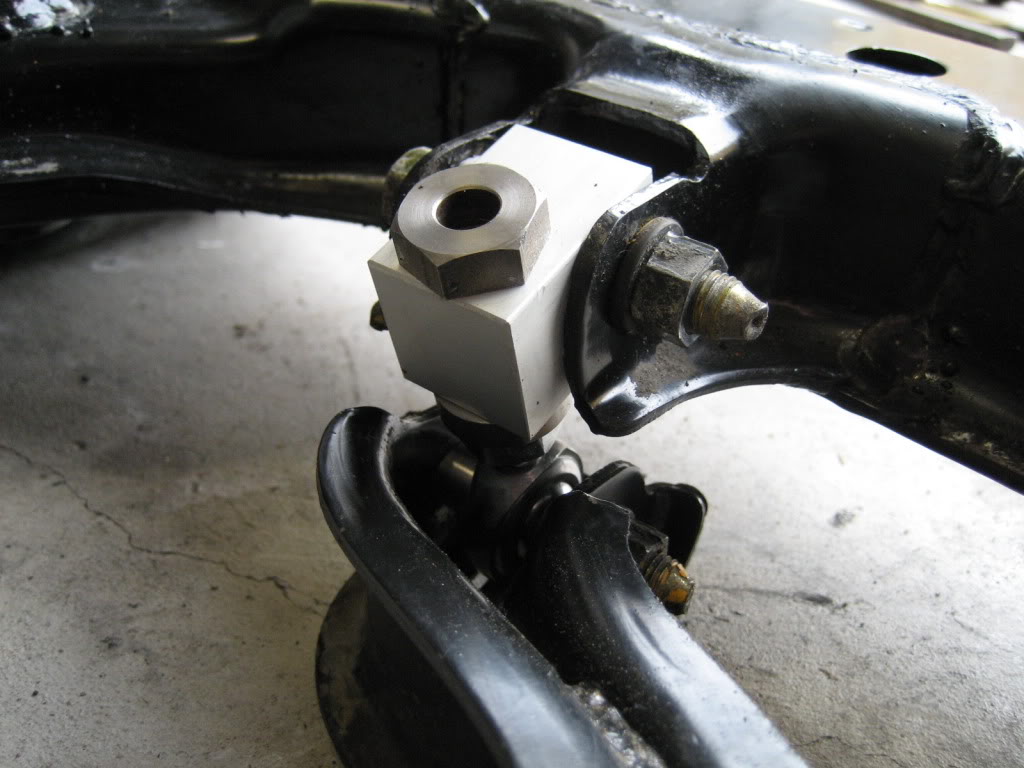

Then I installed the MMR Rear Camber Adjusters to allow me to fine tune the rear camber side by side vs the centre camber bar I have that does both sides together.

These are a trick piece of gear and will be great for fine tuning the rear set up.

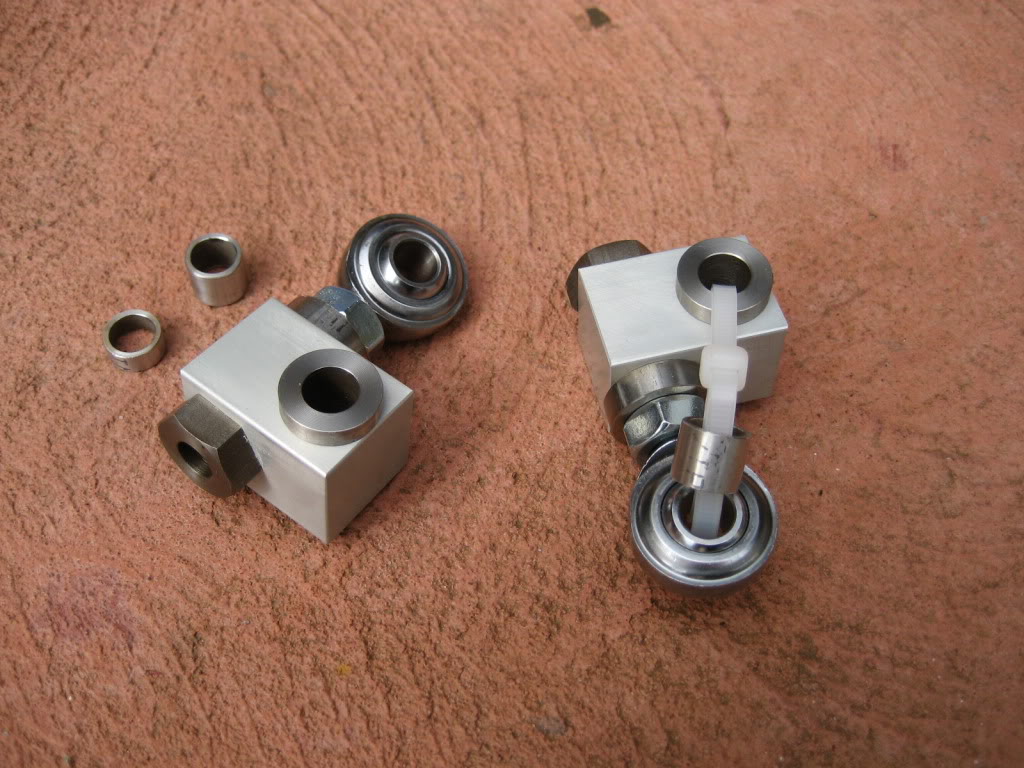

MMR CAMBER LINKS

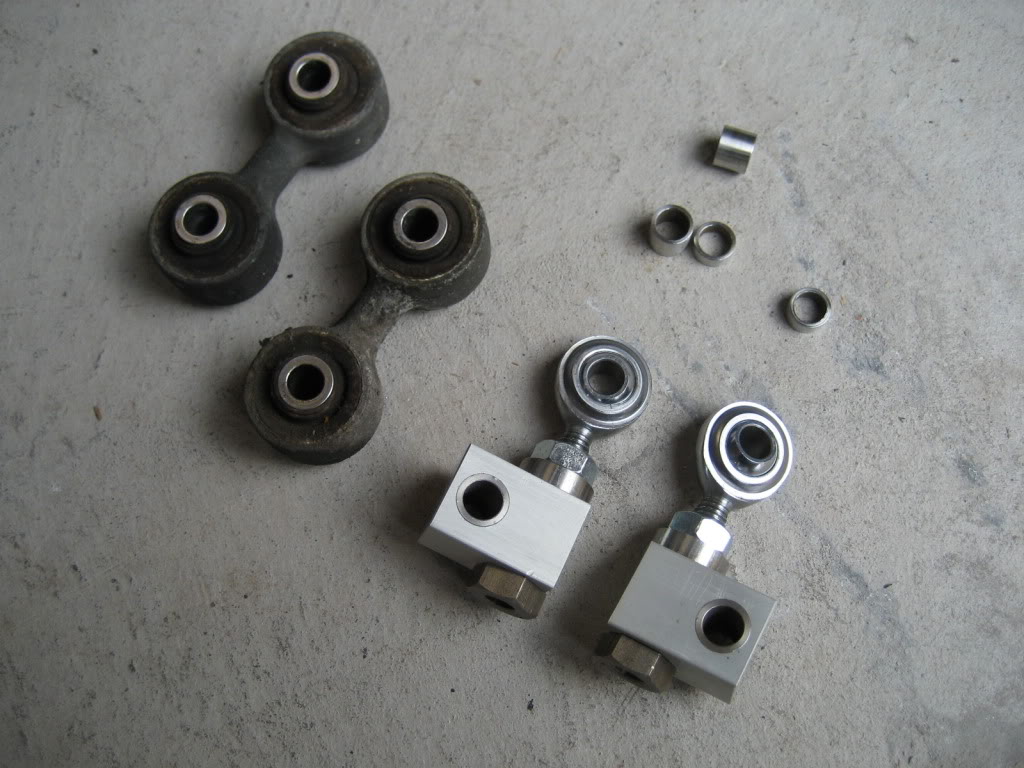

MMR REAR CAMBER ADJUSTERS and FACTORY CAMBER LINKS

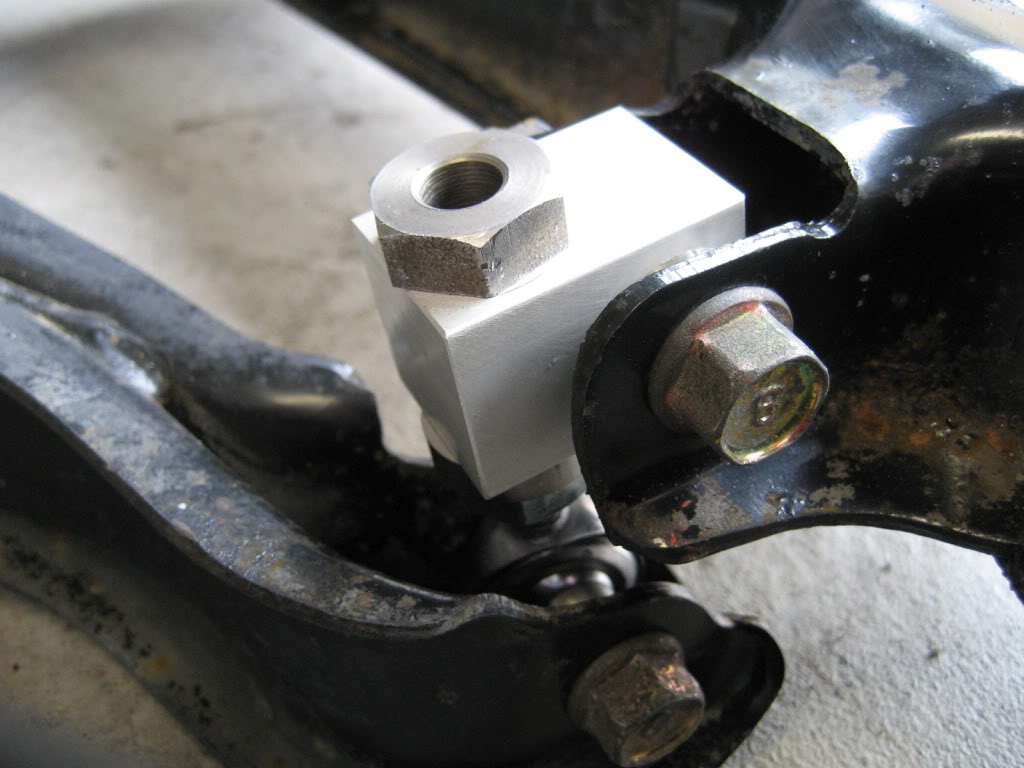

ALL INSTALLED



So as it sits now, the rear end assembly is looking pretty good and is almost finished.

I just need to get the axle carriers back with the DTSS eliminators installed and fit those back on and then I can assemble the entire rear end again.

So the parts I have fitted are...

- DTSS Rear Steer Eliminator Bushes
- Solid Diff Mounts
- Individual Adjustable Camber Links
- S5 LSD

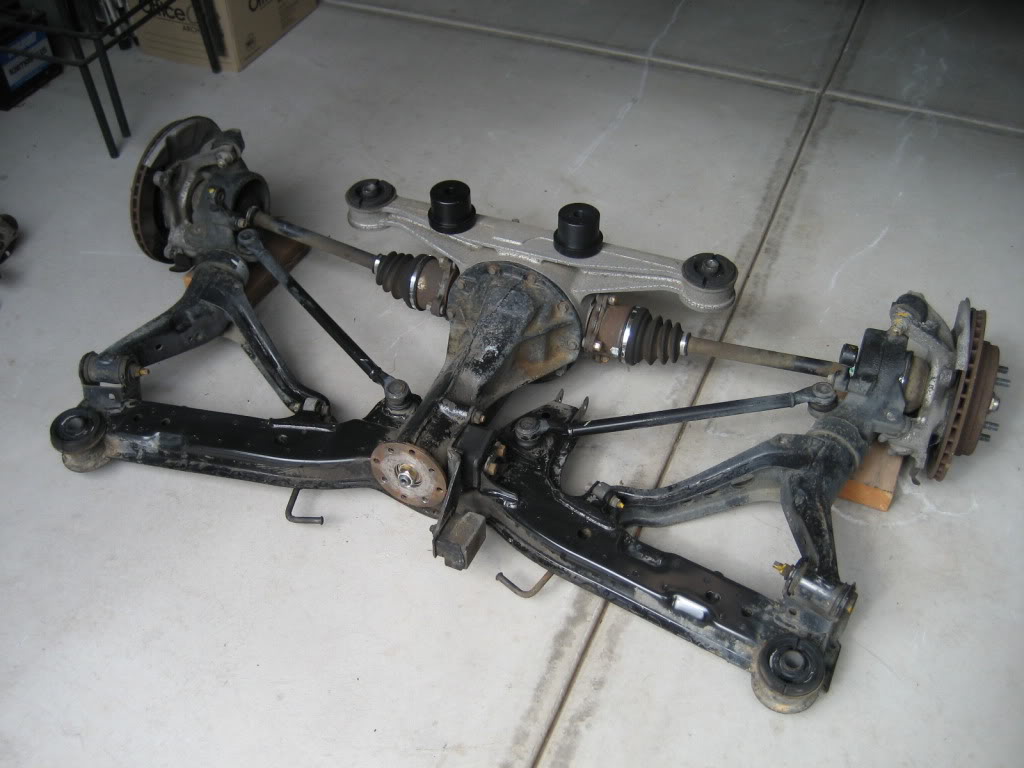

LSD INSTALLED IN SUBFRAME, CAMBER LINKS IN AND DIFF MOUNTS IN

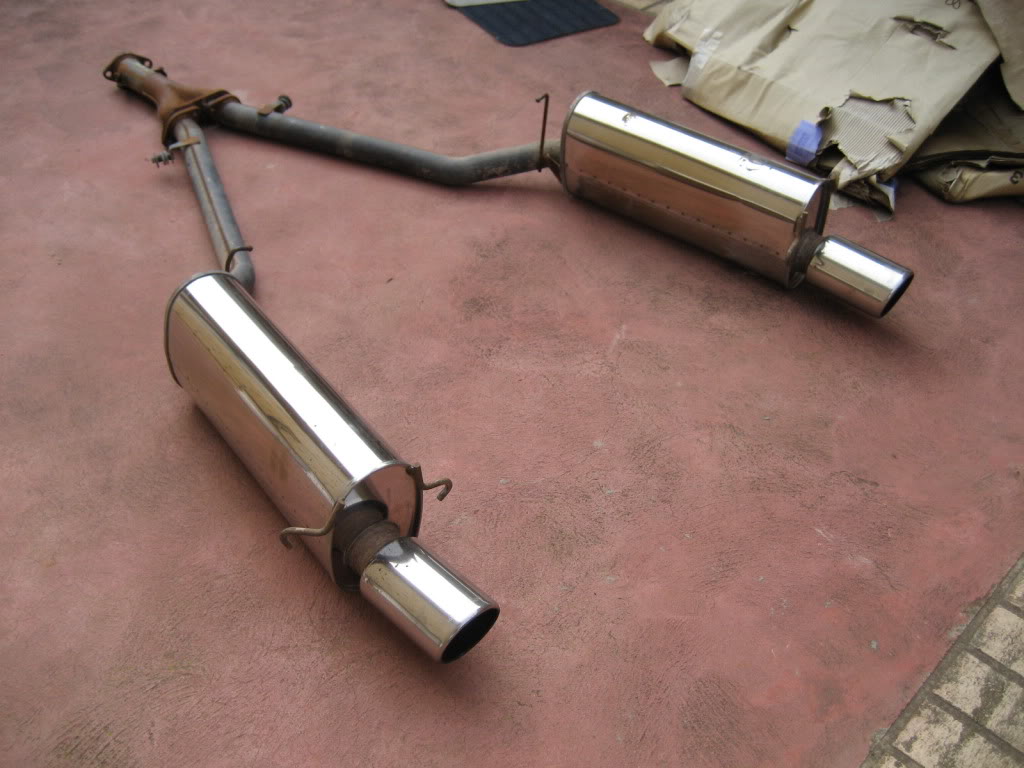

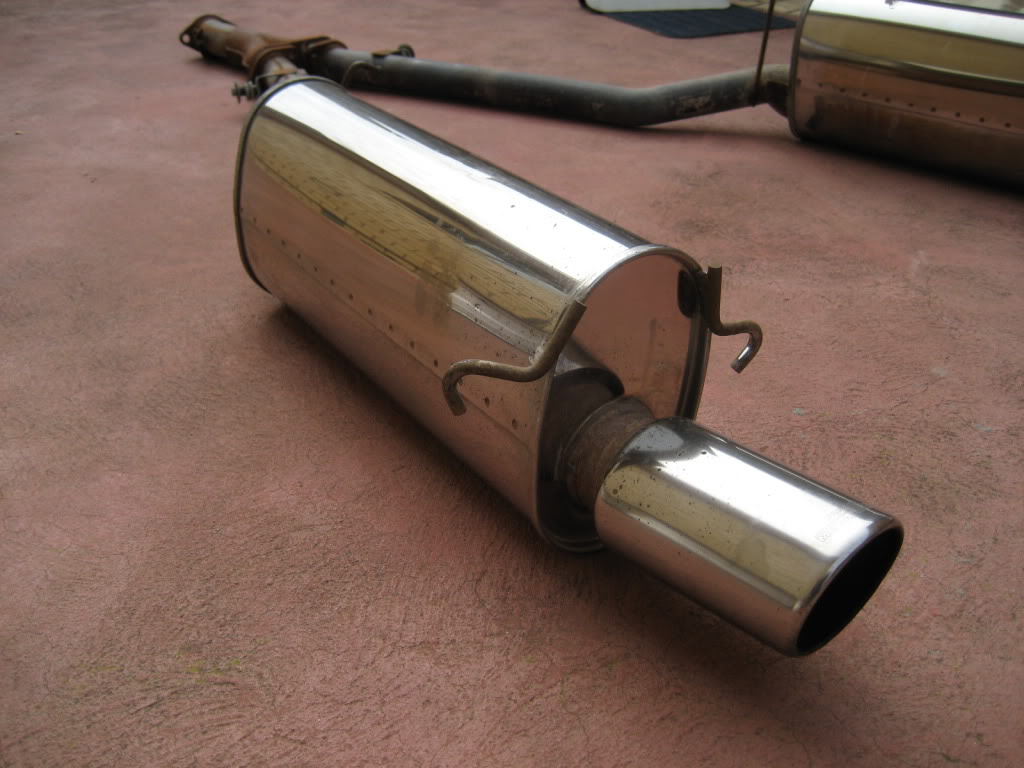

I have also picked up my Apexi Megaphone Dual Cat Back Exhaust which I am eagerly awaiting on installing once the rear end is all back togehter.

APEXI MEGAPHONE DUAL EXHAUST

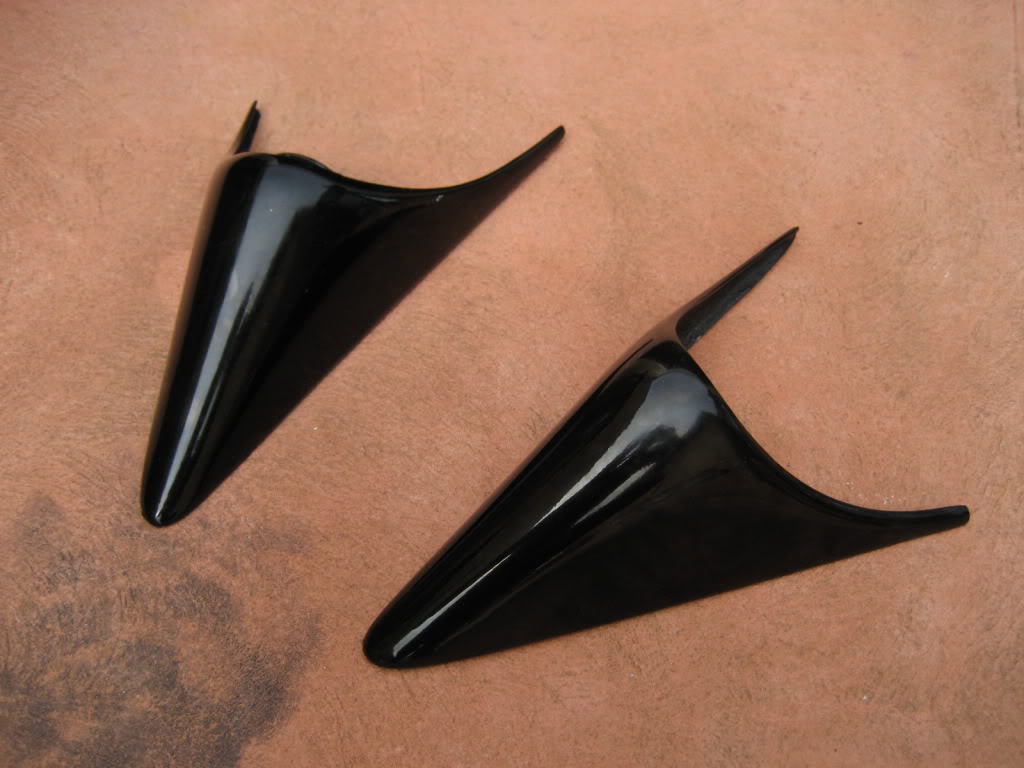

ave also bought some RE Amemyia mirrors and will paint this white and install in the coming weeks.

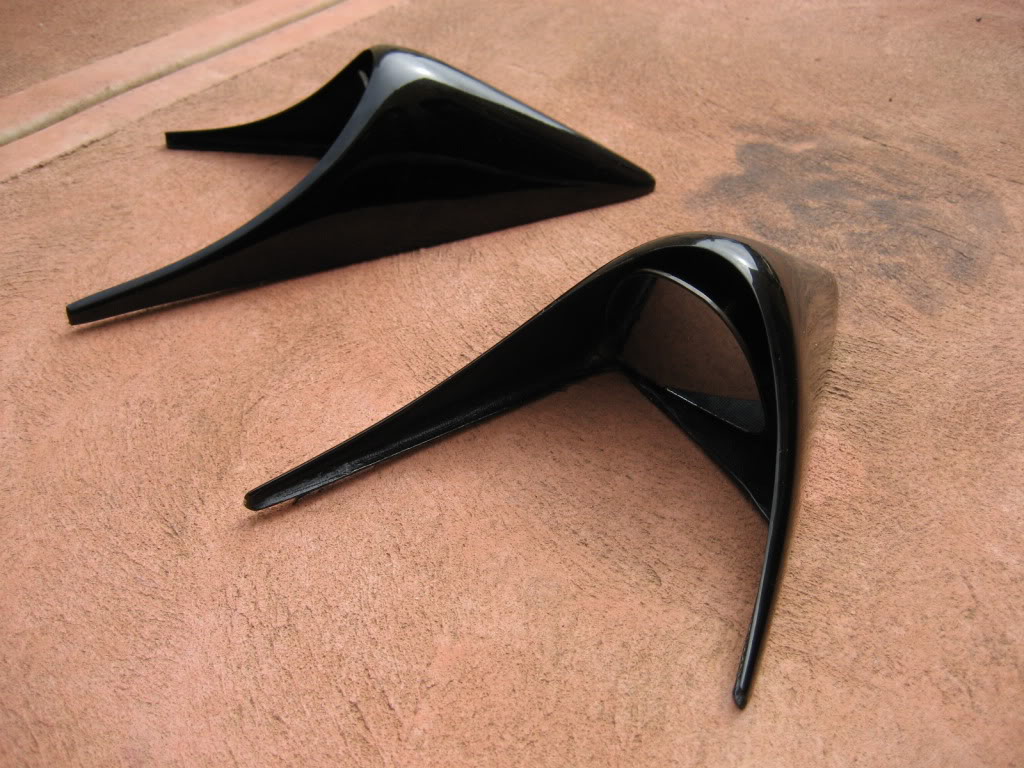

RE AMEMYIA MIRRORS



damn that apexi exhaust is baller yo
