freq

iTrader: (6)

My temps during hot weather are a bit higher than I'd like. It got up to 212 degrees the other day. I've got a TII with a hybrid turbo, Villager electric fan, undertray FMIC and Koyo rad.
I'm thinking that a vented hood may help airflow. Something similar to this Shine item ..

Do you think this will help?

Skeese

iTrader: (11)

It may help from an idle and cooling off perspective, but I believe that if you are running 210+ while moving down the road then you need to look into adding some ducting or increasing the size of your radiator. When were you hitting those temps?

ablesnead

iTrader: (1)

The exit side of the radiator is very important to cooling efficency , the vent allows a lower pressure on the exit side , and will improve airflow, and thus cooling .....

freq

iTrader: (6)

I hit those temps on an 87 degree day after boosting.

freq

iTrader: (6)

Are there any hoods/vendors that you can recommend? Since summer hasn't even started yet, I want to nip this in the bud.

jetlude

iTrader: (9)

A vented hood will def help with reducing temps.

BenRX

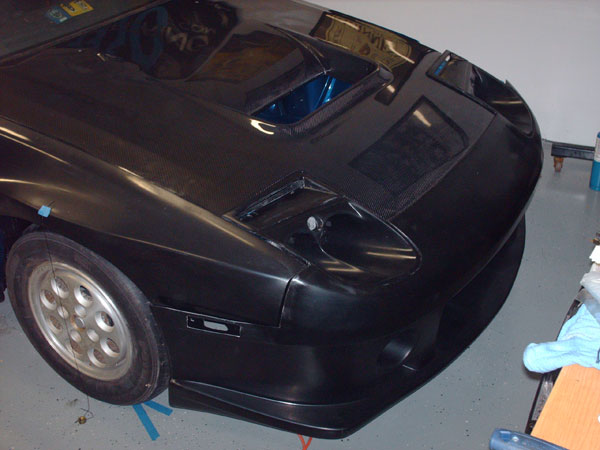

You could in theory also just run hood spacers too if you wanted a cheap fix.


(pic from google search 'rx7 fc hood spacer')

I'm not a huge fan of the look, but it serves a purpose.

yurcivicsux

i found hood spacers really only helped drop an average of 5 degrees C. in my situation i didn't need the -5 degrees that bad so i removed them. my turbo RX8 project

Spirit-RE

iTrader: (25)

Man, I thought hood spacers were debunked a decade ago. Might help you in city driving, but backfeeds pressure from behind when at speed.

A vented hood like what you posted definitely will help. Do you have everything ducted well right now? Ducting makes a pretty big difference if you have a FMIC.

ablesnead

iTrader: (1)

you have to be careful about the hood vent placement...it is further forward than most thnk...the factory turbo scoop is placed to far back for example...i use a shine , no before and after data though , although from a airflow chart I found online , it seems in about the right place...

freq

iTrader: (6)

Anywhere other than Shine sells the Pan Speed type vented hood? Shine is not selling those right now.
