Vented or Non-Vented Oil Catch Can?

I currently have a small 1 pint Jazz Catch Can with a K&N breather filter on top. Lately, its been filling up pretty quickly with watery fluids and am moving up to a larger 1 Quart size. The larger cans don't have breathers on them and I'm wondering if its even necessary.

Can someone please enlighten me on why a breather would be needed on an oil catch can?

Would one w/o a breather NEED to be routed back to the UIM?

Thanks.

This is for an FD running twins.
gracer7-rx7 is offline
Old 02-11-08, 01:16 PM
  #2
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
You'll want to release some of the crankcase pressure somehow. So you can either keep the line going to the UIM, or you can vent the catch tank (whether that's with a filter or plumbing it back to the primary intake elbow). I haven't installed mine, but I'll be running the outlet back to the primary intake elbow.
Mahjik is offline
Old 02-11-08, 01:35 PM
  #3
www.lms-efi.com
iTrader: (27)

C. Ludwig's Avatar

Join Date: Mar 2001
Location: Floyds Knobs. IN
Posts: 5,106
Received 30 Likes on 23 Posts
Originally Posted by Mahjik View Post
You'll want to release some of the crankcase pressure somehow. So you can either keep the line going to the UIM, or you can vent the catch tank (whether that's with a filter or plumbing it back to the primary intake elbow). I haven't installed mine, but I'll be running the outlet back to the primary intake elbow.

+1
C. Ludwig is offline
Old 02-11-08, 01:51 PM
  #4
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
I've got mine plumbed to the primary turbo so that it's constantly under suction. I'm pretty sure if you ru it just to the UIM, the boost with push back the wrong way.

My can is big enough, and the two inlets are positioned such that that no oil actually get's sucked into the turbo.
ptrhahn is offline
Old 02-11-08, 01:58 PM
  #5
needs more track time
Thread Starter
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Hmmm...

I just have a tube coming from the filler neck to the catch can. It's basically the old Crispy style setup that has been on the car since the previous owner. The UIM nipple is capped off right now.



Another question:

Which larger sized catch can are you guys using?

I'm looking around and don't see many options that are easy to install in my cramped engine bay running the twins and all the accessories.

Thanks.

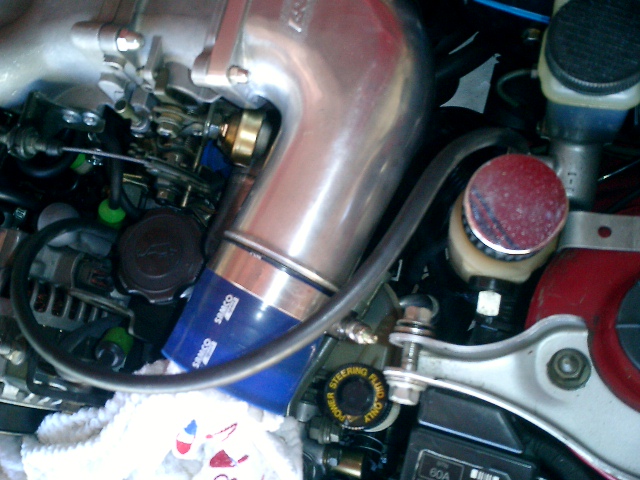

Attached Thumbnails Vented or Non-Vented Oil Catch Can?-cimg0062.jpg
gracer7-rx7 is offline
Old 02-11-08, 02:11 PM
  #6
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by ptrhahn View Post
I've got mine plumbed to the primary turbo so that it's constantly under suction. I'm pretty sure if you ru it just to the UIM, the boost with push back the wrong way.
Yes. I was also meaning to retain the stock plastic valve to the oil filter neck.

Originally Posted by gracer7-rx7 View Post
Which larger sized catch can are you guys using?
I will be using the Greddy catch can (when I get around to installing it).

http://mahjik.homestead.com/files/FD...eddy_parts.jpg
Mahjik is offline
Old 02-11-08, 02:37 PM
  #7
needs more track time
Thread Starter
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Mahjik - if you have some time, can you measure diameter and height on that Greddy can? Trying to figure out where I could mount something like that....

Thanks in advance.
gracer7-rx7 is offline
Old 02-11-08, 02:40 PM
  #8
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by gracer7-rx7 View Post
Mahjik - if you have some time, can you measure diameter and height on that Greddy can? Trying to figure out where I could mount something like that....
Sure, I'll post them late tonight. I will be mounting mine in the area where my airpump used to be, basically in line with the stock oil venting line which ran to the primary turbo elbow.
Mahjik is offline
Old 02-11-08, 02:49 PM
  #9
ArmitageFD3S
iTrader: (13)

ArmitageGVR4's Avatar

Join Date: Oct 2002
Location: Herndon, Virginia
Posts: 2,207
Received 8 Likes on 6 Posts
I had the Gotham racing catch can and I couldn't for the life of me figure out where I was going to fit it in my cramped engine bay either... So I sold it.

Then I replaced my '93 filler neck with the RE-Speed baffled one, blocked off the breather line to the UIM, and figured that'd be that. The very next time I took the car out to an autox, not even a track event, under hard right cornering at near redline, oil particles started spewing out my BOV whenever I got off boost just like before. So now I guess it's time to reconsider that catch can. That or I've got residual oil built up in my I/C and it's coming out.

Sorry for the rant. I know it wasn't helpful at all, but I had to get that off my chest.
ArmitageGVR4 is offline
Old 02-11-08, 02:56 PM
  #10
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
I'm planning to mimic Crispy's setup:

1. Baffled oil pan
2. ReSpeed baffled oil filter neck
3. Catch tank

I'm hoping that should do the trick, but we'll see here in about a month or so.
Mahjik is offline
Old 02-11-08, 04:01 PM
  #11
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
I put together a catch can made from a bicycle water bottle and bike mount. It's got one line going to what was the center drinking spout to the oil cap, and another line coming off the cap that goes to the turbo inlet. It's WAY better than the GReddy I tried, because the GReddy requires that you dissassemble the whole bloody thing to empty it. I was filling it ever run.

I fill the water bottle ever run too (similar capacity), but all I do is lift it out of the mount, unscrew the bottle, dump, replace.
ptrhahn is offline
Old 02-11-08, 07:57 PM
  #12
Searching for 10th's
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by ptrhahn View Post
I put together a catch can made from a bicycle water bottle and bike mount. It's got one line going to what was the center drinking spout to the oil cap, and another line coming off the cap that goes to the turbo inlet. It's WAY better than the GReddy I tried, because the GReddy requires that you dissassemble the whole bloody thing to empty it. I was filling it ever run.

I fill the water bottle ever run too (similar capacity), but all I do is lift it out of the mount, unscrew the bottle, dump, replace.
Sounds like a great idea.

Can you post a picture of that setup?
jkstill is offline
Old 02-11-08, 09:22 PM
  #13
Mr. Links
15 Year Member
iTrader: (1)

Mahjik's Avatar

Join Date: Aug 2001
Location: Kansas City, MO
Posts: 27,592
Likes: 0
Received 4 Likes on 4 Posts
Originally Posted by gracer7-rx7 View Post
Mahjik - if you have some time, can you measure diameter and height on that Greddy can?
Basically 7" tall, the base is 4" x 3" (kind of an odd shape).
Mahjik is offline
Old 02-11-08, 09:47 PM
  #14
needs more track time
Thread Starter
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Thanks Mahjik.

That is pretty odd. I'm going to poke around and see where something like that would fit.


Now that Peter posted, I remember seeing a pic of his setup but I can't find it in a search anymore. I'll try again later.
gracer7-rx7 is offline
Old 02-11-08, 10:27 PM
  #15
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
^^^^

It may not be the latest, I've made like 6-7... one used a bicycle bottle with a little K&N lawn mower filter on top.... I'll try and snap one of the latest and greatest.
ptrhahn is offline
Old 02-12-08, 07:05 AM
  #16
Rotary Freak
iTrader: (5)

Johny zoom's Avatar

Join Date: Jun 2002
Location: Va
Posts: 1,549
Likes: 0
Received 0 Likes on 0 Posts
Originally Posted by Mahjik View Post
I'm planning to mimic Crispy's setup:

1. Baffled oil pan
2. ReSpeed baffled oil filter neck
3. Catch tank

I'm hoping that should do the trick, but we'll see here in about a month or so.
Whats the purpose of the baffled pan? Ill be running a REW with 2nd gen pan and it currently has no baffle

Johny
Johny zoom is offline
Old 02-12-08, 08:19 AM
  #17
Lives on the Forum
iTrader: (8)

ptrhahn's Avatar

Join Date: Feb 2002
Location: Arlington, VA
Posts: 8,492
Received 20 Likes on 19 Posts
^^^

It's to prevent oil slosh on hard corners, that results in it being sucked up and out of the oil filler tube with the "crankcase" pressure.
ptrhahn is offline
Old 02-14-08, 01:19 PM
  #18
needs more track time
Thread Starter
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Found your pic you were talking about.
https://www.rx7club.com/showpost.php...65&postcount=3

Last edited by gracer7-rx7; 02-14-08 at 01:40 PM.
gracer7-rx7 is offline
Old 02-14-08, 09:14 PM
  #19
Rotary Enthusiast
10 Year Member
iTrader: (2)

silverflash2's Avatar

Join Date: Sep 2002
Location: FL
Posts: 924
Likes: 0
Received 0 Likes on 0 Posts
I bought a JM Fab vent catch can listed here

http://www.maperformance.com/store/p...at=1368&page=1

Does anybody have a diagram of where this should be routed? I'm not really sure how to hook this up. I will be running a single turbo.
silverflash2 is offline
Old 05-14-08, 05:24 PM
  #20
Rotary Freak

iTrader: (11)

ALNY93R1's Avatar

Join Date: Mar 2002
Location: New York
Posts: 1,785
Received 0 Likes on 0 Posts
How did this unit workout for you?.




Originally Posted by silverflash2 View Post
I bought a JM Fab vent catch can listed here

http://www.maperformance.com/store/p...at=1368&page=1

Does anybody have a diagram of where this should be routed? I'm not really sure how to hook this up. I will be running a single turbo.
ALNY93R1 is offline
Old 05-21-08, 06:56 PM
  #21
Senior Member

TrentO's Avatar

Join Date: Jul 2003
Location: Edmonton, AB, Canada
Posts: 408
Likes: 0
Received 0 Likes on 0 Posts
I have a hand built aluminum box sitting above the oil filler with AN-12 hose into the filler. The vent tube goes into the side of the can and it has a small breather to atmosphere on the front. While oil still gets pushed up in hard right hand corners it quickly drains back down once I straighten out. I used to fill two quart oil cans in about ten minutes before I built the drain back box. Now, no issues. I have a screw in AN 16 fitting the top of the box for adding oil to the engine.

-Trent
TrentO is offline
Old 05-21-08, 07:13 PM
  #22
needs more track time
Thread Starter
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Originally Posted by TrentO View Post
I have a hand built aluminum box sitting above the oil filler with AN-12 hose into the filler. The vent tube goes into the side of the can and it has a small breather to atmosphere on the front. While oil still gets pushed up in hard right hand corners it quickly drains back down once I straighten out. I used to fill two quart oil cans in about ten minutes before I built the drain back box. Now, no issues. I have a screw in AN 16 fitting the top of the box for adding oil to the engine.

-Trent

Sounds cool. Post up some pics. I'd love to see this.
gracer7-rx7 is offline
Old 05-25-08, 02:30 PM
  #23
Searching for 10th's
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
I'm getting one of these:

https://www.rx7club.com/attachment.p...7&d=1203618024

From this thread:

https://www.rx7club.com/showpost.php...&postcount=708

It fits in the area formerly occupied by a vacuum chamber.

afgmoto1978 is fitting a vmount setup in my car, and I'm getting the custom catch tank as well. Oil will be routed back to the crankcase.

It's a pretty cool piece of fab work.
jkstill is offline
Old 05-25-08, 03:12 PM
  #24
needs more track time
Thread Starter
iTrader: (14)

gracer7-rx7's Avatar

Join Date: Mar 2006
Location: Bay Area CA
Posts: 7,833
Received 14 Likes on 13 Posts
Cool but most sanctioning bodies require something of larger capacity. NASA says 1 quart. I know the 1 pint is a bit small and can fill up every session on some tracks.
gracer7-rx7 is offline
Old 05-25-08, 08:31 PM
  #25
Searching for 10th's
iTrader: (11)

jkstill's Avatar

Join Date: May 2002
Location: Portland OR
Posts: 2,192
Received 4 Likes on 3 Posts
Originally Posted by gracer7-rx7 View Post
Cool but most sanctioning bodies require something of larger capacity. NASA says 1 quart. I know the 1 pint is a bit small and can fill up every session on some tracks.
Since it doesn't require emptying, why should it matter?
jkstill is offline
