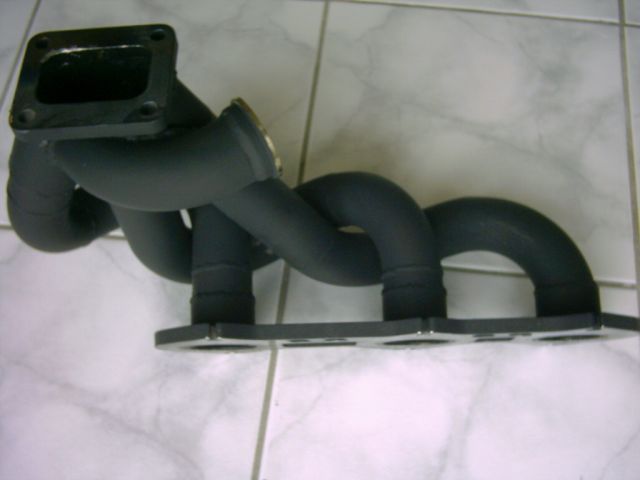

Hi, what do you thing of the design and wastegate location?

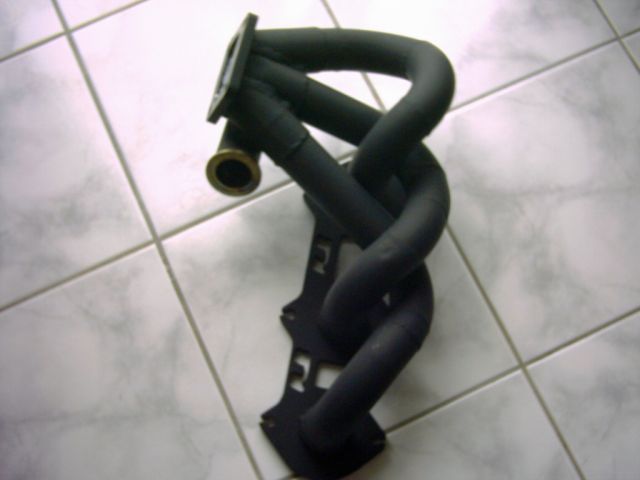

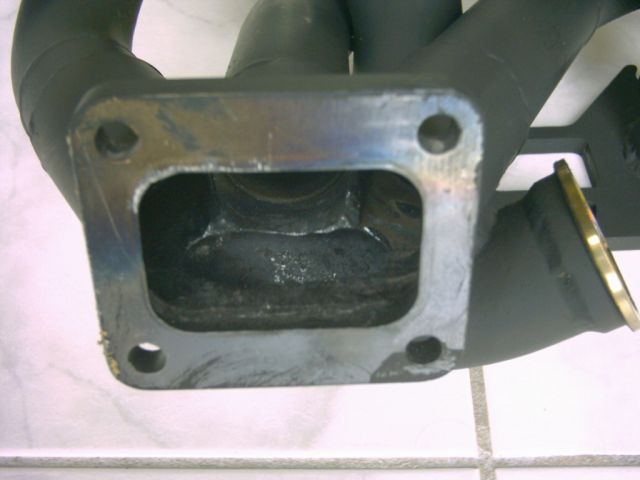

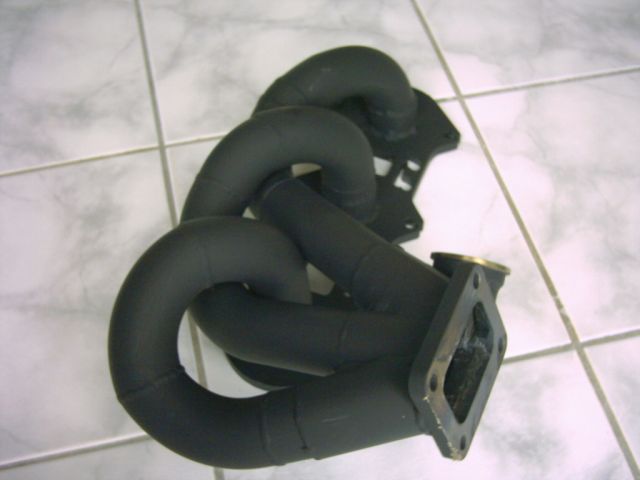

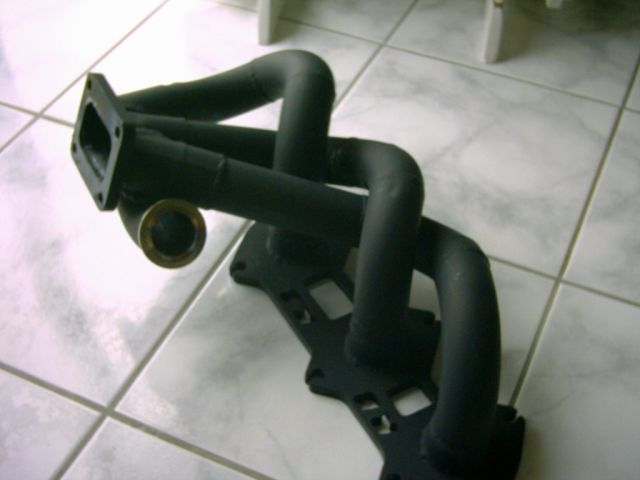

more pic and spect: 2.00"o/d tube 23.00" equal lenght.



Looks like a great design in and of itself. . .I'd have to see where it places the turbo to sign off on it as best manifold ever, but that's really a subjective thing for the most part anyway. It looks terrific, the wastegate should be able to provide more than adequate boost control being located at the collection point, near the turbine housing entrance like that.

Nicely done, please follow up with installed photos.



Thanks Calculon, no more comment from other guys?



Looks great! Is it equal length?



Cosmetically it looks more production ready than your older one. The runners also look more even. Why did you fab this one? You didn't appear to be having problems with the older one. Did I miss something?



that manifold looks badass! The wastegate location looks like it should be fine it is in the middle of all three runners.... dont be mad if i copy that design!



Yes it'all same lenght 23.00"
Why i fab new one: because i change turbo size and relocate for more clearance for 4.00" downpipe. I will post pic with turbo in car.



That seems like a pretty long runner length. . .did you decide on that before you started the build, or is it a result of building for fitment? If the former, to any degree, if you wouldn't mind sharing your reasoning on building that length, I'd be interested to hear it.

Thanks.
ryan



Looks good and well thought out.
Is it mild steel?



It's a result of my requierement: first, i don't want tight radius at the housing exit,
no tight turn radius, equal lenght, turbo position and little for look Ha ha ha.
Yes i made in mild steel.



great job



Thanks, i will try car this week-end for the first time with this set up.
I let you know how GTK and manifold work.



how was the ride!!!
