Shaping up quite well there.. Day jobs do tend to get in the way!

I reckon you come of the top of the arch and run that near horiztonal towards the back of the car and then carry the majority of the extra width right through.. Maybe narrow it in a touch as it goes back. Then you could put a nice big rear facing vent detail at the back of the car. I guess something similar to the Veilside fortune kit thinking about it?
Hey just my two pence!
If I have fun and games with my fibre glass kit this time I think I will go this route next time. Working with metal is so much nicer in some respects..



This thread makes me happy. Lol

Good work. You have some skill.



Nice work. I like the idea of metal as well. That looks a lot like my winter project last year. ( see pic ) I might sell these rear wheels if you are interested.



Hey, thats one cool looking FD. I do have a company in the UK that will be building my wheels but thanks for the offer.

Some sunday work!



Don't your rear fenders produce a lot of back pressure/drag or whatever it's called?

Doesn't look very aerodynamic :o



Bit of tweeking to be done but with the car on jacks you get a referance of how far out the wheels sit. Obviously these are only 9" wide not the 13" that will be needed....



man .........and here i thought my conversion was hard
really did a number there buddy ,cant wait to see that thing done
should be interesting with that turbo boosted and all that tire meat , should punish asphalt lime crazy
keep the pics coming



There probably is a fair bit of drag, but with 740 whp its hard to tell. I went back to the smaller flares and we are building a new car with straight sides.



looks like bat mobileat the back



Yeah a couple of customers have said that to me.



That front looks to be taking shape quite nicely! Are you planning on taking a complete new bumper moulding or just making add on GRP/carbon bits?
Looking good though either way!

Lee



I am sure you have got this one covered but thought I might just mention it.. Have you check the turning arc of the wheel in the front arches? Depending on what you are doing with the suspension and spacers etc the wheel could have quite a wide arc.. I would hate you to get all done and have some arch rub..

Please do not take this as patronising in anyway. it's the sort of thing I would do with my head down in my work!



The front is starting to look pretty nice Keep up the good work!



update?



Slow.

Had a few issue at work that have caused a complete hault on both my RX's. Very nealy resolved now so i should be able to get things moving again.

Next stage is to get the wings etc all welded up then start on the cage and under body bracing.

Also turns out that u can get off the shelf wheels for fit the car now so silly expensive custom ones arn't needed. I have a conversaion with the guys at Barwell near me in the UK. They build and maintain the GT1 and GT3 Aston Martins. Basically i will be running 18x10 et0 fronts on a 60mm bolt on spacer with Hi tenstile studs in both the hub and the spacer. The the rear will be a 18x12 et0 again with a 60mm bolt on. 285's on the front and 315 or 335 on the rears. Not sure yet.

Still considering the rad in the rear. But in terms of progress.... Zero i'm affraid.



I actually got a few moments to weld some stuff up.... then had to put her away again!





the body

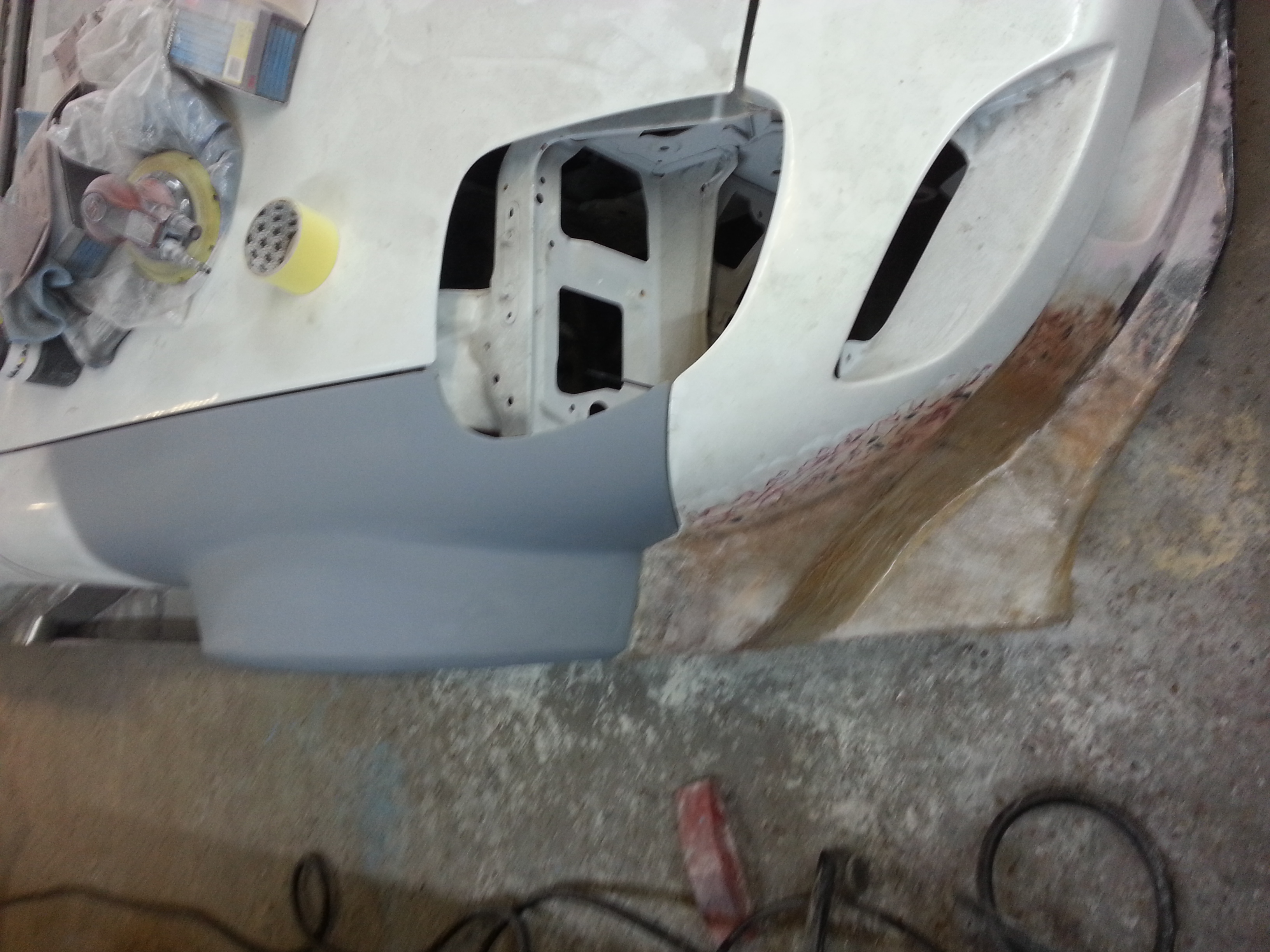

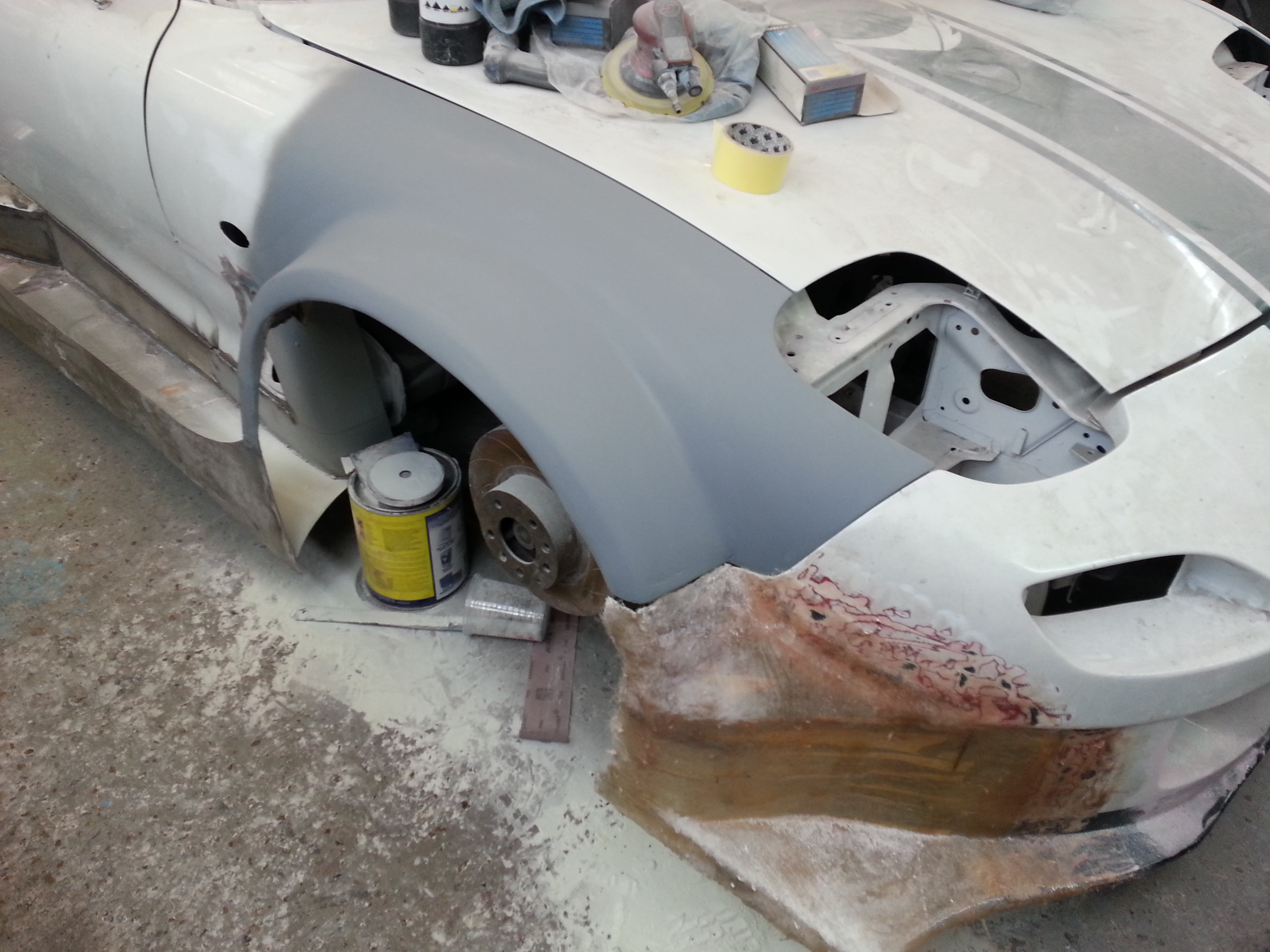

Well a few hours later I managed to get the front arches pretty much done!








Painfully slow progress!



This is gonna be awsummm

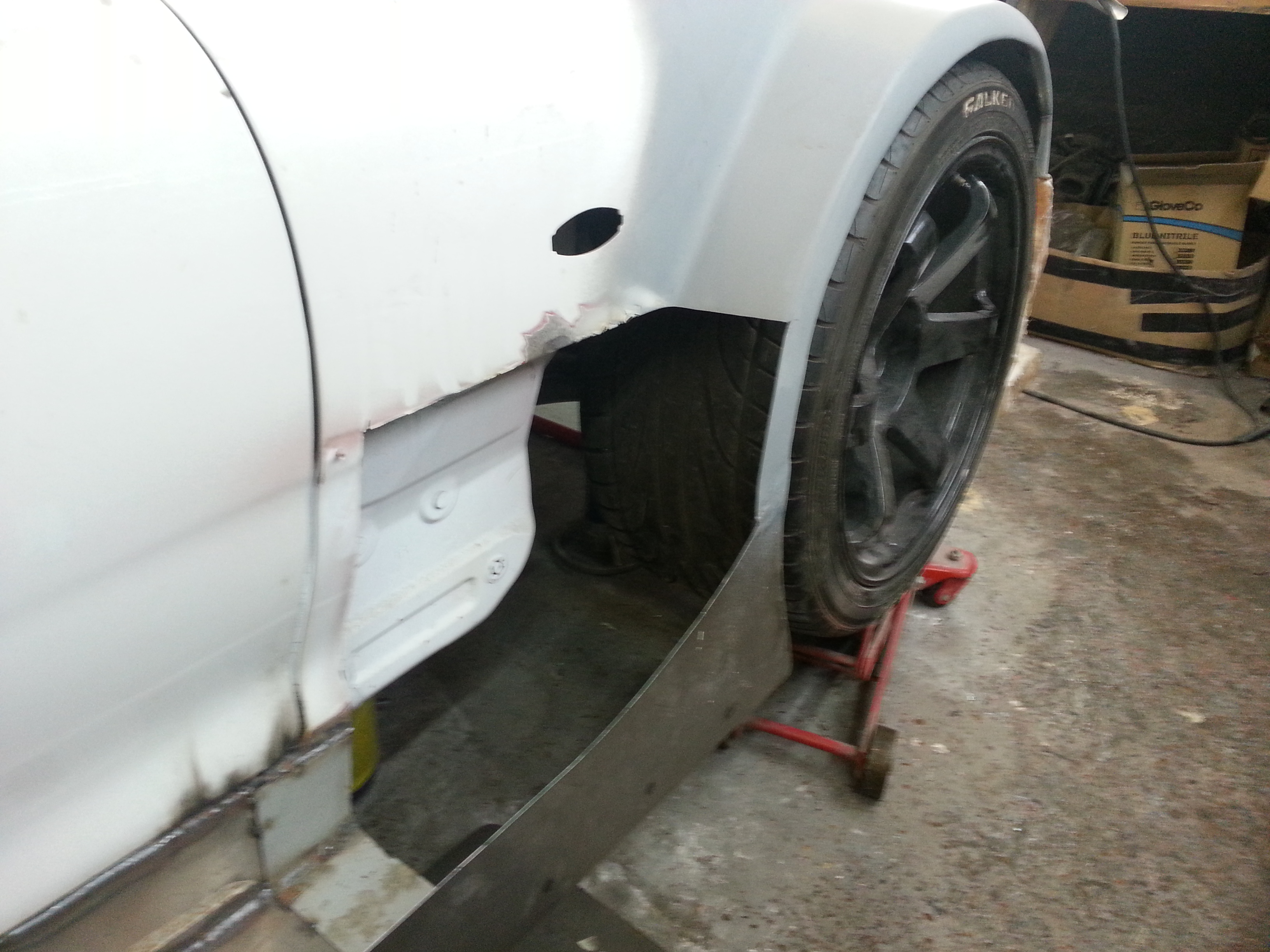

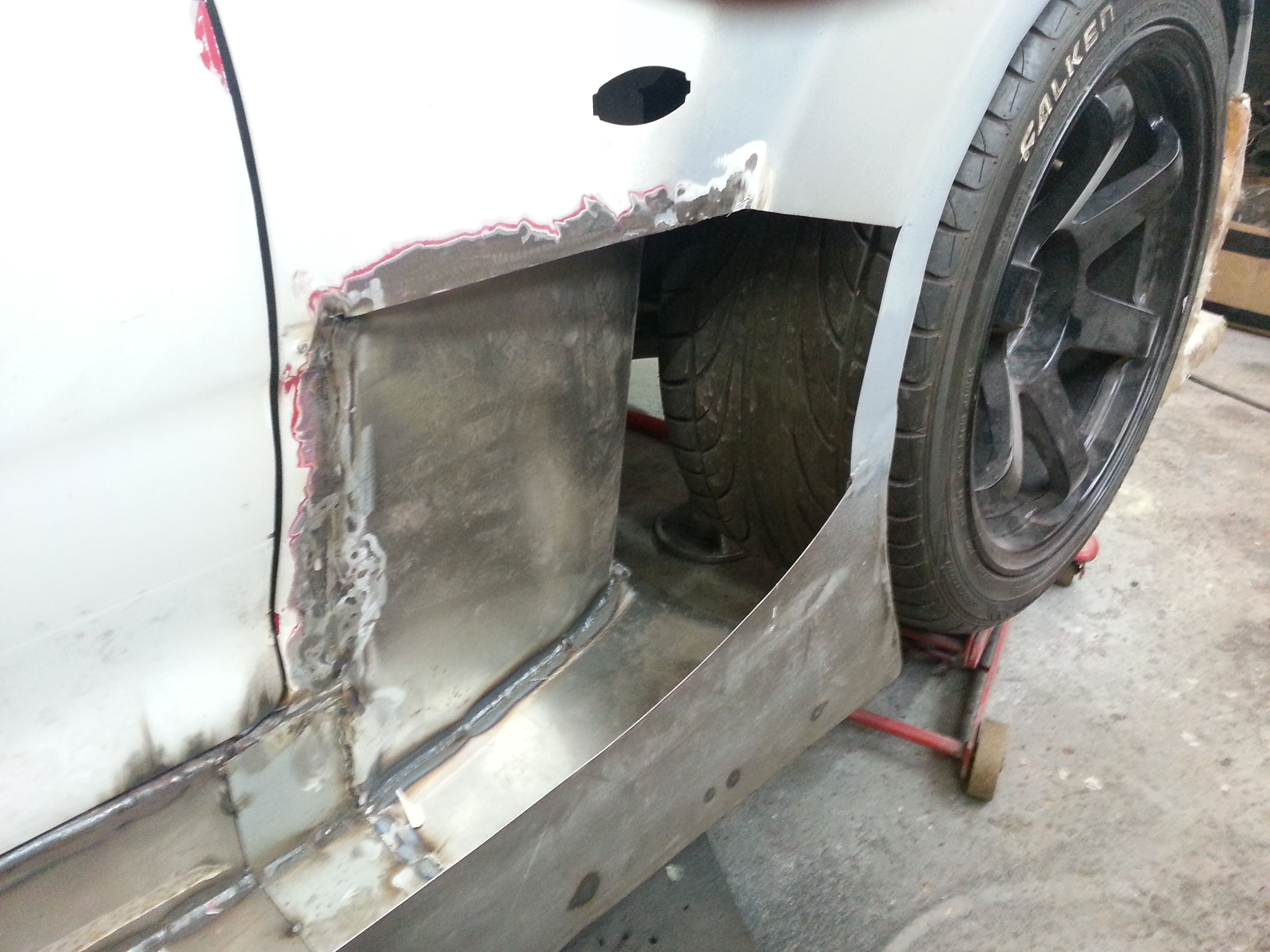

I wasn't really feeling the lower section of the wheel arch on this. Had to take a step back and re-evaluate it. So got the choppy and weldy gear out and made it better...... Get that air out that wheel well!

The chop



new section





The body now, after I have done the same mod to the other side, isn't far off being primed! That will be nice.



Looking real nice, good skills



subscribed!



Cheers people,

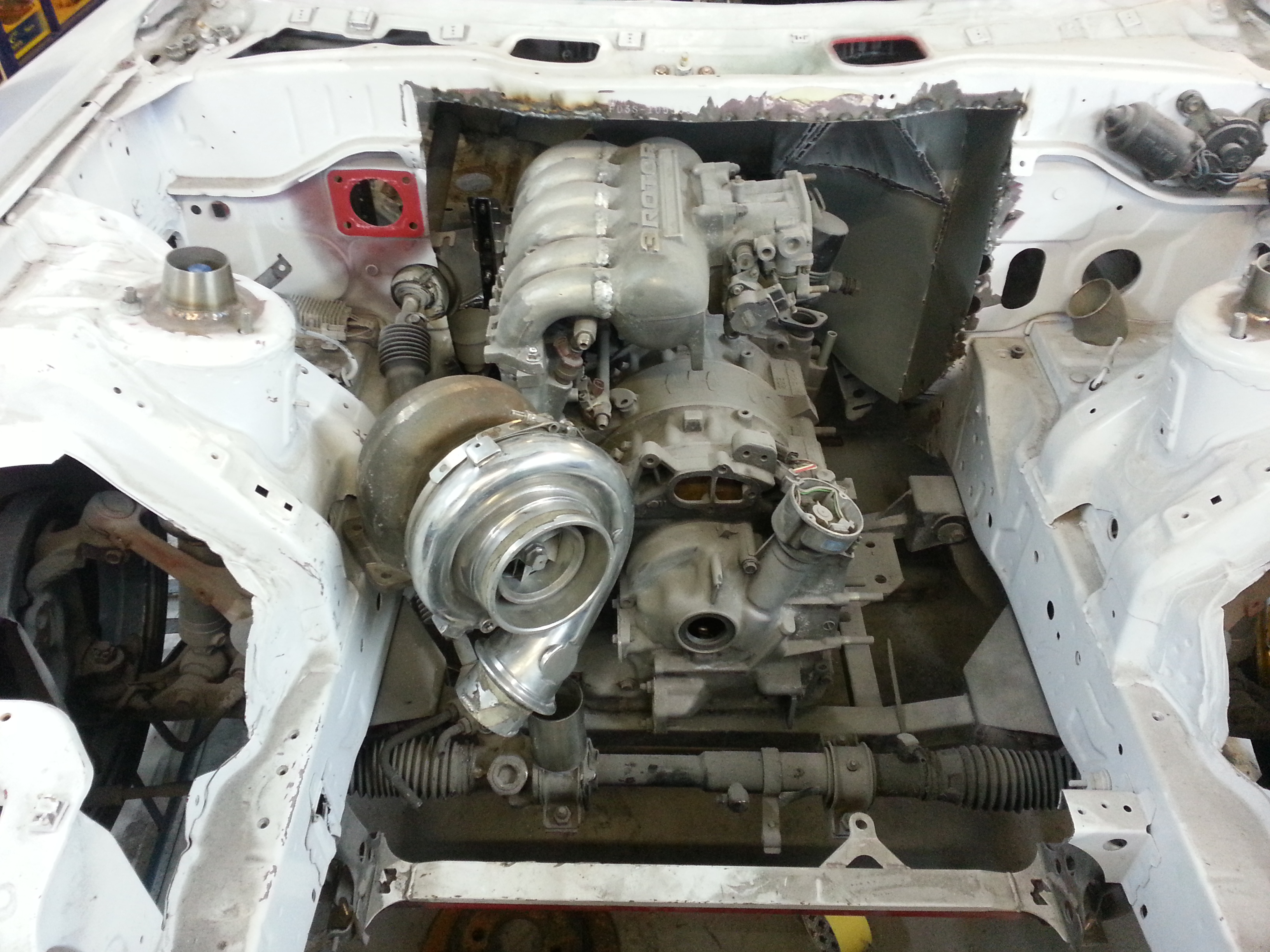

I have been looking at car today as I was talking about turbos with a mate of mine. Havevbeen considering re thinking the location. Originally planned was to run it across the front of the engine to keep the weight in the middle of the cat. But after having spoken to the guys at mazdatrix and looked at a dyno sheets I think the share 90 degree exit of the down pipe from the turbo will cause exhaust issues. So I might run it like this instead. Would also mean shorter primaries which isn't a bad thing.



I like the look of that

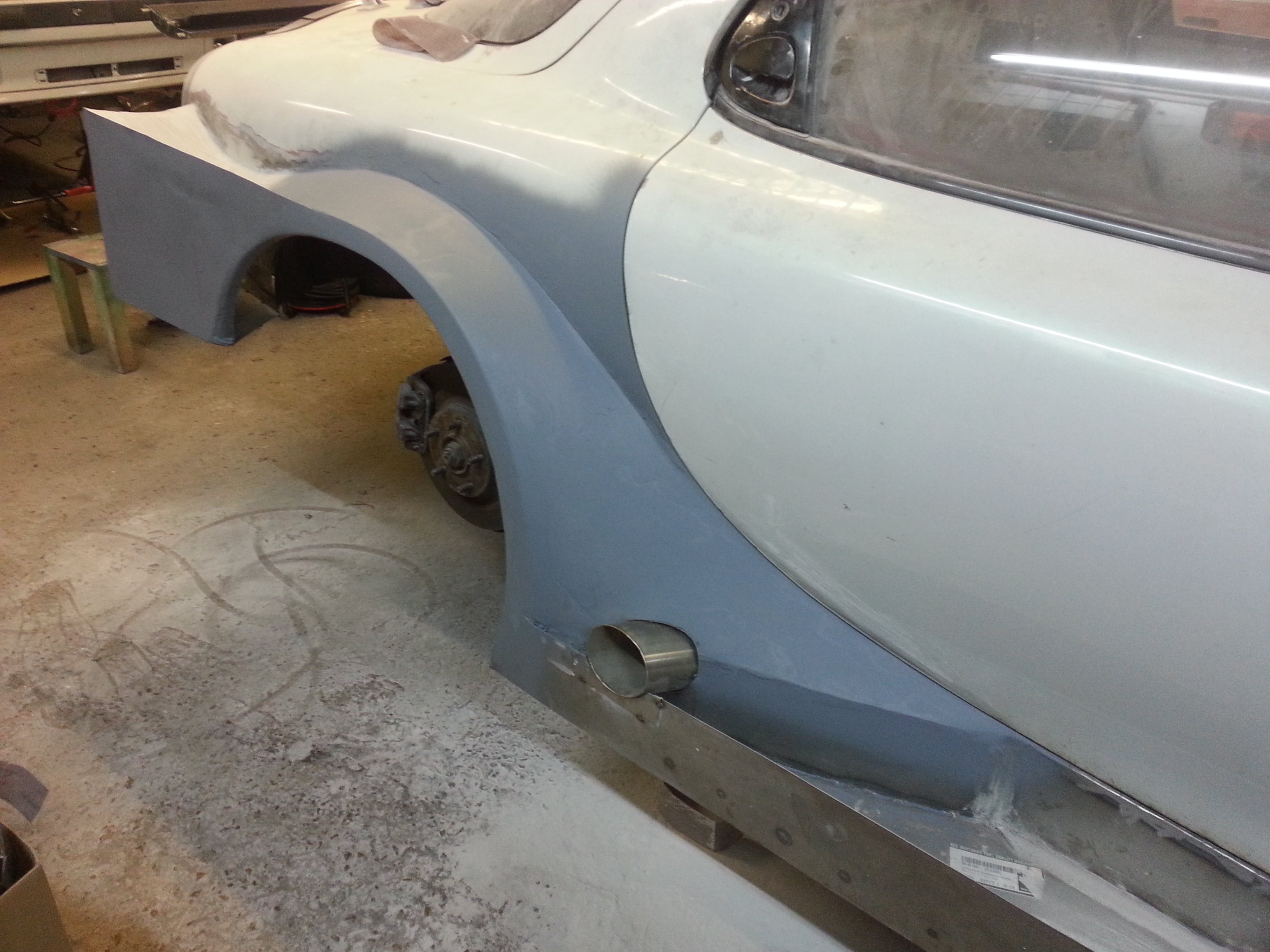

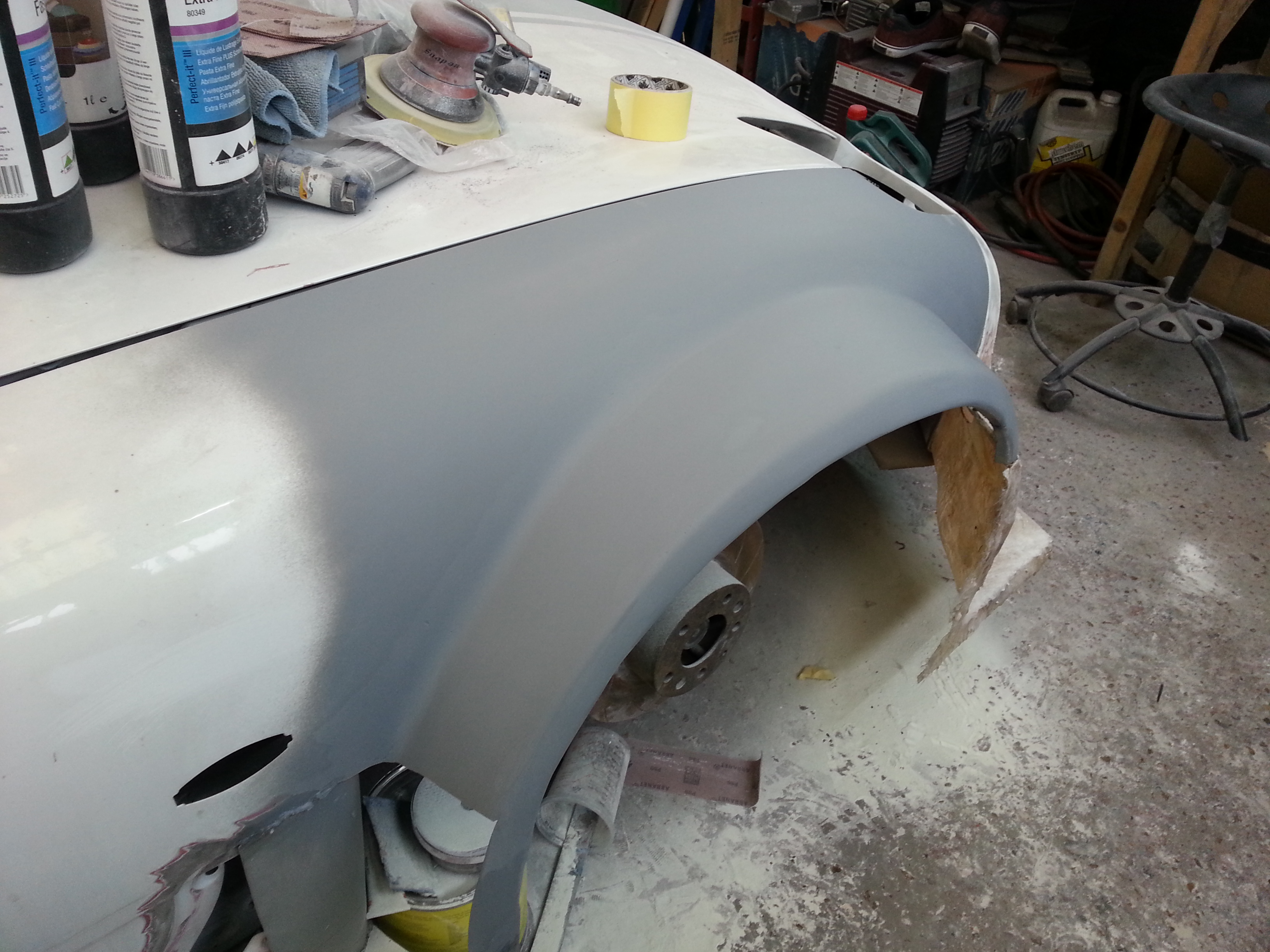

Well whilst debating turbo locations back to the pressing issue of the body. Did a bit this evening. Touch of filler in there and a quicky guide coat that I'll flat back in the morning. Still need some rounding off and blending into the body but it nice to see it coming together

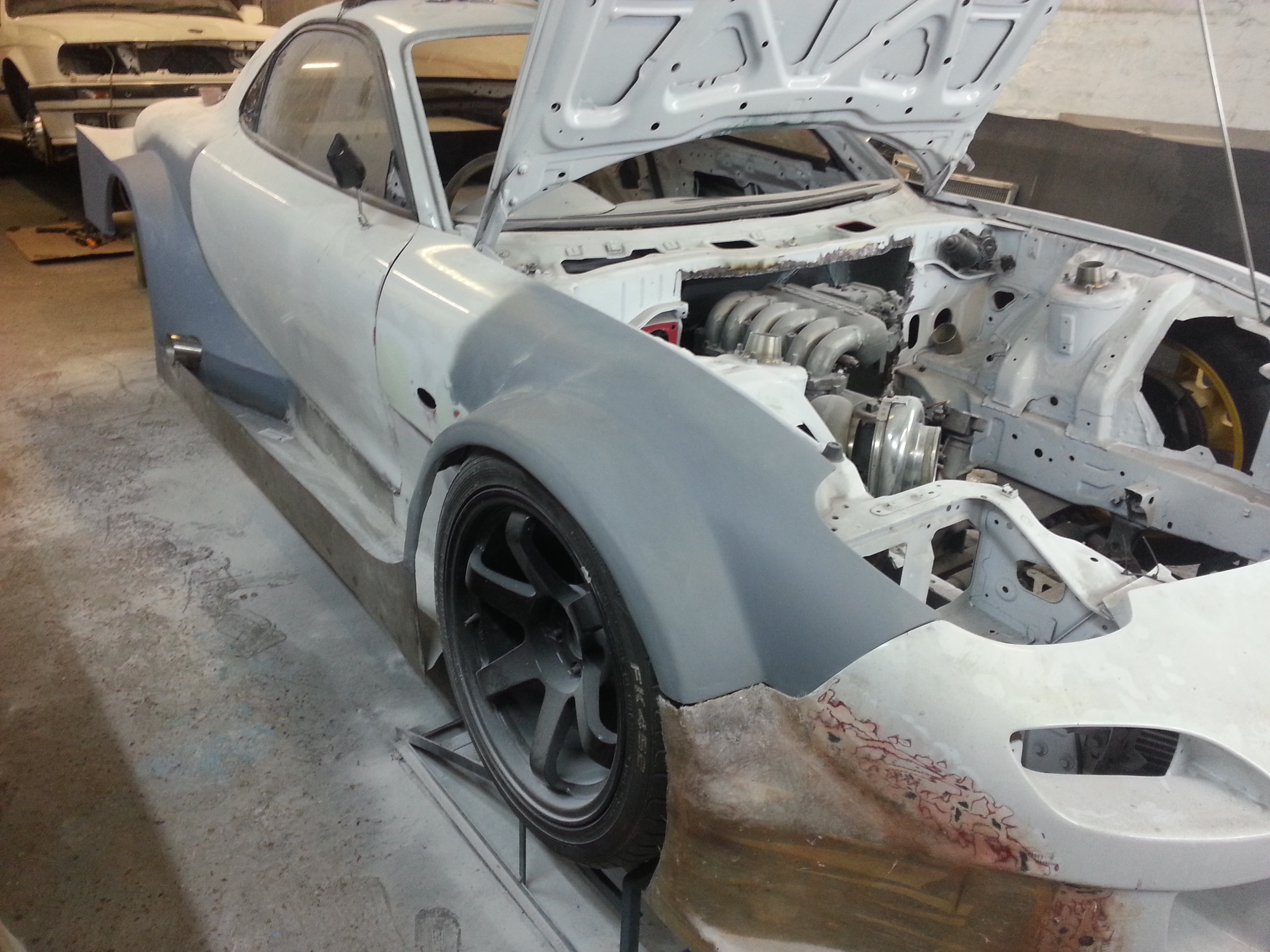

Whole car



Rear wing



I like this built
